XS-IPT990ZA-8P-DL-WIZ
Ga direct naar de productinformatie
XS-IPT990ZA-8P-DL-WIZ

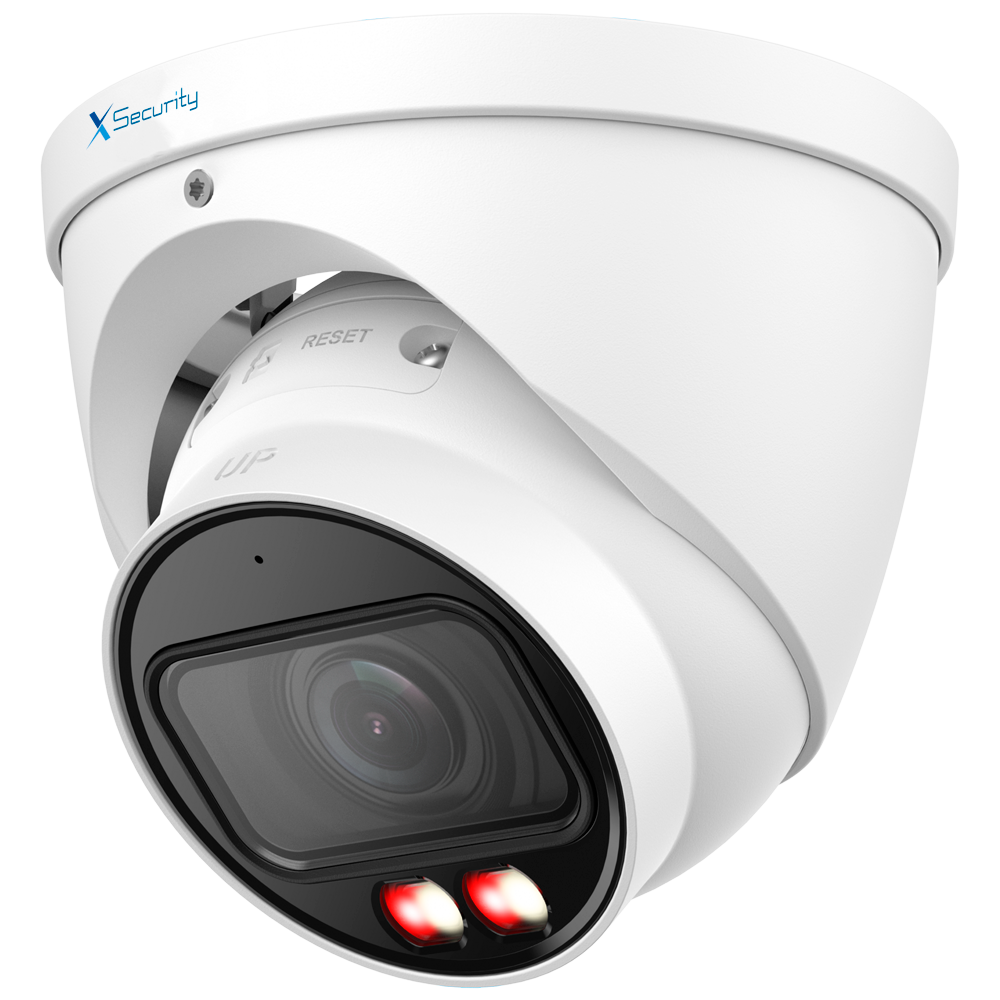

- X-Security IP Turret Camera
- 8 Megapixel (3840x2160)
- 2.7~13.5 mm Motorised Lens
- WDR 120dB | Dual Light range 40 m
- WizSense, with human and vehicle classification
- MicroSD | IP67 | PoE | SMD Plus
- X-Security
- IP Turret Camera
- PRO Range
- 1/2.7" Progressive CMOS
- 8 Megapixel (3840x2160)
- 2.7~13.5 mm Varifocal Motorised Lens
- 0.008 lux@F1.5 (Color, 30 IRE)
- Dual light: IR + White LED
- Dual Light range 40 m
- Compression H.265; H.264; H.264H; H.264B; MJPEG
- RJ-45 10/100 BaseT
- SMD Plus Smart Search
- IVS WizSense: classification of human and vehicle
- Built-in microphone
- WDR 120 dB
- IR Cut
- MicroSD card slot up to 256 GB
- PoE (IEEE802.3af)
- Weatherproof IP67
- ONVIF Compatible
Specifications
| Brand | X-SECURITY |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Image sensor | 1/2.7” Progressive CMOS |
| Lens | 2.7~13.5 mm Varifocal Motorised Lens |
| Viewing angle | H: 114°~32°; V: 58°~17°; D: 138°~36° |
| Range performance | 85.3~280 m (D), 34.1~112 m (O), 17.1~56 m (R), 8.5~28 m (I) |
| Main Stream rate | 3840x2160@(1–20 fps) / 2688x1520@(1-25/30 fps) |
| Extra Stream rate | 704x576@(1–25 fps) / 704x480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Minimum illumination | 0.008 lux@F1.5 (Color, 30 IRE) 0.0008 lux@F1.5 (B/W, 30 IRE) 0 lux (with illuminator on) |
| Dual Light | Detection modes: Intelligent Mode (By default, IR activated and switches to white LED in the presence of a target) IR mode White LED mode |
| IR range | 40 m (IR) 40 m (White light) |
| Image improvements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart Dual Light, Mirror effect, Privacy masking |
| SMD Plus | Yes (Human and vehicle based motion detection) |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Using microSD card or NVR X-Security |
| Network interface | Ethernet 10/100M BaseT |
| Audio | Integrated microphone |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Remote access | WEB, CMS (Smart PSS Lite / DSS / DMSS), Smartphone and NVR interface |
| Interoperability | ONVIF (Profile S/Profile T); CGI |
| Power | DC 12 V / 8.4 W max. PoE IEEE802.3af / 10.1 W max. |
| Temp. operation | -30º C ~ +60º C |
| Material | Metallic |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 122 (Φ) x 108.3 (H) mm |
| Base dimensions | Ø base 122 mm / Ø between bolts 84 mm / 3 bolts |
| Weight | 690 g |
In the box
- X-Security IP camera
- Installation material
- User instructions
- CD with software and instructions
