XS-IPT982CA-8U-WIZCOLOR-TIOC

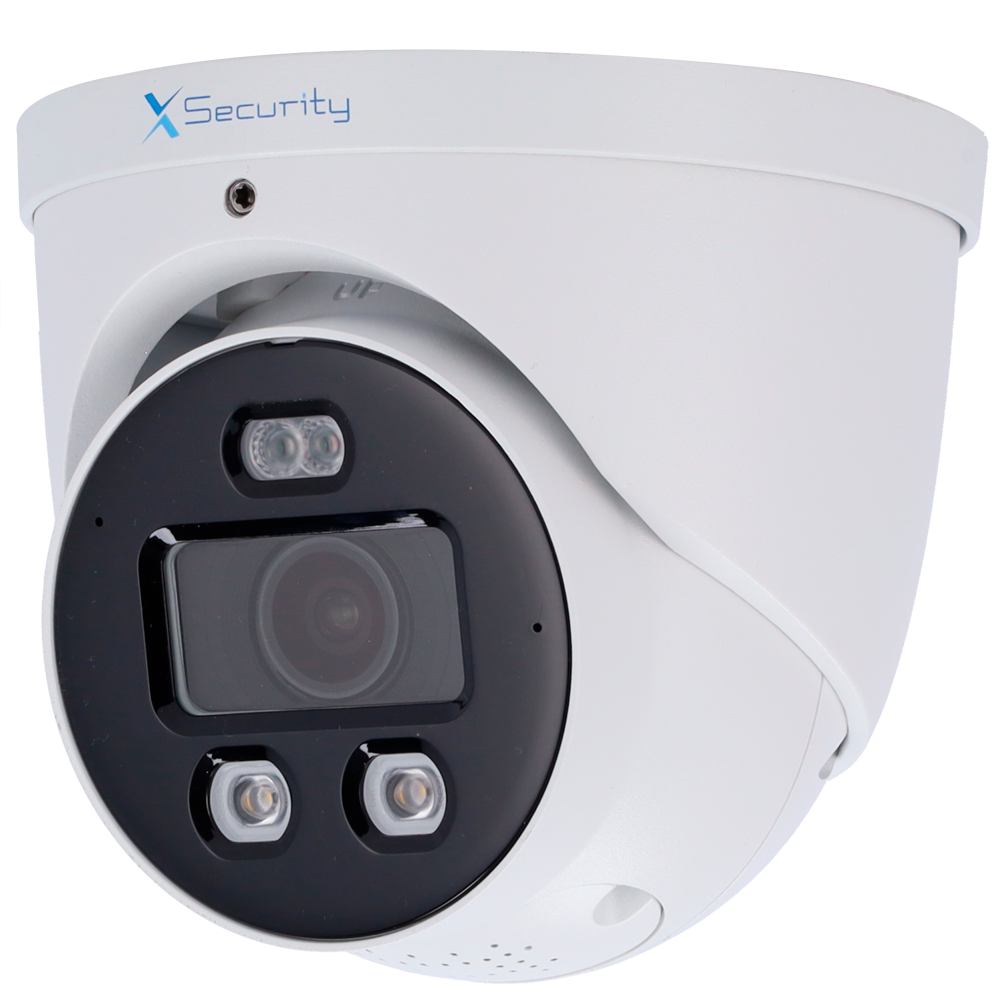

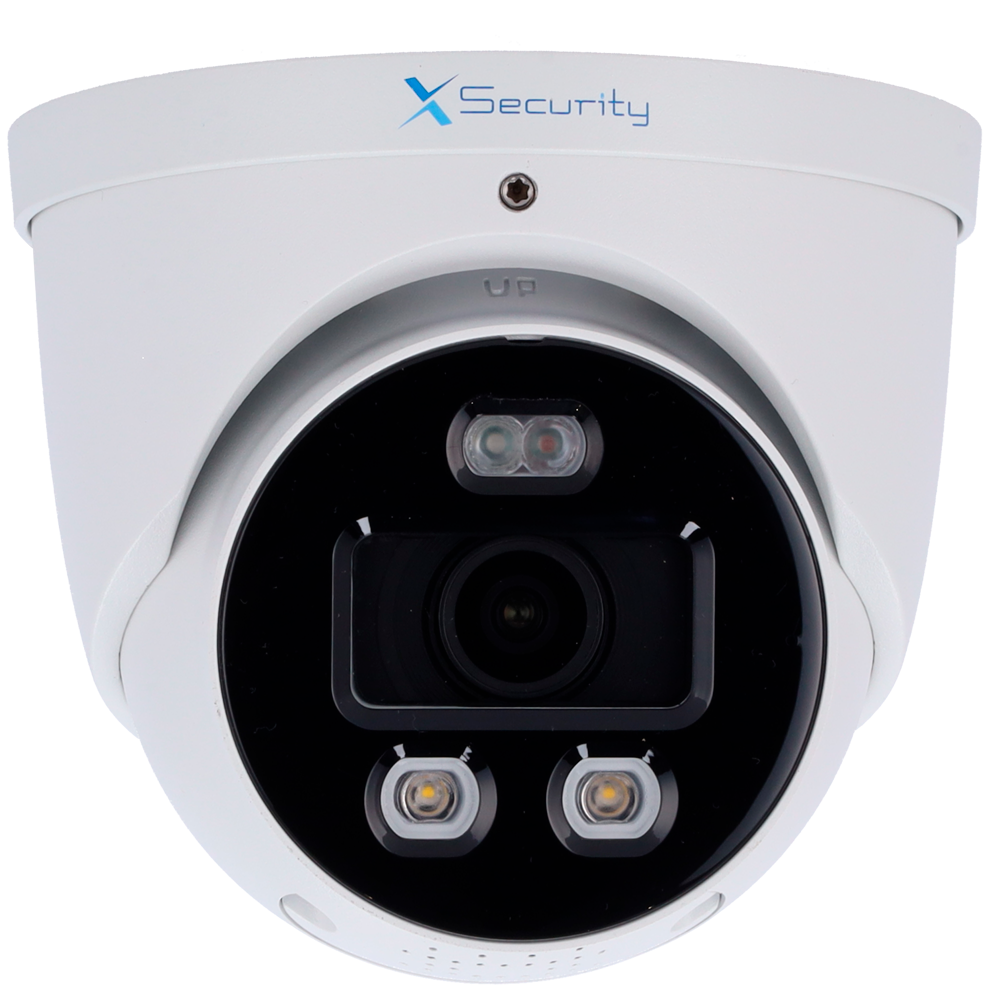

- X-Security Turret Wizcolor IP camera
- 8 Megapixel (3840x2160) | Sensor 1/1.8" CMOS
- Lens 2.8mm | IR+White Light 30m
- WDR 120dB | Built-in microphone
- WizSense, with human and vehicle classification
- MicroSD 512GB IP67
- X-Security
- Turret WizColor IP Camera
- PRO Range
- 1/1.8" Progressive CMOS
- 8 Megapixel (3840×2160)
- 2.8mm lens
- Minimum illumination 0.0008 Lux@F1.0 (Color, 30IRE) | 0.0004 Lux@F1.0 (B/W, 30IRE) | 0 lux with light
- IR range 30m
- White light range 30 m
- Compression H.265; H.264; H.264H; H.264B; MJPEG
- RJ-45 10/100M BaseT
- SMD 4.0
- IVS WizSense: classification of human and vehicle
- Intelligent search
- Built-in microphone
- Audio
- Alarm
- WDR 120dB
- IR Cut
- MicroSD up to 512GB
- PoE IEEE802.3af
- Weatherproof IP67
- ONVIF, CGI compatible
Specifications
| Brand | X-SECURITY |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Image sensor | 1/1.8” Progressive CMOS |
| Lens | 2.8mm |
| Main Stream rate | 3840 × 2160@(1 fps–25/30 fps |
| Extra Stream rate | 1920 × 1080@(1–25/30 fps) |
| Third Stream Rate | 1920 × 1080@(1–25/30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Range performance | D: 82 m O: 32.8 m R: 16.4 m I: 8.2 m |
| FOV | H: 109°; V: 59°; D: 131° |
| Bread/Tilt | Pan: 0°–360° Tilt: 0°–78° |
| Minimum illumination | 0.0008 Lux@F1.0 (Color, 30IRE) | 0.0004 Lux@F1.0 (B/W, 30IRE) 0 lux with light |
| IR and White Light Range | 30 m |
| Image improvements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| SMD Plus | Yes (Human and vehicle based motion detection) |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| TiOC | Combines color surveillance 24/7, active deterrence by light and sound, and artificial intelligence to detect people and vehicles with high accuracy and minimal false alarms. |
| Wizcolor | True-color images 24/7 even in low light and dark conditions. |
| Network interface | Ethernet 10/100M BaseT |
| Audio | 1 Input / Built-in microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Remote access | WEB, CMS (Smart PSS Lite / DSS / DMSS), Smartphone and NVR interface |
| Internal memory | MicroSD up to 512GB |
| Material | Metallic |
| Interoperability | ONVIF (Profile S/Profile T); CGI |
| Power | DC 12 V / 2.5W, PoE IEEE802.3af |
| Temp. operation | -40º C ~ +60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | Φ122.0 mm × 116.1 mm |
| Weight | 800 g |
In the box
- X-Security IP camera
- Installation material
- User instructions
- CD with software and instructions
