XS-IPT981A-6P-DL-WIZ
- X-Security IP Turret Camera
- 6 Megapixel (3288x1850)
- Lens 2.8mm |
- WDR 120 dB | Dual Light range 30 m
- WizSense, with human and vehicle classification
- MicroSD | IP67 | PoE | SMD Plus
- X-Security
- IP Turret Camera
- PRO Range
- 1/2.7" Progressive CMOS
- 6 Megapixel (3288x1850)
- 2.8mm lens
- 0.007 lux@F1.6 (Color, 30 IRE)
- Dual Light: IR + White light
- Dual Light range 60 m
- Compression H.265; H.264; H.264H; H.264B; MJPEG
- RJ-45 10/100 BaseT
- SMD Plus Smart Search
- IVS WizSense: classification of human and vehicle
- Integrated microphone
- WDR 120 dB
- IR Cut

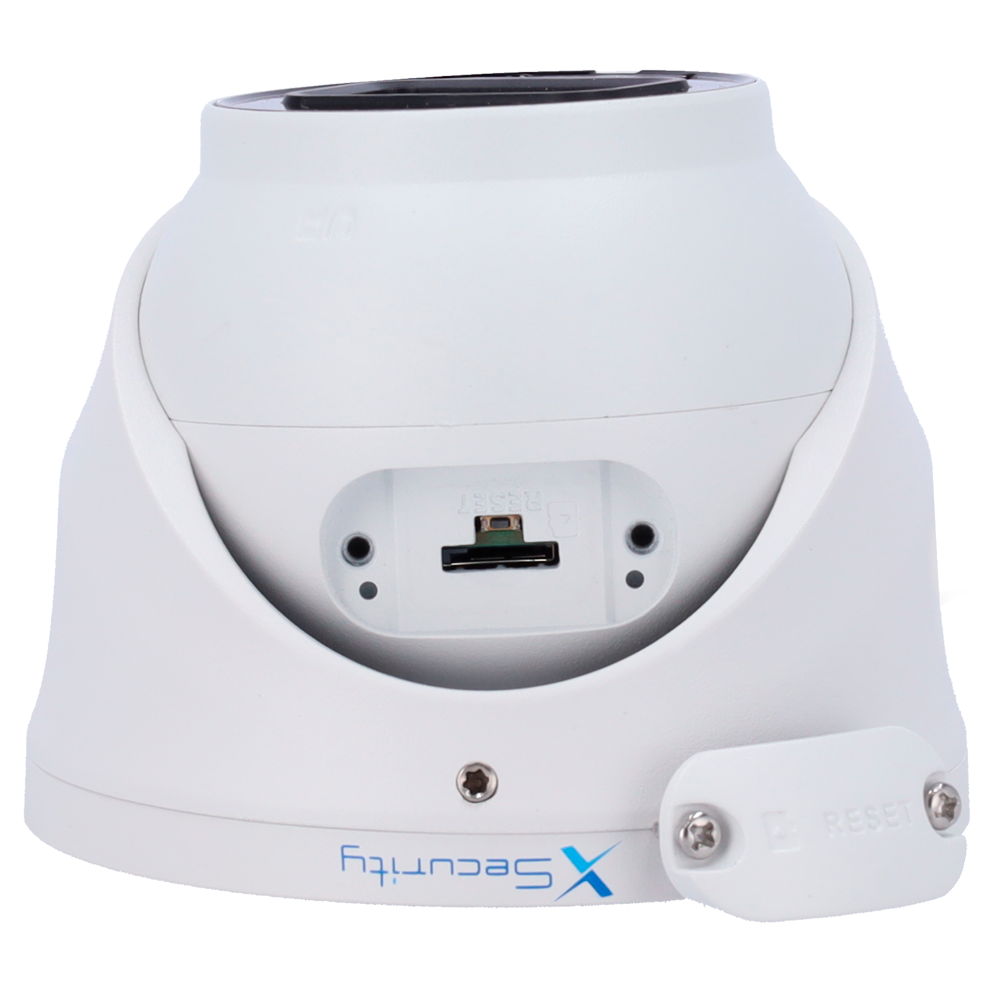

- MicroSD card slot up to 256 GB
- PoE (IEEE802.3af)
- Weatherproof IP67
- ONVIF Compatible
Specifications
| Brand | X-SECURITY |
| Maximum resolution | 6 Megapixel (3288x1850) |
| Image sensor | 1/2.7” Progressive CMOS |
| Lens | 2.8 mm |
| Viewing angle | H: 112°; V: 61°; D: 132° |
| Range performance | 61.2 m (D), 24.5 m (O), 12.2 m (R), 6.1 m (I) |
| Main Stream rate | 3288x1850@(1–20 fps) / 2688x1520@(1-25/30 fps) |
| Extra Stream rate | 704x576@(1–25 fps) / 704x480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Minimum illumination | 0.007 lux@F1.6 (Color, 30 IRE) 0.0007 lux@F1.6 (B/W, 30 IRE) 0 lux (with illuminator on) |
| Dual Light | Detection modes: Intelligent Mode (By default, IR activated and switches to white LED in the presence of a target) IR mode White LED mode |
| IR range | 30 m (IR) 30 m (White light) |
| Image improvements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI, Smart Dual Light, Mirror effect, Privacy masking |
| SMD Plus | Yes (Human and vehicle based motion detection) |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Using microSD card or NVR X-Security |

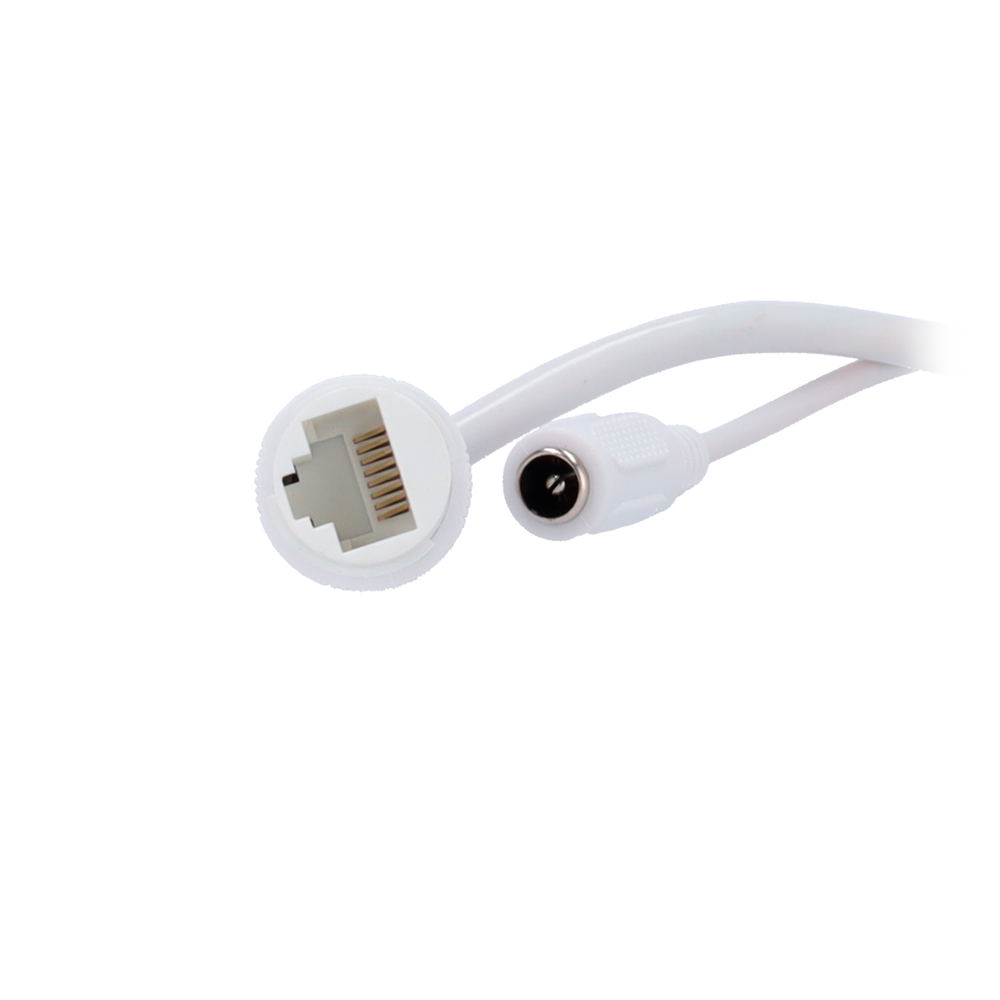

| Network interface | Ethernet 10/100M BaseT |
| Audio | Built-in microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Remote access | WEB, CMS (Smart PSS Lite / DSS / DMSS), Smartphone and NVR interface |
| Material | Body: Metallic Cover: Plastic |
| Interoperability | ONVIF (Profile S, G, T); CGI |
| Power | DC 12 V / 4.6 W max. PoE IEEE802.3af / 5.7 W max. |
| Temp. operation | -40º C ~ +60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 109.9 (Φ) x 100.9 (H) mm |

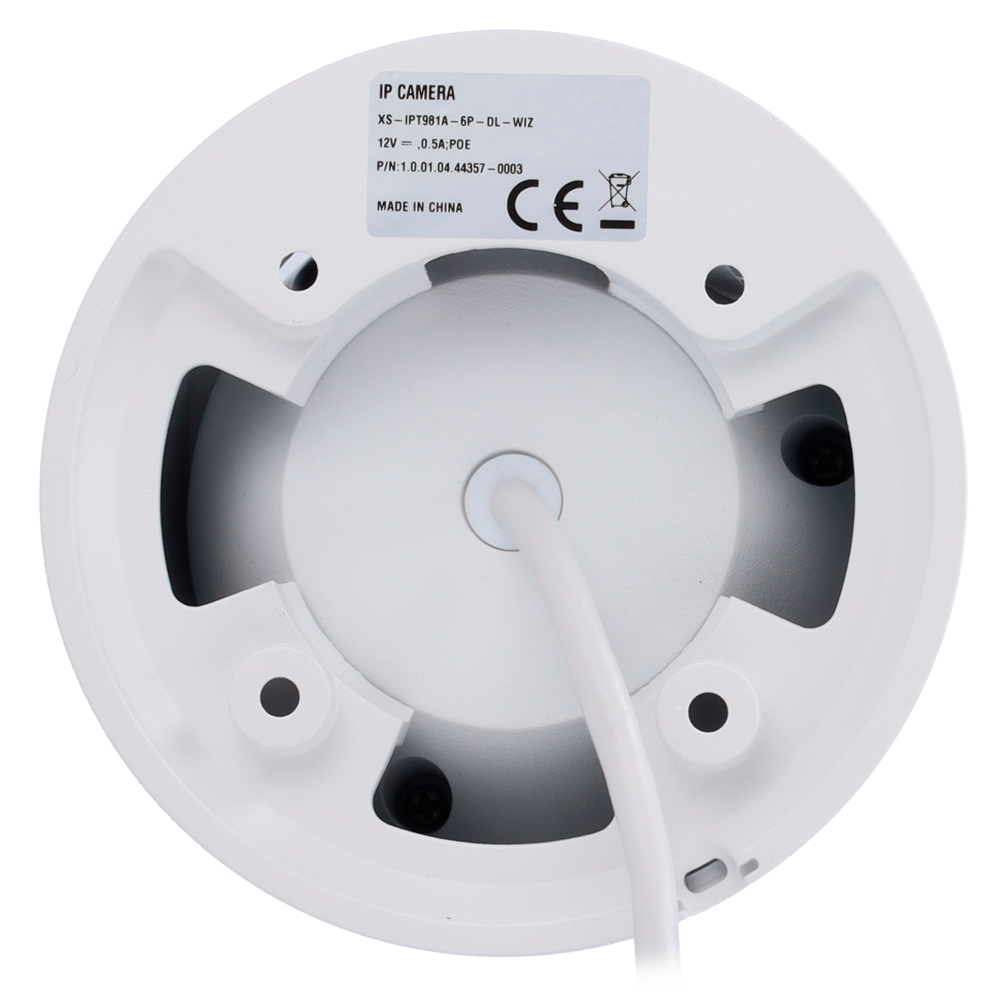

| Base dimensions | Ø base 109.9 mm / Ø between bolts 84 mm / 3 bolts |
| Weight | 380 g |
In the box
- X-Security IP camera
- Installation material
- User instructions
- CD with software and instructions
