XS-IPT744A-4U-DL-WIZ

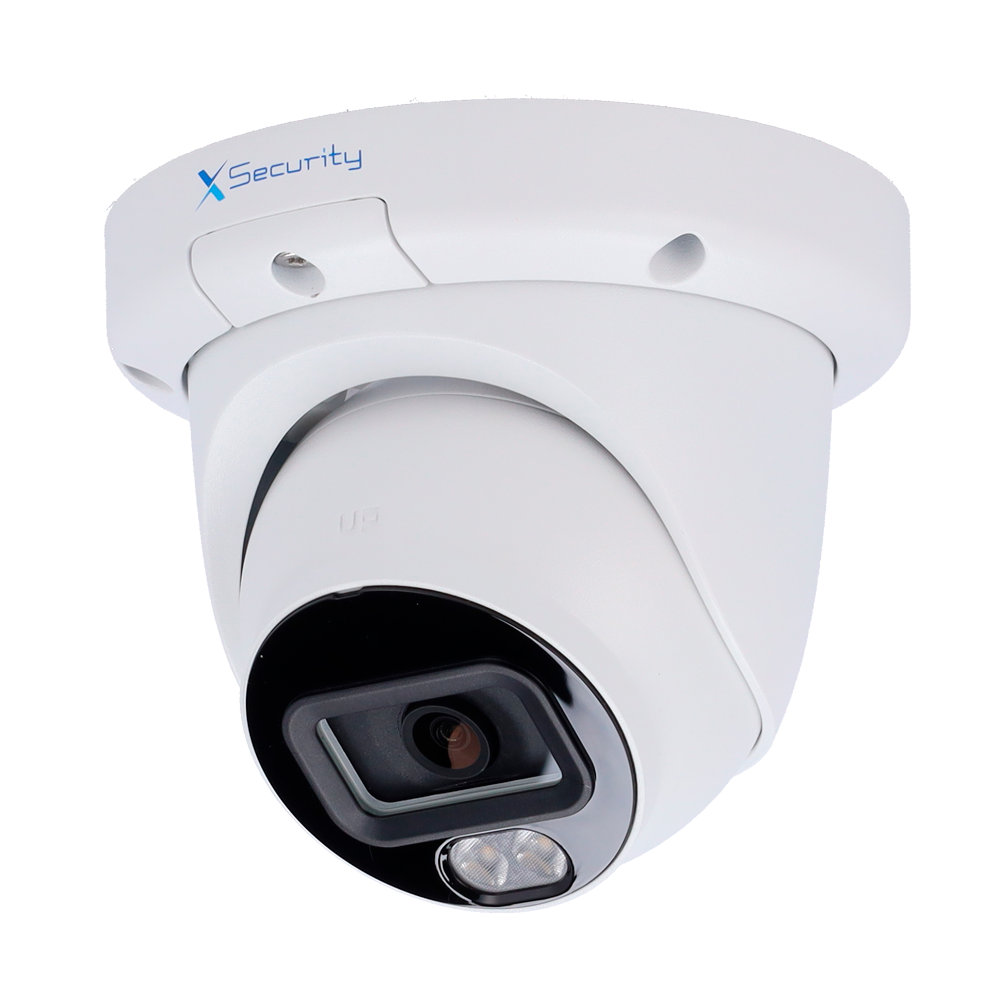

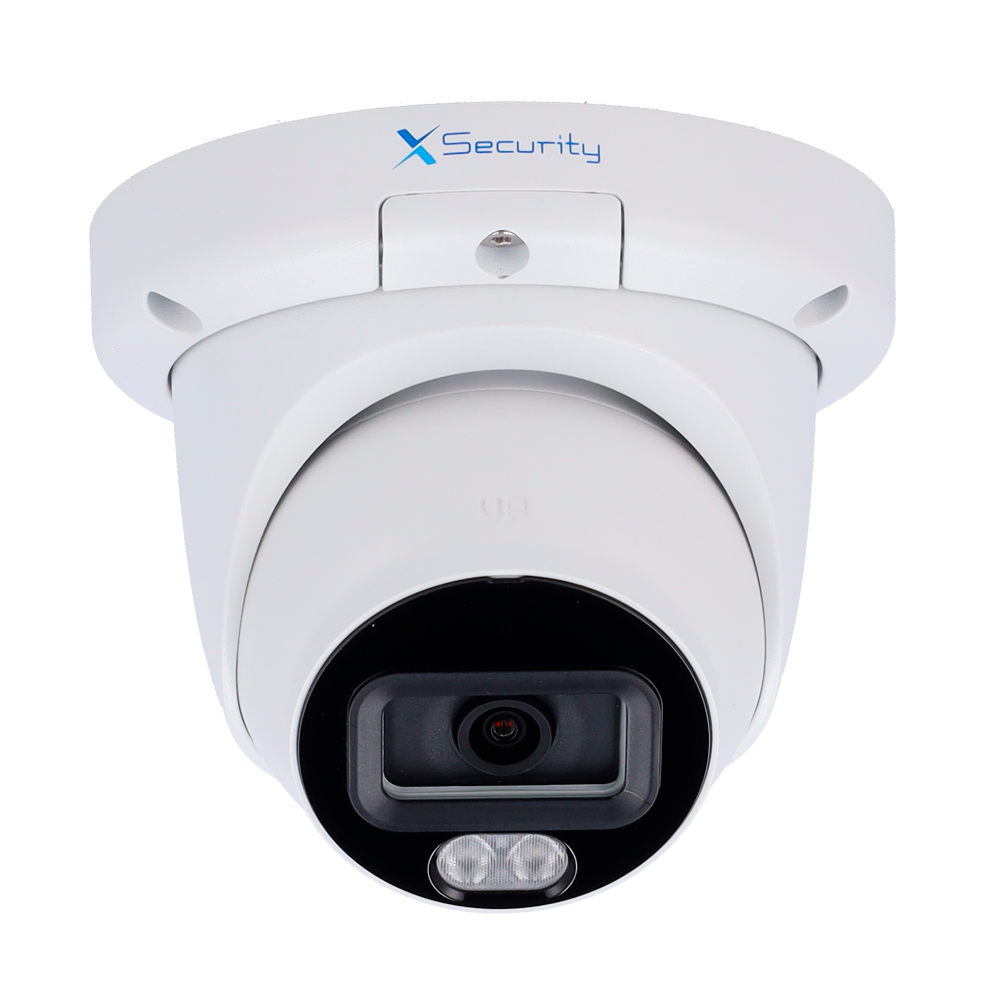

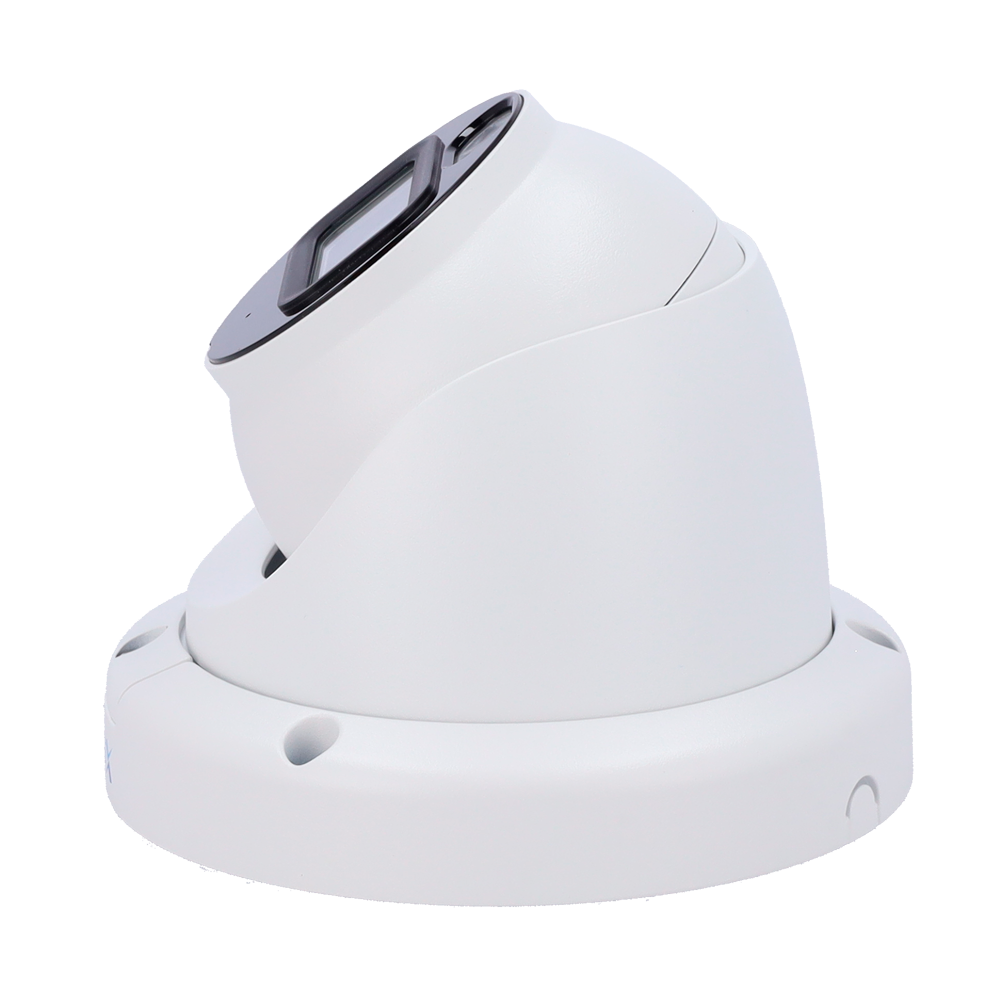

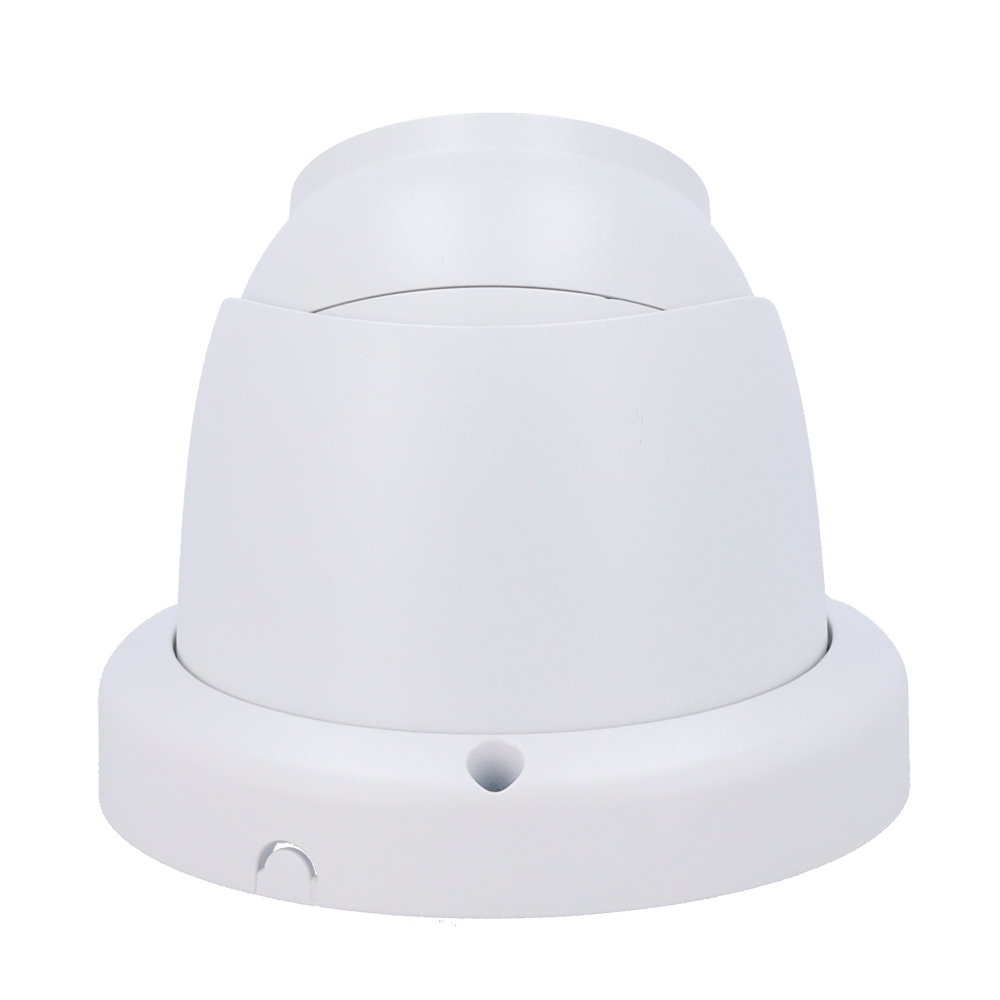

- X-Security IP Turret Camera
- 4 Megapixel (2688x1520)
- 2.8 mm Lens
- WDR 120dB | IR and White Light Range 50 m
- WizSense, with human and vehicle classification
- MicroSD | IP67 | PoE | Integrated Microphone
- X-Security
- IP camera
- Ultra Range
- 1/2.9" Progressive CMOS
- 4 Megapixel (2688x1520)
- 2.8 mm Lens
- Minimum illumination 0.005 lux@F1.4 (Color) , 0.0005 lux@F1.4 (B/W) , 0 lux with illumination
- Dual Light: IR and white light
- Dual Light range 50 m
- Compression H.265+/H.265/H.264+/H.264

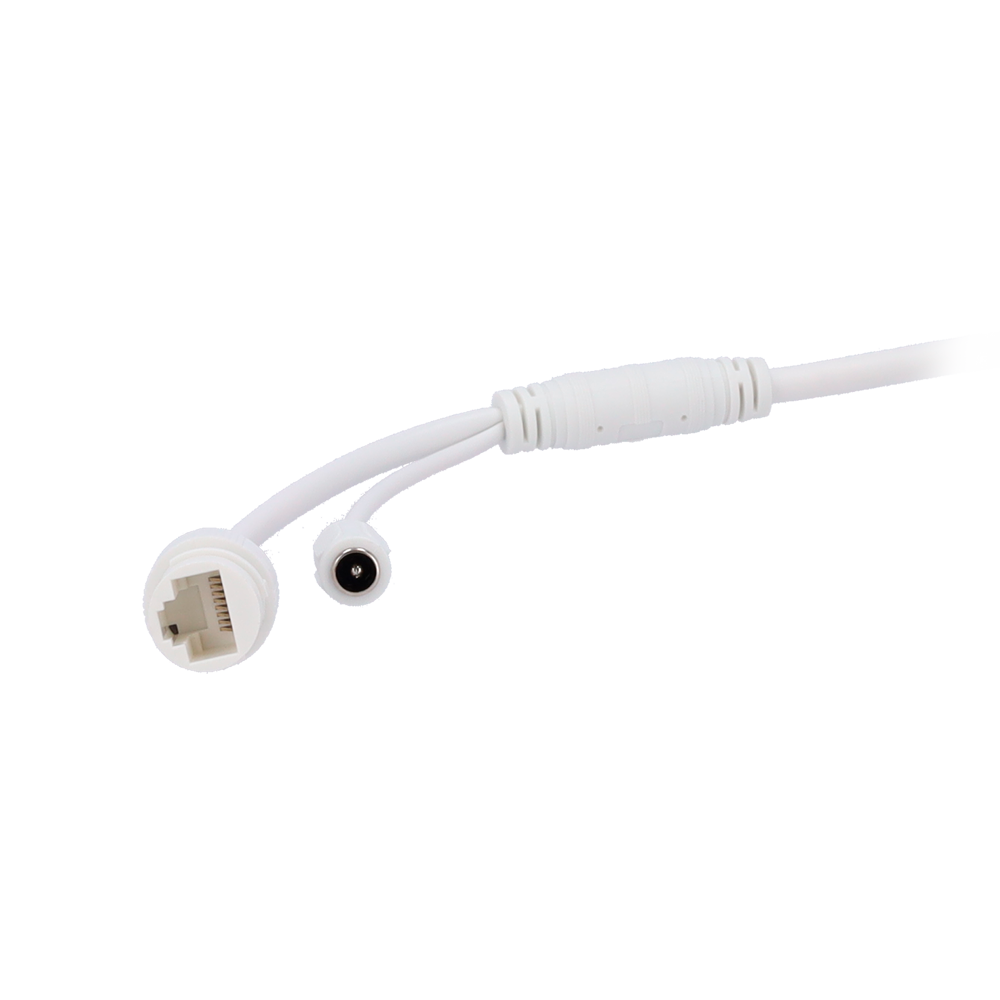

- RJ-45 10/100 BaseT
- IVS WizSense: classification of human and vehicle
- SMD 4.0
- AcuPick
- WDR 120 dB
- IR Cut
- Integrated microphone

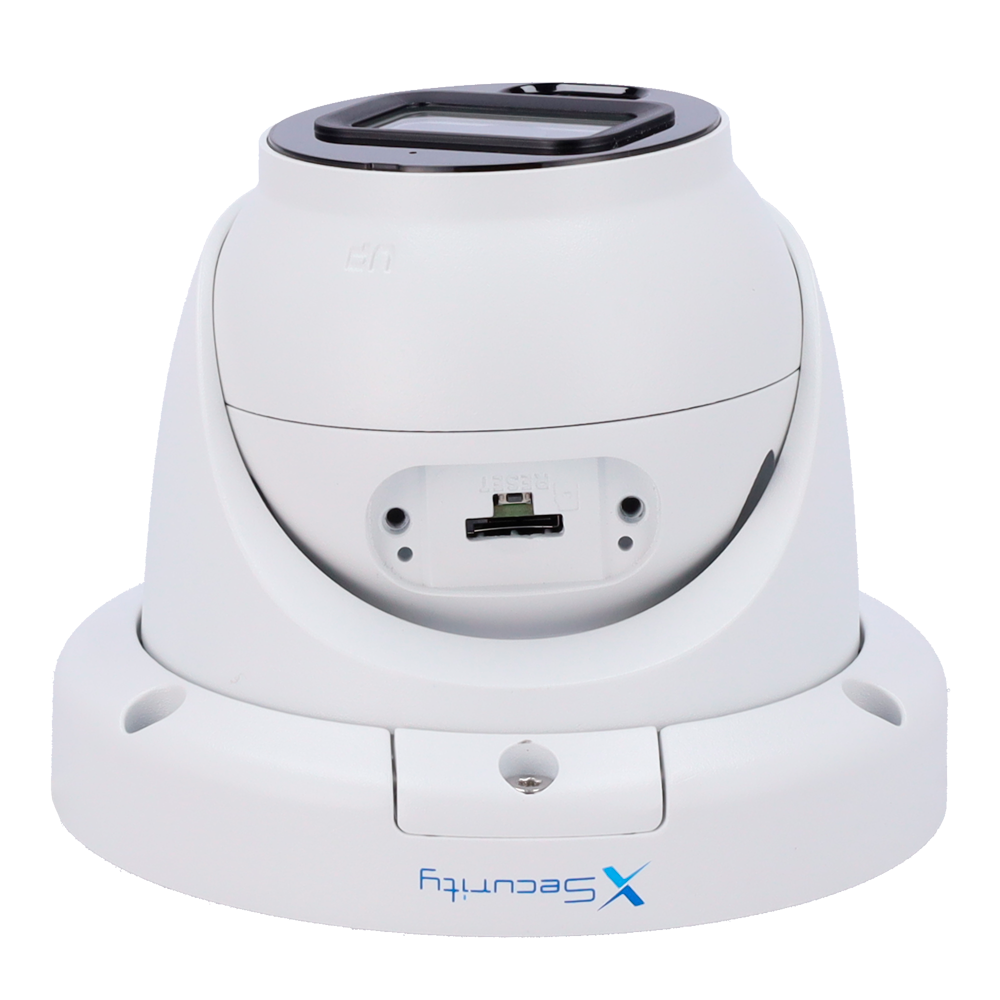

- MicroSD card slot up to 512 GB
- WEB Interface, CMS (DSS/ PSS), Smartphone and NVR
- PoE IEEE802.3af
- Weatherproof IP67
- ONVIF Compatible
Specifications
| Brand | X-SECURITY |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Image sensor | 1/2.9” Progressive CMOS |
| Lens | 2.8 mm |
| Viewing angle | H: 100°; V: 56°; D: 117° |
| Electronic Shutter | 1/3 s~1/100.000 s |
| Main Stream rate | 2688×1520@(1~25/30 fps) |
| Extra Stream rate | 1920×1080@(1~25/30 fps) |
| Third Stream Rate | 1920×1080@(1~25/30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Range performance | 61.6 m (D), 24.6 m (O), 12.3 m (R), 6.2 m (I) |
| Minimum illumination | 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Dual Light | Detection modes: Intelligent Mode (By default, IR activated and switches to white LED in the presence of a target) IR mode White LED mode |
| Lighting Scope | 50 m (IR) 50 m (White light) |
| Image improvements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR, Mirror effect, Privacy masking |
| SMD Plus | Yes (Human and vehicle based motion detection) |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Using microSD card or NVR X-Security |
| Network interface | Ethernet 10/100M BaseT |
| Audio | Built-in microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Remote access | WEB, CMS (Smart PSS Lite / DSS / DMSS), Smartphone and NVR interface |
| Material | Metallic |
| Interoperability | ONVIF (Profile S, G, T); CGI |
| Power | DC 12 V, 9.2 W max. PoE IEEE802.3af |
| Temp. operation | -40º C ~ +60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 122 (Φ) x 105.5 (H) mm |
| Base dimensions | Ø base 122 mm / Ø between bolts 110 mm / 3 bolts |
| Weight | 530 g |
In the box
- X-Security IP camera
- Installation material
- User instructions
- CD with software and instructions
