XS-IPSD3016IA-4U-WIZ
- X-Security 4 Mpx Pro Range IP PTZ Camera
- Varifocal lens 4~40 mm (optical zoom 10x))
- Dual Light | IR Range 70 m | White Light 30 m
- IVS (Perimeter Protection) | SDM 3.0
- Face Detection | Auto Tracking
- IP66 | Audio | Alarms | PoE+ | MicroSD
- X-Security
- WizSense PTZ IP Camera
- 4 Megapixel (2560x1440)
- 1/2.8" Progressive Scan CMOS
- 5~80 mm Varifocal lens
- 16X Optical zoom
- Minimum illumination Color: 0.005 lux@F1.6; Black and white: 0.0005 lux@F1.6; 0 lux with IR
- IR range of 80 m
- Smart Compression H.265+; H.265;Smart H.264+; H.264B; H.264M; H.264H; MJPEG
- IVS (Perimeter protection)
- SMD Smart Search 3.0
- WDR (120 dB)
- 3D DNR
- IR Cut
- MicroSD card slot up to 256 GB
- WEB, CMS (DSS/ Smart PSS Lite/ DMSS), Smartphone and NVR interface
- ONVIF Compatible
- RJ-45 10/100 BaseT
- PoE+ (IEEE802.3at)
- Weatherproof IP66
- Surge protection 6000 V
- Bracket included
Specifications
| Brand | X-Security |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 4 Megapixel (2560x1440) |
| Lens | 5~80mm varifocal |
| Viewing Angle (FOV) | H: 50.56º~3.84º, V: 29.48º~2.16º, D: 57.69º~4.39º |
| Range performance | D: 1600 m O: 632 m R: 320 m I: 160 m |
| Optical Zoom | 16X |
| Digital Zoom | 5X |
| Electronic Shutter | 1 s~1/30.000 s |
| Minimum illumination | Colour: 0.005 lux@F1.6 Black and white: 0.0005 lux@F1.6 0 lux with IR |
| IR range | 80 m |
| Day / Night | Removable mechanical ICR filter |
| Compression | Smart H.265+; H.265;Smart H.264+; H.264B; H.264M; H.264H; MJPEG |
| Main Stream rate | 4M/3M/1080p/1.3M/720p@(1–25/30fps) |
| Extra Stream Rate 1 | D1/VGA/CIF@(1–25/30 fps) |
| Bitrate | H264: 96–8,192 kbps H265: 38–8,192 kpbs |
| Image improvements | WDR (120dB), 2D/ 3DNR, HLC, BLC, ROI, Turnover 180º |
| Motion Detection | Yes |
| EIS (Image Stabilizer) | Yes |
| SMD (Smart Motion Detection) | SMD 3.0, advanced motion detection |
| IVS (Perimeter protection) | Tripwire; intrusion; fence crossing detection; loitering detection; abandoned/lost object; fast movement; parking detection; people gathering; vehicle/human alarm classification |
| Internal memory | MicroSD card slot up to 256 GB |
| Pan/Tilt Range | Horizontal: 0°~360° Vertical: -15°~90° |
| Manual speed | Horizontal: 0.1°~40°/s Vertical: 0.1°–40°/s |
| Speed between Presets | Horizontal: 0.1°~40°/s Vertical: 0.1°–40°/s |
| Preset positions | 300, 8 tour, 5 Pattern, 5 Scan |
| Communication | ONVIF (profile S, G, T), CGI, SDK |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Power | DC 12 V / 2 A, max. 18 W PoE+ (IEEE802.3at) |
| Temp. operation | -30º C ~ +60º C |
| Degree of protection | Weatherproof IP66 Surge protection 6000 V |
| Dimensions | Φ151.5 mm x 240 mm |
| Weight | 1.5 Kg |
In the box
- IP motorised dome camera
- CD with software and instructions

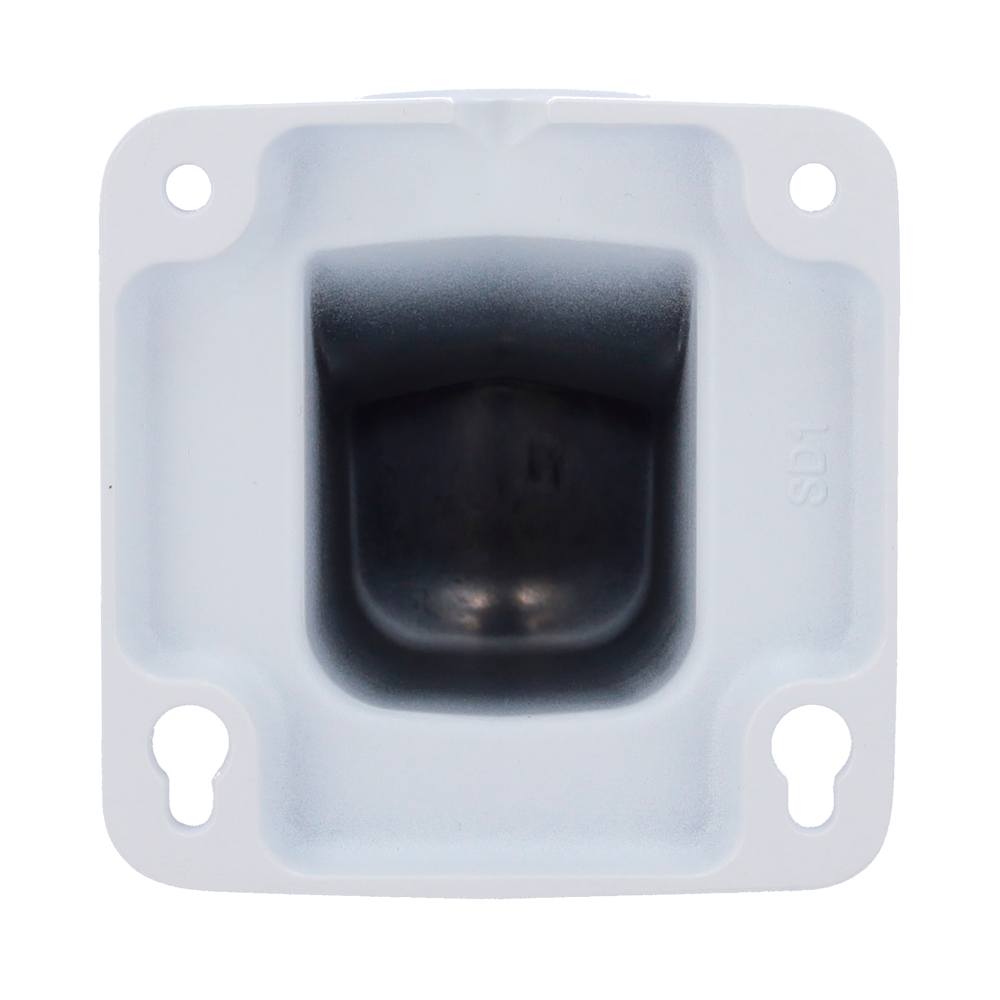

- Bracket included
