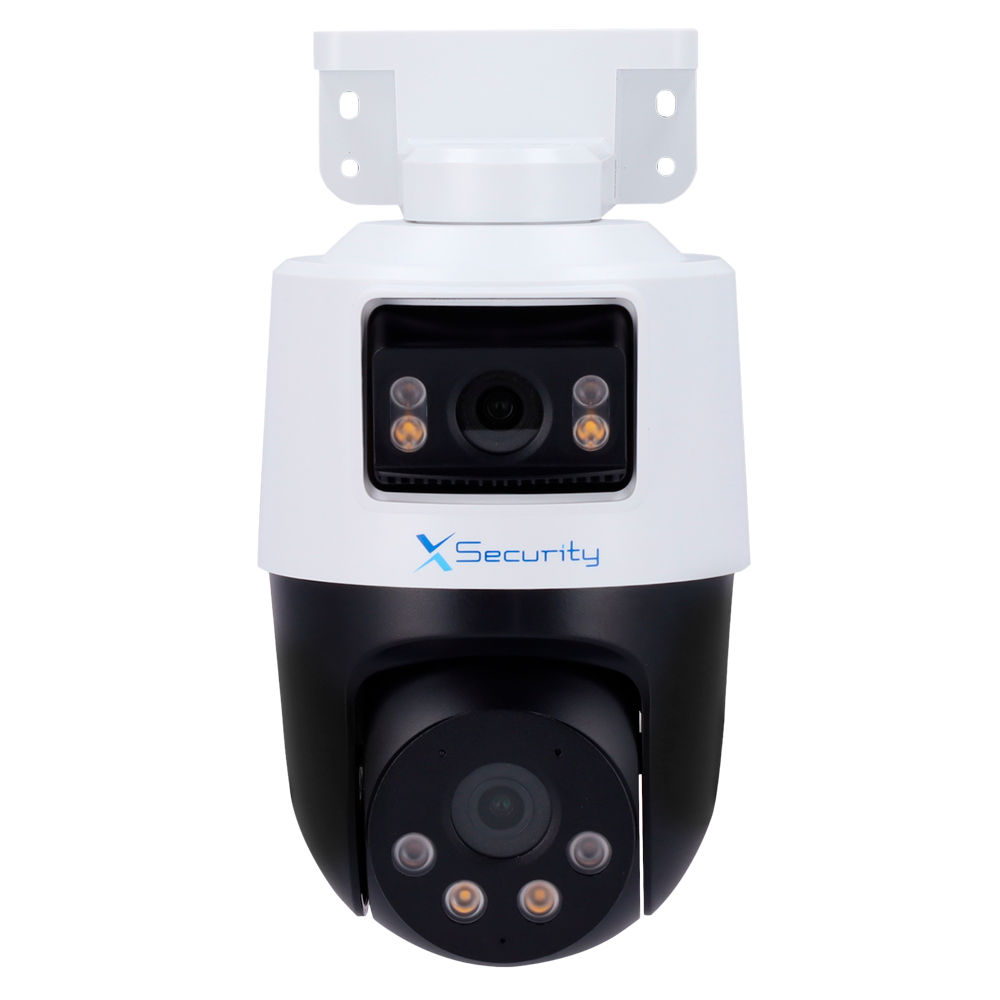

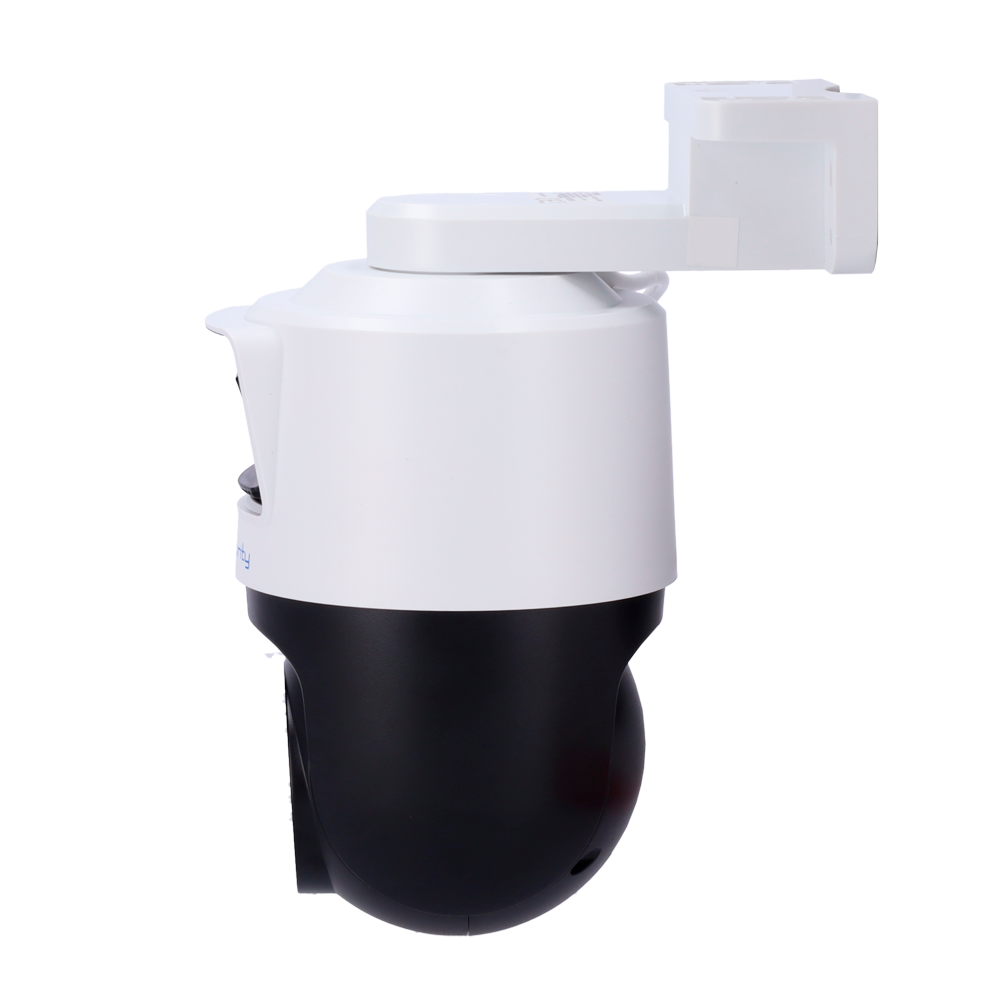

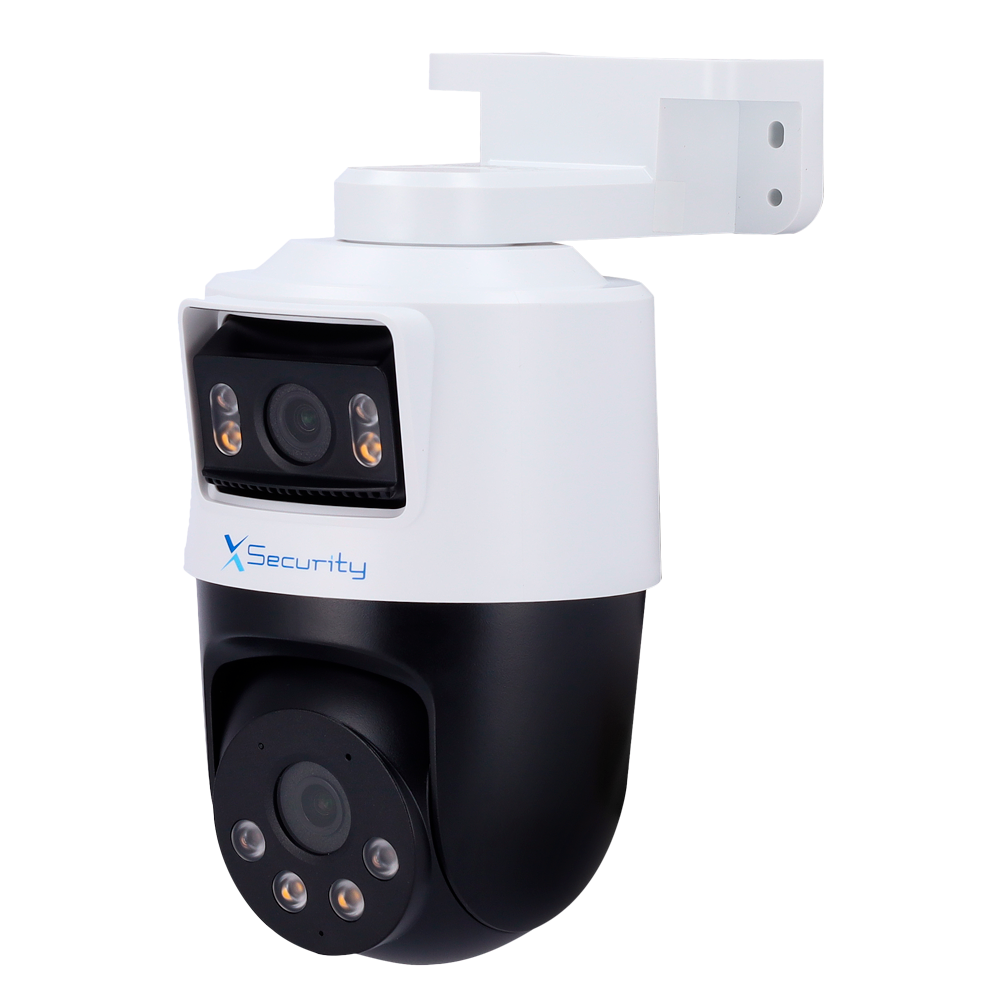

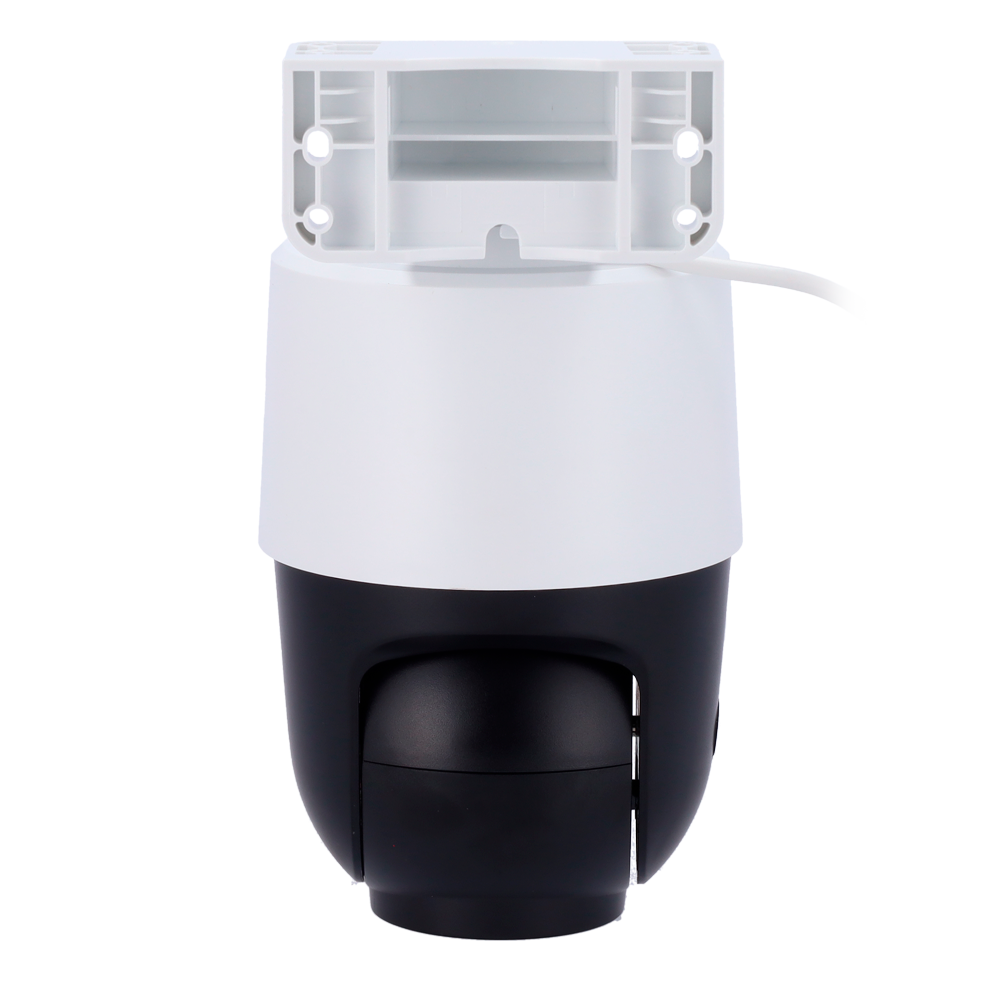

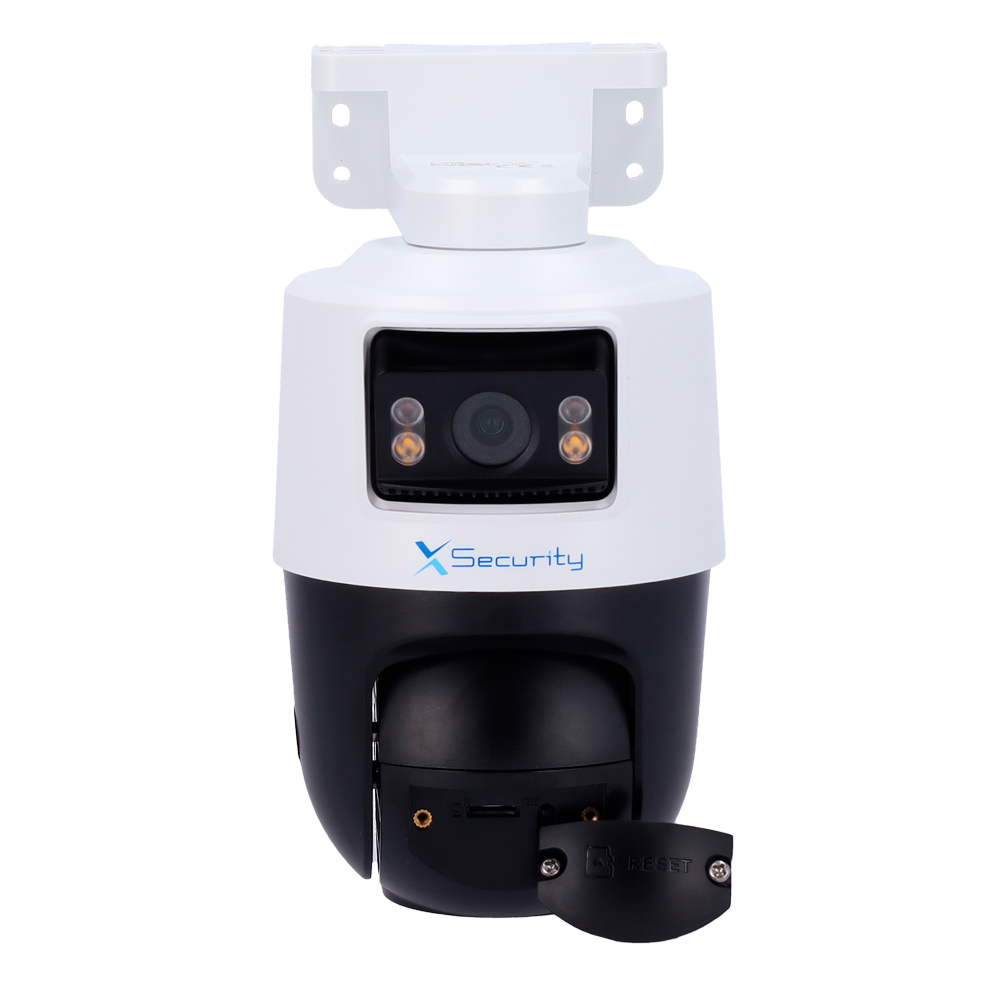

XS-IPPT110CA-2P-WIZCOLOR-TANDEM
Ga direct naar de productinformatie
XS-IPPT110CA-2P-WIZCOLOR-TANDEM
- X-Security Wizcolor PT IP Camera
- Resolution fixed lens and PT 2 MP (1920x1080)
- Fixed lens 3.6 mm | PT lens 3.6 mm
- White Light 30m | WDR 120dB | Integrated Microphone
- WizSense, with human and vehicle classification
- MicroSD slot 256 GB IP66 PoE | SMD
- X-Security
- PT IP camera
- PT sensor 1/2.9" Progressive Scan CMOS
- Resolution PT 2 Megapixel (1920x1080)
- PT Lens 3.6 mm
- Fixed lens sensor 1/2.9" Progressive Scan CMOS
- Fixed lens resolution 2 Megapixel (1920x1080)
- 3.6 mm fixed lens
- Minimum illumination 0.0006 lux@F1.0
- Range White light 30 m
- Speed 29.3°/s
- WDR (120 dB)
- 3DNR
- Integrated microphone & speaker
- MicroSD card slot up to 256GB
- PoE 802.3af
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100M BaseT
- SMD Plus
- IVS WizSense: classification of human and vehicle
- Intelligent search
- Active Deterrence
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Weatherproof IP66
Specifications
| Brand | X-Security |
| Image sensor | 1/2.9" Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Lens | 3.6 mm (fixed), 3.6 mm (PT) |
| Main Stream rate | 1920×1080@(1–25/30 fps) |
| Exra Stream Rate | 704×576@(1–25 fps) / 704×480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Video Bit Rate | H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps |
| Minimum illumination | 0.0006 lux@F1.0 |
| White Light Scope | 30 m |
| Viewing Angle (FOV) | PT: 81º(H), 44º(V), 95º(D) Fixed: 81º(H), 44º(V), 95º(D) |
| Range performance | PT: 55.7 m (D), 22.3 m (O), 11.1 m (R), 5.6 m (I) Fixed: 55.7 m (D), 22.3 m (O), 11.1 m (R), 5.6 m (I) |
| SMD Plus | Yes (Human and vehicle based motion detection) |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Using microSD card or NVR X-Security |
| Wizcolor | True-color images 24/7 even in low light and dark conditions. |
| Human detection | Yes |
| Bread/Tilt Range | PT Lens: Bread: 0~350°; Tilt: 0~90°; Fixed Lens: Bread: 0~326°; Tilt: -10~15° |
| Manual speed | Bread: 0.1°/s~55.4°/s; Tilt: 0.1°/s~29.3°/s |
| Speed between Presets | Pan: 55.4°/s; Tilt: 29.3°/s |
| Preset positions | 300 preset, 8~32 presets per tour |
| Image improvements | 120dB WDR, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart Illumination, Mirror Function, Privacy Masking, ROI |
| Day / Night | Color/Black and white |
| Electronic shutter | 1/3 s–1/100,000 s |
| Active Deterrence | White light warning, Sound warning alarm, sound warning alarm Deterrent light: White light, in flash or fixed mode with duration 5~30 s. Deterrent sound: 3 sound types and possibility of importing custom sounds. Sound of 0~100. Playback of 1~10 sound times. |
| Network interface | Ethernet RJ-45 (10Base-T/100Base-TX) |
| Internal memory | Slot for MicroSD Card, Max 256GB |
| Audio | Built-in speaker and microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Remote access | Web browser, CMS Software (DSS/PSS), Smartphone (DMSS) and NVR |
| Interoperability | ONVIF (S/G/T), CGI |
| Power | DC 12 V, Max. 10.5 W PoE IEEE802.3af |
| Material | Plastic |
| Temp. operation | -40º C ~ 50º C |
| Degree of protection | Weatherproof IP66 |
| Dimensions | 210 (H) mm × 110.1 (W) mm × 159.4 (D) mm |
| Weight | 620 g |
In the box
- PTZ IP Camera
- Installation material
- User instructions
- Includes wall arm
