XS-IPMC240A-2U
Ga direct naar de productinformatie
XS-IPMC240A-2U

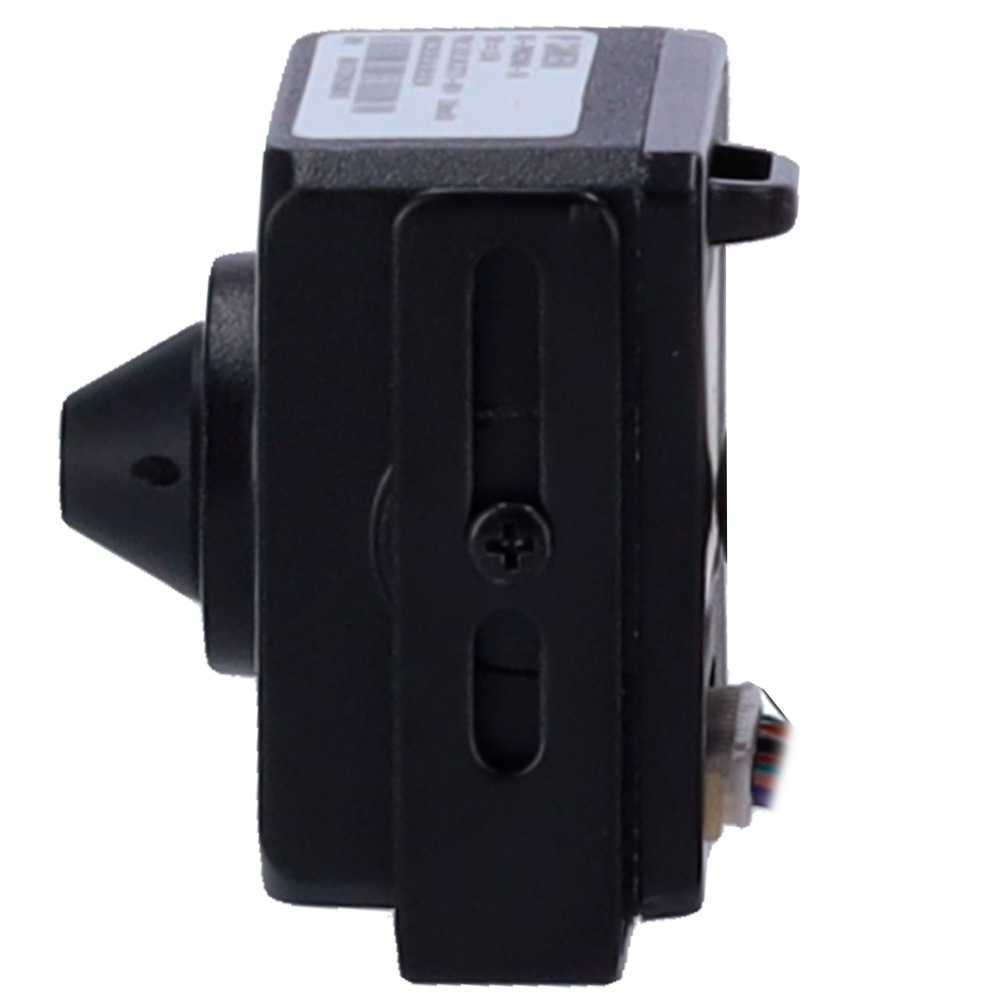

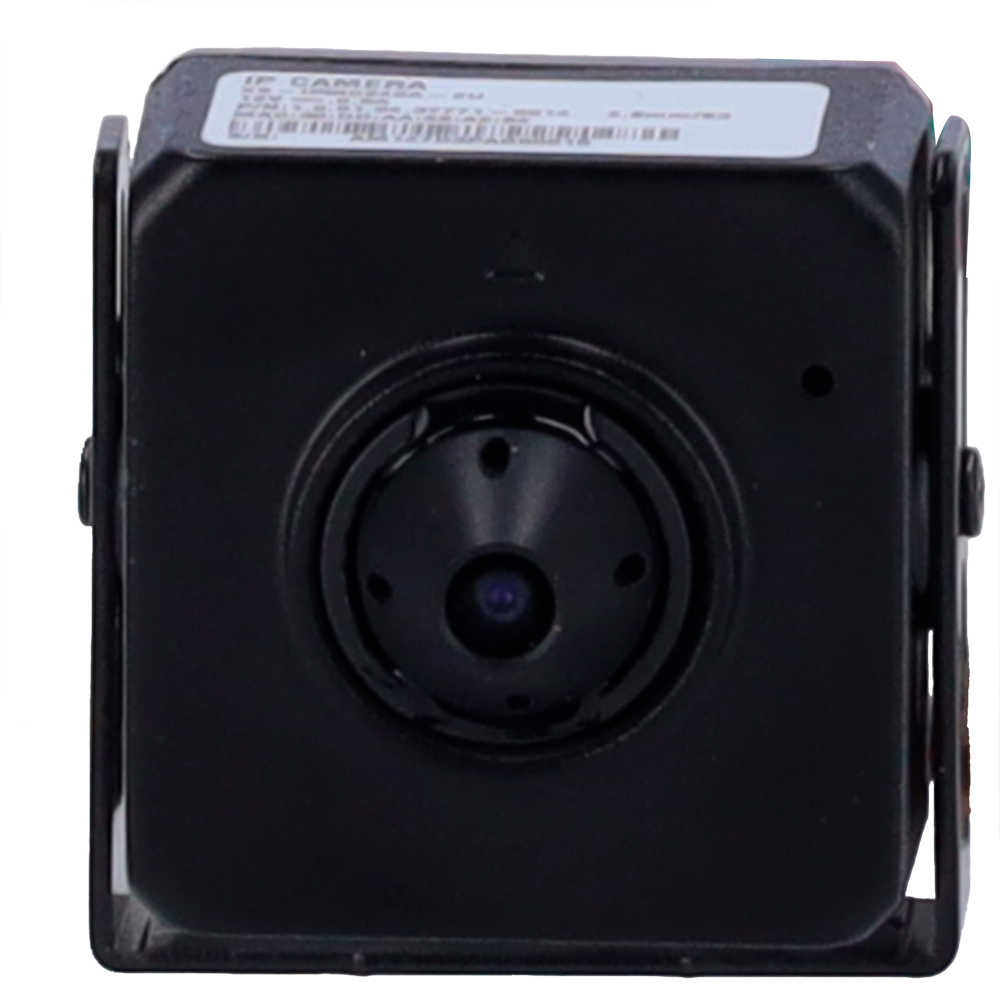

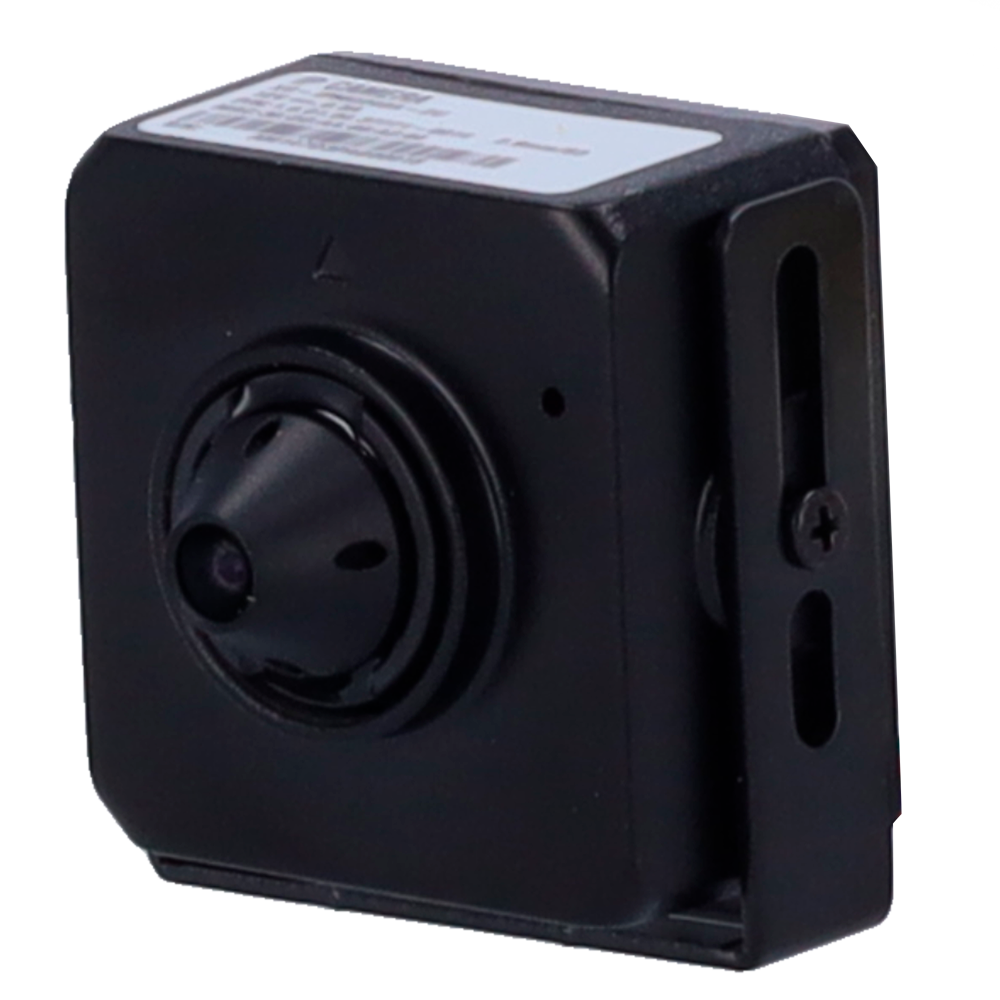

- X-Security Mini IP Pinhole Camera
- Resolution 2 MP (1920x1080)
- 2.8 Lens mm pinhole
- Minimum illumination 0.007 Lux
- Audio
- Suitable for interior
- X-Security
- Mini Pinhole Camera
- ULTRA Range
- 1/2.7" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- 2.8 mm Pinhole Lens
- Color 0.007 Lux @F2.4(Color, 1/3s, 30IRE)
- Compression H.265/H.264/H.264B/H.264H/MJPEG
- WDR (120 dB)
- 3D-DNR
- Audio
- WEB, CMS, Smartphone and NVR interface
- RJ-45 10/100 BaseT
- ONVIF Compatible
- Suitable for interior
Specifications
| Brand | X-SECURITY |
| Image sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 2 Megapixel (1920x1080) |
| Lens | 2.8 mm Pinhole |
| Viewing angle | H: 105º, V: 60º |
| Minimum illumination | Colour 0.007 Lux @ F2.4 B/W 0.004 Lux @ F2.4 |
| Main Stream rate | 1080p @25 fps |
| Sub Stream Rate | 10D180p @25 fps |
| Third Stream Rate | 1080p @14 fps |
| Compression | H.265/H.264/H.264B/H.264H/MJPEG |
| Bitrate | H.265: 12K ~ 6400Kbps H.264: 32K ~ 8192Kbps |
| Digital zoom | 16x |
| Image improvements | WDR (120dB), 3DNR, BLC, HLC, AGC, AWB, ROI, Mirror effect, Privacy masking |
| Internal memory | Does not have |
| Alarms | Does not have |
| Audio | 1 input / 1 output |
| Audio Compression | G.711a/G.711Mu/AAC/ G.726 |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | WEB, CMS (DMSS/DSS Pro), Smartphone and NVR interface |
| Degree of protection | Suitable for interior |
| Power | DC 12 V, 1.5 W max. |
| Temp. operation | -30º C ~ +60º C |
| Material | Metallic |
| Dimensions | 57.7 (H) x 44.9 (W) x 34.35 (D) mm |
| Weight | 145 g |
In the box
- MiniCamera
- Allen wrench
- User instructions
