XS-IPD987W-8P-AI
Ga direct naar de productinformatie
XS-IPD987W-8P-AI

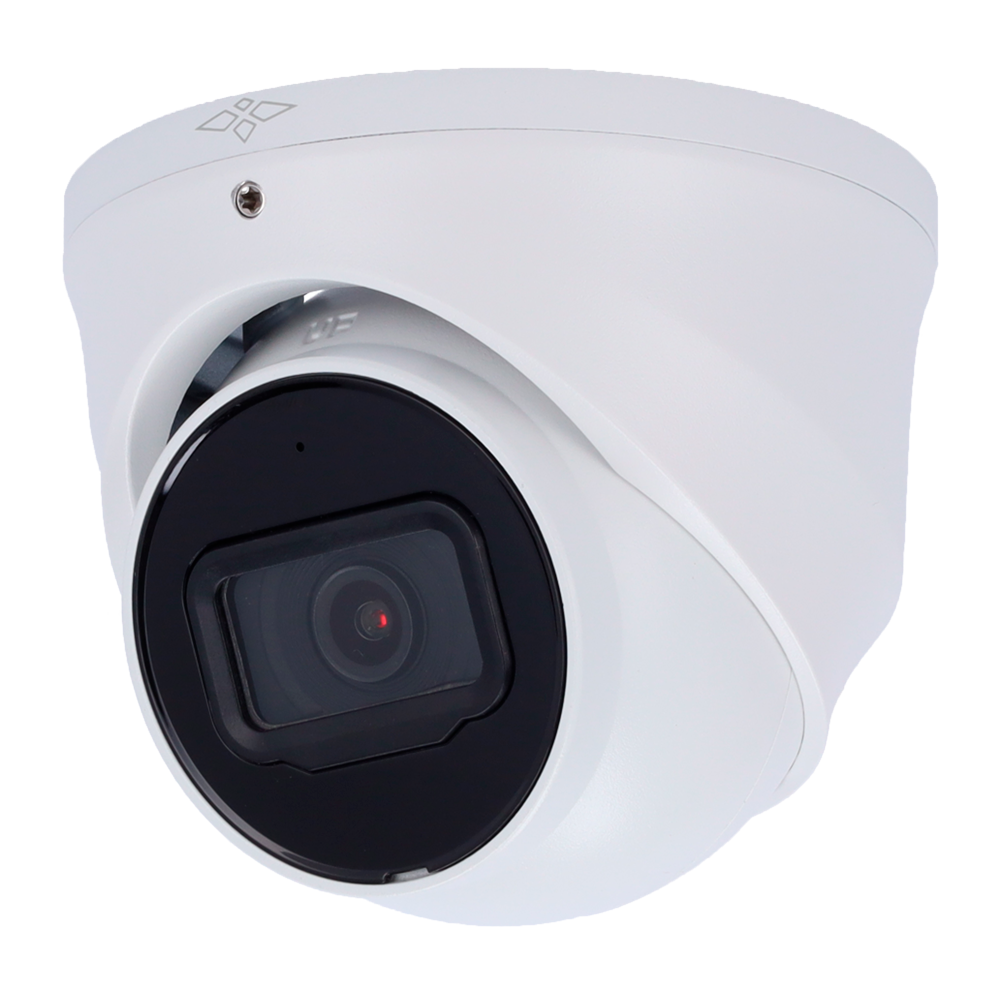

- X-Security IP Turret Camera
- 8 Megapixel (3840×2160)
- Lens 2.8 mm / LEDs Range 30 m
- WDR 120 dB | Integrated Microphone
- PoE | H.265+
- Intelligent functions
- X-Security
- IP Turret Camera
- PRO Range
- 1/2.7" Progressive CMOS
- 8 Megapixel (3840 × 2160)
- 2.8mm lens
- WizSense
- 0.009 Lux
- IR 30m
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- PoE IEEE802.3af
- IVS
- Intelligent search
- SMD Plus
- Built-in microphone
- WDR 120dB
- IR Cut
- Weatherproof IP67
- WEB Interface, CMS (DSS/ PSS), Smartphone and NVR
- ONVIF Compatible
Specifications
| Brand | X-SECURITY |
| Maximum resolution | 4 Megapixel (3840×2160) |
| Image sensor | 1/2.7” Progressive CMOS |
| Lens | 2.8 mm (H: 106°; V: 56°; D: 125°) |
| Main Stream rate | 23840 × 2160@(1–20 fps)/ 2688 × 1520@(1–25/30 fps) |
| Extra Stream rate | Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (substring compatible only) |
| Minimum illumination | 0,009 lux@F2,0 (color, 30 IRE) 0,0009 lux@F2,0 (black and white, 30 IRE) 0 lux (illuminator on) |
| Image improvements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Work together with Smart NVR to refine intelligent search, event extraction and merging with event videos |
| Network interface | Ethernet 10/100 BaseT |
| Audio | Built-in microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Material | Inner core: Metalliclic Cover: Metal Decoration ring: Plastic |
| Interoperability | ONVIF (SProfile /T Profile ); .CGI; P2P; Milestone |
| Power | DC 12 V / 3,4W, PoE IEEE802.3af |
| Temp. operation | -30º C ~ +60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 100.9 mm (D) x 109.9 (Ø) mm |
| Weight | 370 g |
In the box
- X-Security IP camera
- Installation material
- User instructions
- CD with software and instructions
