XS-IPB225A-2P-DL-WIZ
Ga direct naar de productinformatie
XS-IPB225A-2P-DL-WIZ

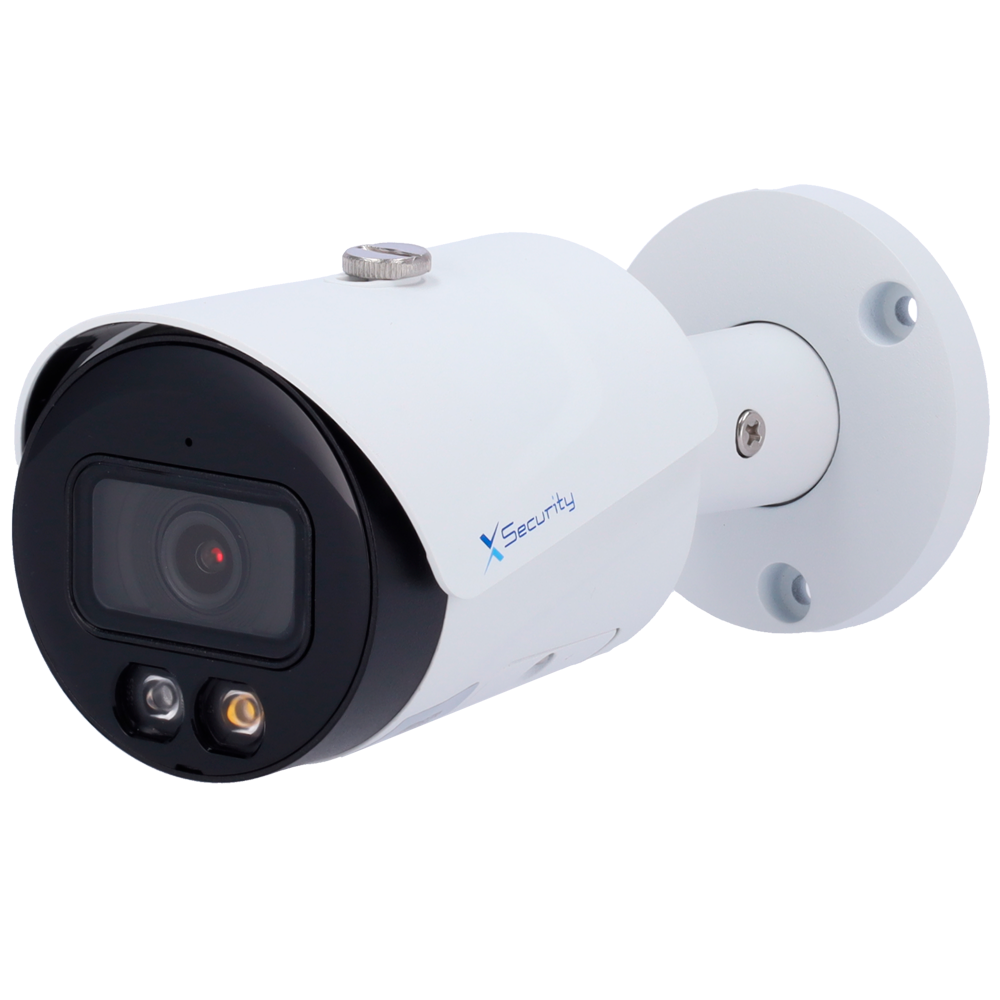

- X-Security IP Bullet Camera
- 2 Megapixel (1920x1080)
- 2.8mm fixed lens
- WDR 120dB | Dual Light(IR 30m and White Light 30m)
- WizSense, with human and vehicle classification
- 256GB / IP67 MicroSD
- X-Security
- IP Bullet Camera with Dual Light
- PRO Range
- 1/2.8" Progressive CMOS
- 2 Megapixel (1920x1080)
- 2.8mm lens
- 0.002 Lux
- Dual light: IR30 m + white led 30m
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- SMD Plus
- IVS WizSense: classification of human and vehicle
- Intelligent search
- Built-in microphone
- Audio
- Alarms
- WDR 120dB
- IR Cut
- MicroSD up to 256GB
- PoE IEEE802.3af
- Weatherproof IP67
- ONVIF Compatible
Specifications
| Brand | X-SECURITY |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Image sensor | 1/2.8” Progressive CMOS |
| Lens | Fixed 2.8mm (H: 107°; V: 56°; D: 127°) |
| Main Stream rate | 1920x1080@1-25/30 fps) |
| Extra Stream rate | 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Range performance | 64-210 (D), 25.6-84 (O), 12.8-42 (R), 6.4-21 (I) |
| Minimum illumination | 0.006 lux@F1.0 (Color, 30 IRE) 0.0006 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Dual Light | Detection modes: Intelligent Mode (By default, IR activated and switches to white LED in the presence of a target) IR mode White LED mode |
| IR range | 30 m (IR) 30 m (White light) |
| Image improvements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| SMD Plus | Yes (Human and vehicle based motion detection) |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Using microSD card or NVR X-Security |
| Network interface | Ethernet 10/100M BaseT |
| Audio | Built-in microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Remote access | WEB, CMS (Smart PSS Lite / DSS / DMSS), Smartphone and NVR interface |
| Material | Metallic |
| Interoperability | ONVIF (Profile S/Profile T); CGI |
| Power | DC 12 V / 3W, PoE IEEE802.3af |
| Temp. operation | -40º C ~ +60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 166.2(Fo) x 70 (W) x 70 (H) mm |
| Weight | 480 g |
In the box
- X-Security IP camera
- Installation material
- User instructions
- CD with software and instructions
