XS-IPB028CA-8P-WIZCOLOR
Ga direct naar de productinformatie
XS-IPB028CA-8P-WIZCOLOR

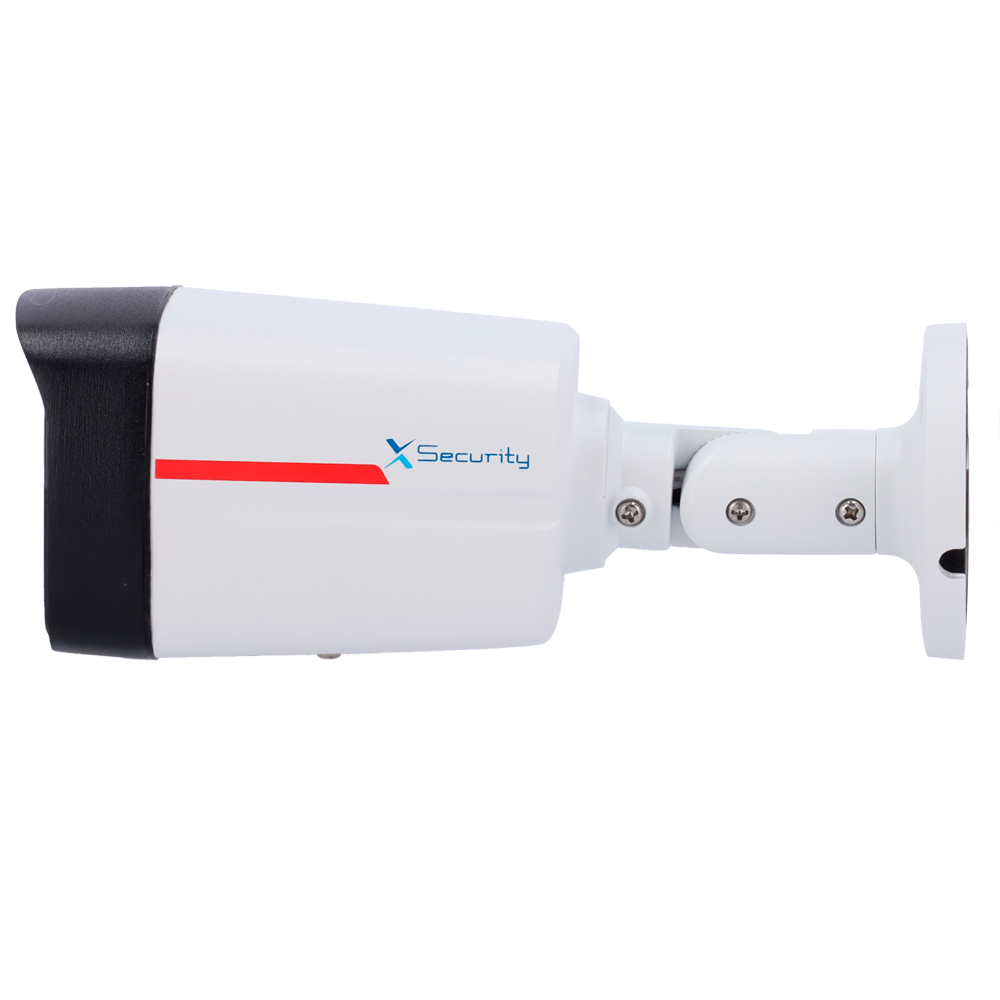

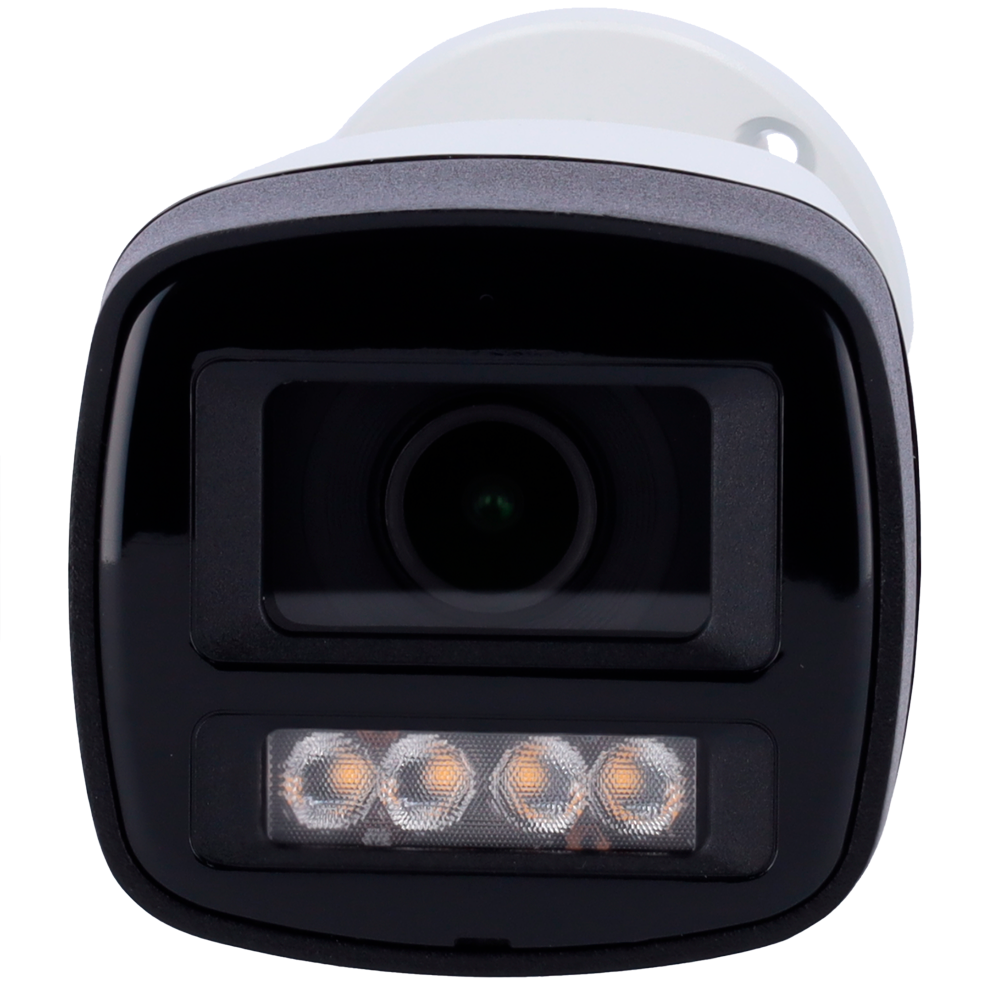

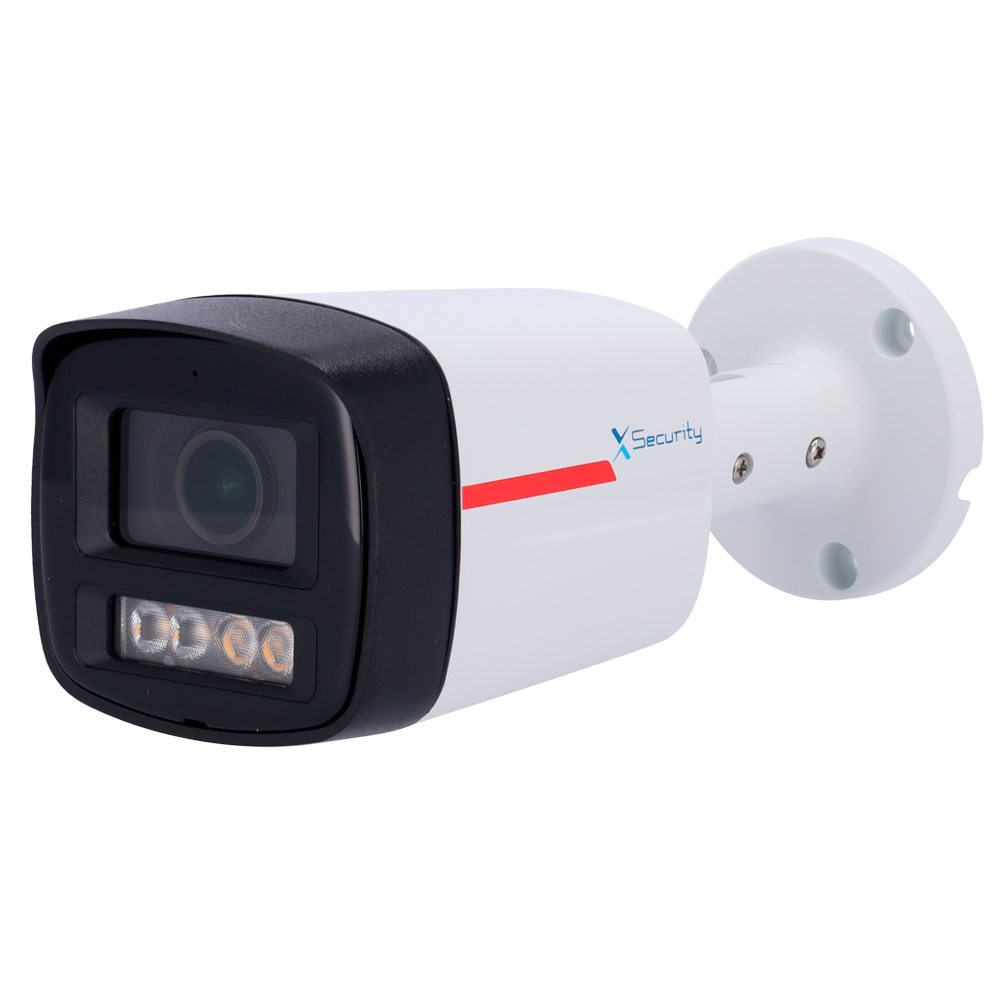

- X-Security Bullet IP Camera Wizcolor
- 8 Megapixel (3840×2160) | 1/1.8" F1.0 Sensor
- Lens 2.8 mm | White LED 50 m
- WDR 120 dB | Integrated Microphone
- WizSense, with human and vehicle classification
- MicroSD 256 GB | IP67 | PoE
- X-Security
- WizColor IP Bullet Camera
- PRO Range
- 1/1.8" Progressive CMOS
- 8 Megapixel (3840×2160)
- 2.8 mm Lens
- Minimum illumination 0.0008 Lux @ F1.0
- White LED 50 m
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100M BaseT
- SMD Plus
- IVS WizSense: classification of human and vehicle
- Intelligent search
- Built-in microphone
- WDR 120 dB
- MicroSD card slot up to 256 GB
- PoE IEEE802.3af
- Weatherproof IP67
- ONVIF Compatible
Specifications
| Brand | X-SECURITY |
| Maximum resolution | 8 Megapixel (3840×2160) |
| Image sensor | 1/1.8” Progressive CMOS |
| Lens | 2.8 mm |
| Main Stream rate | 3840×2160@(1–20 fps) / 2688×1520@(1–25/30 fps) |
| Extra Stream rate | 704×576@(1–25 fps) / 704×480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Viewing angle | 110º (H), 59º (V), 131º (D) |
| Range performance | 84 m (D), 33.6 m(O), 16.8 m (R), 8.4 m (I) |
| Minimum illumination | 0.0008Lux @ F1.0 |
| Led Scope | 50 m (White light) |
| Image improvements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI, Smart Illumination, Mirror effect, Privacy masking |
| SMD Plus | Yes (Human and vehicle based motion detection) |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Using microSD card or NVR X-Security |

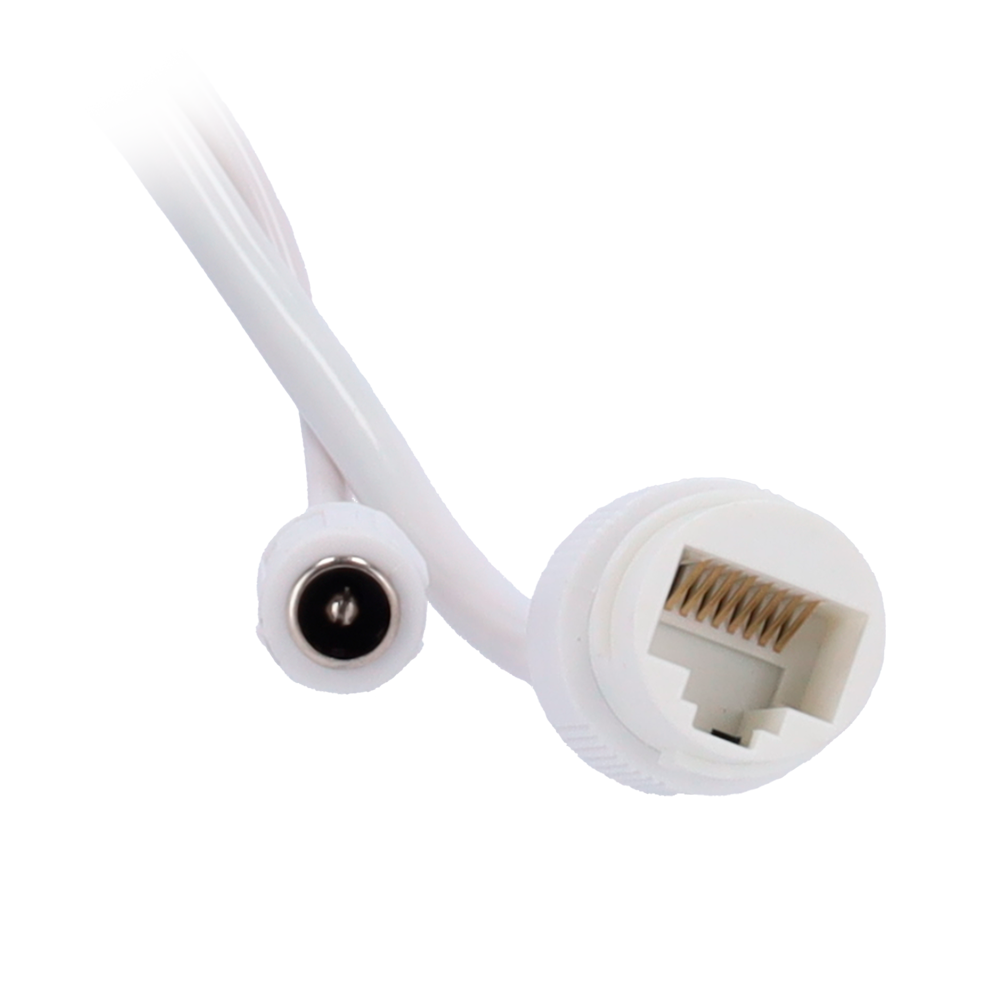

| Network interface | Ethernet 10/100M BaseT |
| Audio | Built-in microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Remote access | WEB, CMS (Smart PSS Lite / DSS / DMSS), Smartphone and NVR interface |

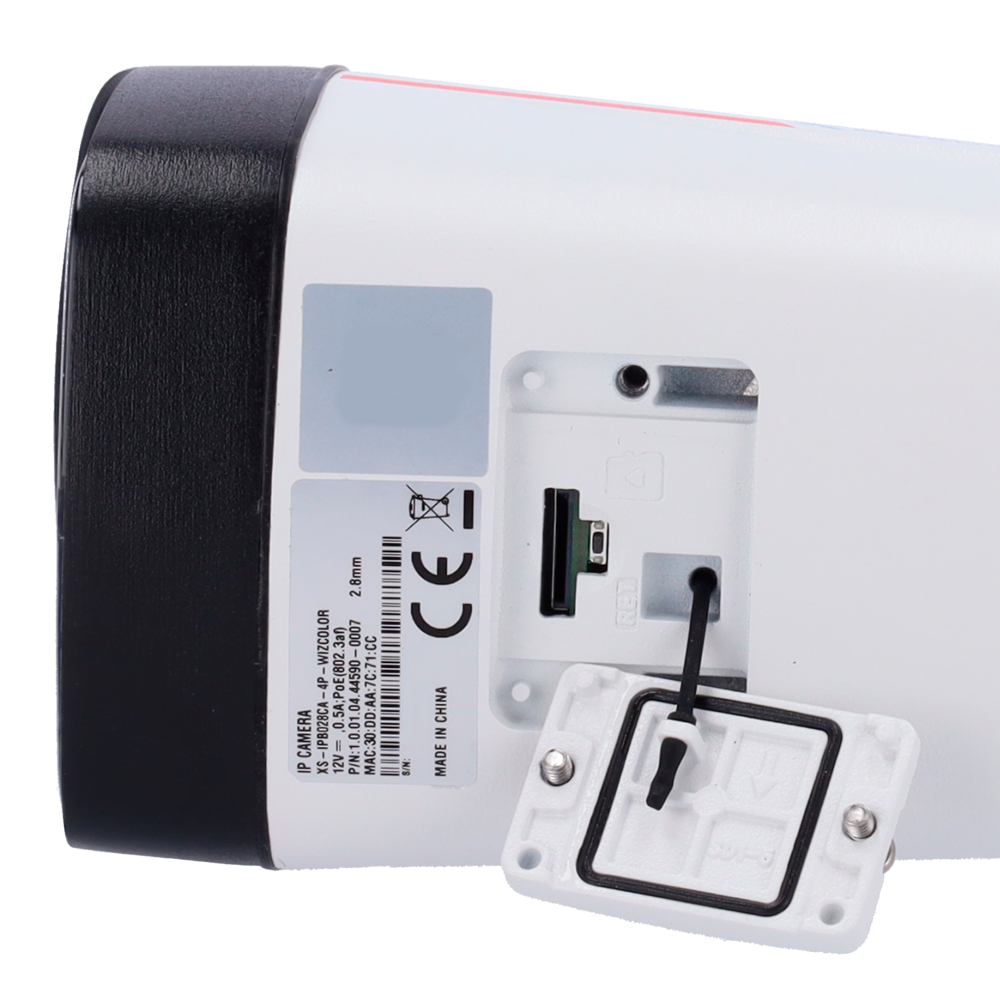

| Internal memory | MicroSD card slot up to 256 GB |
| Material | Metallic |
| Interoperability | ONVIF (Profile S, G, T); CGI |
| Power | DC 12 V, 7.4 W max. PoE IEEE802.3af |
| Temp. operation | -40º C ~ +60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 197.9 (D) x 80.2 (W) x 76.2 (H) mm |

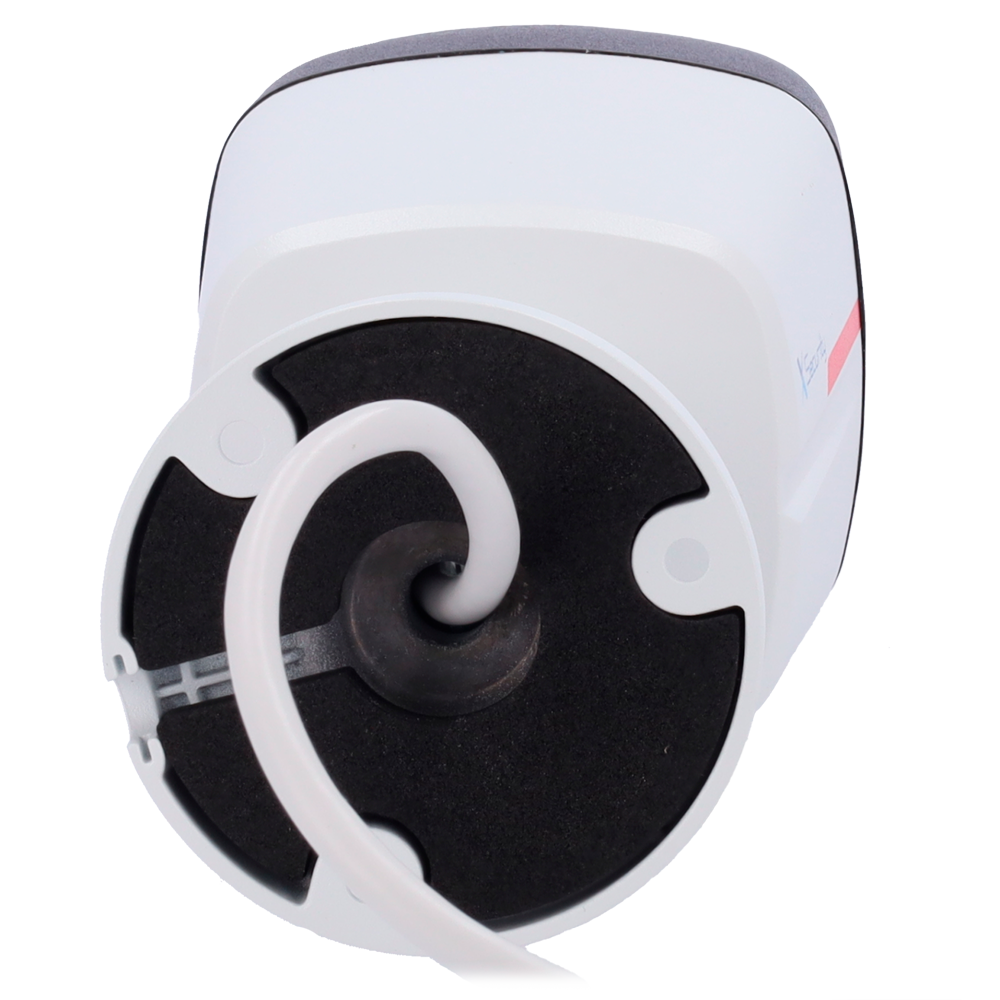

| Base dimensions | Ø base 70 mm / Ø between bolts 45 mm / 3 bolts |
| Weight | 570 g |
In the box
- Wizcolor X-Security Bullet Wizcolor IP Camera
- Installation material
- User instructions
- CD with software and instructions
