XS-IPB028CA-4P-WIZCOLOR
Ga direct naar de productinformatie
XS-IPB028CA-4P-WIZCOLOR

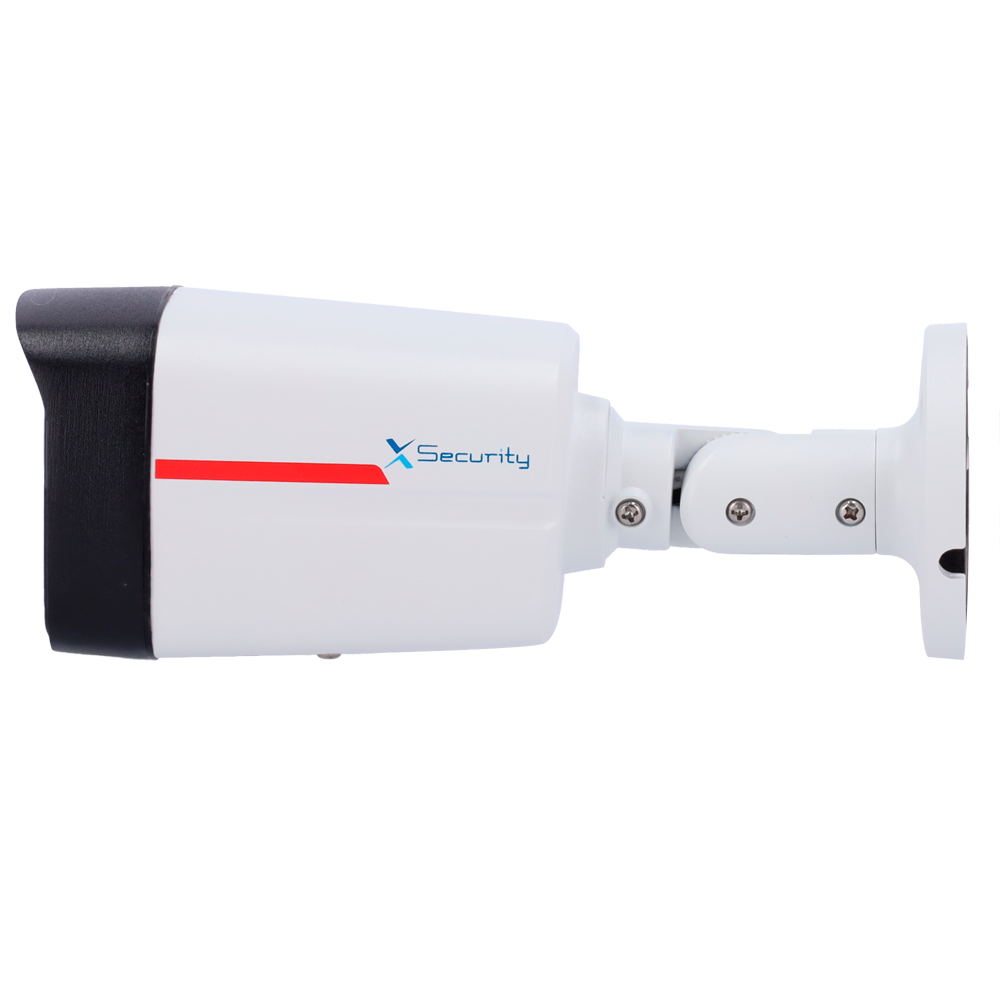

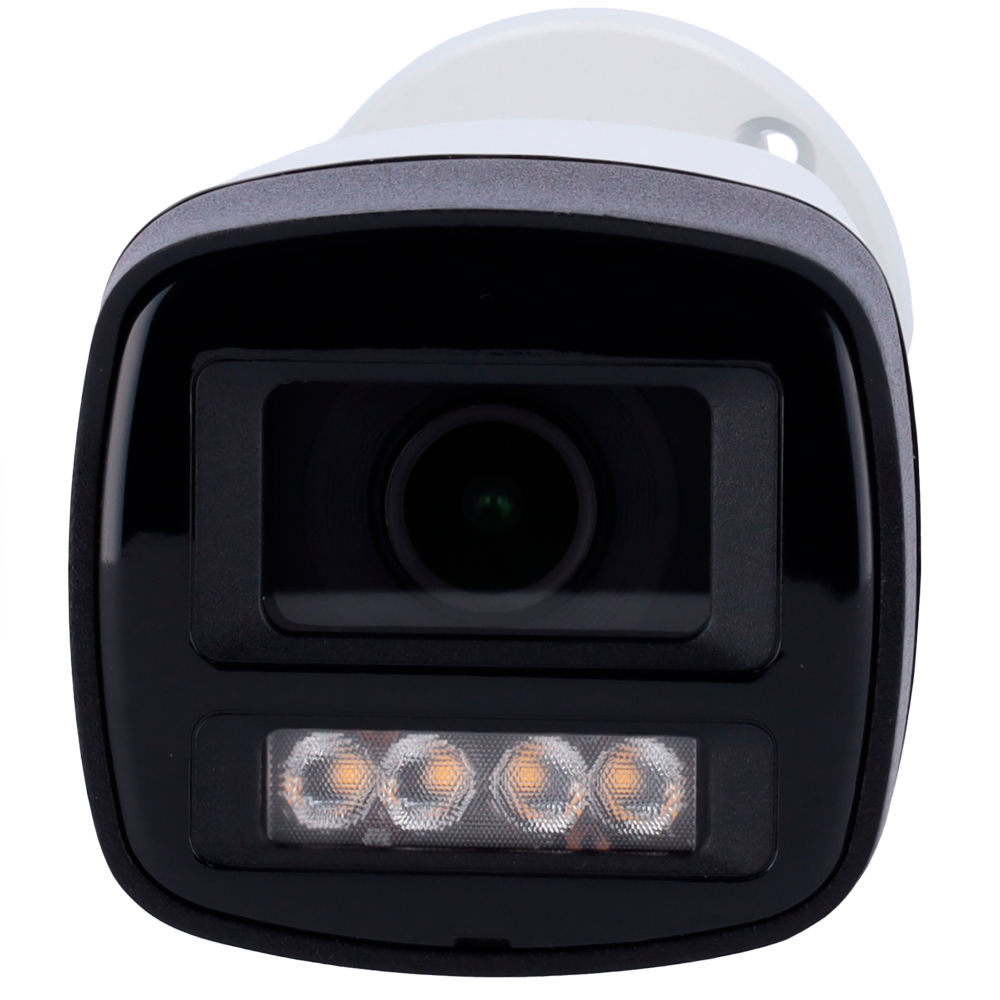

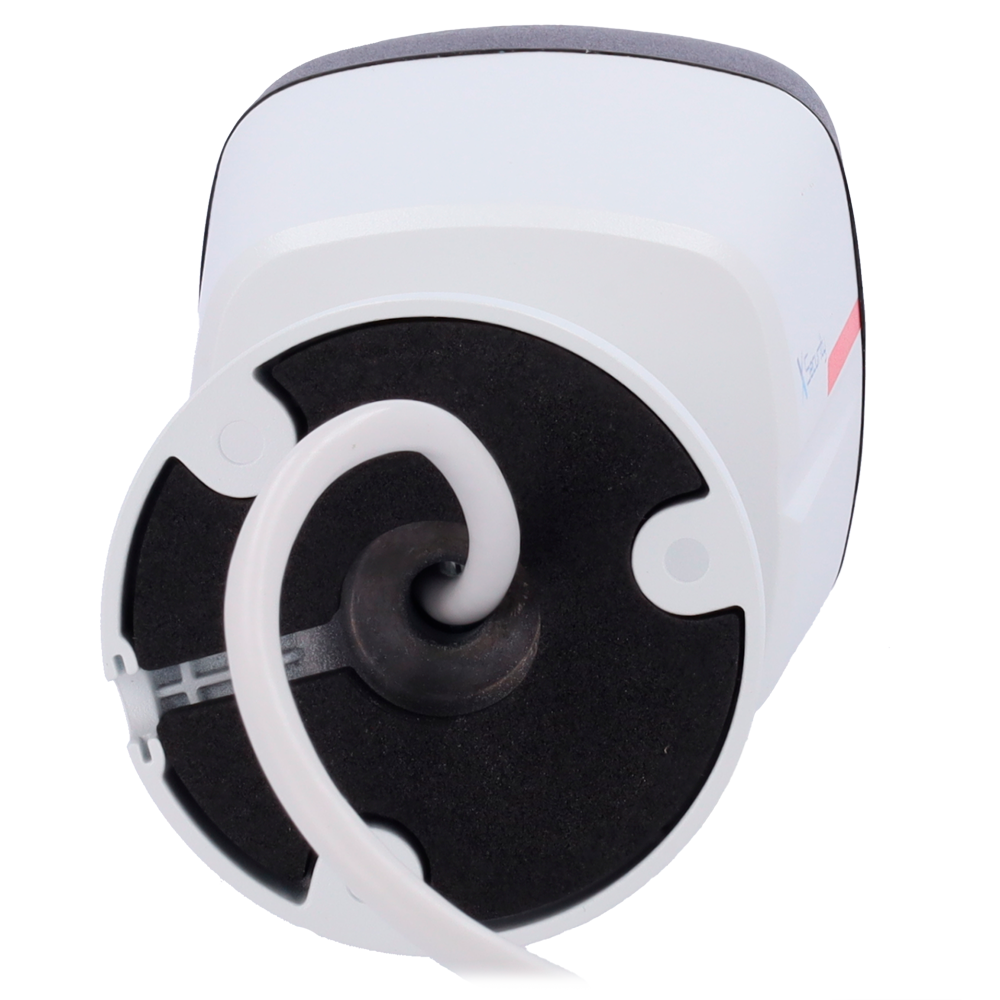

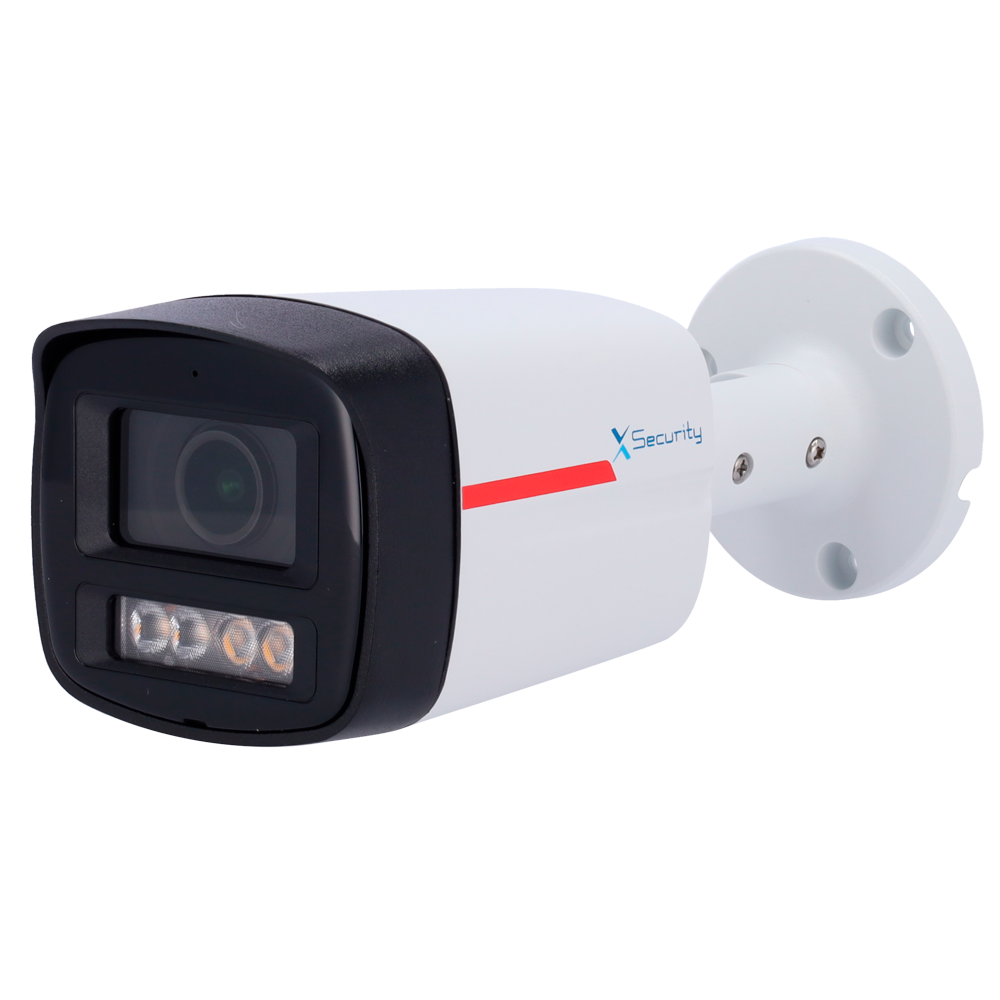

- X-Security Bullet IP Camera Wizcolor
- 4 Megapixel (2688x1520) | 1/1.8" F1.0 Sensor
- Lens 2.8mm / White LED 50m
- WDR 120dB | Built-in microphone
- WizSense, with human and vehicle classification
- MicroSD 256GB IP67
- X-Security
- WizColor IP Bullet Camera
- PRO Range
- 1/1.8" Progressive CMOS
- 4 Megapixel (2688×1520)
- 2.8mm lens
- 0.0005Lux @ F1.0
- White LED 50 m
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100M BaseT
- SMD Plus
- IVS WizSense: classification of human and vehicle
- Intelligent search
- Built-in microphone
- Audio
- WDR 120dB
- IR Cut
- MicroSD up to 256GB
- PoE IEEE802.3af
- Weatherproof IP67
- ONVIF Compatible
Specifications
| Brand | X-SECURITY |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Image sensor | 1/1.8” Progressive CMOS |
| Lens | 2.8mm (H: 112°; V: 60°; D: 134°) |
| Main Stream rate | 2688x1520@(1–20 fps) / 2560×1440@(1-25/30 fps) |
| Extra Stream rate | 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Range performance | 64-210 (D), 25.6-84 (O), 12.8-42 (R), 6.4-21 (I) |
| Minimum illumination | 0.0005 lux@F1.0 |
| Led Scope | 50 m (White light) |
| Image improvements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| SMD Plus | Yes (Human and vehicle based motion detection) |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Using microSD card or NVR X-Security |
| Active deterrence | Red and blue LED flash / Audible warning Triggered by an artificial intelligence event |

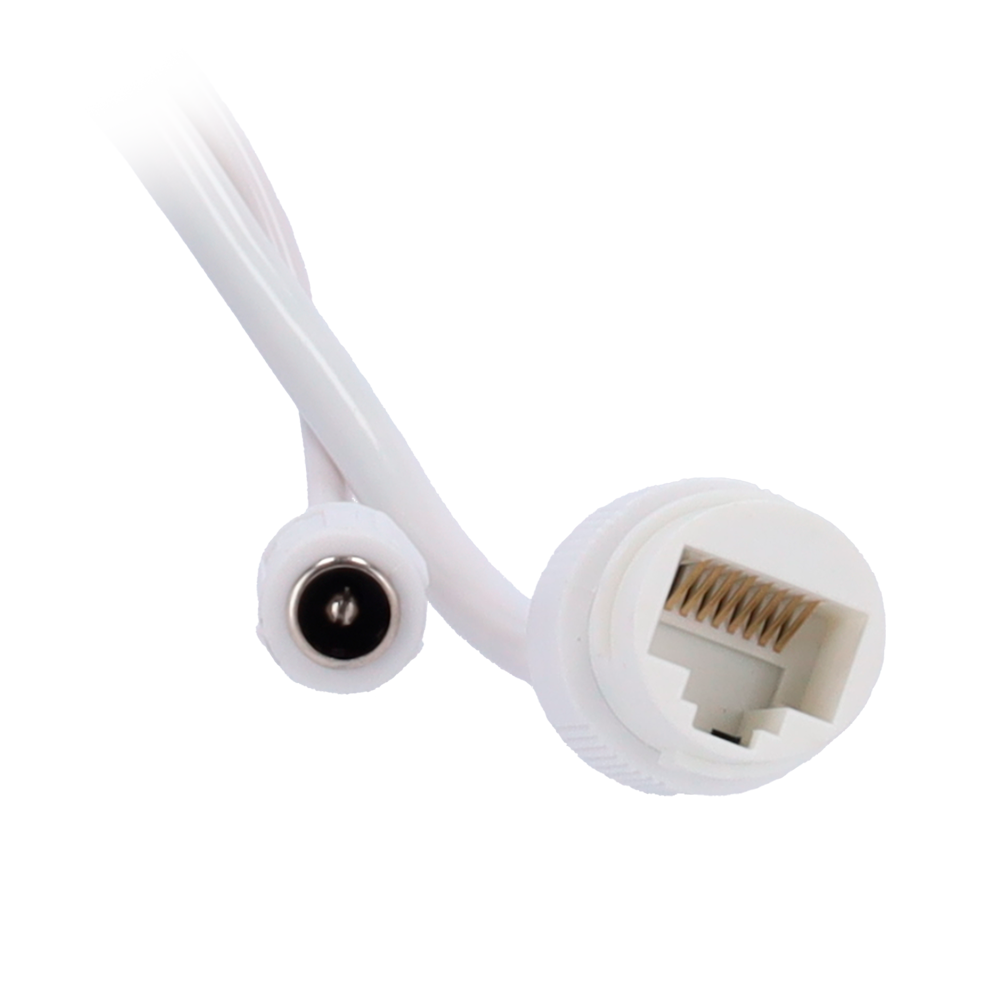

| Network interface | Ethernet 10/100M BaseT |
| Audio | 1 Input / Built-in microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Remote access | WEB, CMS (Smart PSS Lite / DSS / DMSS), Smartphone and NVR interface |

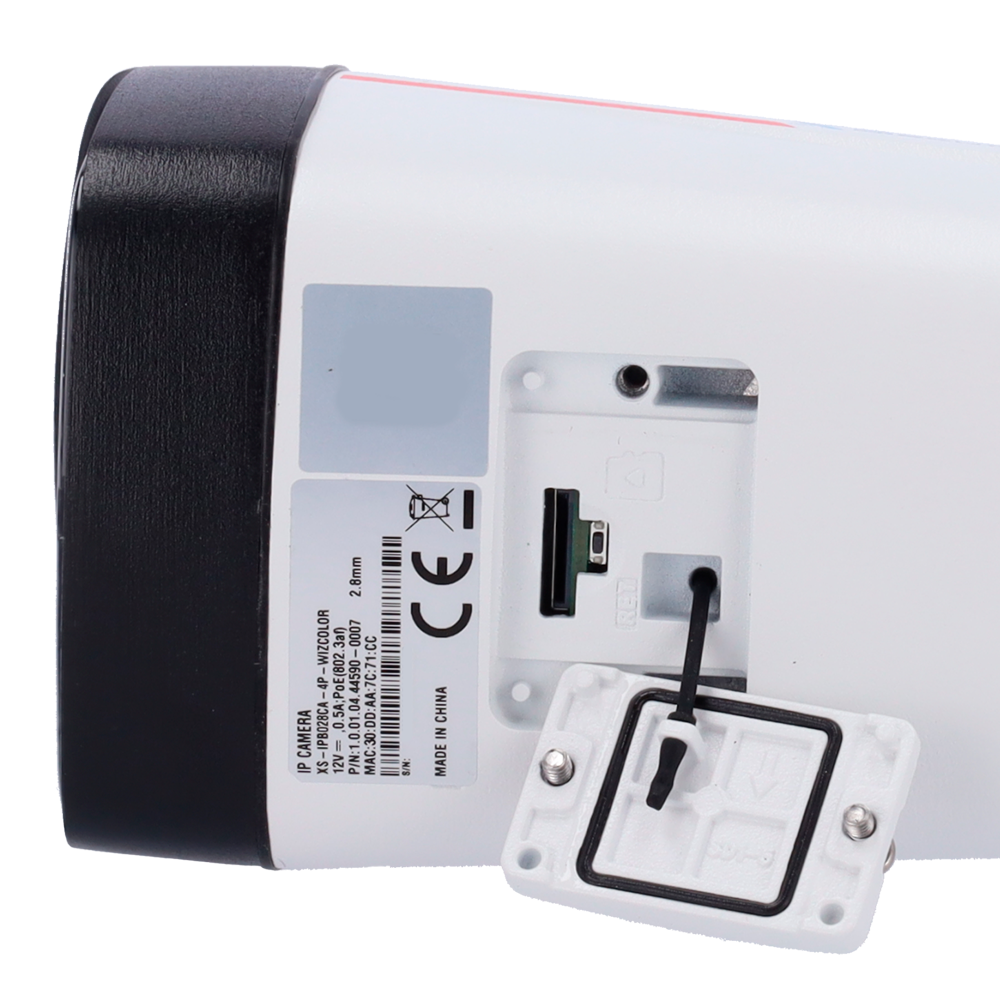

| Internal memory | MicroSD up to 256GB |
| Material | Metallic |
| Interoperability | ONVIF (Profile S/Profile T); CGI |
| Power | DC 12 V / 3W, PoE IEEE802.3af |
| Temp. operation | -40º C ~ +60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 197.9 (D) x 80.2 (W) x 76.2 (H) mm |
| Weight | 570 g |
In the box
- Wizcolor X-Security Bullet Wizcolor IP Camera
- Installation material
- User instructions
- CD with software and instructions
