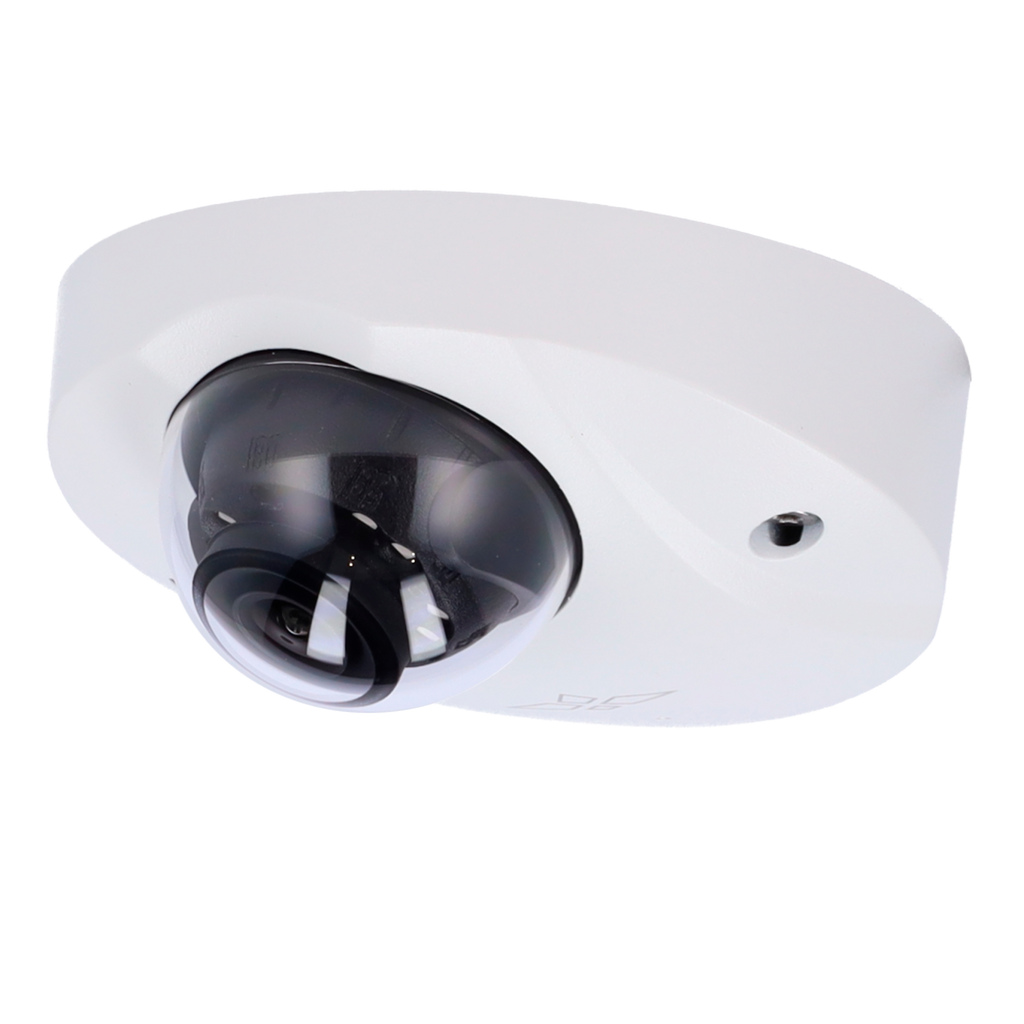

XS-D909SWA-3KP
Ga direct naar de productinformatie
XS-D909SWA-3KP
- X-Security Dome Camera PRO Range
- Output 4 in 1 / Resolution 3K (2880x1620)
- 1/2.7" CMOS 3K (5Mpx 16:9)
- 2.8 mm Lens
- Smart IR LEDs 30 m range, Audio over coaxial
- Weatherproof IP67
- X-Security
- HDTVI, HDCVI, AHD and Analog Dome Camera
- PRO Range
- 1/2.7" CMOS Starlight (5Mpx 16:9)
- 3K (2880x1620)
- Output 4in1
- 2.8 mm Lens
- 0 Lux
- Smart IR Matrix Matrix Range 30 m
- WDR (120dB)
- 3D DNR
- IR Cut
- Audio with integrated microphone included
- Weatherproof IP67
Specifications
| Brand | X-Security |
| Range | PRO |
| Image sensor | 3K 1/2.7" CMOS (5Mpx 16:9) |
| Maximum resolution | 3K (2880x1620) |
| Resolution | 3K (1 ~ 25/30fps), 4 Mpx(1 ~ 25/30fps),1080P (1 ~ 25/30fps) |
| Lens Adjustment | 3 axis |
| Lens | 2.8 mm |
| Minimum illumination | 0.001 Lux / F1.6 |
| Infrared lighting | 0 Lux / SMART IR (30 m) |
| Day / Night | Auto / Colour / BW (Black and White) |
| Alarm | Does not have |
| Audio | Built-in microphone (Audio via coaxial cable in HDCVI) |

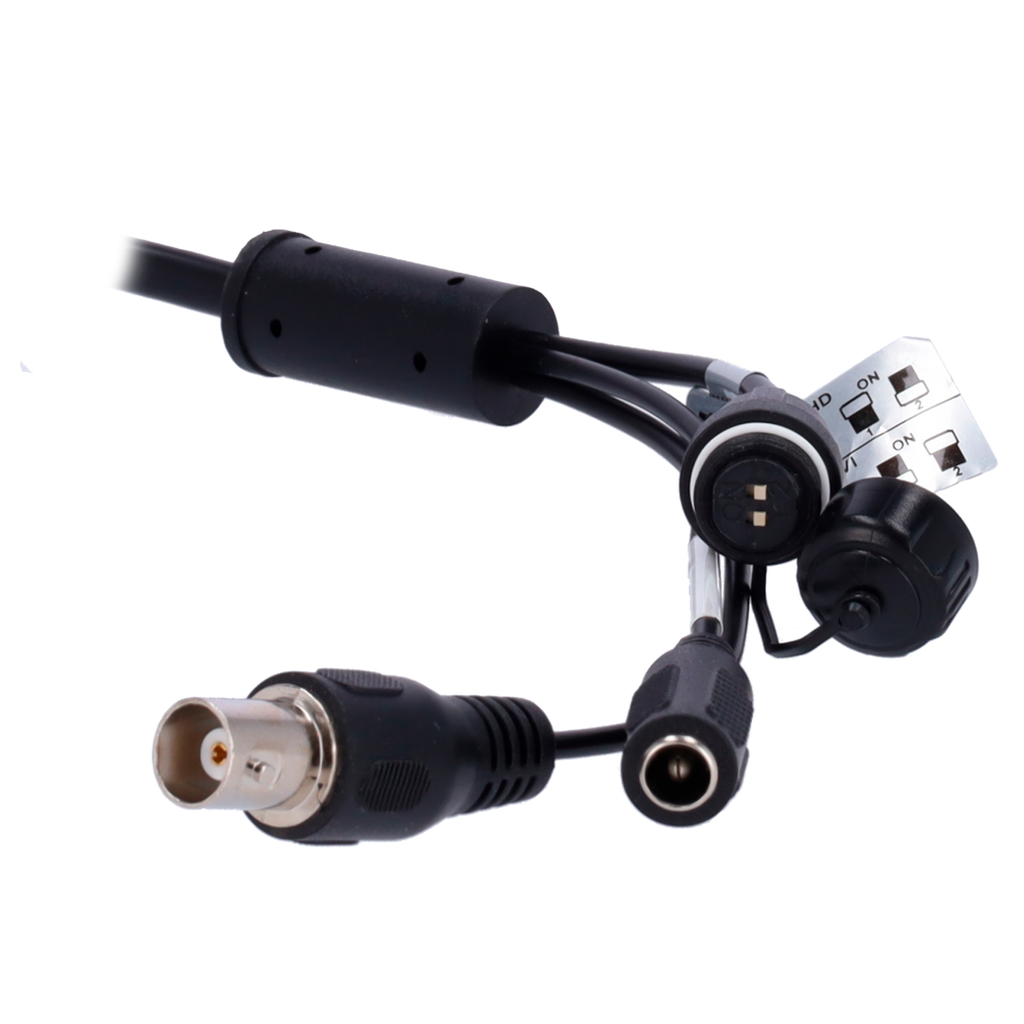

| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via OSD |
| Basic functions | OSD menu (remote) |
| WDR | 120 dB |
| Configurable OSD functions | 3D-DNR, HLC, BLC, AGC, Smart IR |
| Power | DC 12 V / 335 mA / 4 W max |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Aluminium and plastic |
| Dimensions | 50.3 mm (H) x 106 (Ø) mm |
| Weight | 330 g |
In the box
- 4N1 X-Security dome camera
- 3 plugs and 3 screws for mounting
- User instructions
- Allen wrench
- Installation template
