XS-B201A-2E-DL
Ga direct naar de productinformatie
XS-B201A-2E-DL

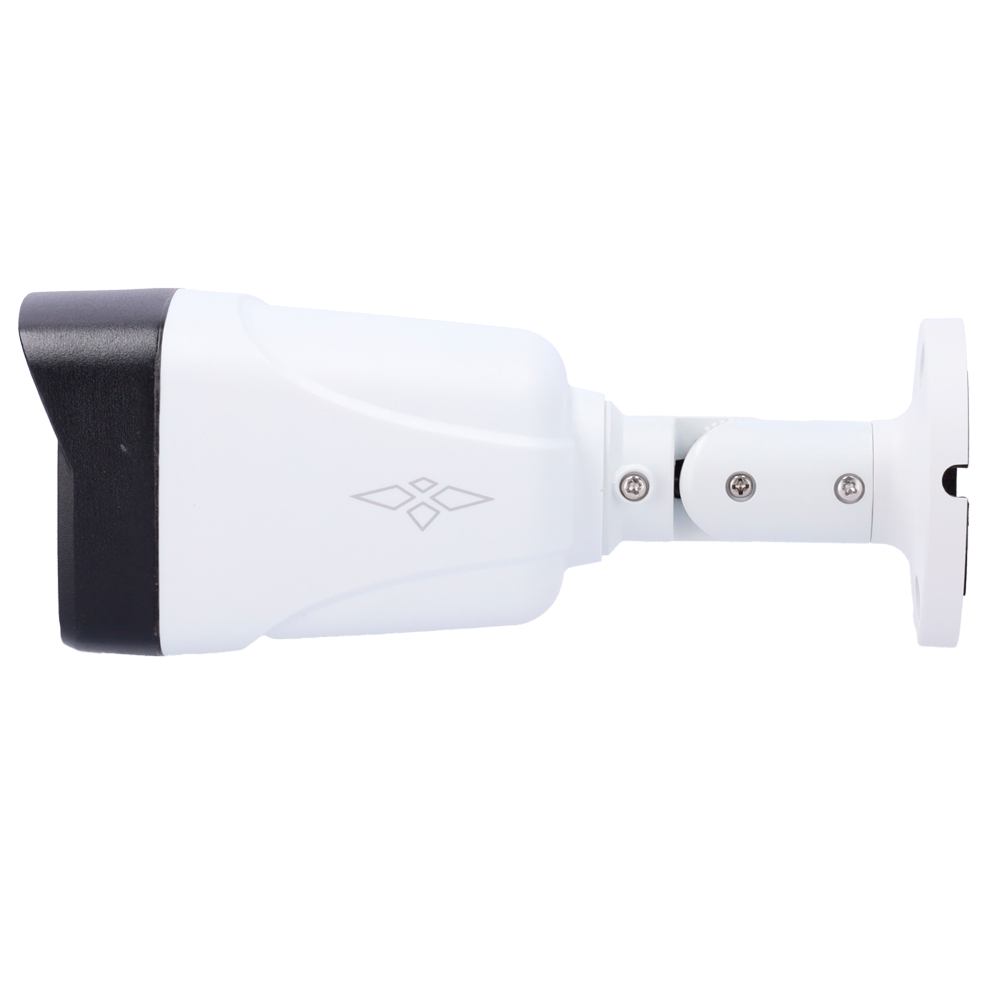

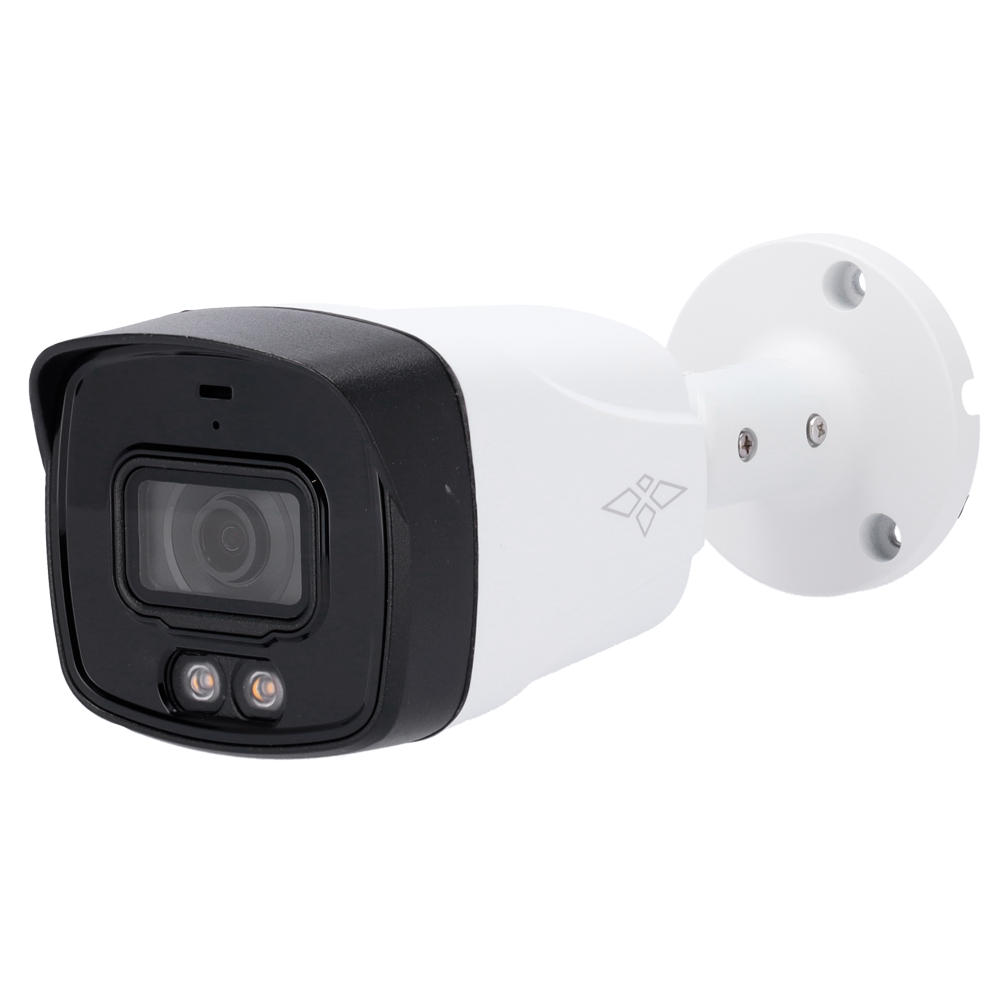

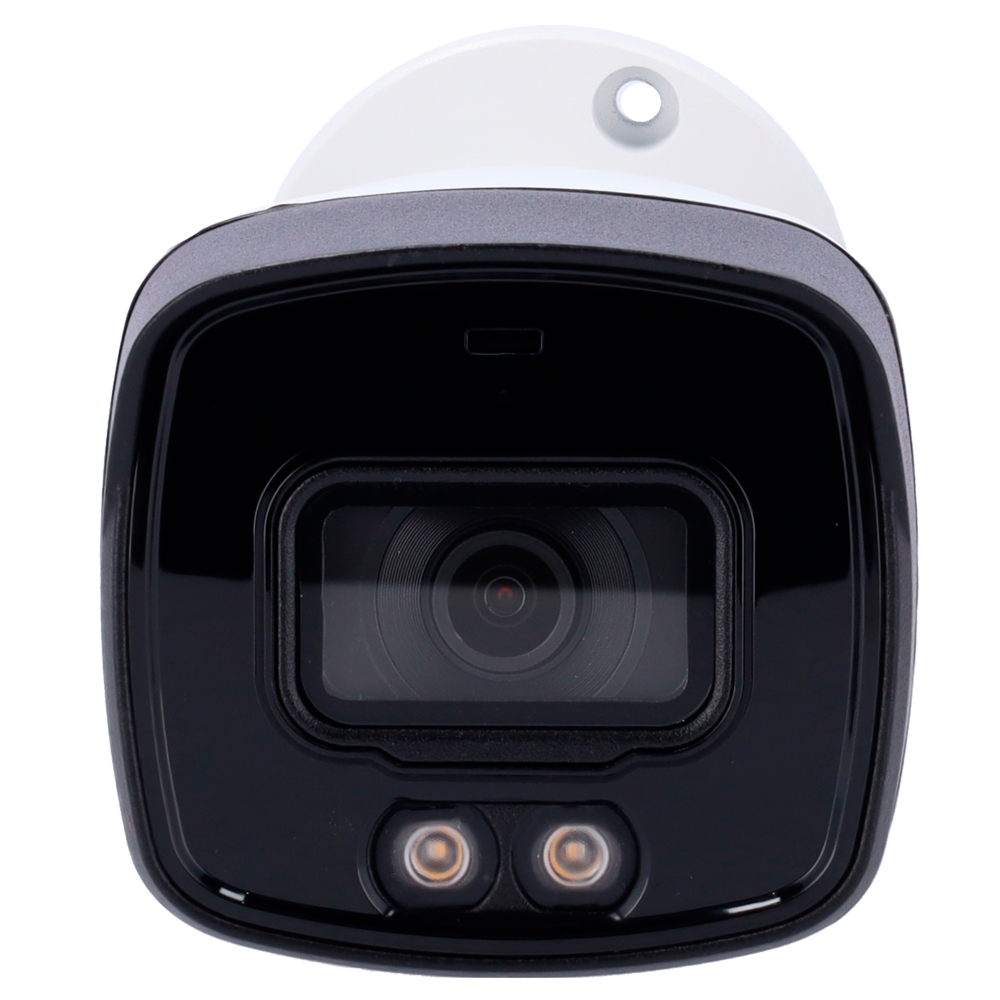

- X-Security Bullet Camera ECO Range
- Output 4in1
- Resolution 1080p
- 2.8 mm Lens
- Dual Light range 40 m | Integrated Microphone
- Waterproof IP67 | Audio over Coaxial (CVI)
- X-Security
- HDTVI, HDCVI, AHD and Analog Bullet Camera
- ECO Range
- 1/2.7 CMOS
- Resolution 1080p (1920x1080)
- Output 4in1
- 2.8 mm Lens
- 0 Lux
- Dual Light: IR and white light
- Dual light range 40 m
- IR Cut
- 3D-DNR
- Integrated microphone
- Coaxial audio in HDCVI technology
- Weatherproof IP67
Specifications
| Brand | X-Security |
| Range | ECO |
| Image sensor | 1/2.7" CMOS |
| Maximum resolution | 2 Mpx (1920x1080) |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 102º, V: 60º, D: 129º |
| Range performance | 41.1 m (D), 16.5 m (O), 8.3 m (R), 4.1 m (I) |
| Lens Adjustment | 3-axis |
| Minimum illumination | 0.01 Lux @(F2.0, AGC ON) 0 lux with dual light |
| Supplementary lighting | Dual Light (IR + white light) range 40 m |
| Day / Night | Mechanical ICR filter |
| Electronic Shutter | 1/25~1/100000 s |

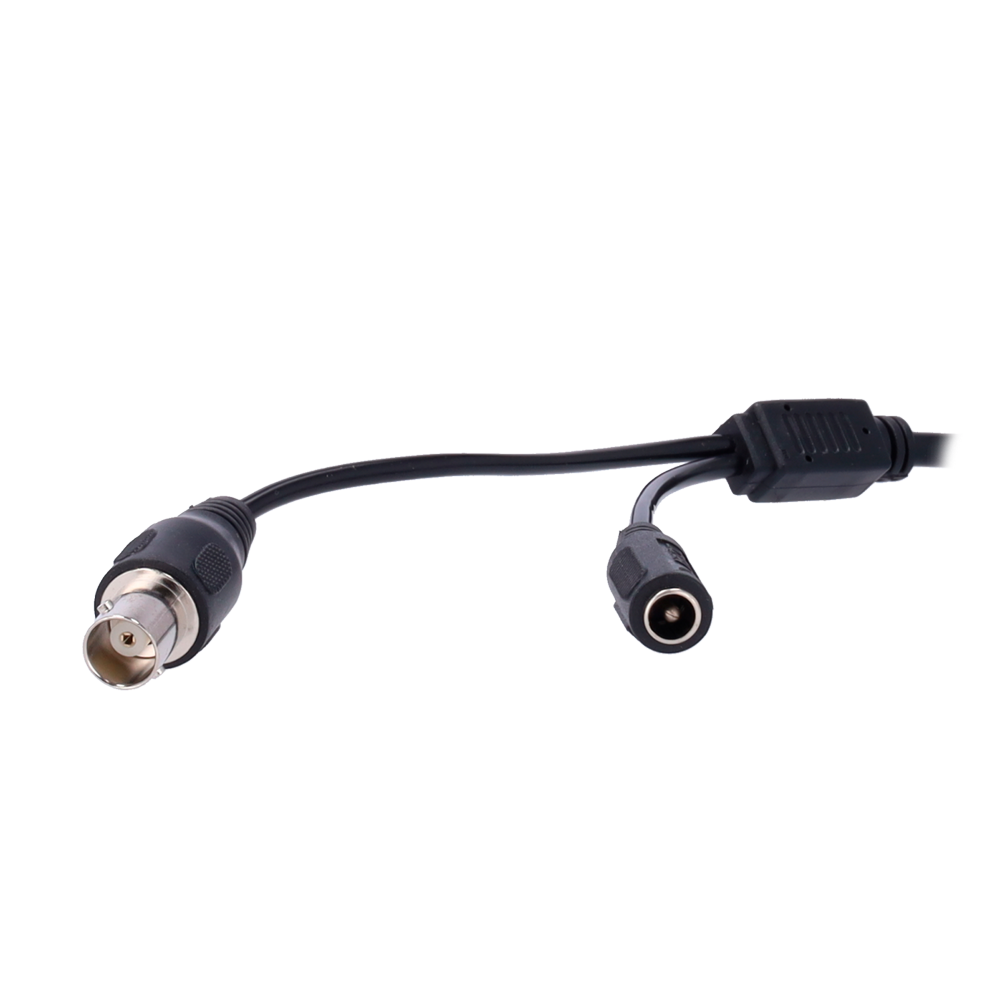

| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via OSD |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 3D-DNR, HLC, BLC, AGC, AWB, Smart Light, Mirror function, Privacy Mask |
| Power | DC 12 V / 4.1 W max |
| Degree of protection | Weatherproof IP67 |
| Material | Metal and plastic |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | 198.9 (D) x 80.2 (W) x 76.2 (H) mm |

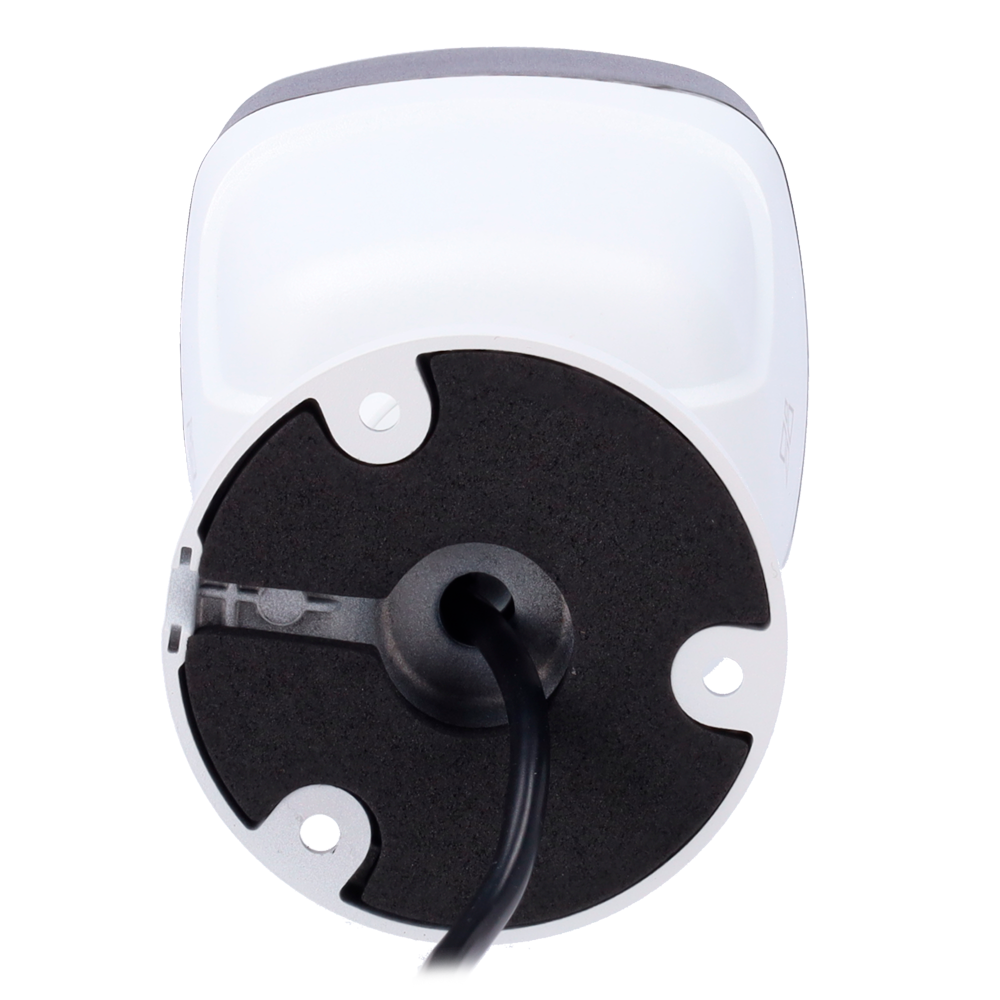

| Base diameter | Ø base 70.1 mm / Ø between bolts 56 mm / 3 bolts |
| Weight | 290 g |
In the box
- 4N1 X-Security bullet camera
- 3 plugs and 3 screws for mounting
- User instructions
- Allen wrench
- Installation template
