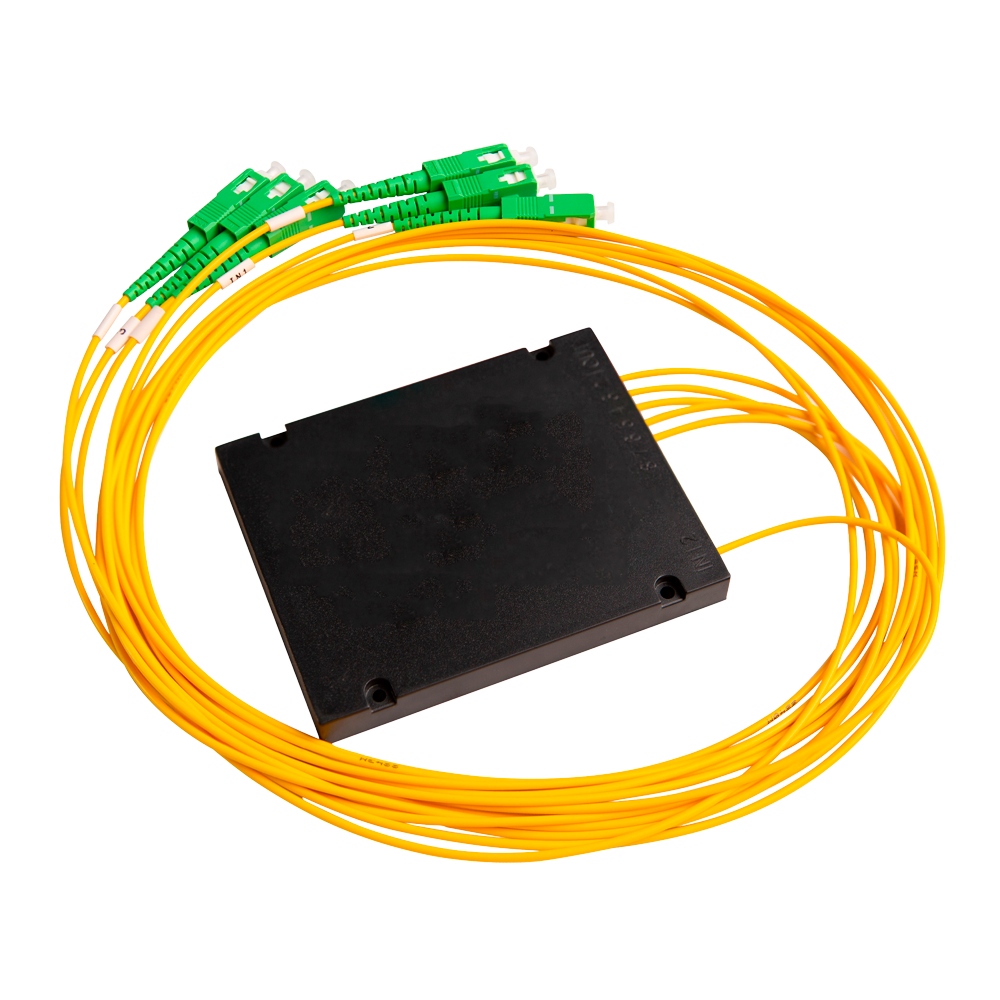

VSOL-SC-APC-OS2-1M-Y-164-ABS
- Vsol Passive Optical Splitter
- Wavelength 1260 nm to 1650nm
- Compatible with Vsol solution and generic solution
- 1 x SC uplink connector
- 64 x SC connectors for UNO's
The VSOL-SC-APC-OS2-1M-Y-164-ABS is a 1 meter single-mode fiber patch cord with SC/APC connectors and high-quality yellow cable, designed for internal optical links where low attenuation, reliability and compatibility with telecommunications equipment are required.
- Passive Optical Splitter
- 1:64
- SC uplink connector
- 64 connectors for SC PON UNO's
- Wavelength 1260 nm to 1650nm
- Compatible with VSOL PON and generic solution
Specifications
| Allowed wavelength | 1260 nm to 1650nm |
| Fiber type | PON ( G657A ) |
| Connector type | SC |
| Splitter Type | 1:64 |
| Basic specifications | Plug and Play Multiple installation methods High Splitting reliability Compact size |
| PON Specifications | Insertion loss (dB) (max.) 20,5 Uniformity (dB) (max.) 1,8 Return Loss (dB) (min.) 55 Temperature stability (dB) (Max.) 1,0 Polarization-dependent loss (dB) (max.) 0,4 Wavelength-dependent loss (dB) (max.) 0,8 Directivity (dB) (min.) 55 * Each connector will add a loss of 0,2 dB |
| Electric Consumption | No power consumption (it is a passive element) |
| Operating temperature | -40° C ~ 85° C |
| Dimensions | 60×12×4 mm |
In the box
- Splitter
