VCA-IPAi65A05-ZR
- VCA Technology
- model VCA-IPAi65A05-ZR, IPAi range

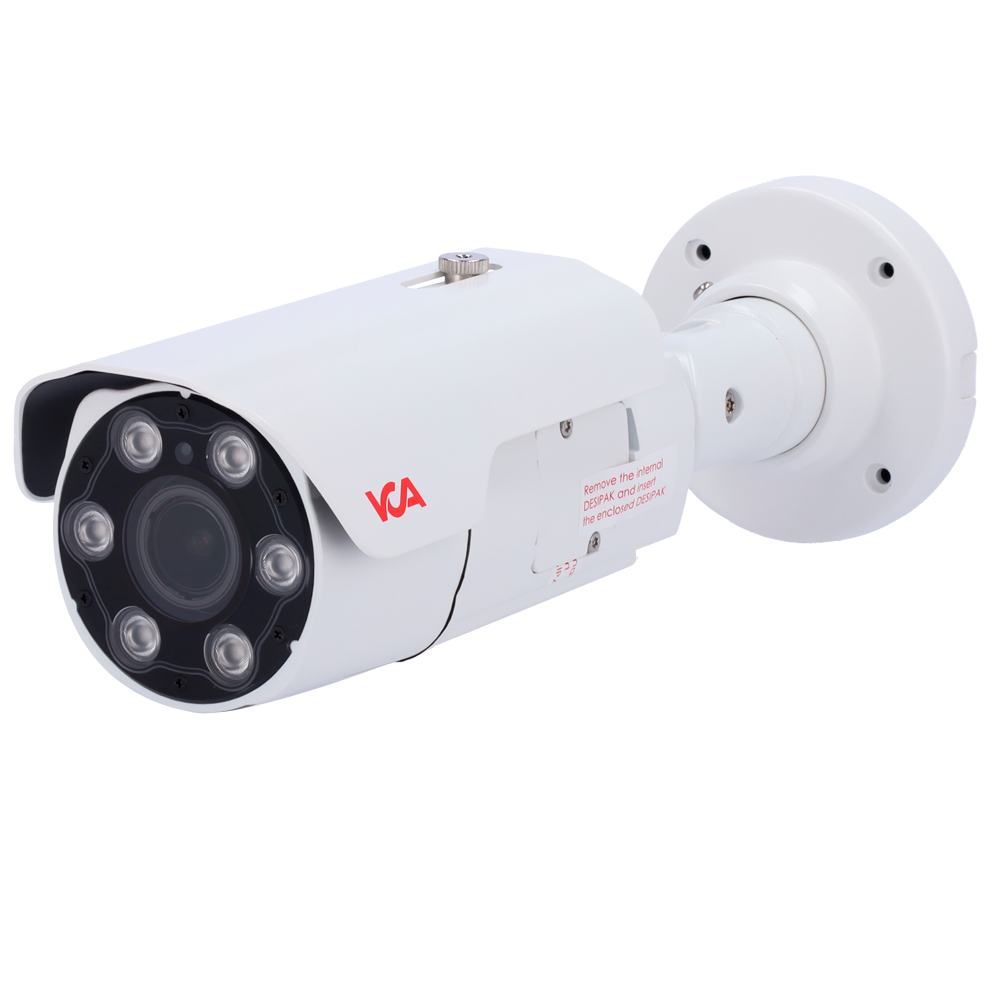

- Bullet IP camera 5MP IR AI
- Resolution 5MP lens 6 ~ 50mm. IR 40m.
- VCA video analytics (deep learning optional)
- ONVIF compatible S/T/M profile S/T/M, NDAA, IK10, IP67
- VCA Technology
- IPAi Range
- Bullet IP camera 5MP IR
- Lens: 6 ~ 50mm
- Video analytics (deep learning optional)
- Compression H.264 / H.265 /MJPEG
- ONVIF Profile S/T/M
- IP67
- IK10
- Complies with NDAA
Specifications
| Brand | VCA Technology |
| Range | IPAi |
| Model | VCA-IPAi65A05-ZR |
| Image sensor | Sony Starvis EXMOR 1/2.8” 5M CMOS |
| Maximum resolution | 2592(H) x 1944(V) |
| Minimum illumination | Colour: 0.08 Lux B/W : 0 Lux (IR LED On) |
| WDR | True WDR |
| Lens | 6 ~ 50mm |
| Viewing angle | Horizontal: 40.8º (wide) to 6.9º (tele) |
| Aperture | F1.6 |
| Shutter | Auto / Manual: 1/30 ~ 1/32000, Anti-Flicker, Slow Shutter (1/2,1/3,1/5,1/6,1/7.5,1/10) |

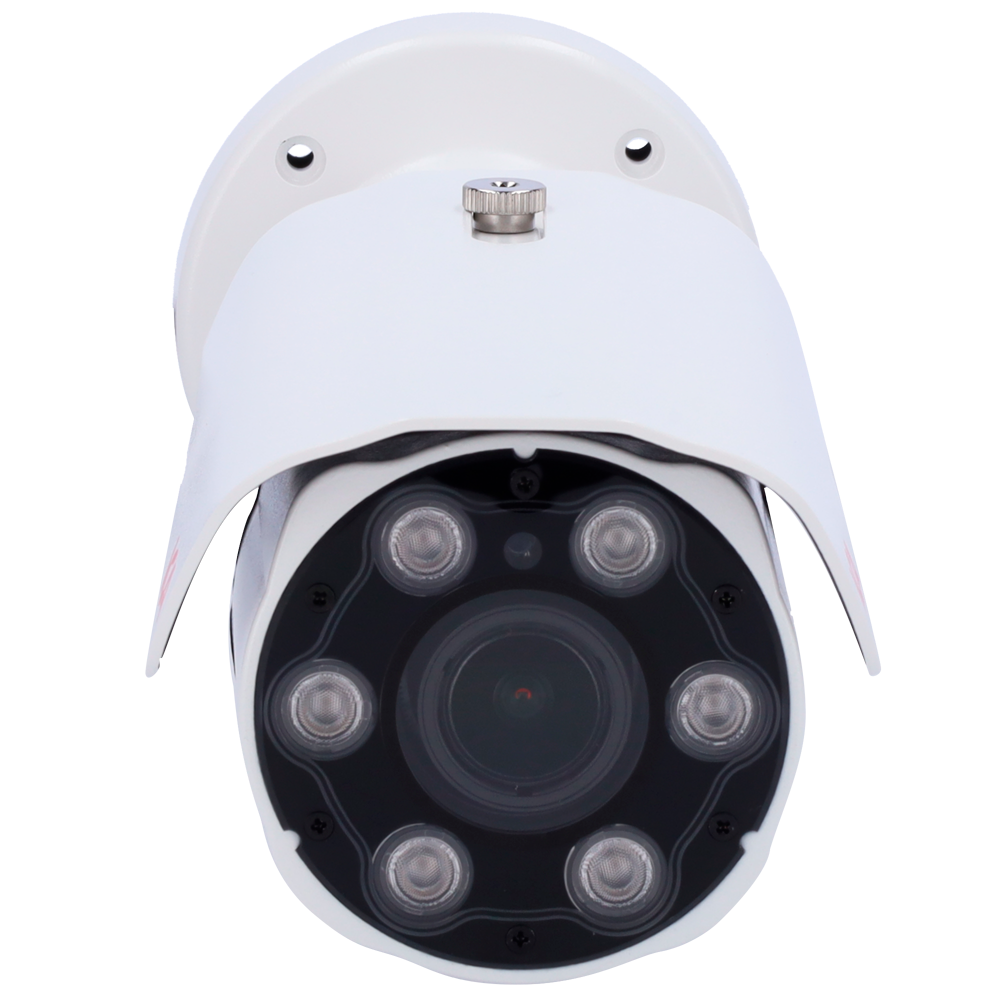

| IR Led | High Power IR LED x 6 40m. range |
| Video compression | H.264, H.265, MJPEG |
| Privacy Mask | Up to 16 zones |
| Integrated video analytics | intrusion, detection zones and lines, sabotage detection, appearance, disappearance, permanence, entry, exit, etc |
| Optional video analytics (deep learning) | person tracking, object tracking (person, car, motorcycle), meta data objects |
| Ethernet | 10/100BASE-T |
| ONVIF | ONVIF profile S/T/M |
| Security | HTTPS (SSL), IP filtering, 802.1x, Digest Authentication |
| Protocols | TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB 2), UPNP, RTCP, SSH, ONVIF |
| Storage | MicroSD/microSDHC/microSDXC card slot (not included) |
| Audio Compression | G.711 u-law 8KHz, AAC LC 48Kbps at 8KHz |

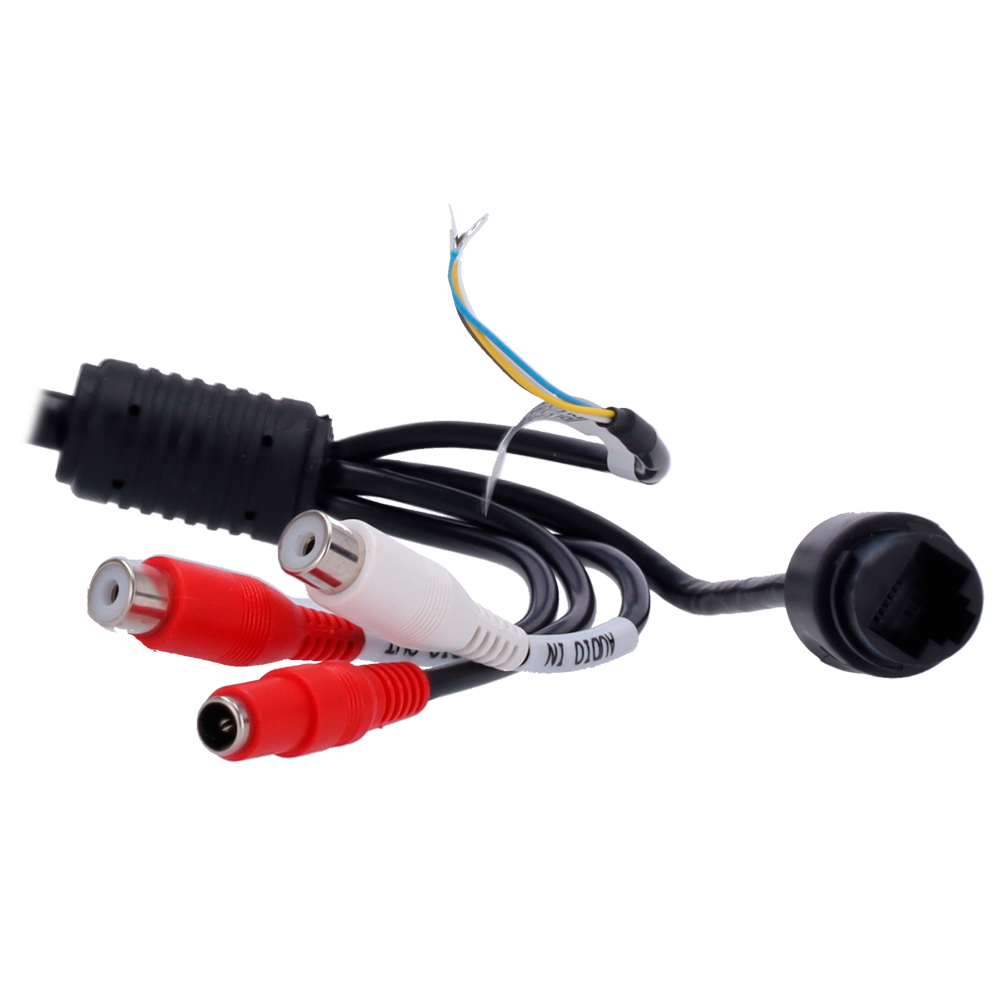

| Audio input | Line input, supply voltage: 3VDC (3mA), input impedance: 3K Ohm |
| Audio output | Line output, maximum output level: 1Vrms |
| I/O terminals | 1 x alarm input, 1 x relay output |
| Construction material | Aluminum (die-cast), white |
| Housing | Bullet |
| Consumption | DC12V max. 13.2W PoE max. 15.6W |
| Power | DC12V, PoE+ (IEEE 802.3at Class 4) |
| Operating conditions | Humidity 10% ~ 90% RH (non-condensing) -40°C ~ 60°C |
| Standards | FCC, CE, IP67, IK10 |
| Certifications | NDAA compliant |
| Dimensions | 309.8mm x 96.7mm |
| Weight | 1.2kg |
| Warranty | 2 years |
In the box
- Camera VCA-IPAi65A05-ZR
- Assembly manual and quick guide
- Mounting accessories
