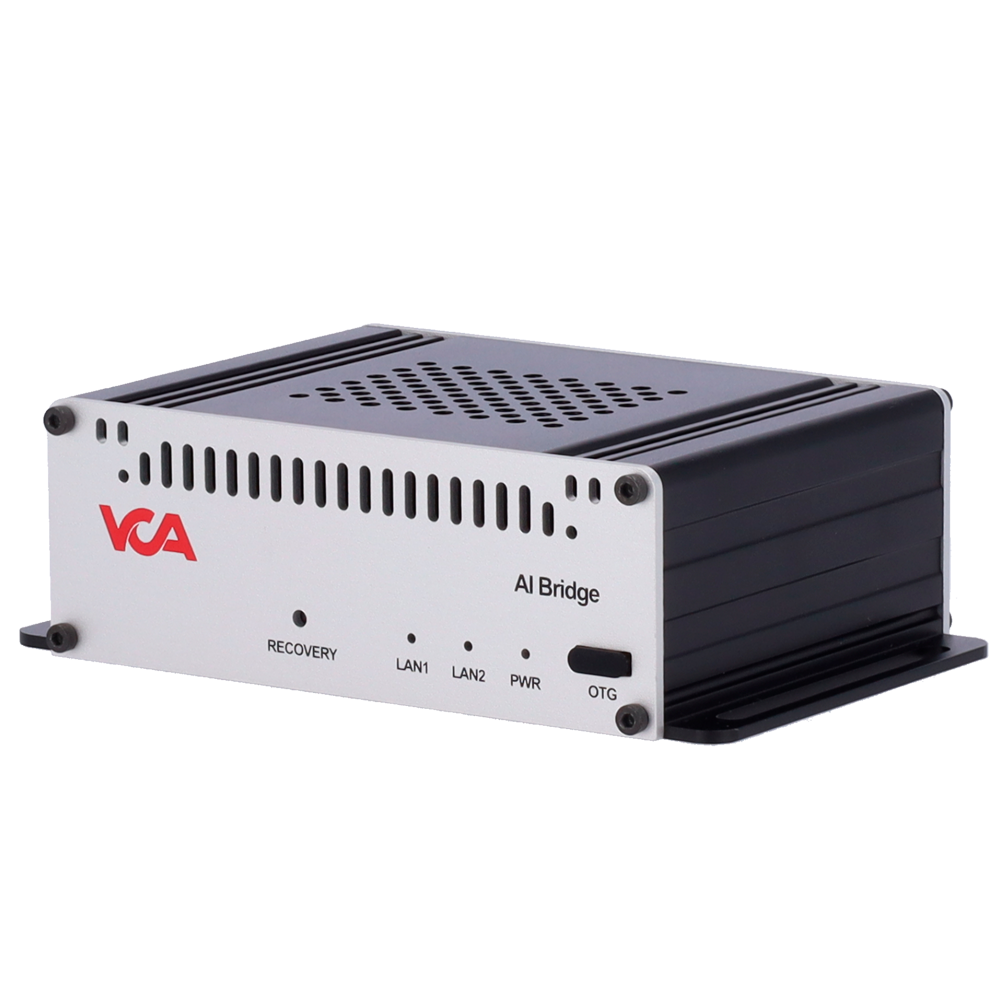

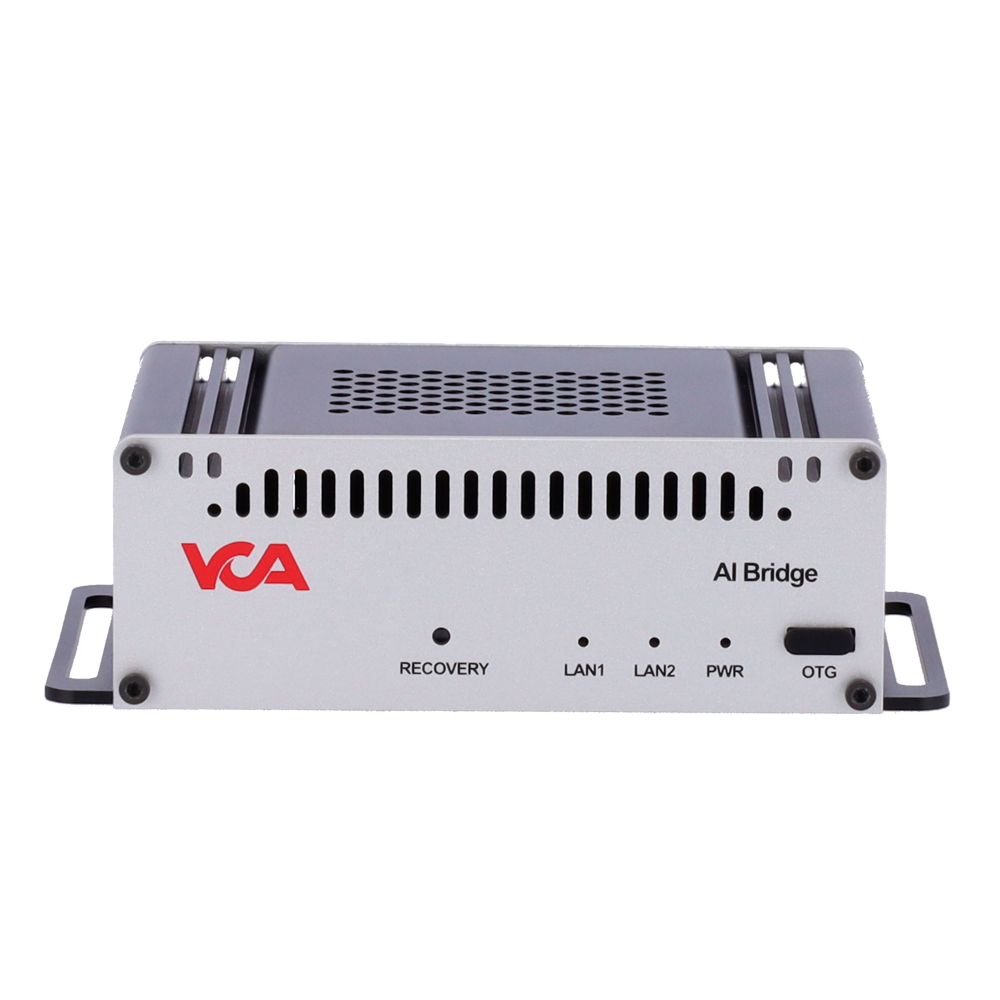

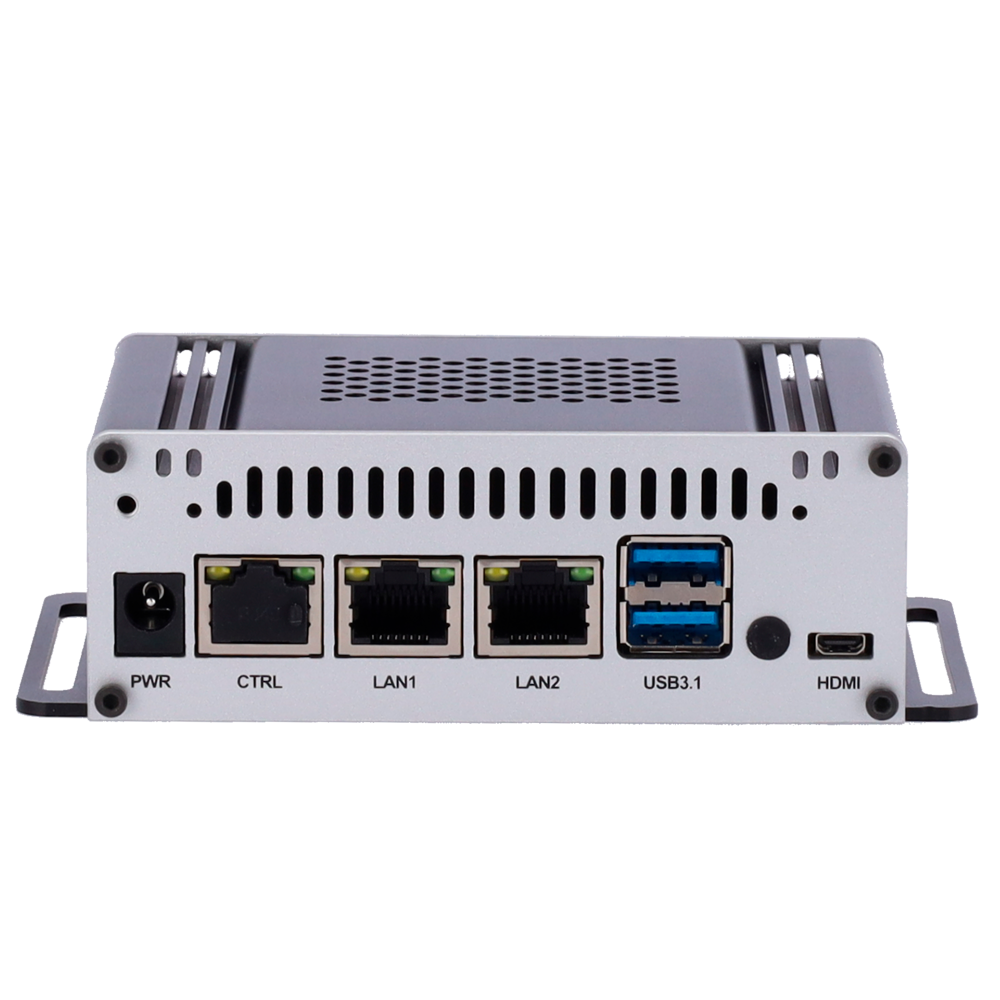

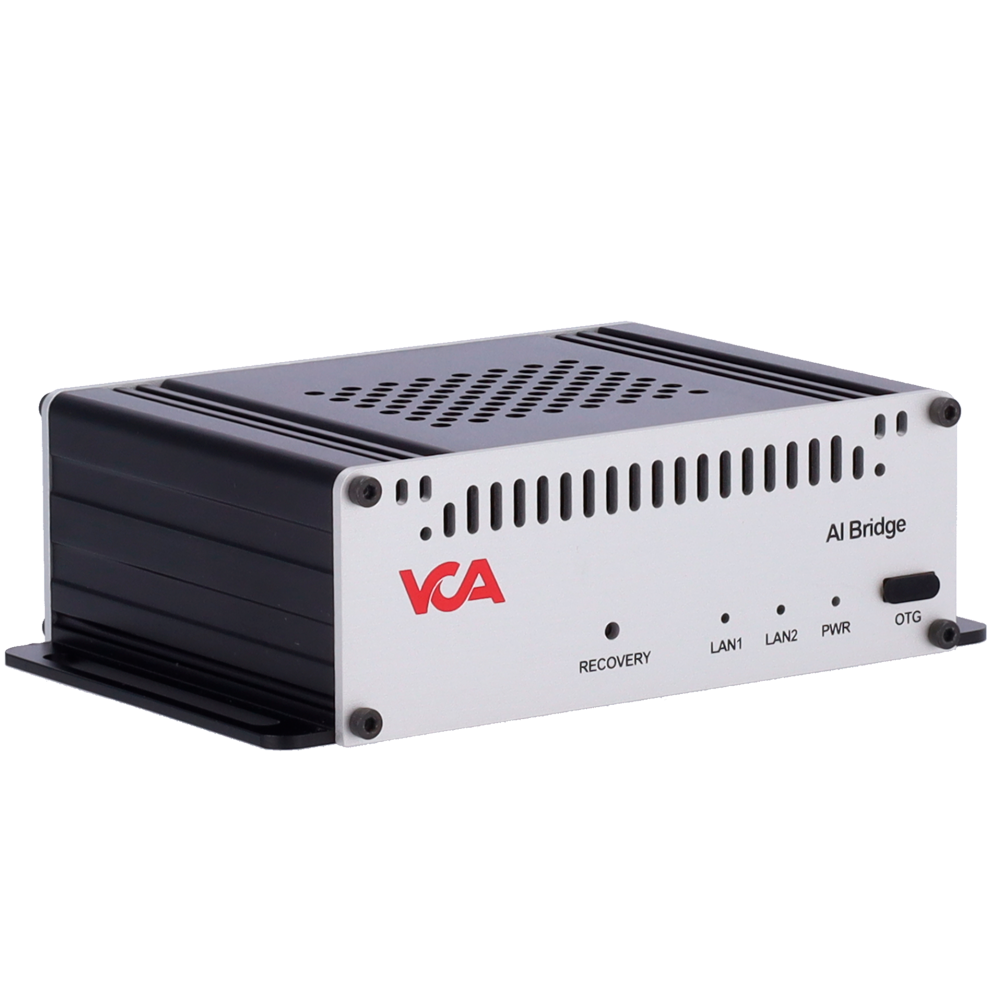

VCA-ABP302-NX-1TB
Ga direct naar de productinformatie
VCA-ABP302-NX-1TB
- VCA Technology VCAserver AI based analytics
- Model VCA-ABP302-NX-1TB
- Nvidia Jetson Orin Nano 8GB - 1TB M.2 NVMe
- O.S. Linux Ubuntu 22.04 LTS
- Includes channels: 8 x VCAProAI and 3 x VCABehavior
- Supports connection to NX server for 8 channels
- VCA Technology
- VCAserver AI Based Analytics Bridge
- Nvidia Jetson Orin Nano 8GB
- 1024-core Ampere with 32 Tensor cores
- 1TB M.2 NVMe
- O.S. Linux Ubuntu 22.04 LTS
- 1 x micro HDMI
- 2 x Gigabit RJ45
- 8 ProAI channels included
- 3 Behavior channels included
Specifications
| Brand | VCA Technology |
| Range | VCA AI Bridge |
| Model | VCA-ABP302-NX-1TB |
| Core module | NVIDIA Jetson Orin Nano 8GB |
| GPU module | 1024-core NVIDIA Ampere with 32 Tensor cores |
| Storage | 1TB M.2 NVMe |
| Operating system | Linux Ubuntu 22.04 LTS |
| Video (GPU) | micro HDMI |
| UBS ports | 2 x USB 3.1 Gen (Type A) |
| Ethernet | 2 x 1 RJ45 Gigabit |
| Integrated VCA events | Intrusion, tamper, zone entry/exit, appear/disappear from zone, stop in zone, dwell time, direction, people counting, object left, object removed, zone crossing and line crossing, speed, logical rules |
| AI video analytics included | VCA stream (12fps@640x360) DLOT/DLPT/DLST: 8 channels wrestling, aggression, drop, object in hand, accessories: 3 channels DLOT: Deep Learning Objet Tracker DLPT: Deep Learning People Tracker DLST: Deep Learning Skeleton Tracker |
| Housing | Industrial PC |
| Construction material | Metal, silver and black |
| Consumption | DC12V/5A, maximum 1.5A (18Watt) |
| Power | DC12V/5A |
| Operating conditions | Humidity 20% ~ 85% RH (non-condensing) 0°C ~ 50°C |
| Standards | FCC, CE, IP67, IK10 |
| Dimensions | 128.5mm x 39.1mm x 79mm |
| Weight | 0.350 kg |
| Warranty | 3 years |

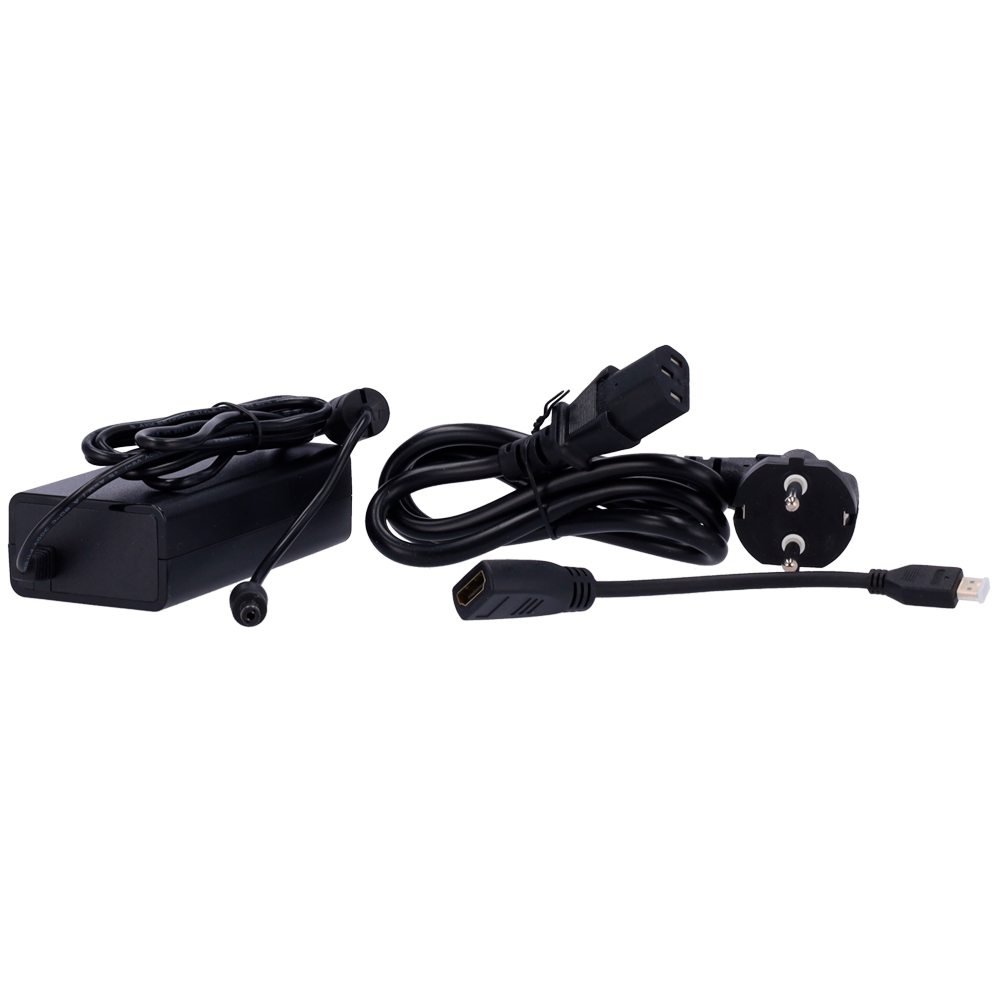

In the box
- Equipment VCA-ABP302-NX-1TB
- Installation manual and quick guide
