UV-XVR304-32Q3
- Videorecorder 5n1 Uniview Easy Range
- 32 CH HDTVI / HDCVI / AHD / CVBS + 4 extra IP
- Recording resolution 8MP Lite
- AI: UMD and SIP, face search
- Audio 1E/1S | Alarms 16E/6S
- Supports 4 HDD up to 16 T
- Uniview
- DVR 5n1
- Easy range
- 32 BNC video CH (IP-replaceable)
- AHD, TVI, CVI, CVBS, CVBS
- 4 extra IP channels
- 160 Mbps bandwidth supported
- Maximum IP resolution 8MP
- Maximum analog resolution 8 Mpx Lite
- Audio
- Alarms

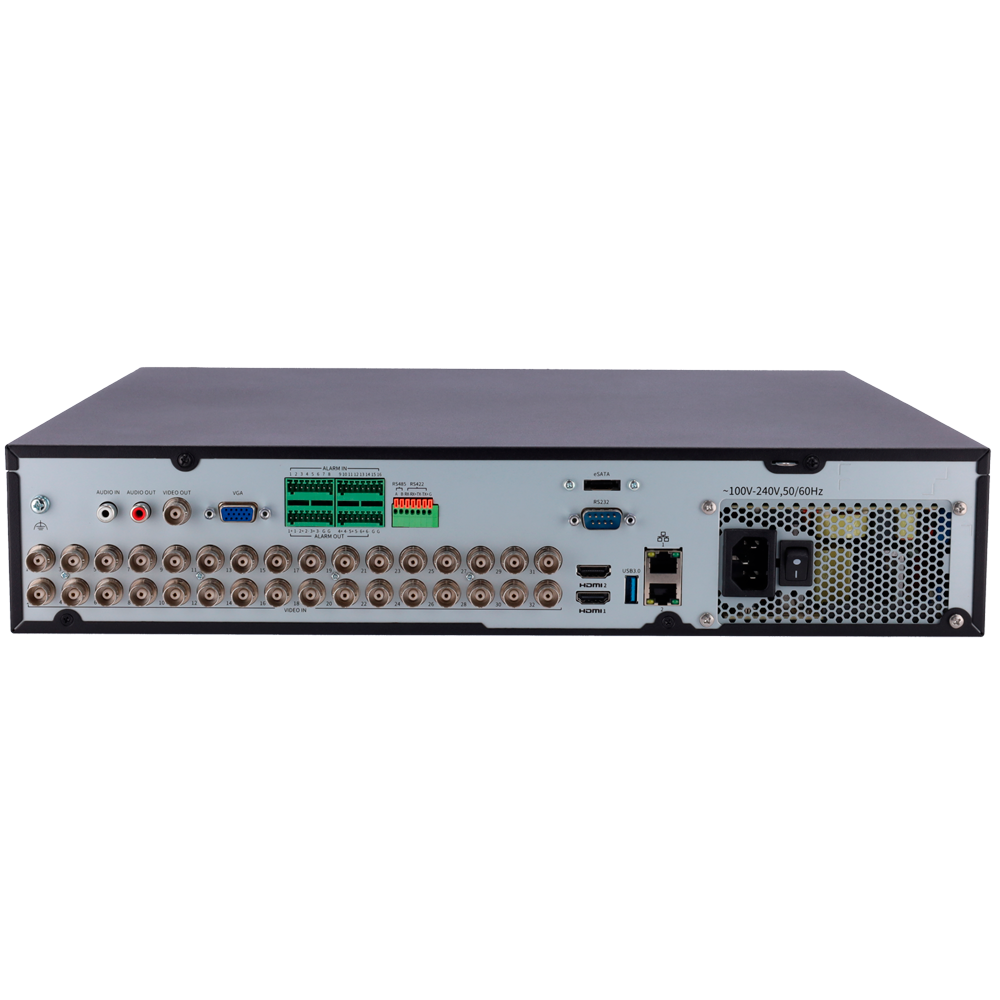

- HDMI, VGA, BNC, RCA output
- RS485
- 3 x USB 2.0
- Mouse
- Space for 4 HDD up to 16 TB
- WEB, CMS, Smartphone and NVR interface
Specifications
| Brand | Uniview |
| Range | Easy |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 32 CH BNC |
| Hybrid configuration | 4 IP channels Up to 36 IP channels substituting all BNC channels |
| Video outputs | HDMI1: 1920x1080@60Hz, 1920x1080@50Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz HDMI2: 4K(3840x2160)@30Hz, 1920x1080@60Hz, 1920x1080@50Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz VGA:1920x1080@60Hz, 1920x1080@50Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz Outputs 1 x CVBS, 1 x VGA, 2 x HDMI, HDMI2 up to 4K(3840 x 2160), simultaneous HDMI1 and VGA output, independent HDMI2 and HDMI1/VGA output |
| Analog cameras supported | TVI / AHD: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps CVI: 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps *For the correct live display, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the specifications indicated, but in no case higher than the specifications indicated. |
| Maximum IP recording resolution | 4K |
| Main Stream recording encoding | 8MPLite@8FPS; 5MPLite@12fps; 4MPLite@15FPS; 1080P@15FPS; 720P@30FPS; 720P@30FPS |
| Extra Stream recording encoding | D1@8fps; D1@12fps; D1@15fps, D1@15fps, D1@30fps |
| Decoding capacity | Analogue: 32 x 8MP Lite@8fps, 32 x 5MP Lite@12fps, 32 x 4MP Lite@15fps, 32 x 1080P@25fps, 32 x 720@30fps IP: 2 x 8MP@30fps, 4 x 4MP@30fps, 8 x 1080P@30fps, 16 x 720P@30fps, 36 x D1, 16 x 720P@30fps |
| XVR intelligence | Ultra Motion Detection (UMD); SIP (Intrusion Detection, Cross Line Detection, Enter Area, Exit Area) UMD 16 CH - SIP 8 CH |
| Intelligence through IPC | Face detection; SIP (Intrusion detection, Cross line detection, Enter zone, Exit zone); Blur detection; Object removed; Object left; Auto track; Automatic tracking SIP 8 CH |
| Intelligent search | BB Face and behavioral search |
| Alarms | 16 inputs/ 6 outputs |
| Alerts | Motion; IP conflict; Network disconnected; Disk offline; Abnormal disk; Illegal access; Low hard disk space; Hard disk full; Abnormal recording/snapshot; Abnormal recording/snapshot. |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Incoming bandwidth | 160 Mbps (up to 224 Mbps after all analog channel conversion) |
| Outgoing bandwidth | 160 Mbps |
| Recording method | Manual, programmed, motion detection |
| Internal memory | 4 SATA HDD 3.5" of up to 16 TB (not included) |
| External interface | 3 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone UNV-LINK/UNV-LINK PRO) |
| Power | DC 12V / 45W |
| Dimensions / Weight | 88.6 (H) x 442 (W) x 435.9 (D) mm (2U) / 6 kg |
In the box
- 5 in 1 Uniview recorder
- Mouse
- Power adapter
