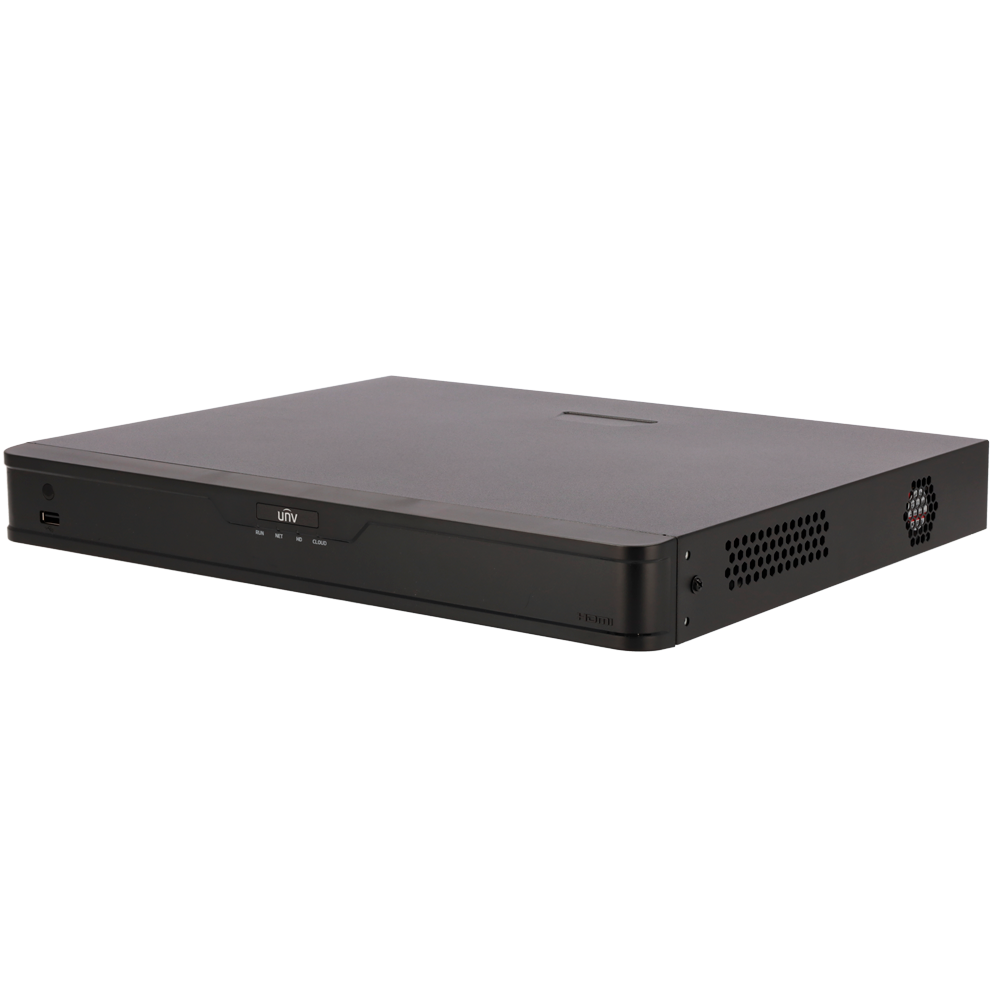

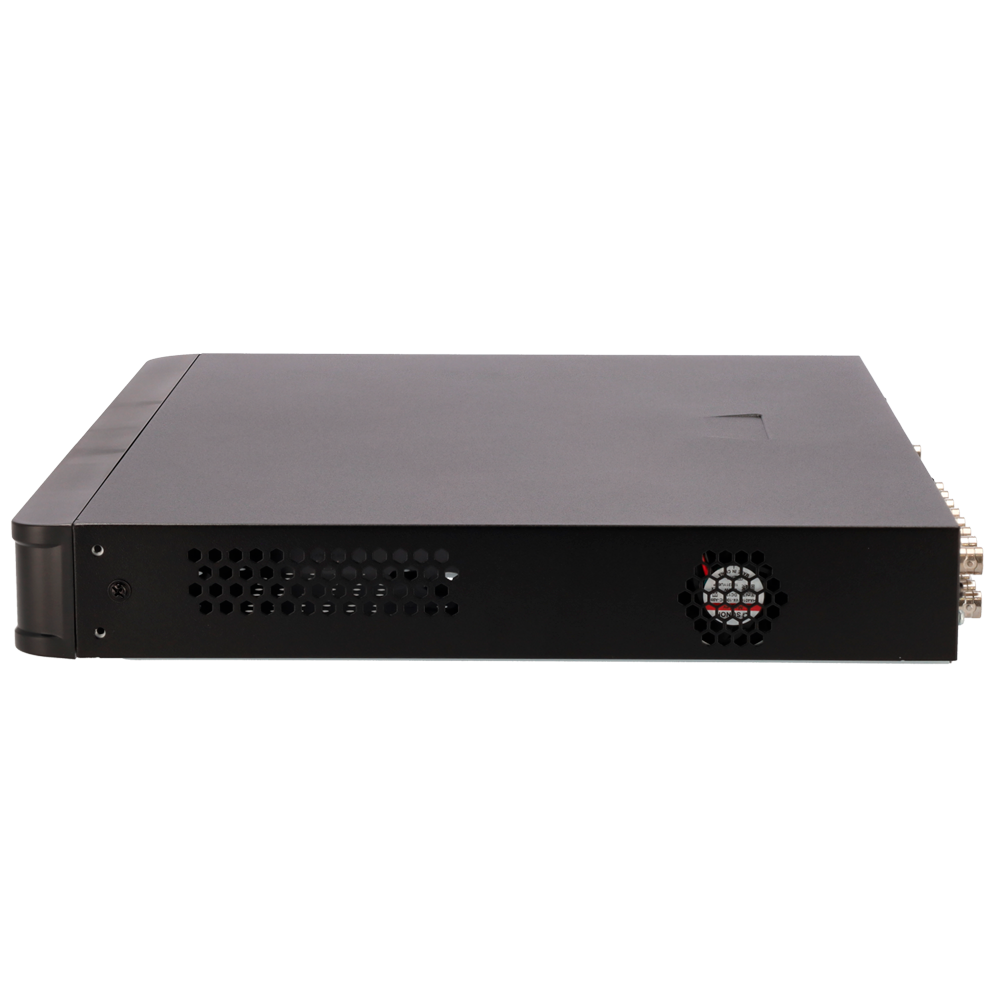

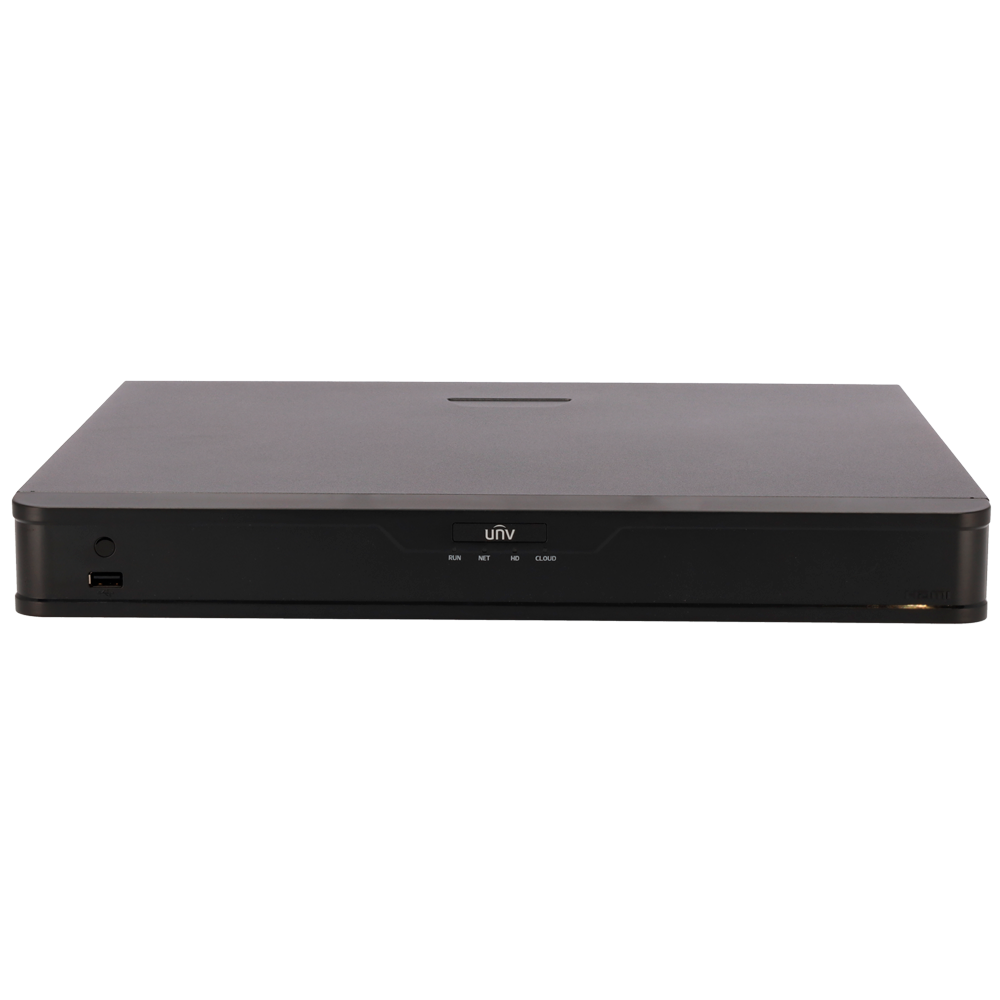

UV-XVR302-16Q3
Ga direct naar de productinformatie
UV-XVR302-16Q3
- 5n1 Uniview recorder
- Easy range
- 16 CH HDTVI / HDCVI / AHD / CVBS + 8 extra IP
- Audio
- Space for 2 hard disks
- Uniview
- DVR 5n1
- Easy range
- 16 BNC video CH (IP-replaceable)
- AHD, TVI, CVI, CVBS, CVBS
- 80 Mbps bandwidth supported
- Maximum IP resolution 4K
- Maximum analog resolution 8 Mpx
- Audio
- HDMI and VGA output
- RS485
- 2 x USB 2.0
- Mouse
- Space for 2 HDD up to 6 TB
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Easy |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 16CH BNC |
| Hybrid configuration | 8 IP channels (IP only up to 24 channels) substituting all BNC channels |
| Video outputs | 1 HDMI, 4K (3840 × 2160) 1 VGA (1920x1080p) |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Maximum IP recording resolution | 4K |
| Analog cameras supported | TVI / AHD: 8MP@12FPS (canal1-canal16); 5MP@20FPS; 4MP@30FPS; 3MP@30FPS (canal1-canal16); 1080P@30FPS; 720P@60FPS CVI: 8MP@15FPS(canal1-canal16); 4MP@30FPS; 1080P@30FPS; 720P@60FPS *For the correct live display, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the specifications indicated, but in no case higher than the specifications indicated. |
| Main Stream recording encoding | 8MPLite@8FPS (canal1-canal16); 5MPLite@12fps; 4MPLite@15FPS; 3MP@15FPS(canal1-canal16); 2MP@15FPS; 720P@30FPS |
| Extra Stream recording encoding | D1@30FPS |
| Recording method | Manual, programmed, motion detection |
| Internal memory | 2 HDD SATA 3.5" of up to 8TB (not included) |

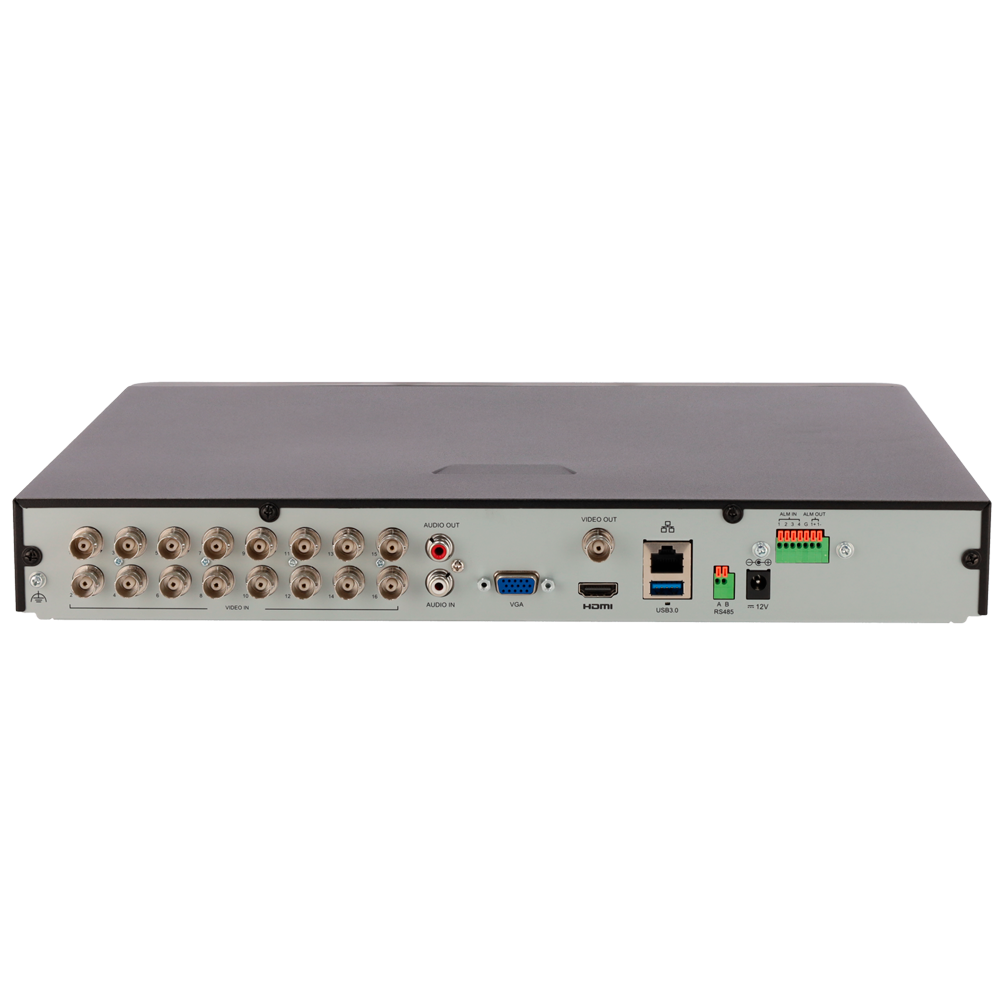

| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | DC 12V / 12W |
| Dimensions / Weight | 380mm ×326mm× 53mm / 1.9 kg |
In the box
- 5 in 1 Uniview recorder
- Mouse
- Power adapter
