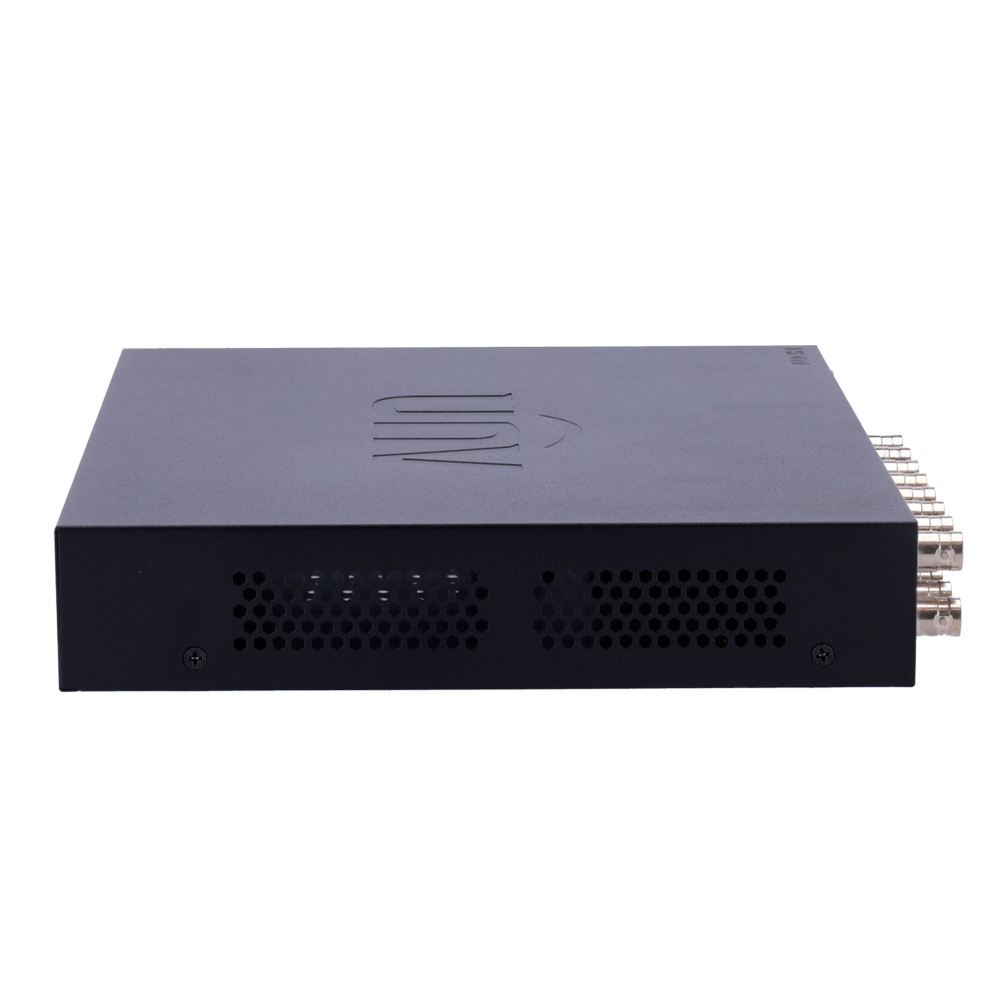

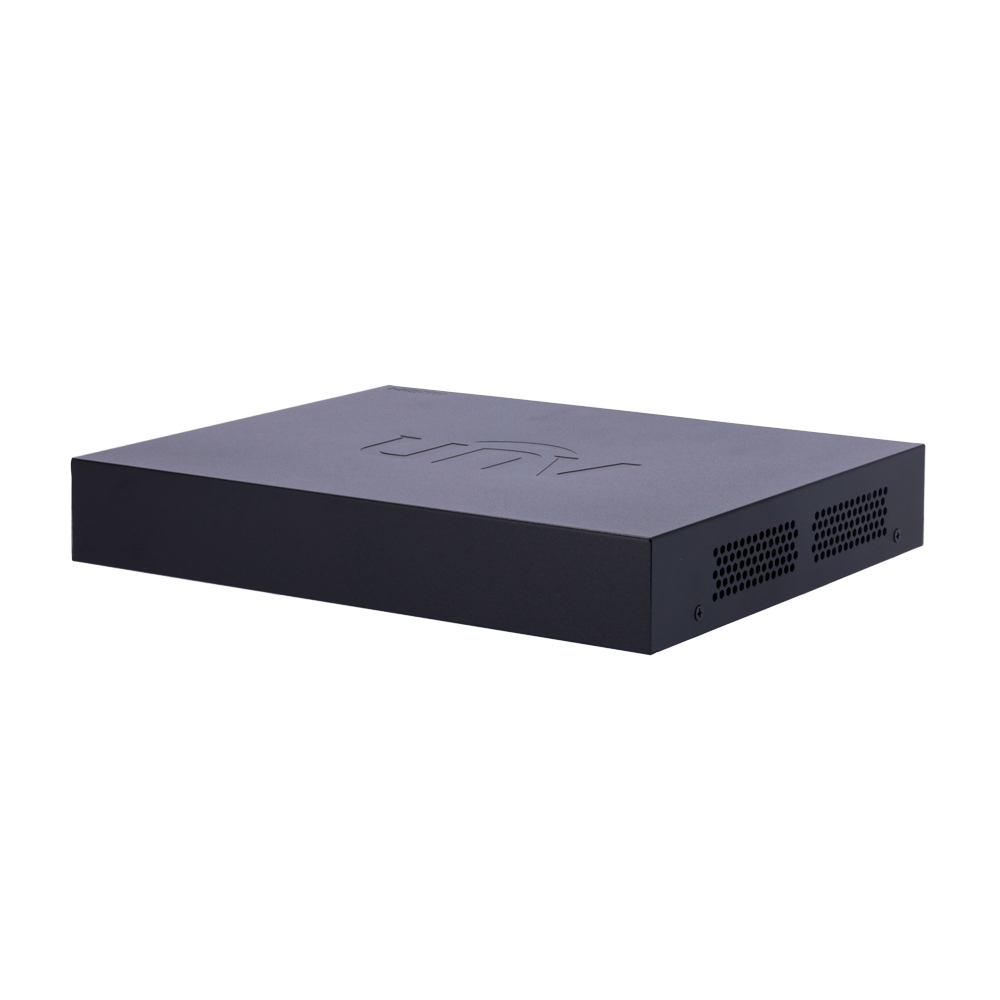

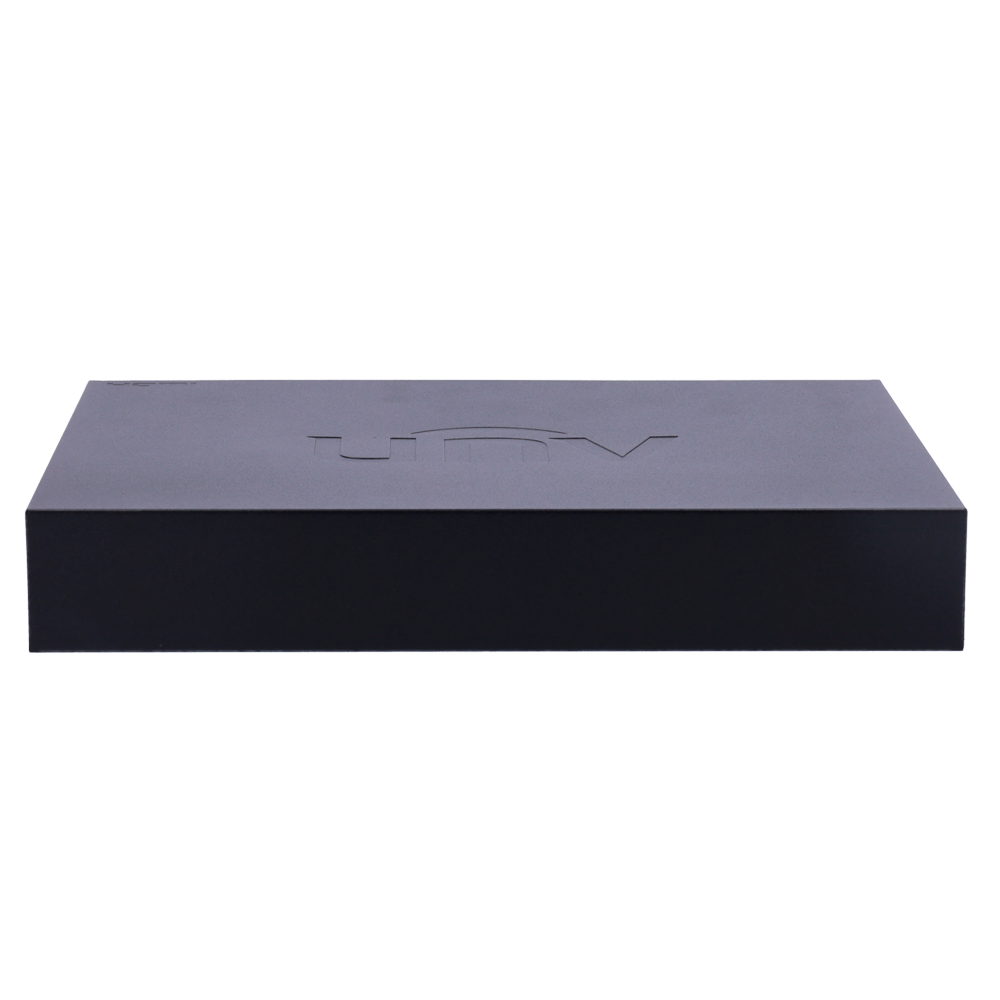

UV-XVR301-16F
Ga direct naar de productinformatie
UV-XVR301-16F
- Video recorder 5n1
- Uniview
- 16 CH HDTVI / HDCVI / AHD / CVBS + 2 extra IP
- Audio
- Supports 1 hard disk
- Uniview
- DVR 5n1
- Easy range

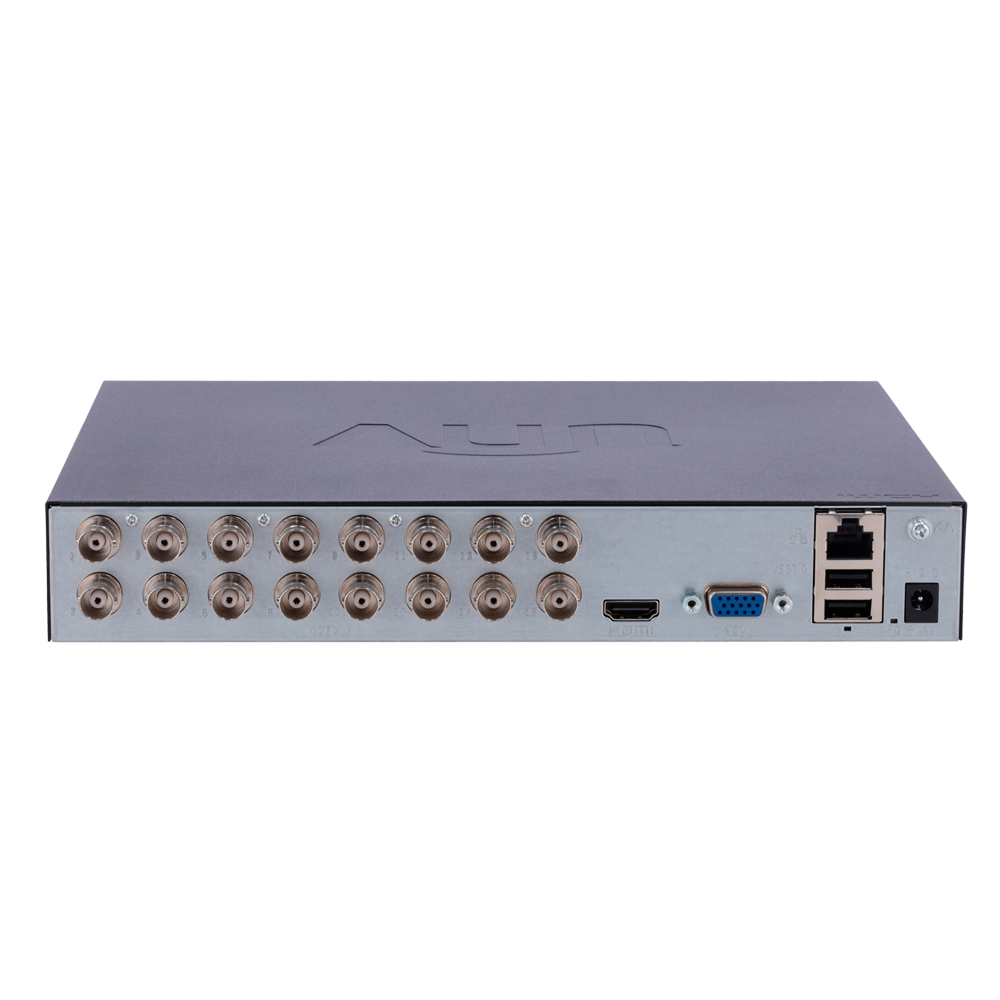

- 16 BNC video CH (IP-replaceable)
- 2 additional IP channels
- AHD, TVI, CVI, CVBS, CVBS
- 64 Mbps bandwidth supported
- Maximum IP resolution 8 Mpx
- Maximum analog resolution 2 Mpx
- Audio
- HDMI and VGA output
- 2 x USB 2.0
- Mouse
- Space for 1 HDD up to 6 TB
- ONVIF Compatible
- Ultra Motion Detection (UMD)
Specifications
| Brand | Uniview |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 16CH BNC |
| Hybrid configuration | Up to 6 IP Channels (8Mpx) replacing all the BNC channels |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Audio Bit Rate | 64Kbps per channel |
| Display resolution | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Maximum IP recording resolution | 8 Mpx |
| Analog recording resolution | TVI/AHD: 1080P@30fps ,720P@30fps CVI:1080P@30fps ,720P@30fps Supports CVBS |
| Main Stream recording encoding | 1080P Lite @25fps; 720P@30fps |
| Extra Stream recording encoding | D1@25FPS,D1@30FPS |
| Intelligent Function | Ultra Motion Detection (UMD) for Analog: 8 channels |
| Recording method | Manual, programmed, motion detection |
| Internal memory | 1 HDD SATA 3.5" of up to 6TB (not included) |
| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | DC 12V / 10W |
| Dimensions / Weight | 253mm × 212mm × 42mm / 0.85 kg |
In the box
- 5 in 1 Uniview recorder
- Mouse
- Power adapter
