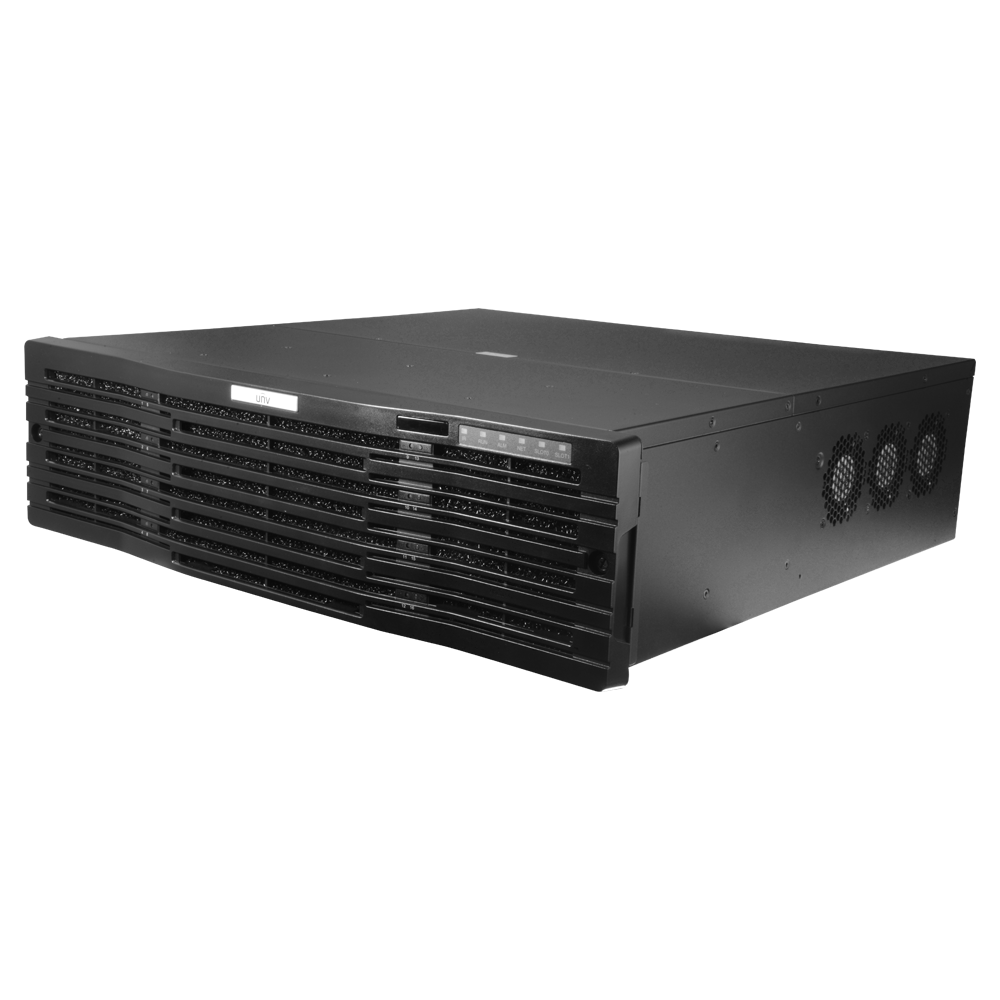

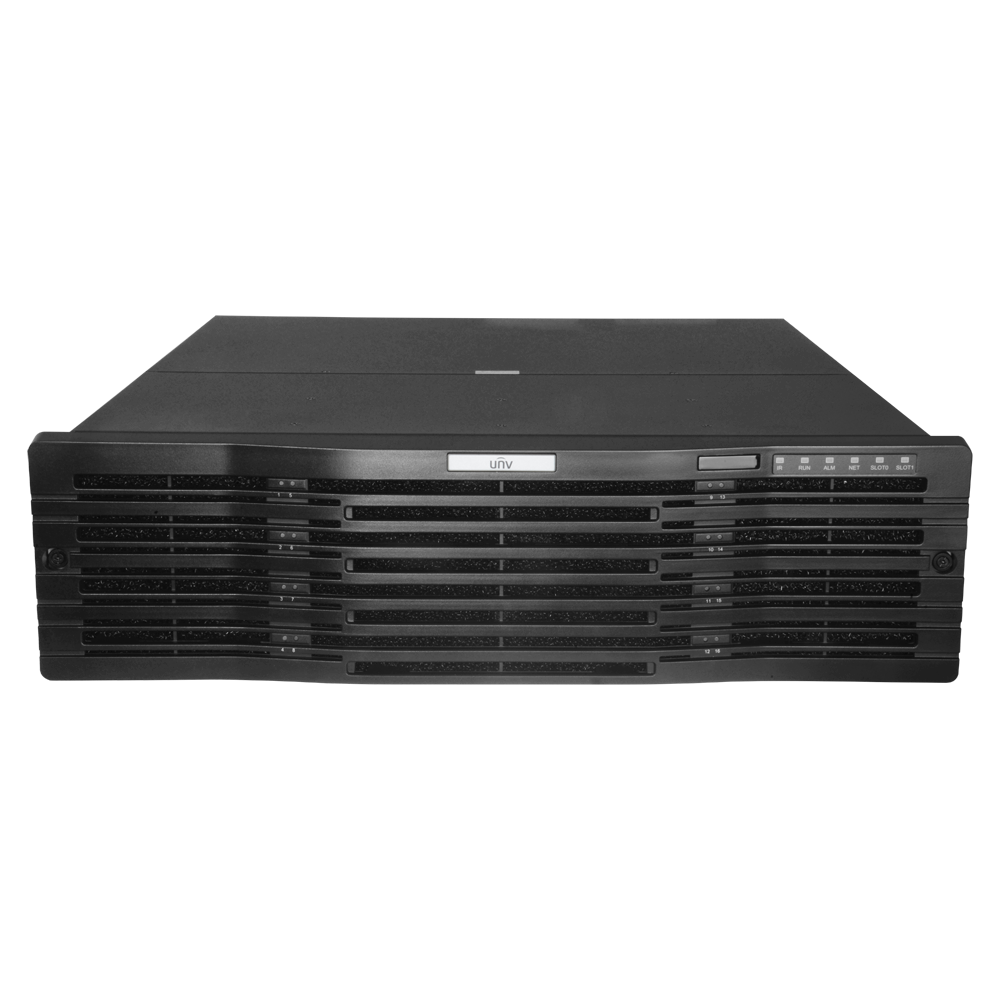

UV-UNICORN
Ga direct naar de productinformatie
UV-UNICORN
- Video management server
- 1000 devices | 12 Mpx
- Supports 2 decoder cards
- Bandwidth 512 Mbps
- Supports 16 hard drives | RAID
- Uniview
- Video management server
- Pro range
- 1000 devices
- 512 Mbps bandwidth supported
- Maximum resolution 12 Megapixel
- Facial recognition
- Decoder
- Alarms
- Access control
- Audio
- Output 2 x HDMI 4K and VGA
- Slot for 2 decoder cards up to 6 HDMI ports
- Space for 16 HDD up to 14 TB
- RAID function

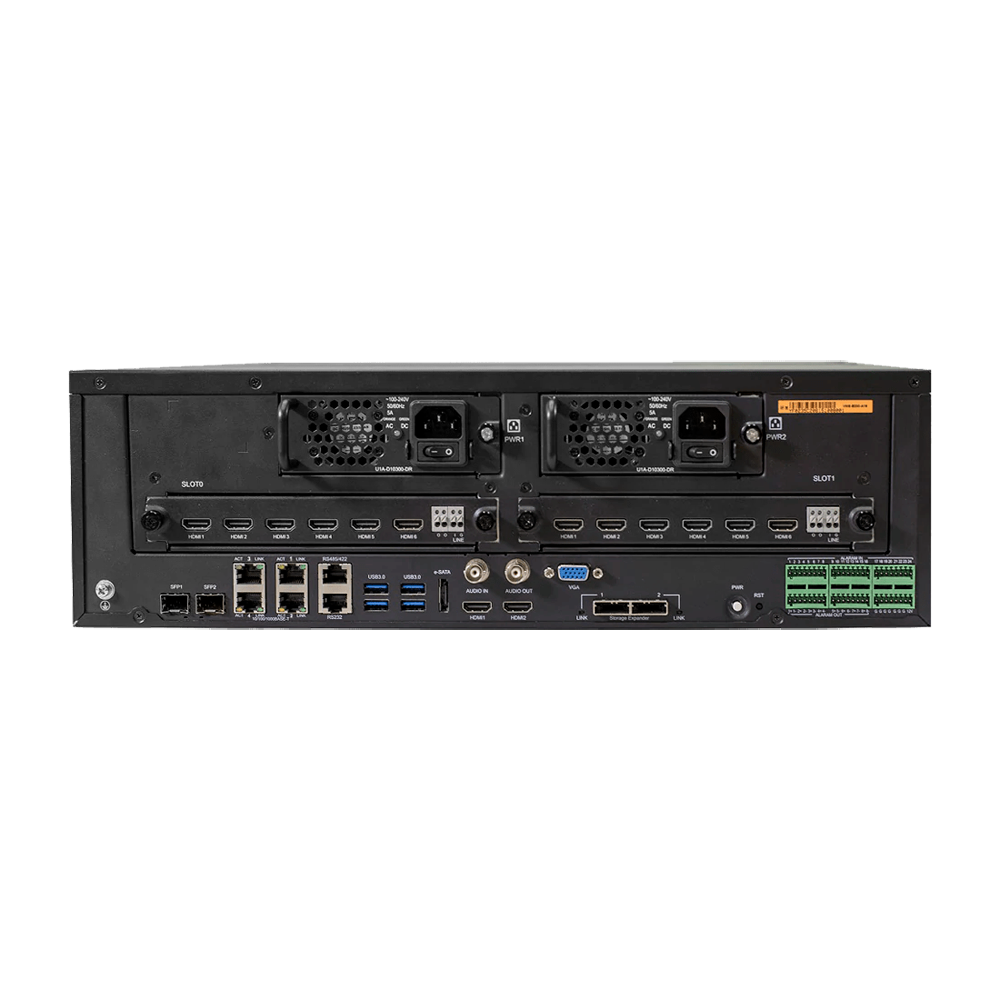

- RS232, RS485, 4 x USB3.0
- 4 x RJ45, 2 x SFP- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Inputs for IP cameras | 1000 devices | 2000 channels |
| IP compatible cameras | UNIVIEW, ONVIF |
| Video outputs | 2 HDMI 4K, 1 VGA | Supports 2 decoder cards 6 x HDMI |
| Video compression format | Ultra265 / H.265 / H.264 |
| Display resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF |
| Total bandwidth | 512 Mbps downstream / 384 Mbps upstream |
| Bidirectional audio | 1 input / 1 BNC output |
| Alarms | 24 Inputs / 8 Outputs |
| Intelligent functions | IPC, NVR, face recognition terminal, decoder (standard/extended), network keyboard, cloud devices, alarm control panel and door access control |
| Internal memory | 16 SATA HDD 3.5" up to 14 TB (not included) | 1 x eSATA | 2 x miniSAS |
| Communication | 4 x USB 3.0 / 4 x RJ45 (Ethernet) / 2 x 1000M SFP / 1 x RS232 / 1 x RS485 |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | AC 100 ~ 240V (Redundant power supply optional) | DC output 12V |
| Dimensions / Weight | 477.1 mm × 481.6 mm × 130.5 mm |
In the box
- Unicorn
- Mouse
- Power supply cable
