UV-UHO-P2S-M55F34
UV-UHO-P2S-M55F34
- Uniarch WiFi IP Camera | 5MP
- Dual 2.8 mm panoramic and 4 mm PTZ lens
- IR 30m | White light 30 m | DWDR | MicroSD 512GB m | DWDR | MicroSD [%VAR%]
- UMD | Tamper Alarm | Audio Detection
- WiFi | Mic | Speakerphone | IP66

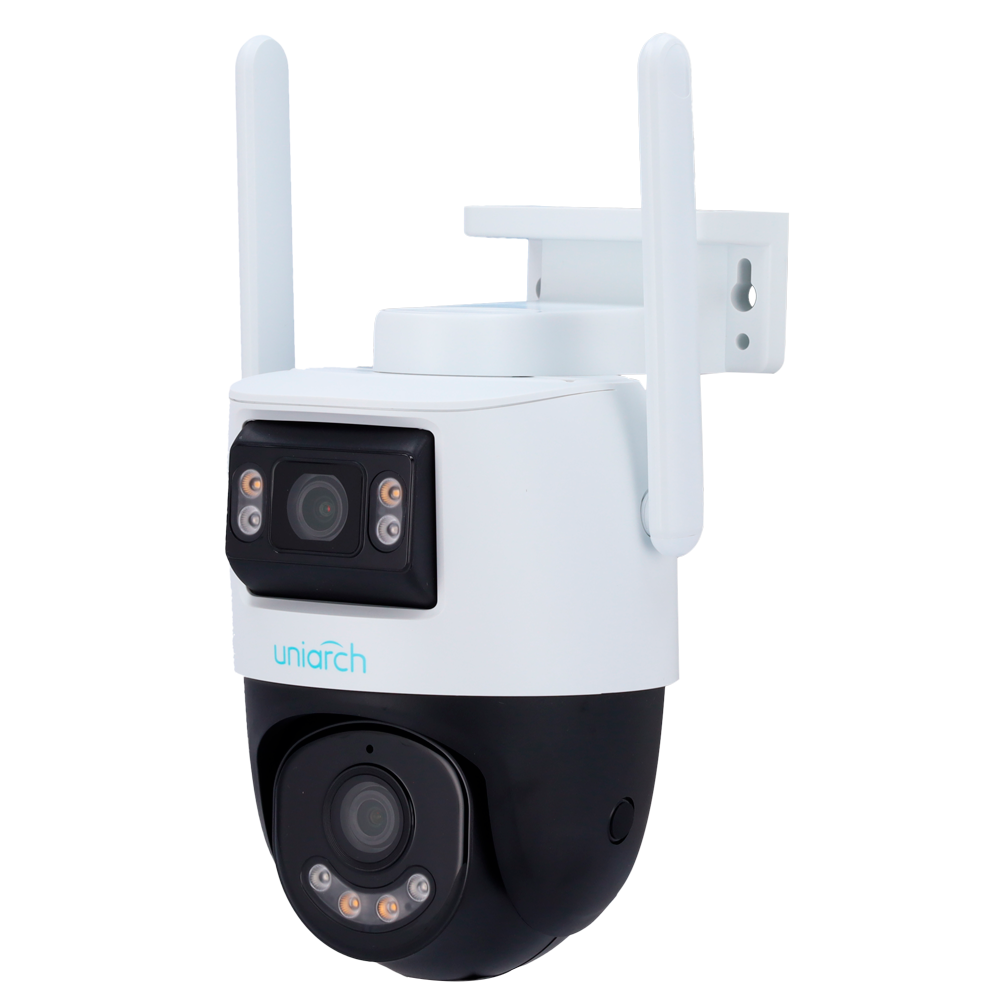

The 5 megapixel Uniarch PT IP camera combines a 2.8 mm panoramic lens and a 4 mm PT lens, providing full, detailed coverage in high resolution. Its progressive scan CMOS sensor and 0.003 Lux sensitivity allow capturing sharp images even in low light conditions, complemented by IR and white light with a range of up to 30 meters in detail mode.
Thanks to its UMD (Ultra Motion Detection) technology based on artificial intelligence, it detects complex movements with high precision, even in fast or difficult to capture scenes. In addition, it incorporates loud sound detection, built-in microphone and speaker, and digital zoom 4X, allowing interactive and contextual surveillance.
With RJ-45 10/100 BaseTX and Wi-Fi IEEE802.11b/g/n/ax, connectivity, this camera adapts to multiple installation environments. Includes MicroSD slot up to 512 GB, red/blue LED indicator, reset button, and IP66 protection for outdoor use. Supports Ultra265/H.265/H.264, compression and incorporates features such as IR CUT and DWDR for optimized image quality.
- Uniarch PTZ IP Camera
- 1/3.0" Progressive Scan CMOS
- 5 Megapíxel
- Lens 2.8 mm panoramic and 4 mm PTZ
- Minimum illumination 0.003 Lux (F1.6, AGC ON) | 0 Lux with IR
- IR range 30m (detail) | 10m (panoramic)
- White light range 30m (detail) | 10m (panoramic)
- Compression Ultra265/H.265/H.264
- RJ-45 10/100 BaseTX
- Wifi IEEE802.11b/g/n/ax
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- Detection of loud sounds
- IR Cut
- Built-in microphone
- Built-in speaker
- Digital zoom 4X (detail)
- LED indicator (red/blue)
- Reset button
- DWDR
- MicroSD slot up to 512 GB
- Weatherproof IP66
Specifications
| Brand | Uniarch |
| Image sensor | 1/3.0” Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2880*1620) |
| Fixed lens | 2.8 mm |
| PT Lens | 4.0 mm |
| Main Stream rate | 5MP (2880*1620); 4MP (2560*1440); 3MP (2304*1296); 2MP (1920*1080); 720P(1280*720)@15fps; |
| Extra Stream rate | 640*360; 2CIF (704*288); CIF (352*288)@15fps; |
| Range performance | Overview: D: 63 m O: 25.2 m R: 12.6 m I: 6.3 m Detail: D: 90 m O: 36 m R: 18 m I: 9 m |
| FOV | Overview: 94.9º(H), 53.7º(V), 100.5º(D) Detail: 80.6º(H), 44.8º(V), 86.7º(D) |
| Bread/Tilt | Overview: Bread: -150º ~ 150º; Tilt: -5º ~ 30º Detail: Pan: 0º ~ 350º; Tilt: 0º ~ 90º |
| Video compression | Ultra 265, H.265, H.264 |
| Minimum illumination | Colour: 0.003 lux (F1.6 AGC ON) 0 lux with IR |
| IR and white light range | Overview: 10 m Detail: 30 m |
| Intelligent functions | Motion Detection, Audio Detection, Tamper Alarm, UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies |
| Image improvements | DWDR, Smart IR, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask |
| Day / Night | Mechanical ICR filter |
| Internal memory | Slot for MicroSD up to 512 GB |
| Audio | Built-in microphone and speaker |
| Audio Compression | G.711U, G.711A |
| Wi-Fi | IEEE802.11b/g/n/ax |
| WI-FI frequency range | 2.4 GHz ~ 2.4835 GHz |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (UNV-LINK, UNV-LINK Pro, Uniarch APP) |
| Led indicator | Red/blue |
| Reset button | Yes |
| Zoom | Digital 4X (detail) |
| Power | DC 12V / 11.5W |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Waterproof IP66, overvoltage 4KV |
| Dimensions | Ø117(W) x 157(D) x 202(H) mm |
| Weight | 620 g |
In the box
- UNIARCH WiFi IP Camera
- Installation material
- User instructions
