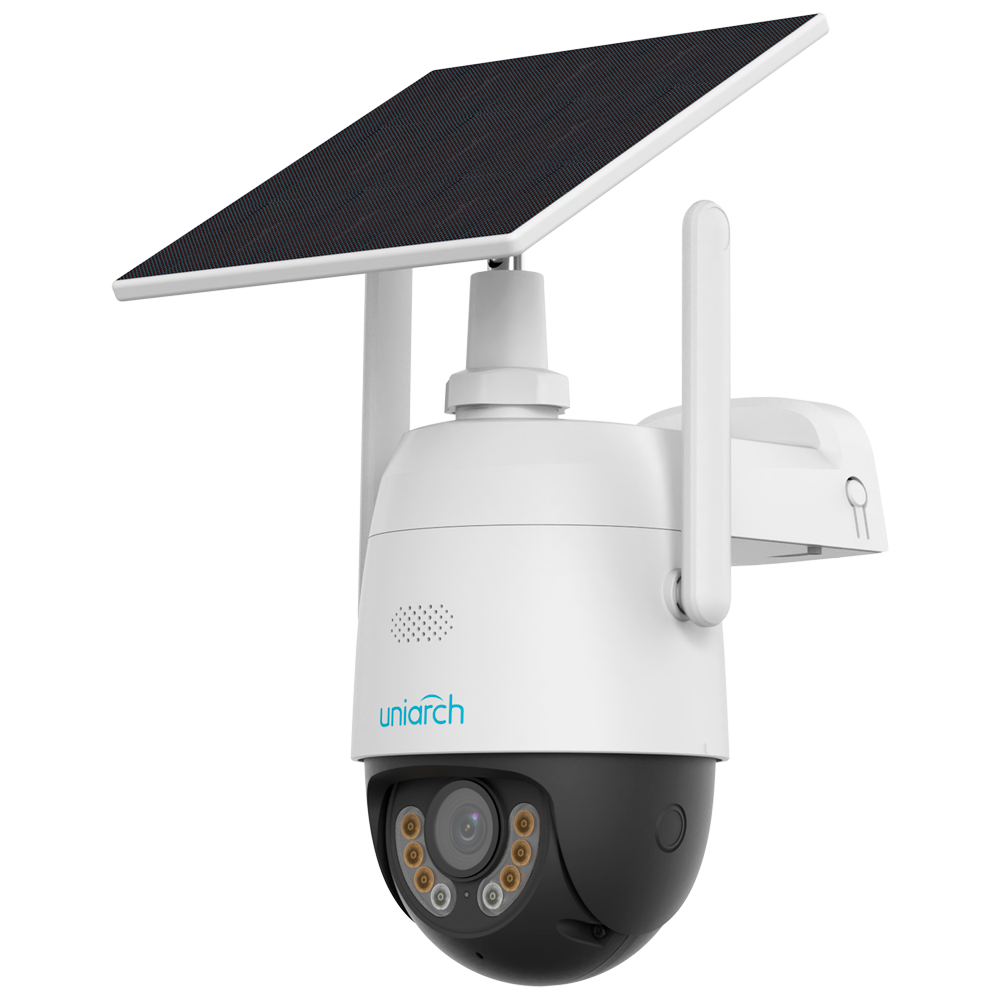

UV-UHO-P2G-M3F4D-EU
- IP Dome Camera - Uniarch range
- 3 MP | Lens 4 mm | microSD 512 GB
- White light 30 m | IR 30 m
- 4G | Solar battery | AOV | UMD
- Mic | Loudspeaker | IP66
- PTZ IP Camera
- Allows connection 4G
- Solar panel included
- 1/3.0" CMOS
- 3 Megapíxel
- 4 mm Lens
- Minimum illumination 0.001 Lux / 0 Lux with supplemental lighting
- IR Range 30 m
- White light range 30 m
- Compression Ultra265/H.265/H.264
- RJ-45 10/100 BaseTX
- Frequency 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41
- 4G NanoSIM
- Solar panel: 5V/1A 5W
- Battery capacity 10 Ah
- PTZ range 0~345º
- AOV: Always On View, the camera goes to sleep while there are no events, so the battery consumption will be lower, but no detail is lost in the display or recording
- Built-in microphone and speaker
- MicroSD 512 GB
- Weatherproof IP66
Specifications
| Brand | Uniarch |
| Image sensor | 1/3.0” Progressive Scan CMOS |
| Maximum resolution | 3 Megapixel (2304x1296) |
| Fixed lens | 4 mm |
| Range performance | 62.1 m (D),24.8 m (O), 12.4 m (R), 6.2 m (I) |
| Viewing angle | 87.5º (H), 46.3º (V), 92.4º(D) |
| Main Stream rate | 3MP (2304x1296)@15fps 720P (1280x720)@15fps D1 (720*576)@15fps |
| Video compression | Ultra 265, H.265, H.264, MJPEG |
| Minimum illumination | Colour: 0.001Lux (F1.0, AGC ON) 0 Lux with supplementary light |
| Supplementary light range | IR: 30 m White light: 30 m |
| Detection functions | Ultra Motion Detection (UMD) Motion detection generated by people and/or vehicles. |
| Image improvements | DWDR, BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 512 GB |
| Alarms | Does not have |
| Audio | Built-in microphone and speaker |
| Audio Compression | G.711U, G.711A |
| 4G network standard | LTE-FDD, LTE-TDD |
| Network frequency 4G | LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 |
| Type of sim | NanoSIM |
| Remote access | APP, Uniarch client |
| Solar Panel Output voltage | 5 V |
| Solar Panel Output current | 1 A |
| Solar Panel Output power | 5 W |
| Consumption | Maximum 4.0W AOV mode: 100mW |
| Temp. operation | 0º C ~ 50º C |
| Reset button | Support |
| Degree of protection | Weatherproof IP66 |
| Dimensions | Ø118(W) x 170(D) x 263(H) mm |
| Weight | 1060 g |
In the box
- UNIARCH WiFi IP Camera
- Installation material
- User instructions
- Solar panel
