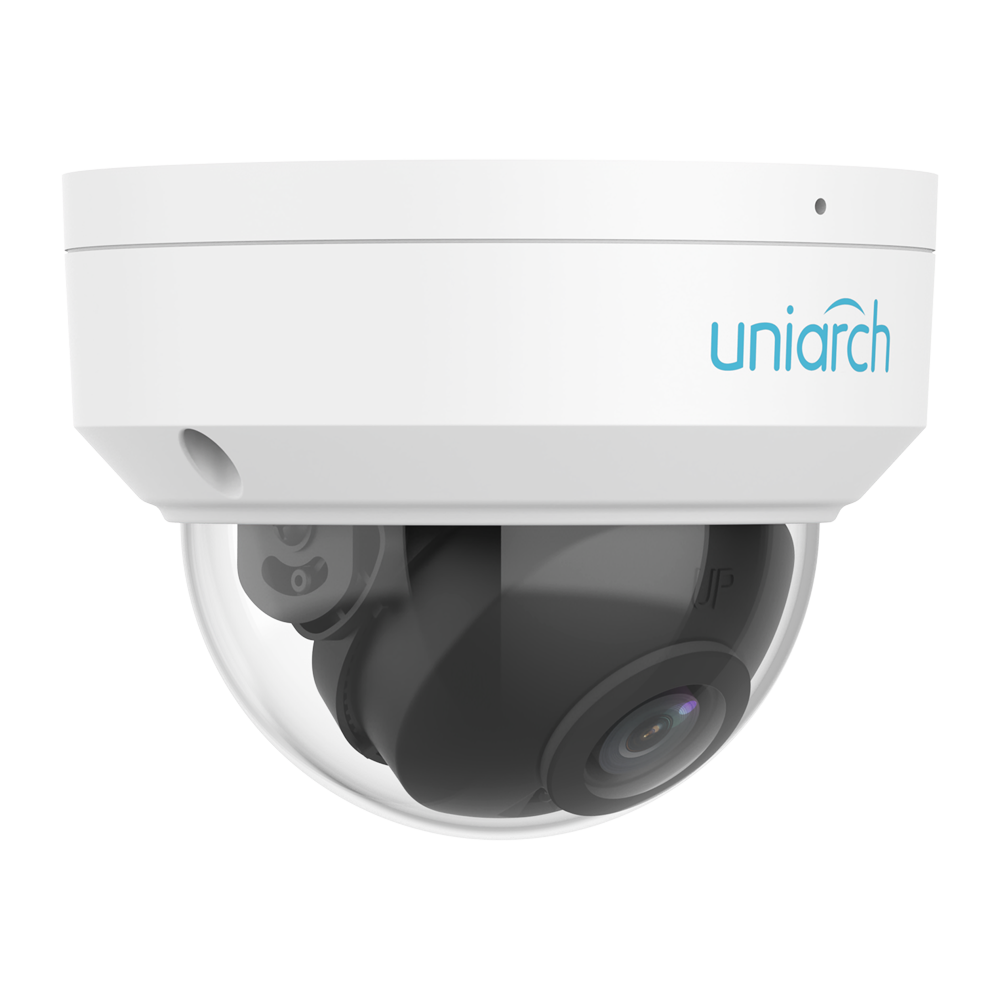

UV-Uho-D1R-M2F3-A
- Uniarch Wi-Fi IP Dome Camera
- 2 MP | 2.8 mm | microSD 512 GB
- IR 30 m | Wi-Fi
- UMD | IP67 | IK10
- Mic
The Uho‑D1R‑M2F3‑A is a 2 MP WiFi dome camera that delivers Full HD video with a 1/3" CMOS sensor and a 2,8 mm lens for wide coverage. It features advanced motion detection based on human bodies and vehicles, as well as digital WDR for improved performance in high-contrast scenes. Its IR illumination reaches up to 30 m and features a built-in microphone, microSD storage up to 512 GB,, and IK10 and IP67 protection for outdoor use.
- Uniarch
- IP camera
- 1/3" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- 2.8 mm Lens
- Minimum illumination 0.01 lux / 0 lux with IR
- IR Range 30 m
- Ultra Motion Detection (UMD): advanced motion detection that will only be triggered by the movement of people and/or vehicles. This way, it filters out movements from pets or nature.
- RJ-45 10/100 BaseT
- Wifi IEEE802.11b/g/n
- Weatherproof IP67
- Vandal proof IK10
- Built-in microphone
- MicroSD 512 GB
- 3-Axis
Specifications
| Brand | Uniarch |
| Image sensor | 1/3” Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Lens | 2,8 mm |
| FOV | Horizontal: 103º Vertical: 60.7º Diagonal: 108.4º |
| Range performance | D: 46.7 m O: 18.7 m R: 9.3 m I: 4.7 m |
| Main Stream rate | 1080P (1920x1080)@25fps 720P (1280x720)@25fps |
| Extra Stream rate | 640 × 360 @25fps 2CIF(704x288)2@25fps CIF(352x288)@25fps; CIF(352x288)@30fps; |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Minimum illumination | Colour: 0.01 lux (F2.0 AGC ON) 0 lux with IR |
| Infrared range | 30 m |
| Image improvements | DWDR, BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 512 GB |
| Alarms | Does not have |
| Audio | Built-in microphone |
| UMD | Ultra Motion Detection Support |
| Wi-Fi | IEEE802.11b/g/n |
| WI-FI frequency range | 2.4 GHz ~ 2.4835 GHz |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | DC 12V / 2.2W |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 Vandal proof IK10 |
| Dimensions | Ø109 mm x 83 mm (H) |
| Weight | 330 g |
| Reset button | Support |
In the box
- UNIARCH WiFi IP Camera
- Installation material
- User instructions
