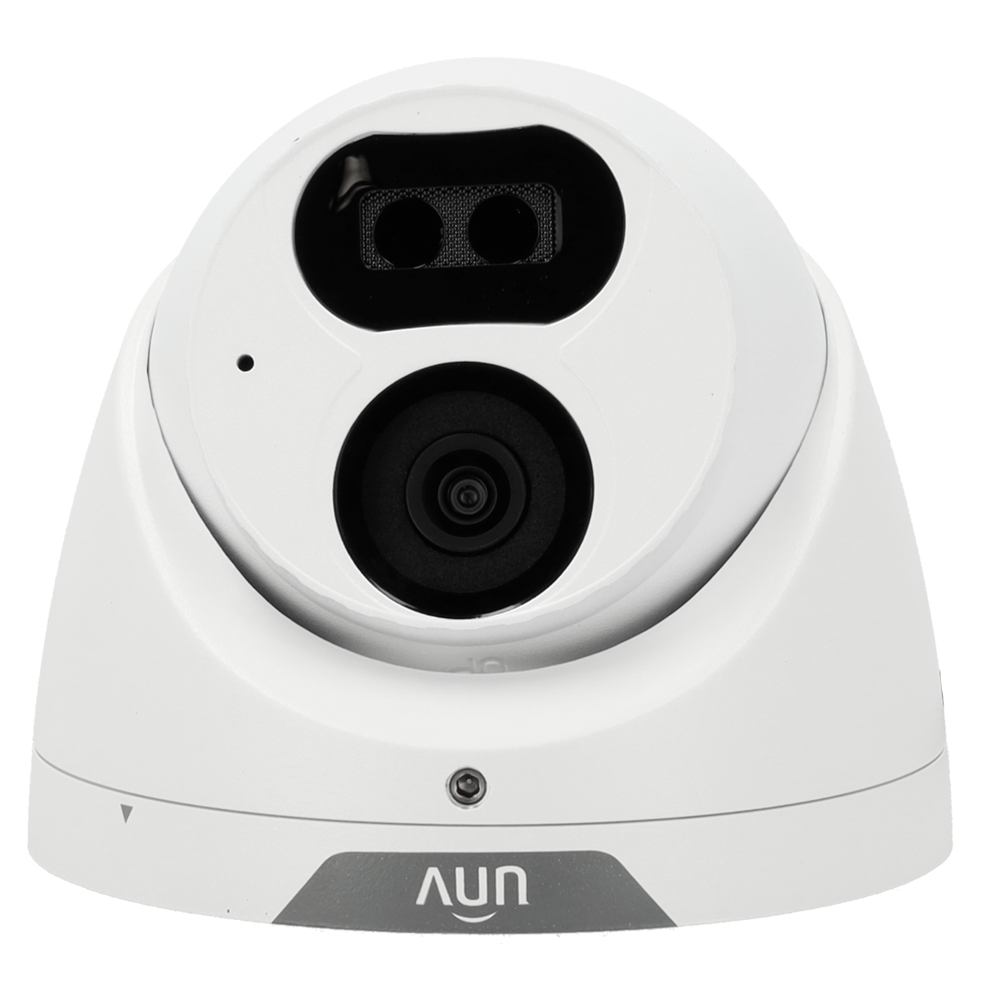

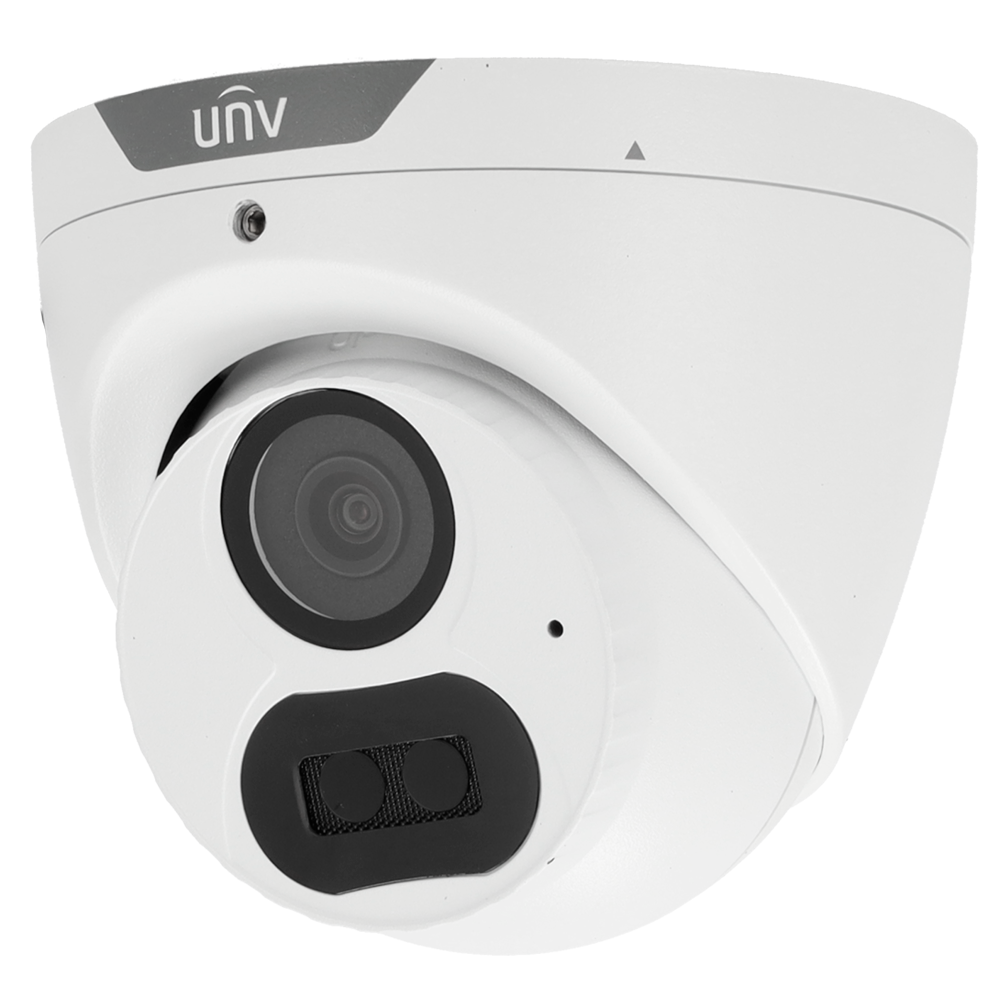

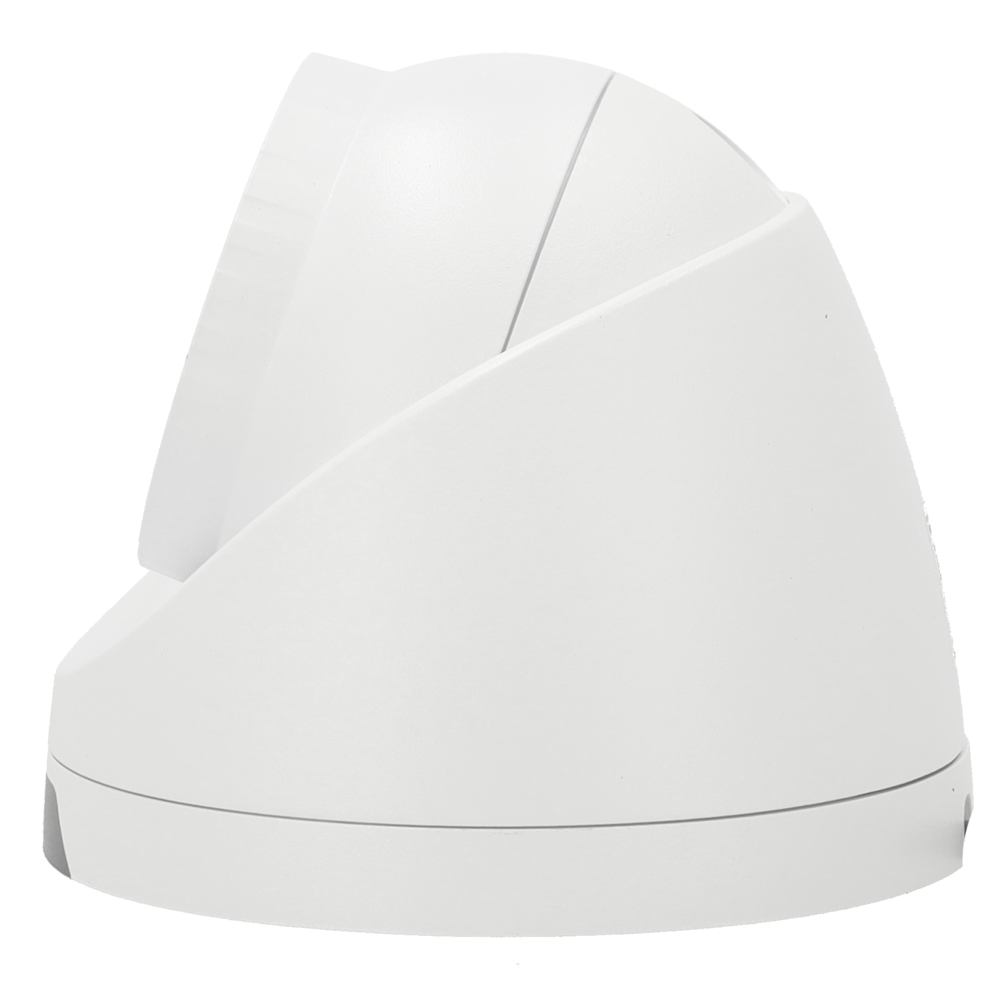

UV-UAC-T122-AF28LM
Ga direct naar de productinformatie
UV-UAC-T122-AF28LM
- Uniview
- Turret camera 4n1 | Whale Range
- Resolution 2 Megapixel
- Lens 2.8 mm | LightHunter
- Smart IR range 40 m
- IP67 | Integrated Microphone | Metal +Plastic
- Uniview
- Mini Turret Camera HDTVI, HDCVI, AHD and CVBS
- 1/2.9" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- Output 4in1
- 2.8 mm Lens
- 0.005 Lux
- IR Range 40 m
- LightHunter
- Integrated microphone
- 3D-DNR
- Weatherproof IP67
Specifications
| Range | Uniview |
| Image sensor | 1/2.9” Progressive Scan CMOS |
| Maximum resolution | 2 MPx (1920x1080) |
| Resolution | TVI: 1080p (25~30 fps), 720p (25~30 fps) CVI: 1080p (25~30 fps), 720p (25~30 fps) AHD: 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | 101.5° (H), 56.9° (V), 117.4° (D) |
| Minimum illumination | 0.005 Lux @(F1.6, AGC ON) 0 lux with IR |
| Infrared lighting | 0 Lux / Smart IR range 40 m |
| Day / Night | Auto (default), Day, Night |
| Invert image (Flip) | Supports horizontal rotation of 180º and vertical rotation of 180º |
| Image improvements | BLC, HLC, DWDR, DAY/NIGHT MODE, 3D-DNR, Smart IR |

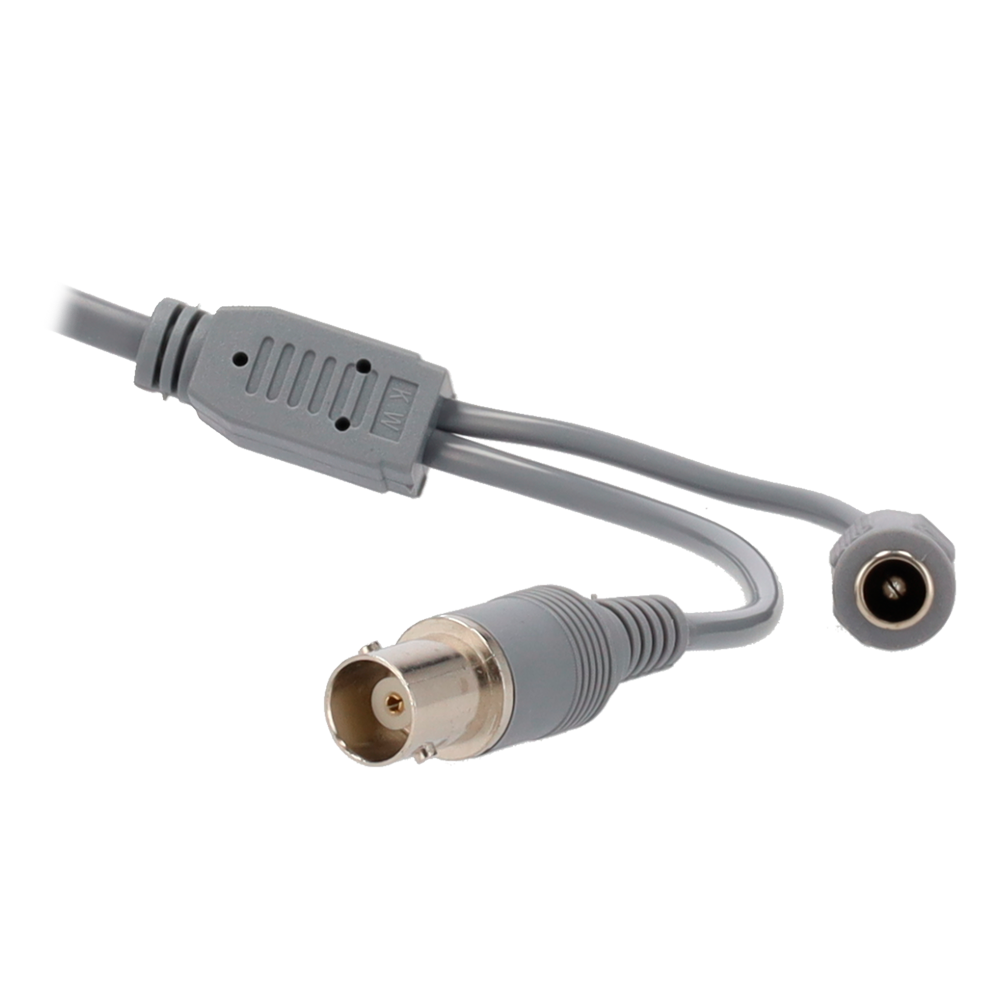

| Video output | BNC, supports HDTVI, HDCVI, AHD and CVBS |
| Audio | Integrated microphone |
| Interface | 5.5 mm |
| Power | DC 12V / 3.2W |
| Surge protection | 4 KV |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 |
| Material | Metal and plastic |
| Dimensions | 111mm (Φ) * 98mm (H) |
| Weight | 334 g |
In the box
- UNIVIEW Analog Camera
- Installation material
- User instructions
