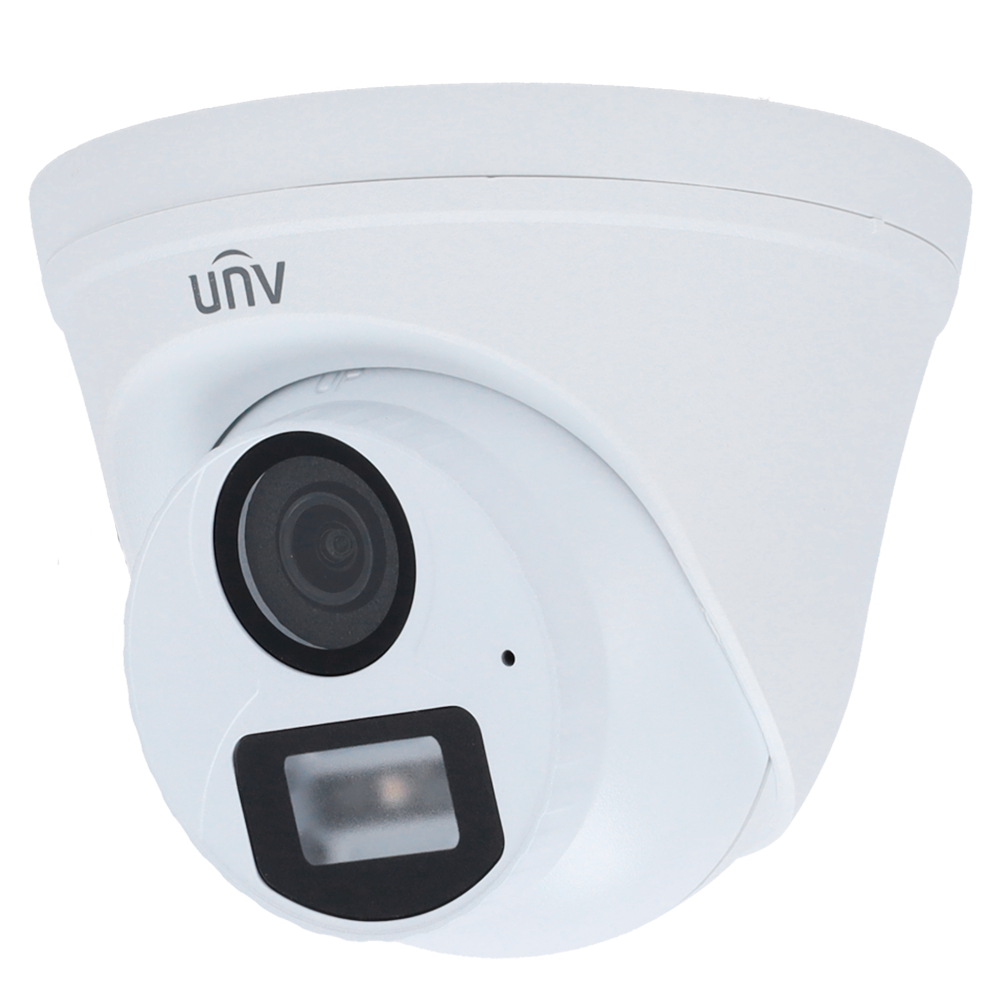

UV-UAC-T115-AF28-W
Ga direct naar de productinformatie
UV-UAC-T115-AF28-W
- Uniview
- Turret camera 4n1 | Dolphin Range
- 1/2.7" Progressive Scan CMOS
- Lens 2.8 mm / COLORHUNTER
- White light range 20 m
- IP67 | Surge protection 4KV
- Uniview
- Analog Turret Camera
- 1/2.7" Progressive Scan CMOS
- 5 Megapixel (2880x1620)
- 2.8 mm Lens
- Minimum illumination 0.01 Lux
- White light range 20 m
- IR Cut
- TVI/AHD/CVI/CVBS
- ColourHunter
- Weatherproof IP67
Specifications
| Range | Uniview |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 5MP |
| Main Stream rate | 5MP@25fps: 2880×1620; 5MP@20fps: 2592×1944; 5MP@12.5fps: 2592×1944 |
| Extra Stream rate | 4MP: 2560×1440; 2MP: 1920×1080 |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | 102.2° (H), 53.9° (V), 124.8° (D) |
| Minimum illumination | 0.01 Lux (F1.6, AGC ON) 0 lux with white light |
| Supplementary lighting | White light range 20 m |
| Image improvements | BLC, HLC, DWDR, DAY/NIGHT MODE, 2D. DWDR. SMART IR |
| Day / Night | Auto (default), Day, Night |
| Invert image (Flip) | Supports horizontal rotation of 180º and vertical rotation of 180º |
| Surge protection | 4 KV |

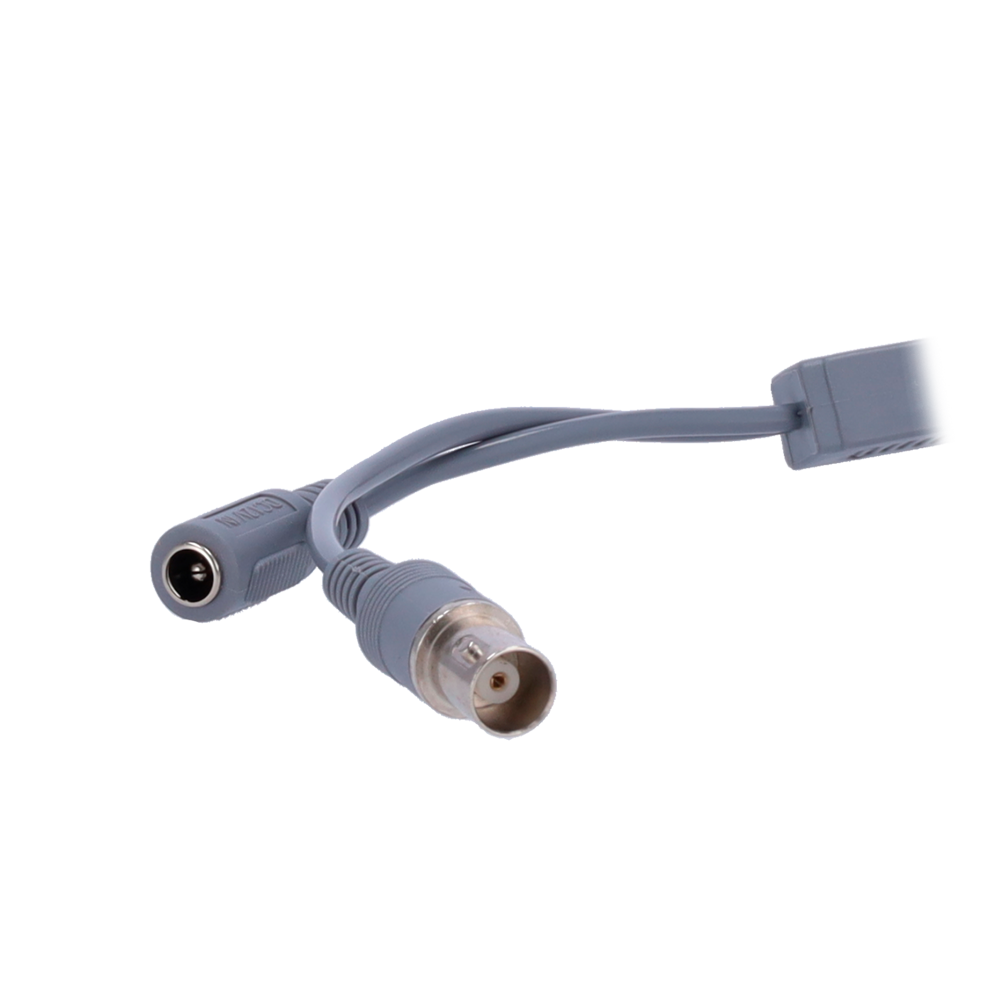

| Video output | BNC, supports HDTVI, HDCVI, AHD and CVBS |
| Interface | 5.5 mm |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 |
| Power | DC 12V / 2.3W |
| Material | Plastic |
| Dimensions | 118mm (Φ) * 96mm (H) |
| Weight | 210 g |
In the box
- UNIVIEW Analog Camera

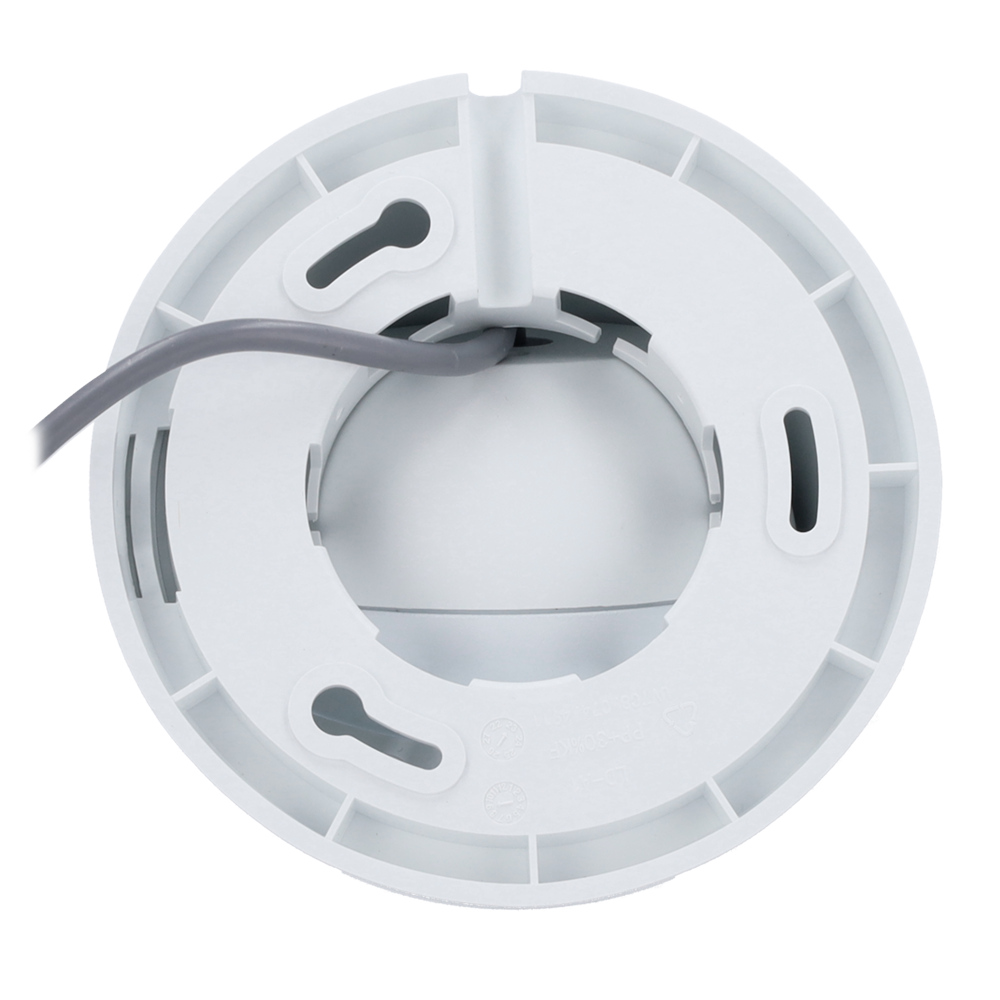

- Installation material
- User instructions
