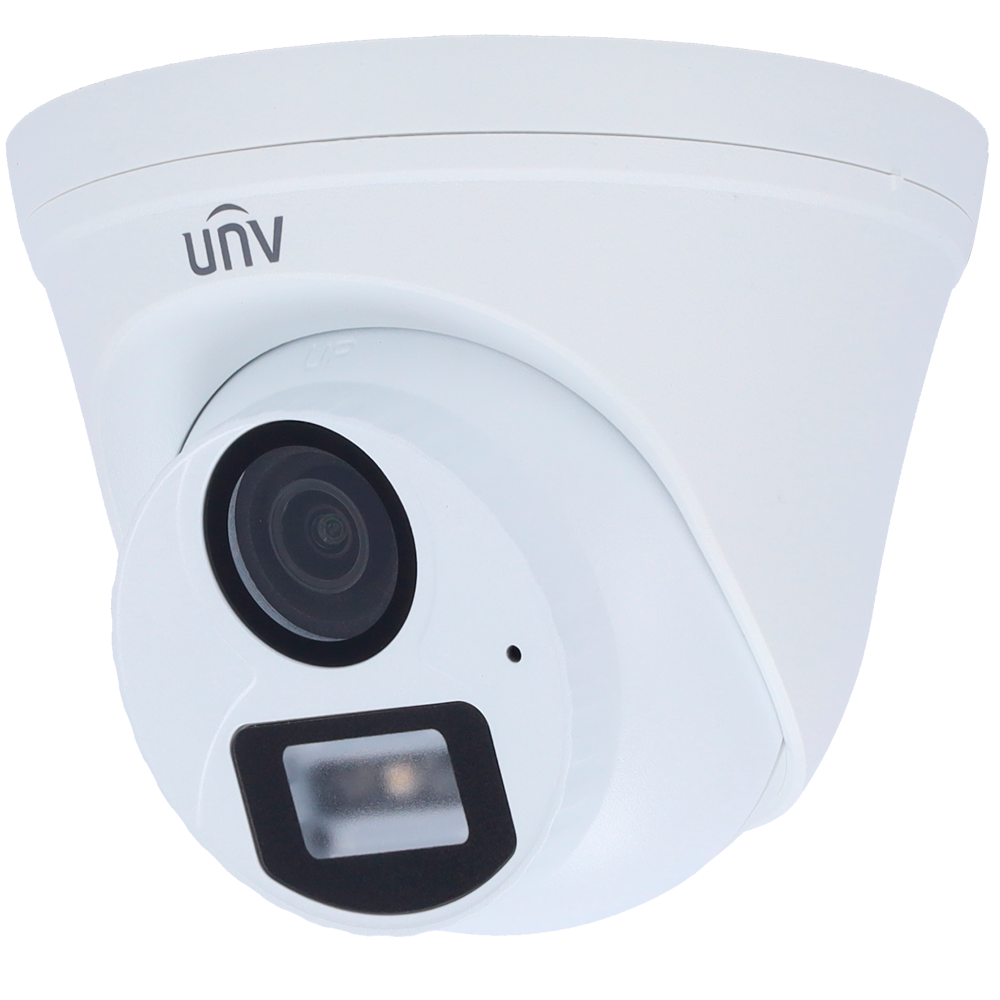

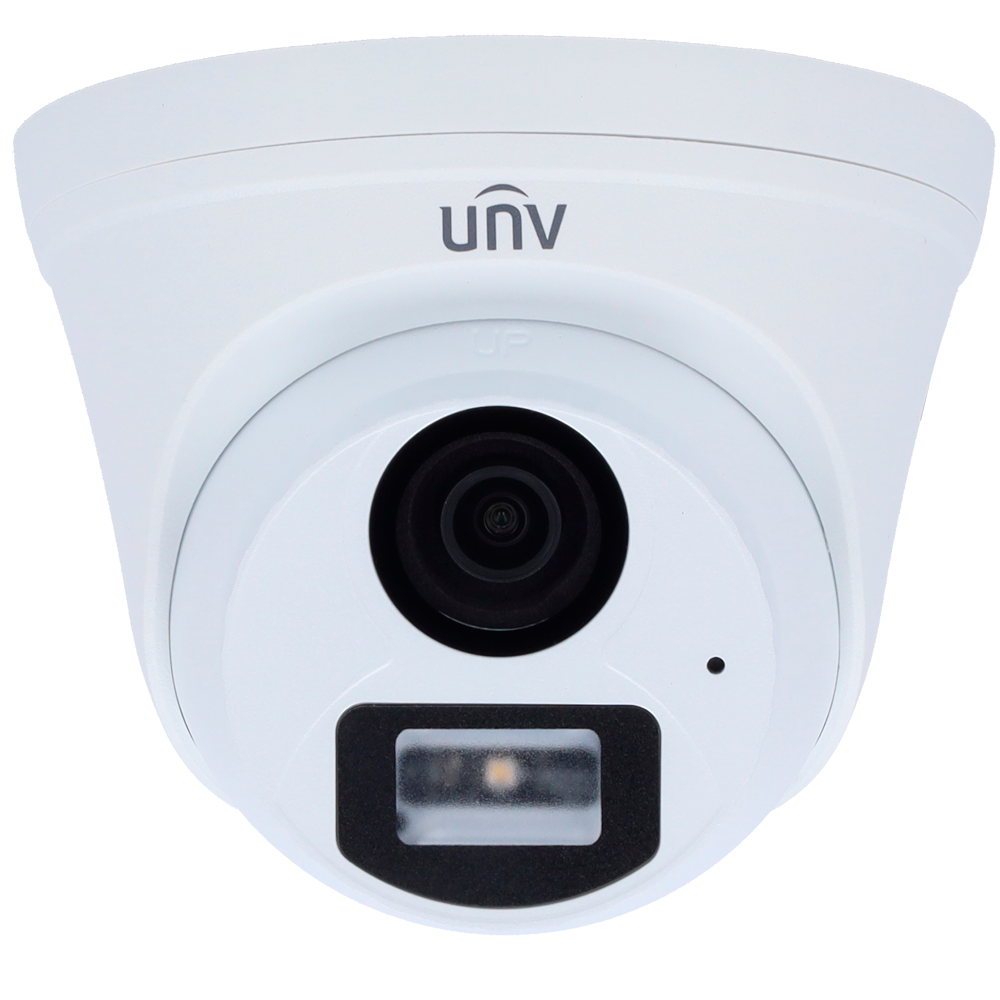

UV-UAC-T112-AF28-W
- Uniview
- Turret camera 4n1 | Dolphin Range
- 1/3" Progressive Scan CMOS
- Lens 2.8 mm / COLORHUNTER
- White light range 20 m
- IP67 | Surge protection 4KV
- Uniview
- Analog Turret Camera
- 1/3" Progressive Scan CMOS
- 2 Megapixel (2880x1620)
- 2.8 mm Lens
- 0.01 Lux
- White light range 20 m
- White Light
- Weatherproof IP67
- Overvoltage 4KV
- IR Cut
- TVI/AHD/CVI/CVBS
- COLORHUNTER
Specifications
| Range | Uniview |
| Image sensor | 1/3” Progressive Scan CMOS |
| Maximum resolution | 2MP |
| Main Stream rate | 1080p (1920x1080) |
| Extra Stream rate | 720p (1280x720) |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | 100.9° (H), 56.5° (V), 121.8° (D) |
| Minimum illumination | 0.01 Lux @(F1.6, AGC ON) 0 lux with white light 20 m range |
| Image improvements | BLC, HLC, DWDR, DAY/NIGHT MODE, 2D. DWDR. SMART IR |
| Day / Night | Color images 24/7 |
| Invert image (Flip) | Supports horizontal rotation of 180º and vertical rotation of 180º |
| Audio | Integrated microphone |

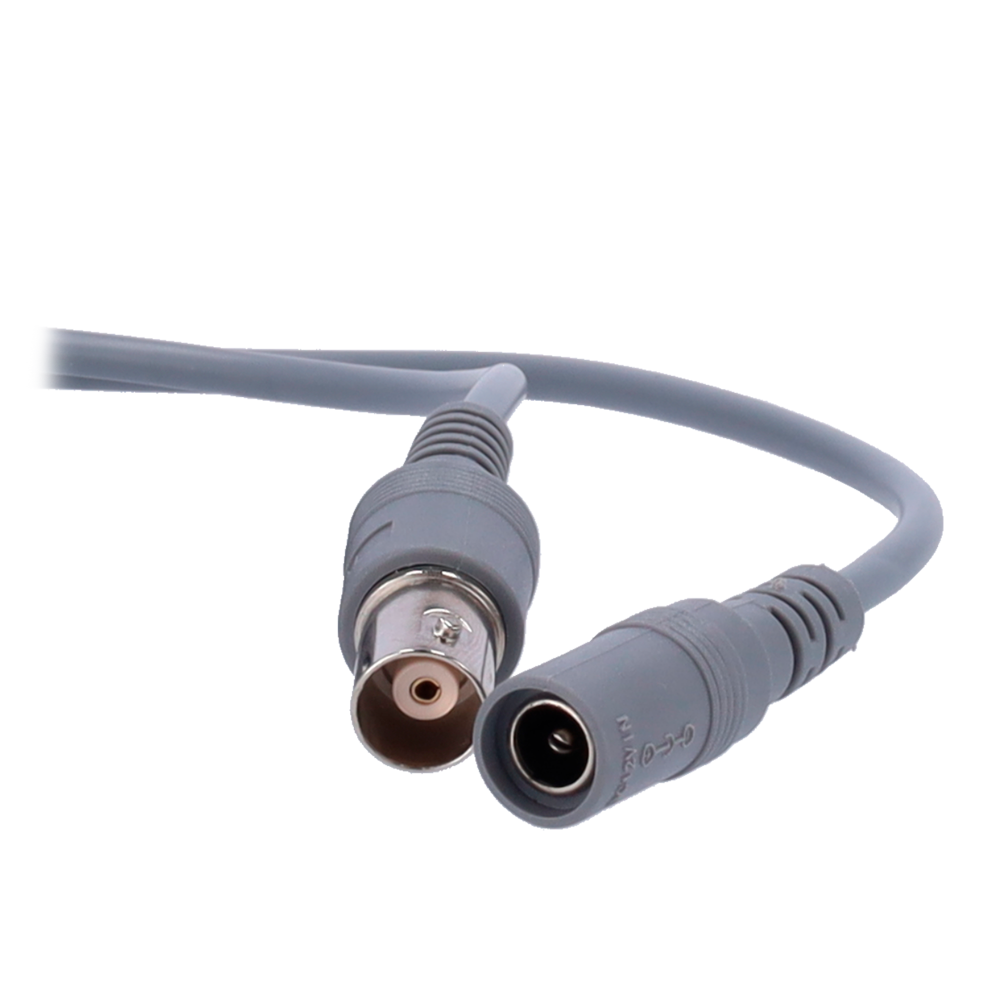

| Video output | BNC, supports HDTVI, HDCVI, AHD and CVBS |
| Temp. operation | -30º C ~ 60º C |
| Surge protection | 4KV |
| Degree of protection | Weatherproof IP67 |
| Material | Graphene and plastic |
| Power | DC 12V / 2.3W |
| Dimensions | 118 mm (Φ) x 96 mm (H) |
| Weight | 209 g |
In the box
- UNIVIEW Analog Camera
- Installation material
- User instructions
