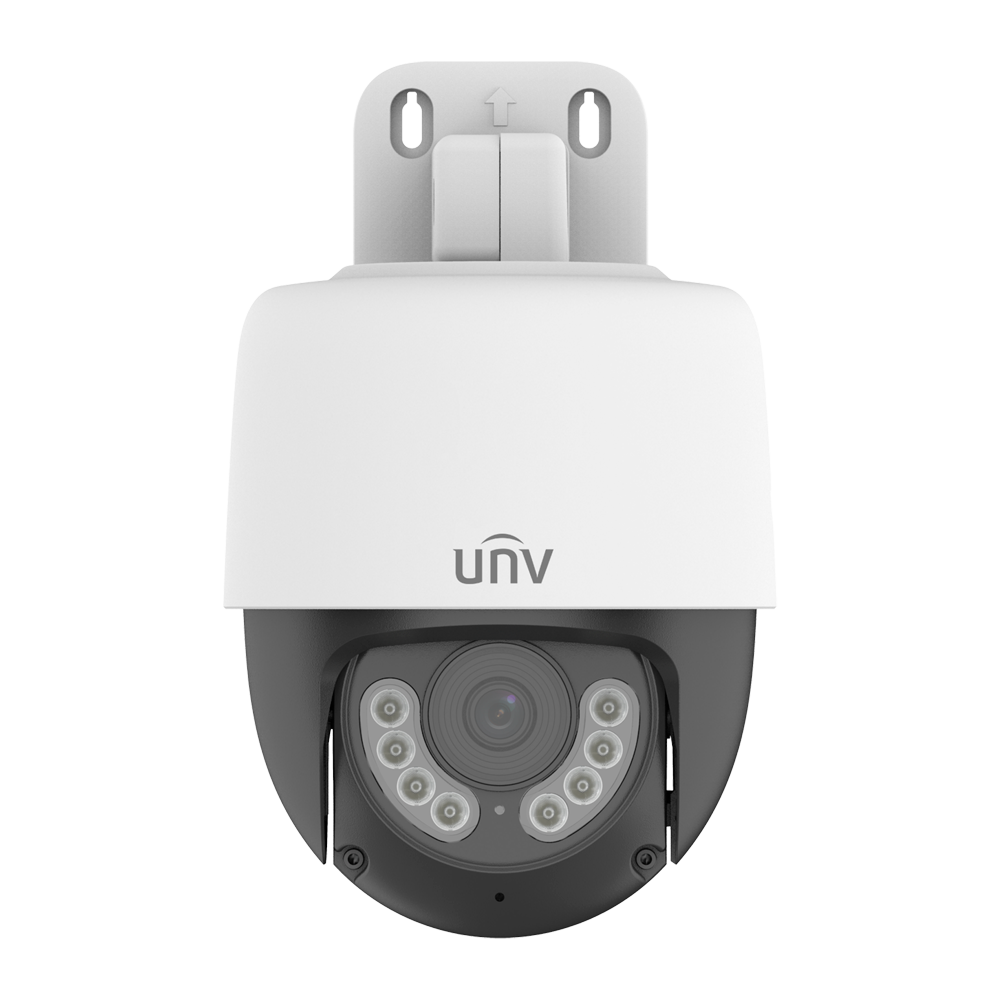

UV-UAC-P112-AF40-W
Ga direct naar de productinformatie
UV-UAC-P112-AF40-W
- Uniview
- PTZ camera - Dolphin range
- Resolution 2 Megapixel
- Lens 4 mm | COLORHUNTER
- White light range 30 m
- IP66 | Surge protection
- Uniview
- HDTVI, HDCVI, AHD and CVBS PT Camera
- 1/2.9" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- Output 4in1
- 4 mm Lens
- 0.005 Lux
- White light range 30 m
- COLORHUNTER
- Integrated microphone
- 3D-DNR
- Weatherproof IP66
Specifications
| Range | Uniview |
| Image sensor | 1/2.9” Progressive Scan CMOS |
| Maximum resolution | 2 MPx (1920x1080) |
| Resolution | TVI: 1080p (25~30 fps), 70p 2(25~30 fps) CVI: 1080p (25~30 fps), 70p 2(25~30 fps) AHD: 1080p (25~30 fps), 70p 2(25~30 fps) CVBS: PAL/NTSC |
| Lens | 4 mm |
| Viewing Angle (FOV) | 83.8° (H), 42.7° (V), 100.1° (D) |
| Minimum illumination | 0.005 Lux @(F1.6, AGC ON) 0 lux with white light, 30 m range |
| Day / Night | 24/7 Colour |
| Invert image (Flip) | Supports horizontal rotation of 180º and vertical rotation of 180º |
| Image improvements | BLC, HLC, DWDR, DAY/NIGHT MODE, 3D-DNR |
| Video output | BNC, supports HDTVI, HDCVI, AHD and CVBS |
| Pan/Tilt Range | Horizontal: 0°~345°, Vertical: 0°~90° |
| Manual speed | Horizontal: 1°~40° /s, Vertical: 1°~30° /s |
| Preset positions | 32 presets |
| Control | Coaxial control, control RS485 |
| Audio | Integrated microphone |
| Interface | 5.5 mm |
| Power | DC 12V / 8.5W |
| Surge protection | 4 kV for power and video output, 6 kV for RS485 |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP66 |
| Material | Plastic |
| Dimensions | 118mm (Φ) * 190mm (H) |
| Weight | 477 g |
In the box
- UNIVIEW Analog Camera
- Installation material
- User instructions
