UV-UAC-D125-AF28M
Ga direct naar de productinformatie
UV-UAC-D125-AF28M
- Uniview

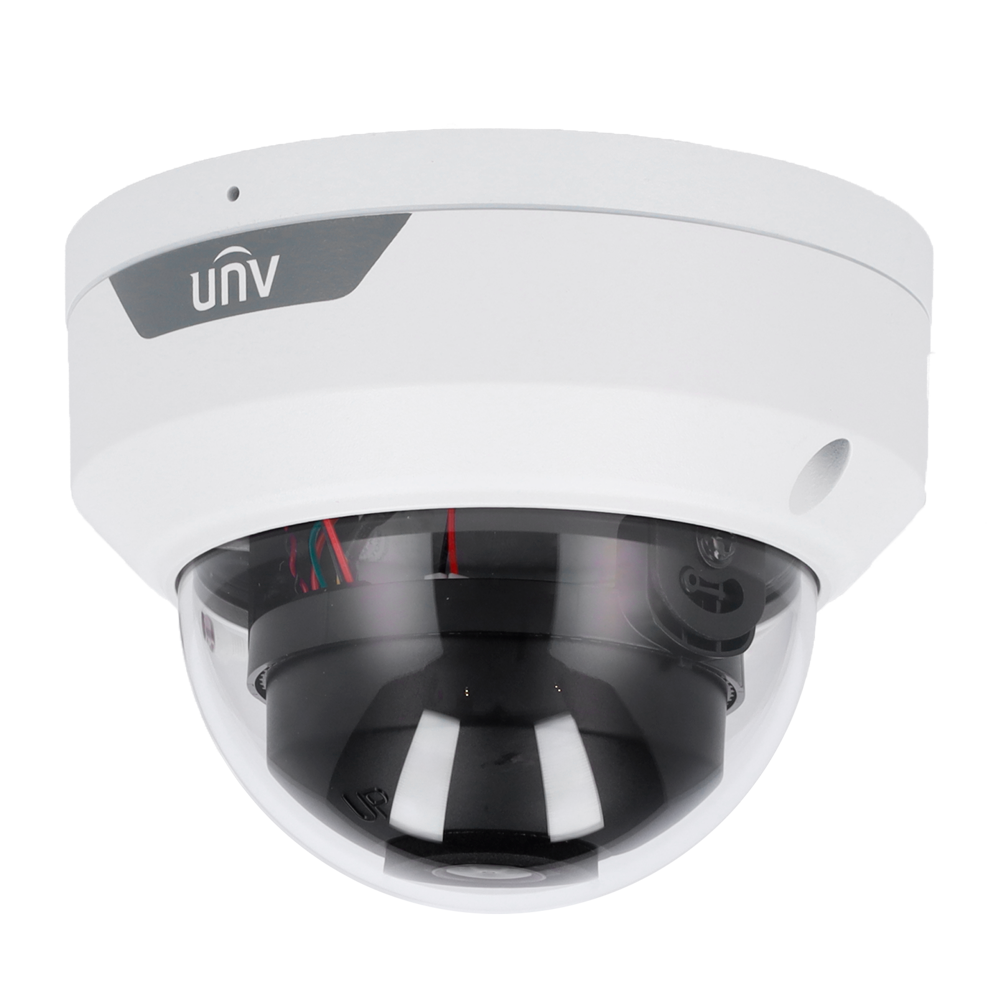

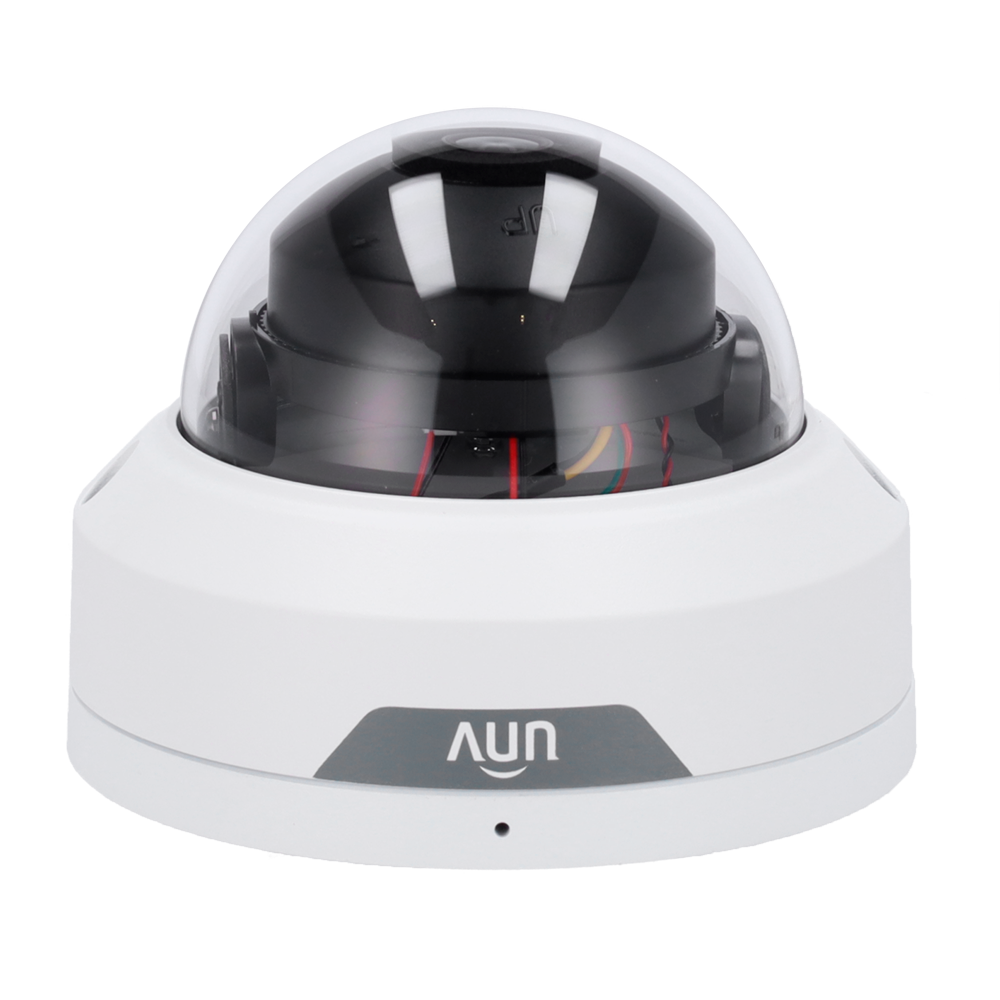

- Dome Camera 4n1 | Whale Range
- Resolution 5 Megapixel
- Lens 2.8 mm | LightHunter
- IR Range 30 m
- IP67 | IK10 | Metal
- Uniview
- HDTVI, HDCVI, AHD and CVBS Dome Camera
- 1/2.7" Progressive Scan CMOS
- 5 Megapixel (2880x1620)
- Output 4in1
- 2.8 mm Lens
- 0.005 Lux
- IR Range 30 m
- LightHunter
- Integrated microphone
- Weatherproof IP67
- Vandal proof IK10
Specifications
| Range | Uniview |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 5 MPx (2880x1620) |
| Resolution | TVI: 5MPx (20 fps), 4MPx (25~30 fps), 1080p (25~30 fps) CVI: 5MPx (25 fps), 4MPx (25~30 fps), 1080p (25~30 fps) AHD: 5MPx (20 fps), 4MPx (25~30 fps), 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | 109.1° (H), 60.9° (V), 126.7° (D) |
| Minimum illumination | 0.005 Lux @(F1.6, AGC ON) 0 lux with IR |
| Infrared lighting | IR Range 30 m |
| Image improvements | BLC, HLC, DWDR, DAY/NIGHT MODE, 2D-DNR, Smart IR |
| Day / Night | Auto (default), Day, Night |
| Invert image (Flip) | Supports horizontal rotation of 180º and vertical rotation of 180º |
| Power | DC 12V / 3.3W |

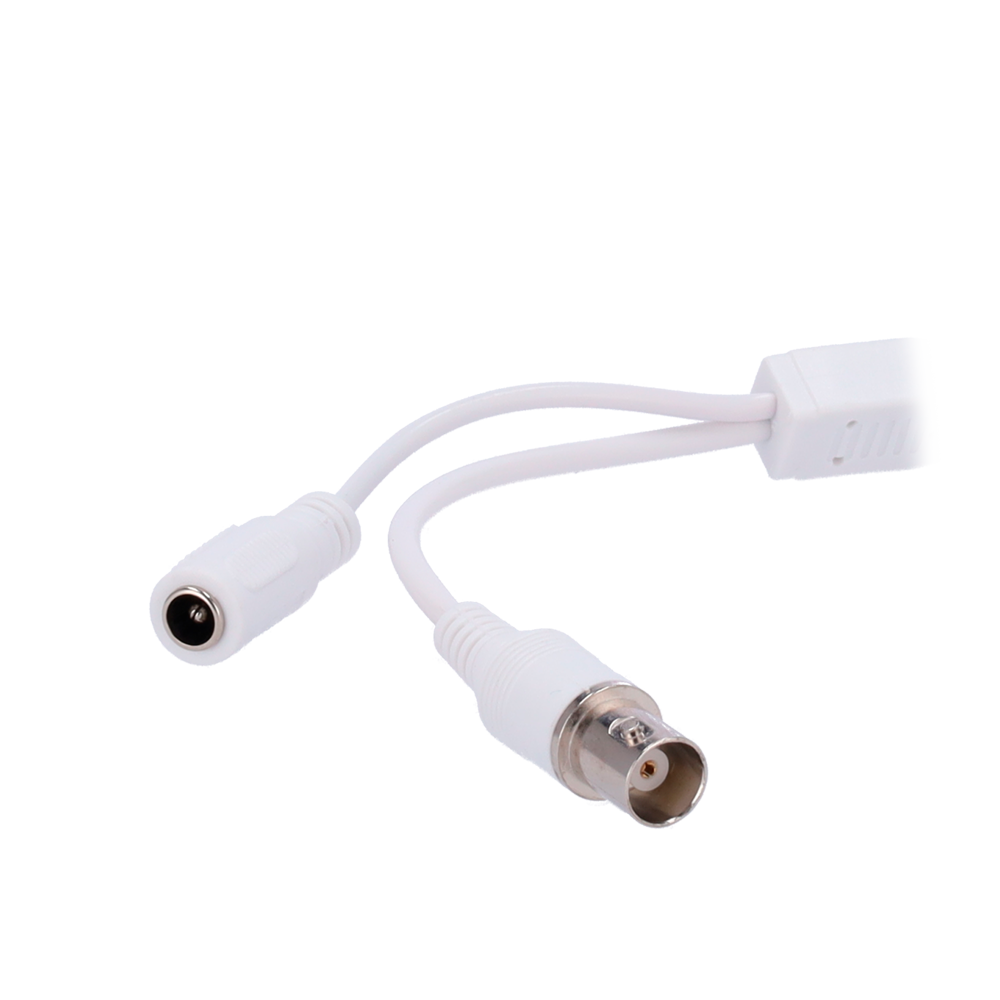

| Video output | BNC, supports HDTVI, HDCVI, AHD and CVBS |
| Interface | 5.5 mm |
| Audio | Integrated microphone |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67, Vandal-proof IK10 |
| Material | Metallic |
| Dimensions | 109mm (Φ) * 83mm (H) |
| Weight | 372 g |
In the box
- UNIVIEW Analog Camera
- Installation material
- User instructions
