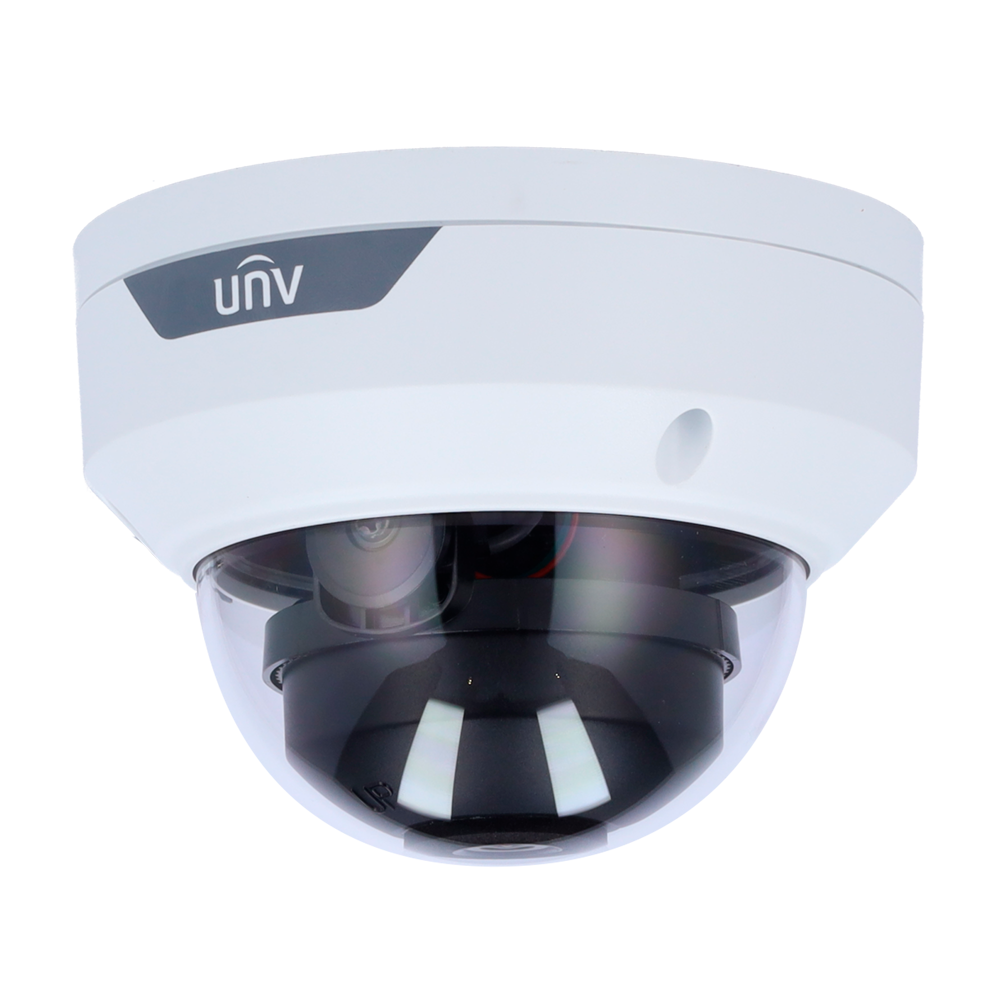

UV-UAC-D115-F28
Ga direct naar de productinformatie
UV-UAC-D115-F28
- Uniview
- Dome Camera 4n1 | Dolphin Range
- Resolution 5 Megapixel
- 2.8 mm Lens
- IR LEDs Range 20 m
- Waterproof IP67 | Plastic
- Uniview
- Analog Dome Camera
- 1/2.7" Progressive Scan CMOS
- 5 Megapixel (1920x1080)
- 2.8 mm Lens
- 0.02 Lux
- IR Range 20 m
- Weatherproof IP67
- IR Cut
- TVI/AHD/CVI/CVBS
Specifications
| Range | Uniview |
| Image sensor | 1/3” Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2880×1620) |
| Main Stream rate | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) |
| Extra Stream rate | 720p (1280x720) |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | 102.2° (H), 53.9° (V), 124.8° (D) |
| Minimum illumination | 0.02 Lux |
| Infrared range | 20 m |
| Image improvements | BLC, HLC, DWDR, DAY/NIGHT MODE, 2D. DWDR. SMART IR |
| Day / Night | Auto (default), Day, Night |
| Invert image (Flip) | Supports horizontal rotation of 180º and vertical rotation of 180º |
| Power | DC 12V / 2.88W |

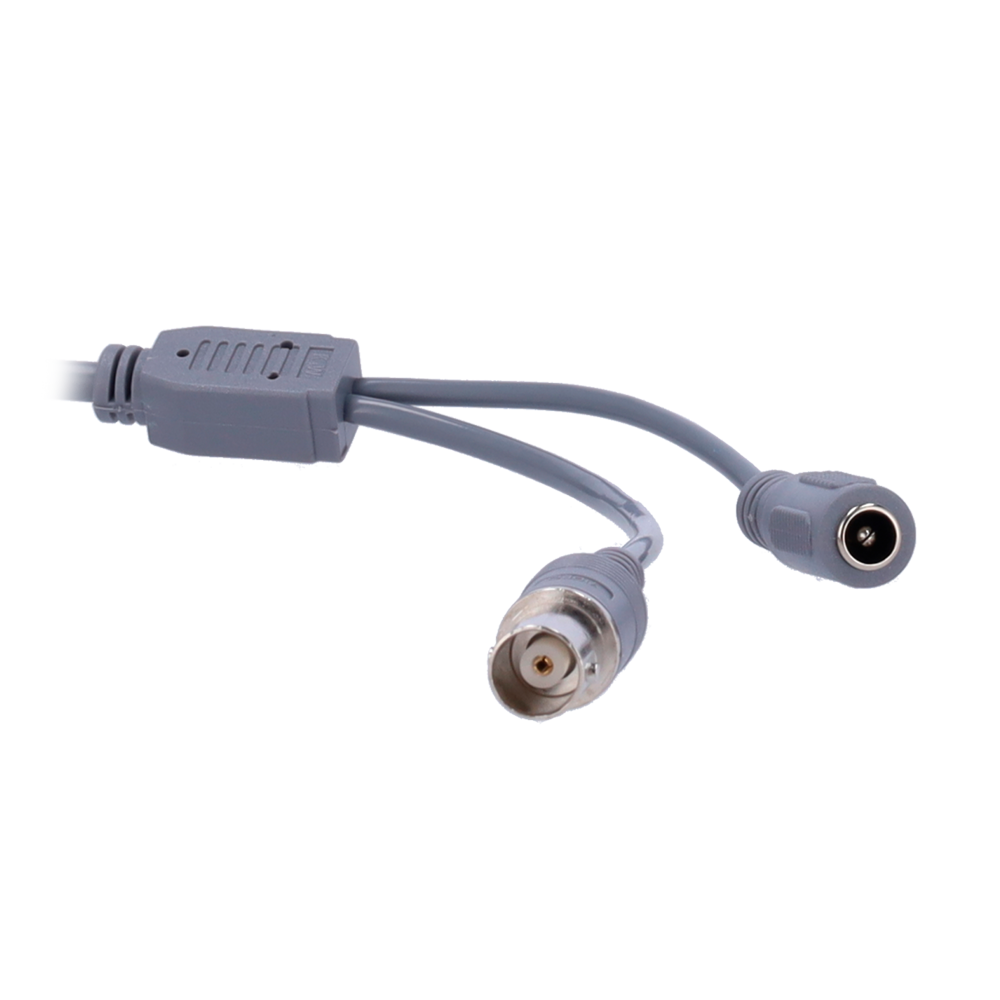

| Video output | BNC, supports TVI, AHD, CVI and CVBS |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 |
| Material | Plastic |
| Dimensions | 111mm (Φ) * 86mm (H) |
| Weight | 233g |
In the box
- UNIVIEW Analog Camera
- Installation material
- User instructions
