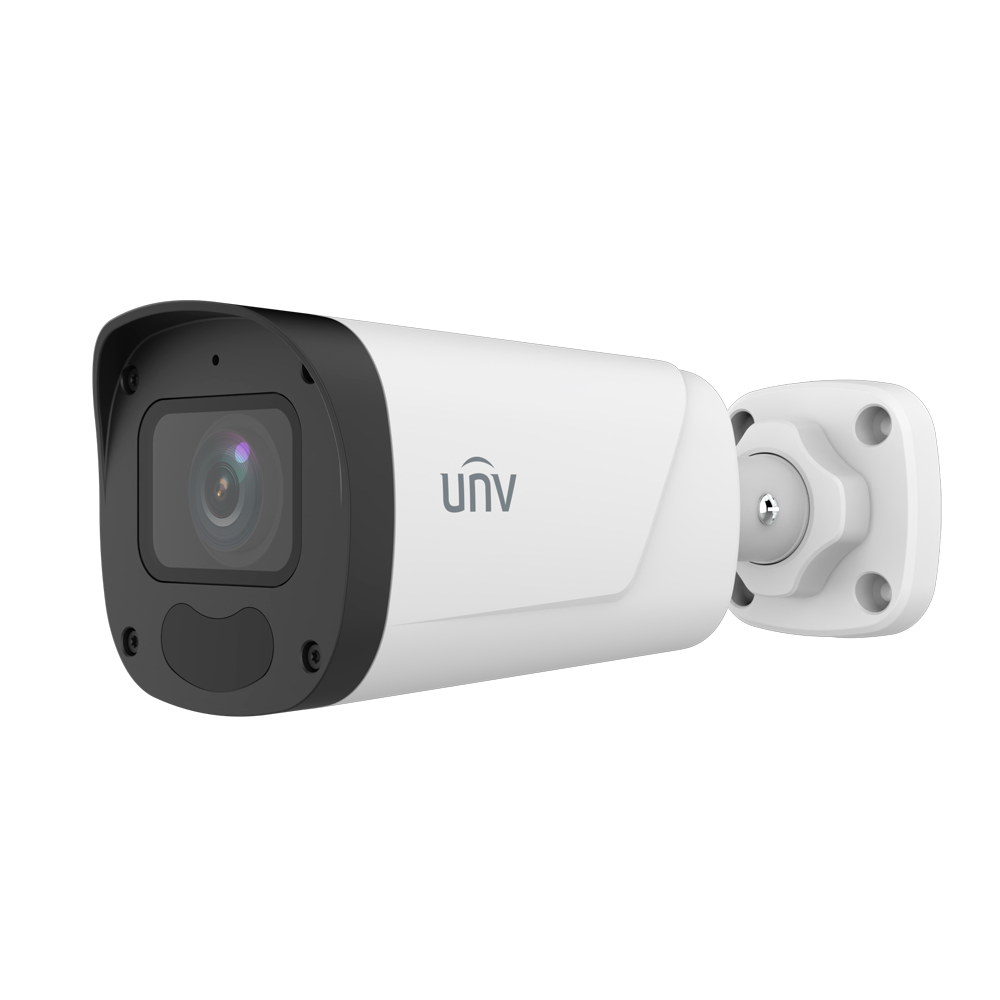

UV-UAC-B312-AZLM
Ga direct naar de productinformatie
UV-UAC-B312-AZLM
- Uniview
- Bullet Camera 4n1 | Whale Range
- Resolution 2 Megapixel
- Lens 2.8~12 mm | Built-in microphone
- IR LEDs Range 50 m
- Weatherproof IP67
- Uniview
- Analog Bullet Camera
- 1/3" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- Lens 2.8 ~ 12 mm
- 0.005 Lux
- IR Range 50 m
- Weatherproof IP67
- IR Cut
- TVI/AHD/CVI/CVBS
- Integrated microphone
- Metal / Plastic
Specifications
| Range | Uniview |
| Image sensor | 1/3” Progressive Scan CMOS |
| Maximum resolution | 2MP |
| Main Stream rate | CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps TVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
| Lens | 2.8 ~ 12 mm |
| Viewing Angle (FOV) | Horizontal: 91.3º ~ 31.3º Vertical: 52.2º ~ 18.5º Diagonal: 106.8º ~ 35.9º |
| Minimum illumination | 0.005 Lux (Colour) |
| Infrared range | 50 m |
| Image improvements | BLC, HLC, DWDR, DAY/NIGHT MODE, 2D. DWDR. SMART IR |
| Day / Night | Mechanical ICR filter |
| Invert image (Flip) | Supports horizontal rotation of 180º and vertical rotation of 180º |
| Power | DC 12V / 2.78W |
| Video output | BNC, supports TVI, AHD, CVI and CVBS |
| Audio | Integrated microphone |
| Material | Metal / Plastic |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 198 (D) x 74 (W) x 74 (H) mm |
| Weight | 320 g |
In the box
- UNIVIEW Analog Camera
- Installation material
- User instructions
