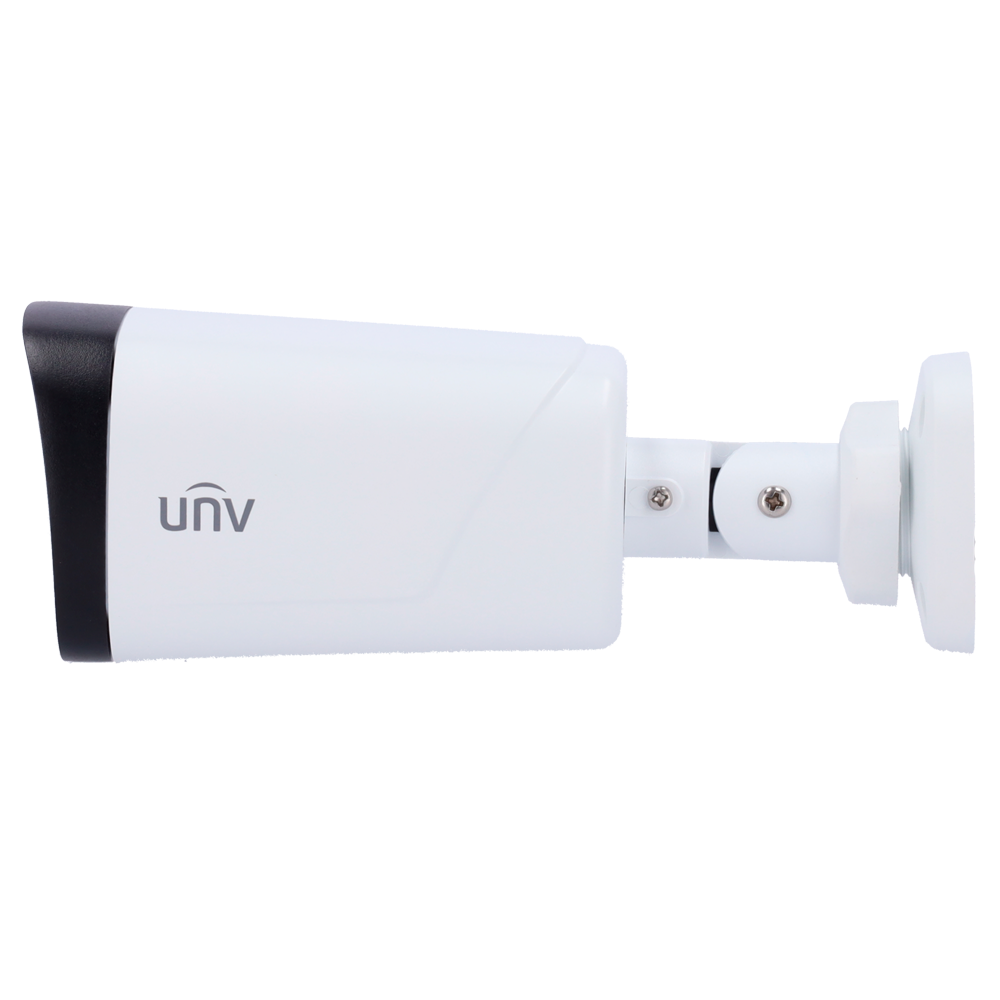

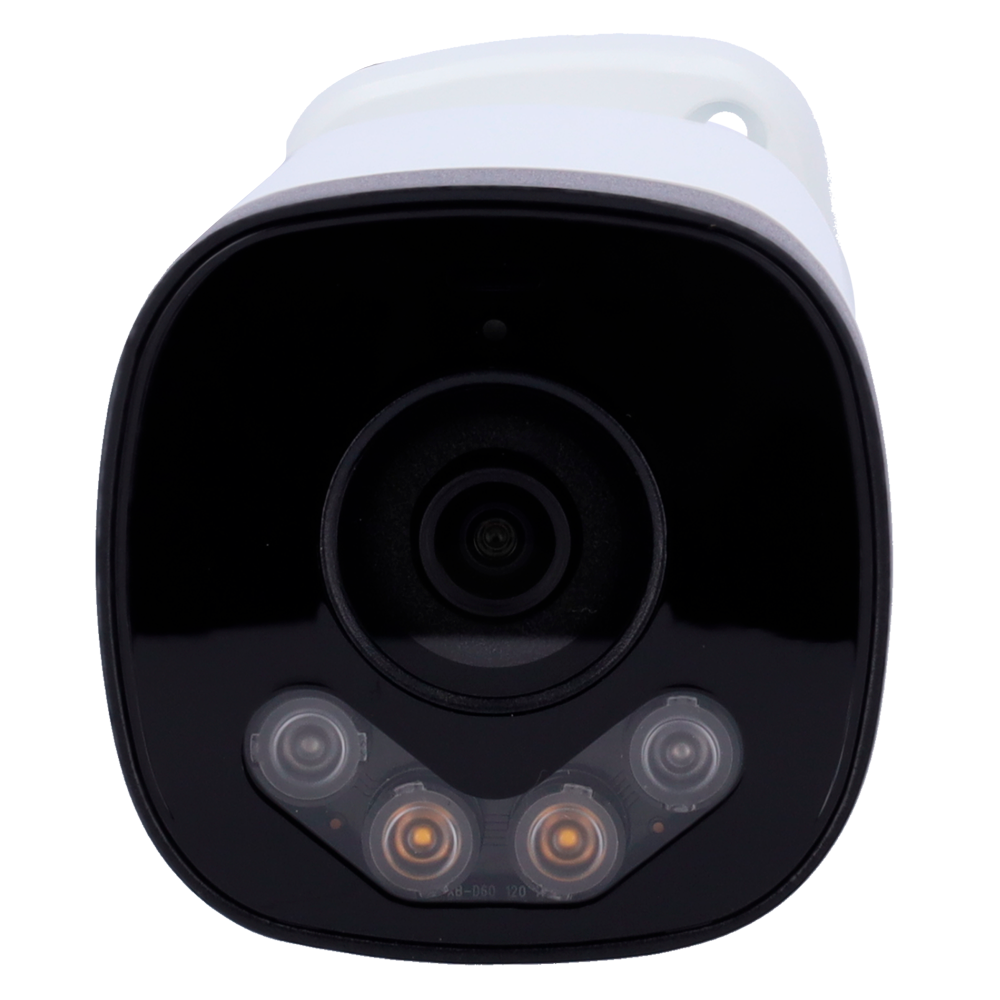

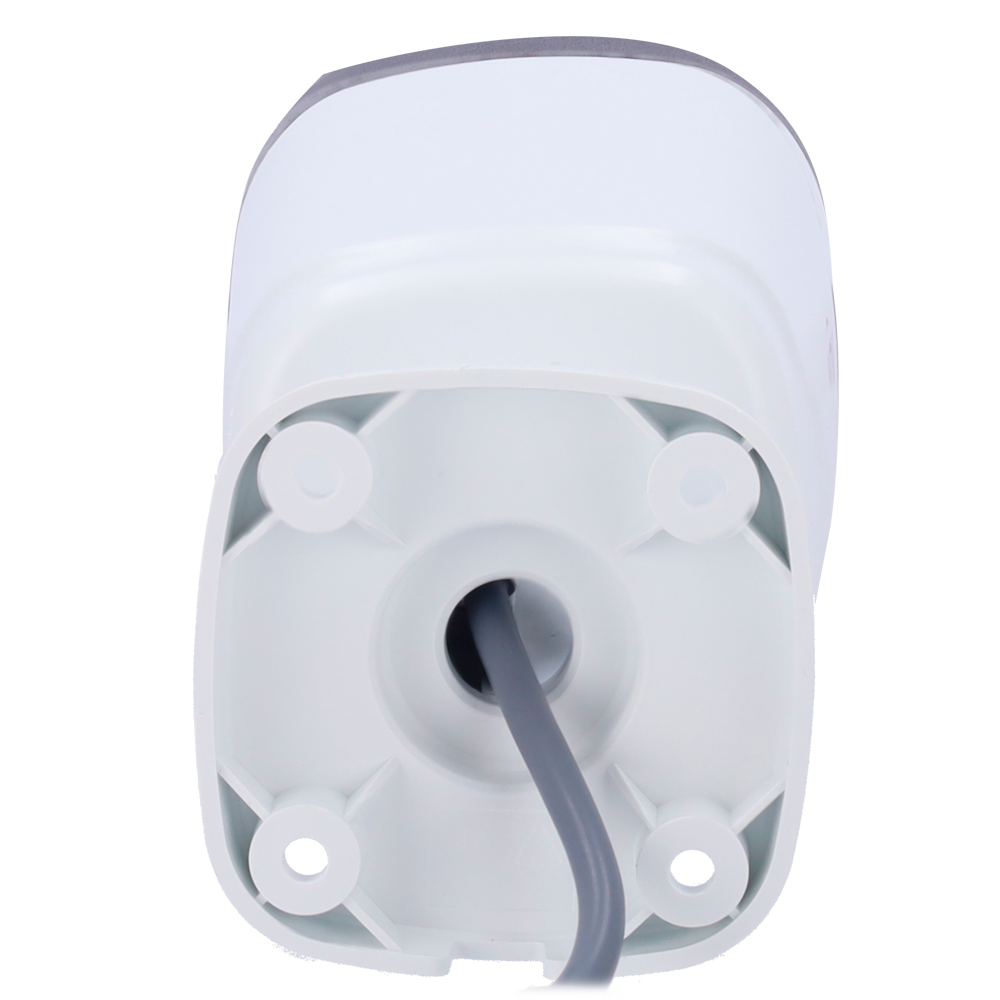

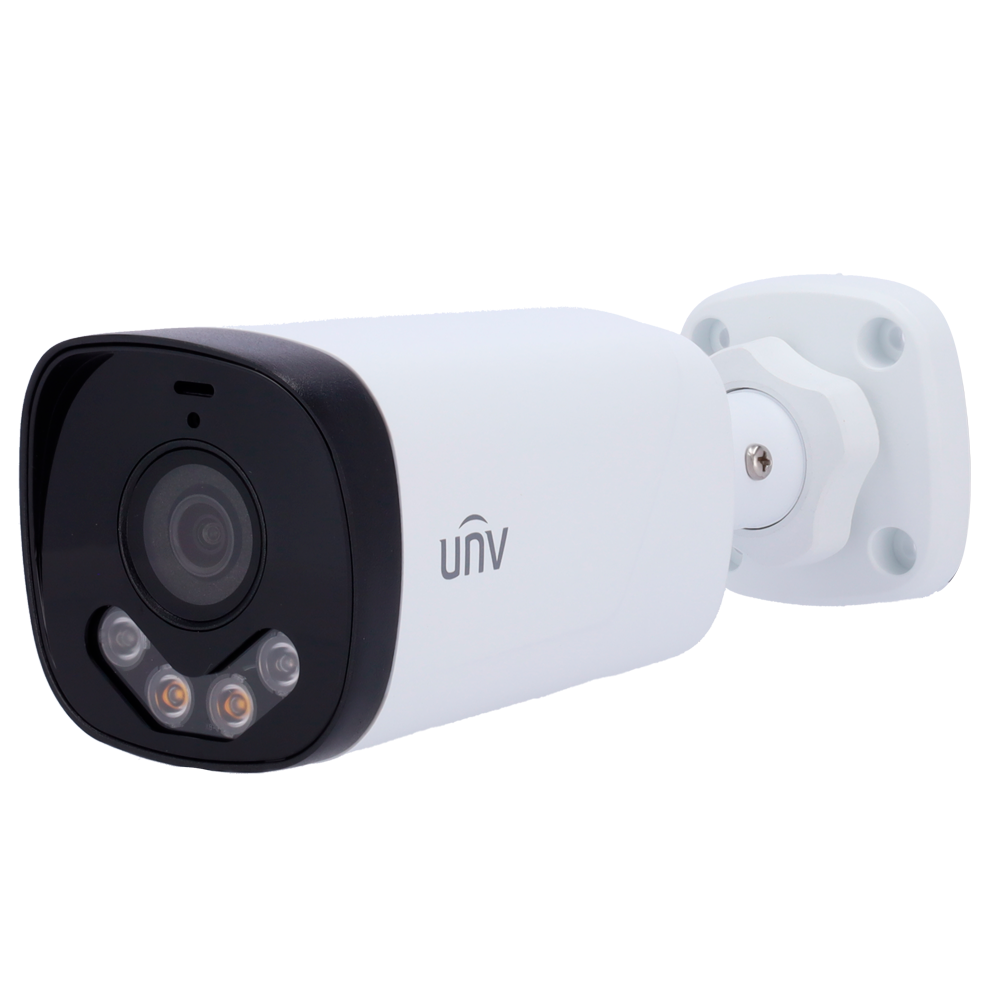

UV-UAC-B142-AF40LM-DL
Ga direct naar de productinformatie
UV-UAC-B142-AF40LM-DL
- Uniview
- Bullet Camera 4n1 | Whale Range
- Resolution 2 Megapixel
- Lens 4 mm | ColorHunter
- Smart IR and White light 40 m range
- IP67 | Integrated Microphone | Metal +Plastic
- Uniview
- HDTVI, HDCVI, AHD and CVBS Bullet Camera
- 1/3" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- Output 4in1
- 4 mm Lens
- 0.003 Lux
- IR and White Light range 40 m
- ColorHunter
- Integrated microphone
- 3D-DNR
- Weatherproof IP67
Specifications
| Range | Uniview |
| Image sensor | 1/3” Progressive Scan CMOS |
| Maximum resolution | 2 MPx (1920x1080) |
| Resolution | TVI: 1080p (25~30 fps), 720p (25~30 fps) CVI: 1080p (25~30 fps), 720p (25~30 fps) AHD: 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 4 mm |
| Viewing Angle (FOV) | 100.9° (H), 56.5° (V), 121.8° (D) |
| Minimum illumination | 0.003 Lux @(F1.6, AGC ON) 0 lux with IR |
| Infrared lighting | 0 Lux / Smart IR range 40 m |
| White Light | Transmission distance up to 40m |
| Day / Night | Auto (default), Day, Night |
| Invert image (Flip) | Supports horizontal rotation of 180º and vertical rotation of 180º |
| Image improvements | BLC, HLC, DWDR, DAY/NIGHT MODE, 3D-DNR, Smart IR |

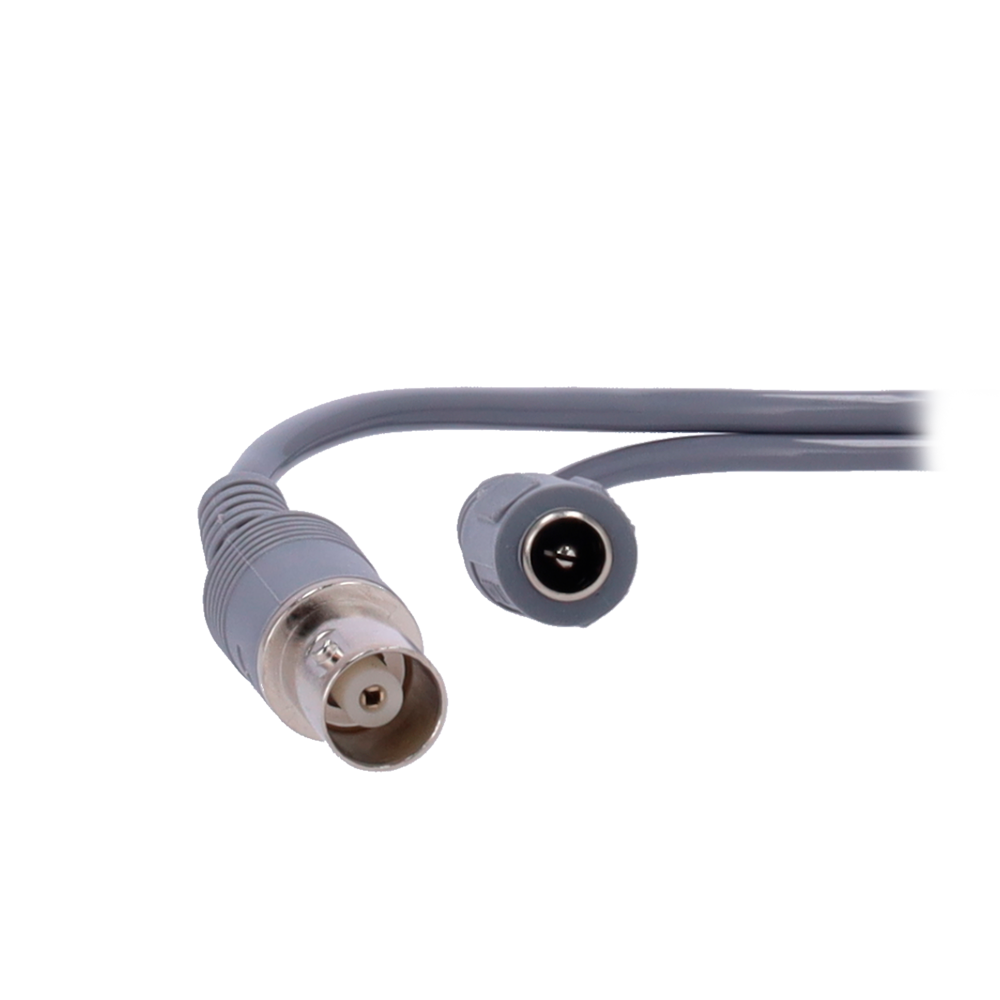

| Video output | BNC, supports HDTVI, HDCVI, AHD and CVBS |
| Audio | Integrated microphone |
| Interface | 5.5 mm |
| Power | DC 12V / 3.6W |
| Surge protection | 4 KV |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 |
| Material | Metal and plastic |
| Dimensions | 198x74x74 mm |
| Weight | 227 g |
In the box
- UNIVIEW Analog Camera
- Installation material
- User instructions
