UV-UAC-B128-ADF28MS
Ga direct naar de productinformatie
UV-UAC-B128-ADF28MS
- Uniview

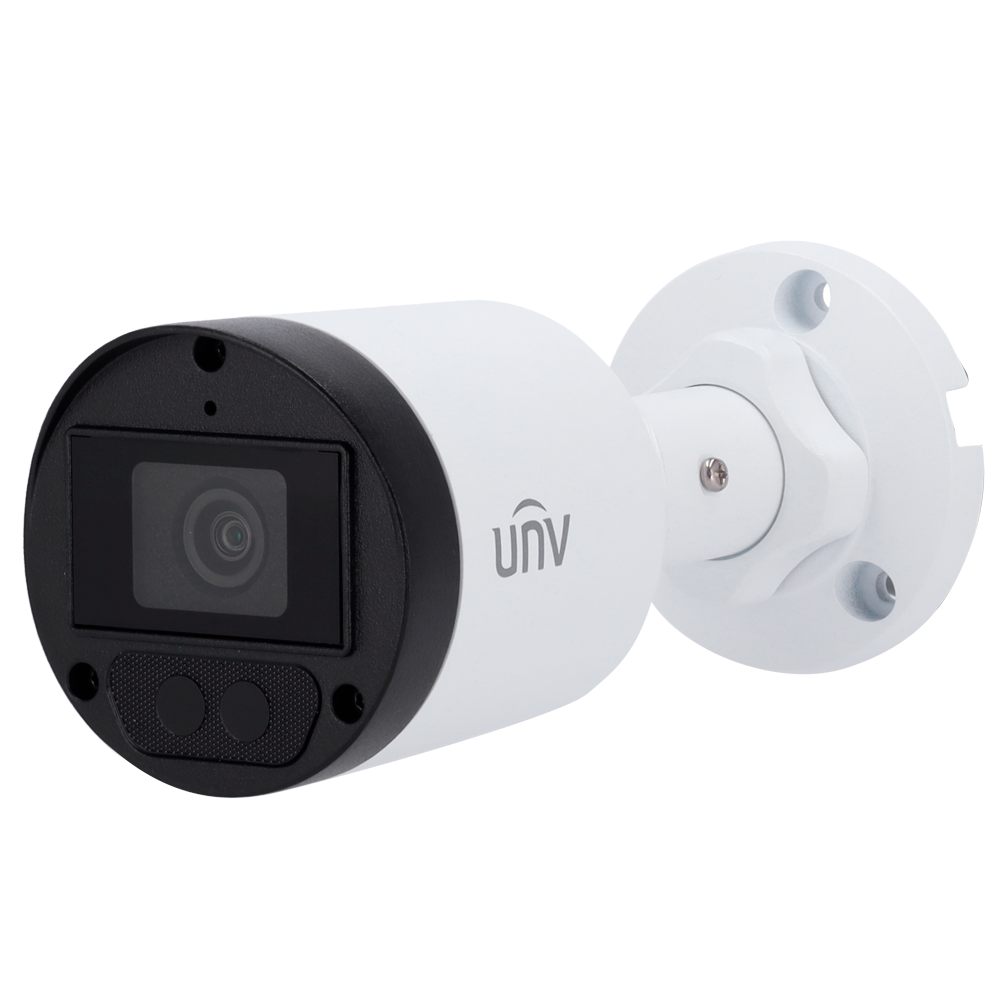

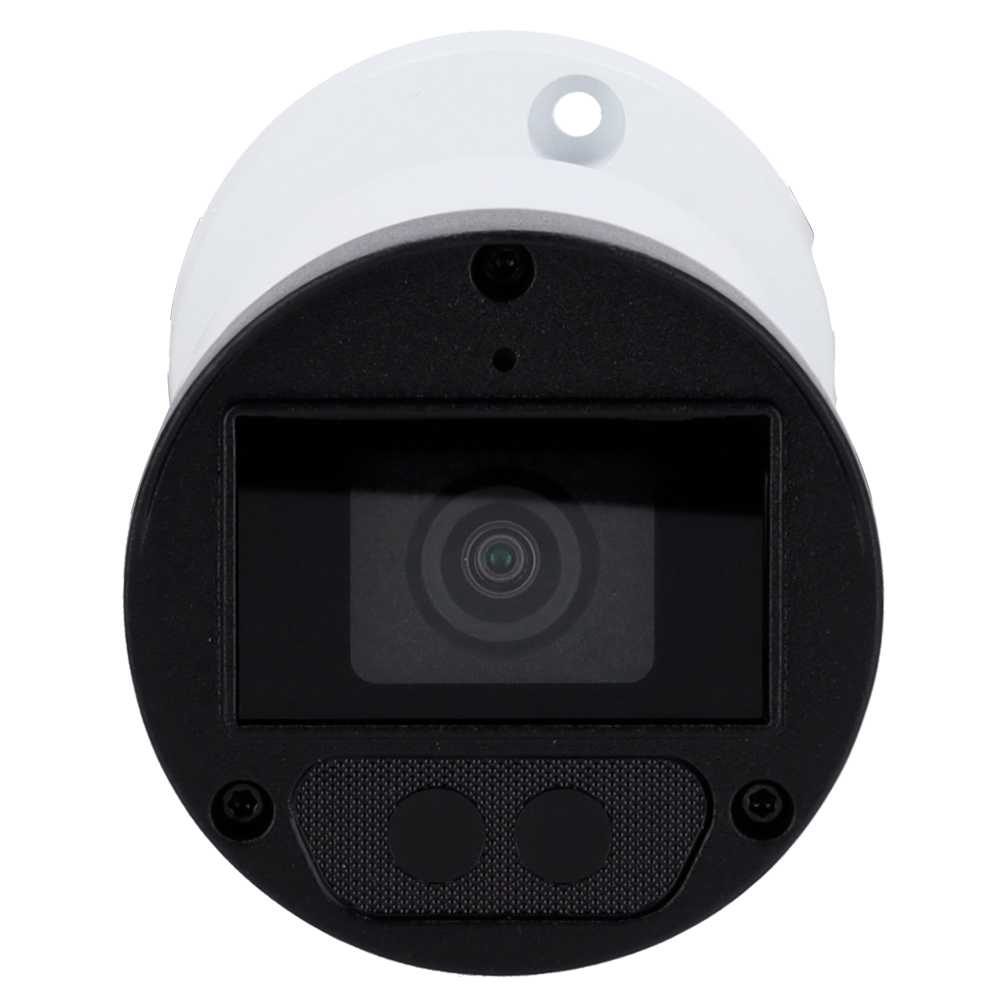

- Bullet Camera 4n1 | Whale Range
- Resolution 8 Megapixel
- Lens 2.8 mm | LightHunter
- Smart IR range 40 m | WDR 120 dB
- IP67 | Metal and plastic
- Uniview
- HDTVI, HDCVI, AHD and CVBS Mini Bullet Camera
- 1/2.7" Progressive Scan CMOS
- 8 Megapixel (3840×2160)
- Output 4in1
- WDR 120dB
- 2.8 mm Lens
- 0.005 Lux
- IR Range 40 m
- LightHunter
- Integrated microphone
- Weatherproof IP67
Specifications
| Range | Uniview |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 8 Mpx (23840x2160) |
| Resolution | CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | 109.1° (H), 60.9° (V), 126.7° (D) |
| Minimum illumination | 0.005 Lux @(F1.6, AGC ON) 0 lux with IR |
| Infrared lighting | 0 Lux / Smart IR range 40 m |
| Day / Night | Auto / Color / Black & White (ICR) |
| Invert image (Flip) | Supports horizontal rotation of 180º and vertical rotation of 180º |
| Image improvements | WDR 120dB, BLC, HLC, DAY/NIGHT MODE, 2D-DNR, Smart IR |

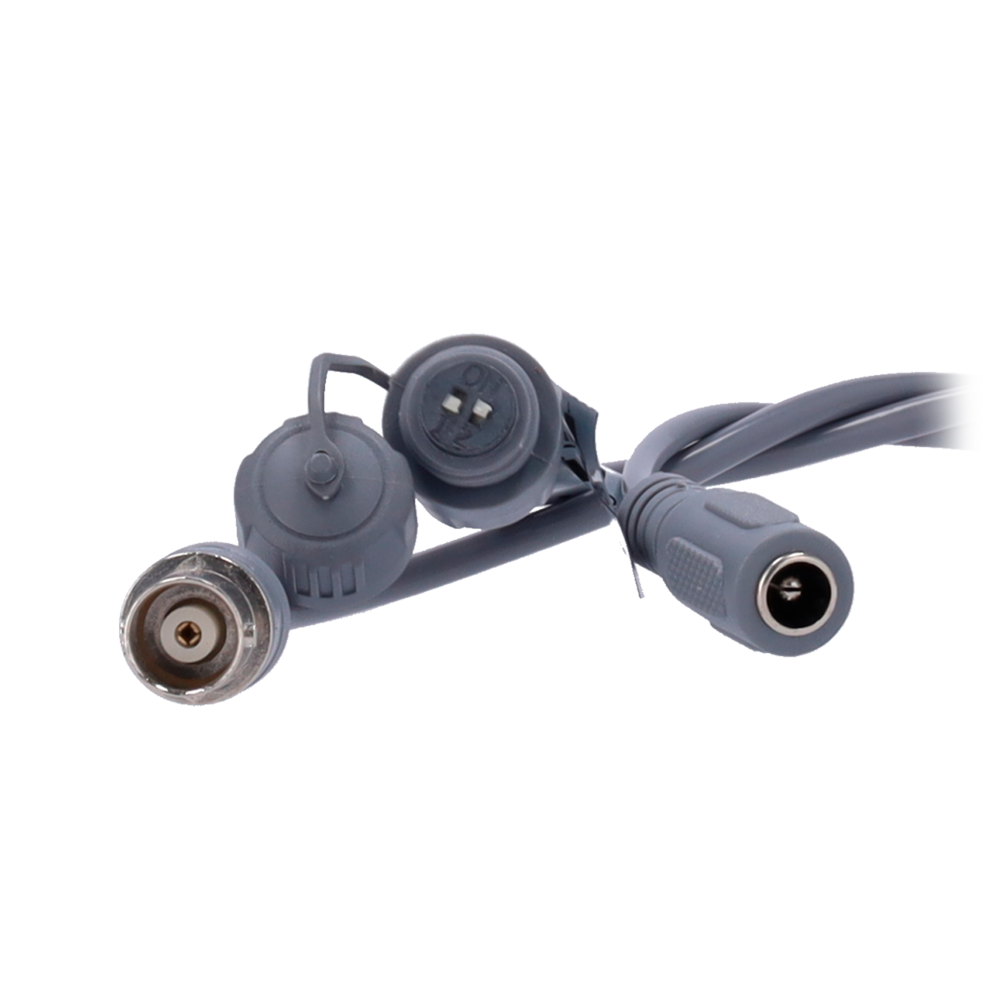

| Video output | BNC, supports HDTVI, HDCVI, AHD and CVBS |
| Audio | Integrated microphone |
| Power | DC 12 V / 4.8 W / 5.5 mm |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Waterproof IP67 / Overvoltage 4KV |
| Material | Metal + Plastic |
| Dimensions | 157mm (L) * 66mm (W) * 66mm (H) |
| Weight | 300g |
In the box
- UNIVIEW Analog Camera
- Installation material
- User instructions
