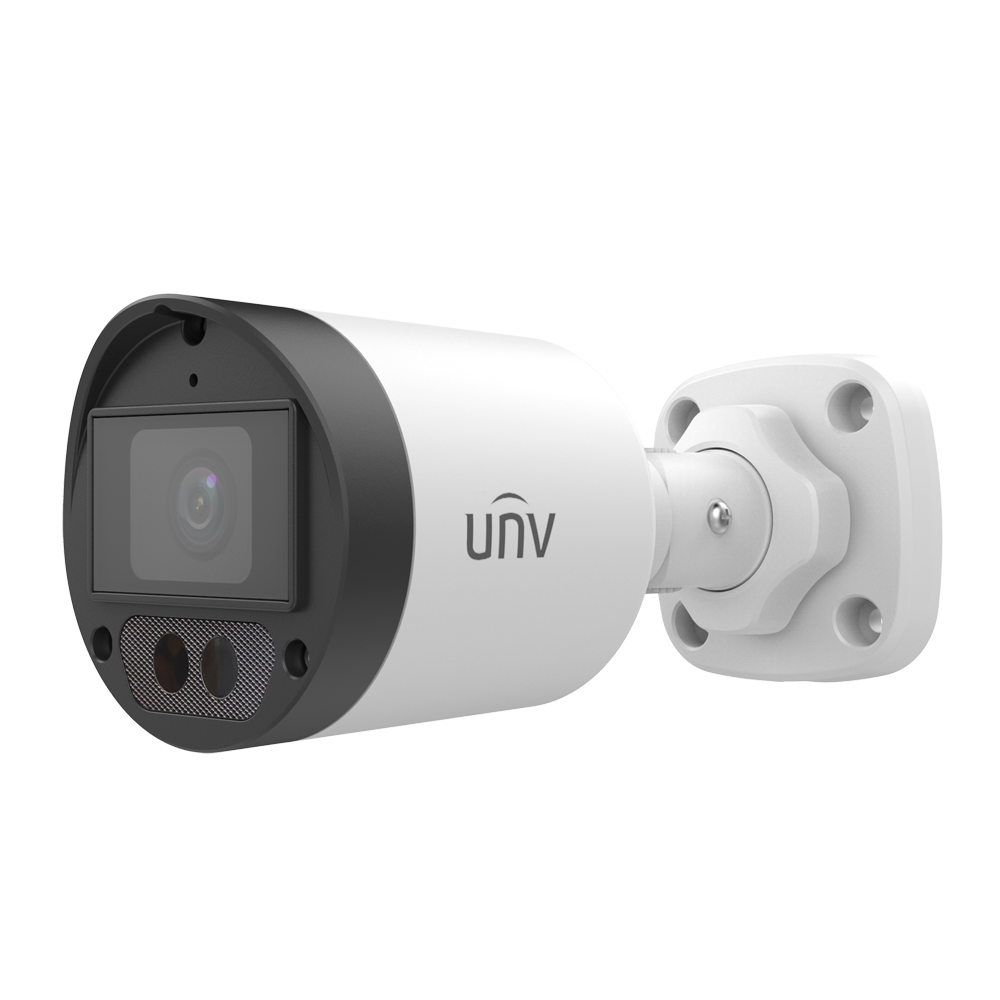

UV-UAC-B122-AF28LM
Ga direct naar de productinformatie
UV-UAC-B122-AF28LM
- Uniview
- Bullet Camera 4n1 | Whale Range
- Resolution 2 Megapixel
- 2,8 mm lens/ Built-in microphone
- IR LEDs Range 40 m
- Weatherproof IP67
- Uniview
- Analog Bullet Camera
- 1/2.9" Progressive Scan CMOS
- 2 Megapixel (2880x1620)
- 2,8 mm Lens
- 0.005 Lux
- IR Range 40 m
- Weatherproof IP67
- IR Cut
- TVI/AHD/CVI/CVBS
- Integrated microphone
- Metal / Plastic
Specifications
| Range | Uniview |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 2MP |
| Main Stream rate | 1080p (1920x1080) |
| Extra Stream rate | 720p (1280x720) |
| Lens | 2,8 mm |
| Viewing Angle (FOV) | 101.5° (H), 56.9° (V), 117.4° (D) |
| Minimum illumination | 0.005 Lux (Colour) |
| Infrared range | 40 m |
| White Light | Integrated |
| Image improvements | BLC, HLC, DWDR, DAY/NIGHT MODE, 2D. DWDR. SMART IR |
| Day / Night | Mechanical ICR filter |
| Invert image (Flip) | Supports horizontal rotation of 180º and vertical rotation of 180º |
| Power | DC 12V / 3.2W |
| Video output | BNC, supports TVI, AHD, CVI and CVBS |
| Audio | Integrated microphone |
| Material | Metal / Plastic |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 154mm (L) * 66mm (W) * 66mm (H) |
| Weight | 240 g |
In the box
- UNIVIEW Analog Camera
- Installation material
- User instructions
