UV-UAC-B112-AF28
Ga direct naar de productinformatie

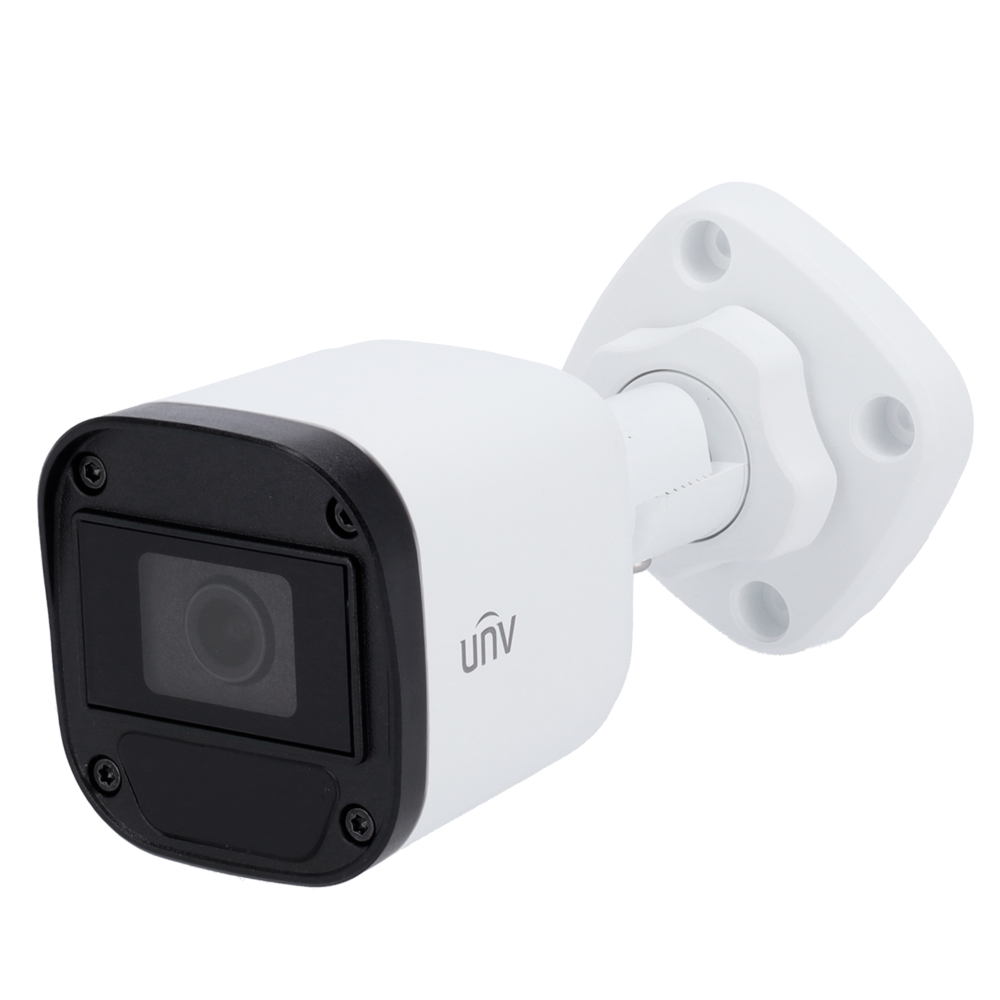

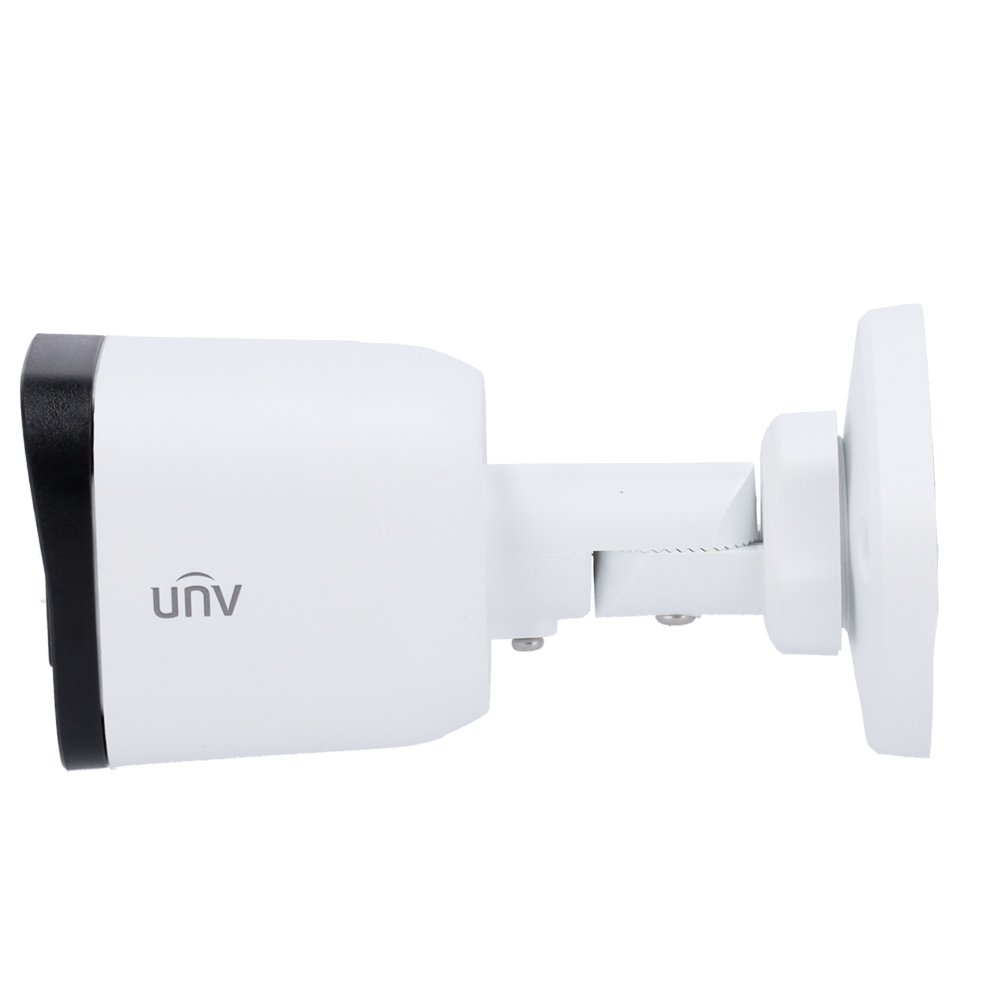

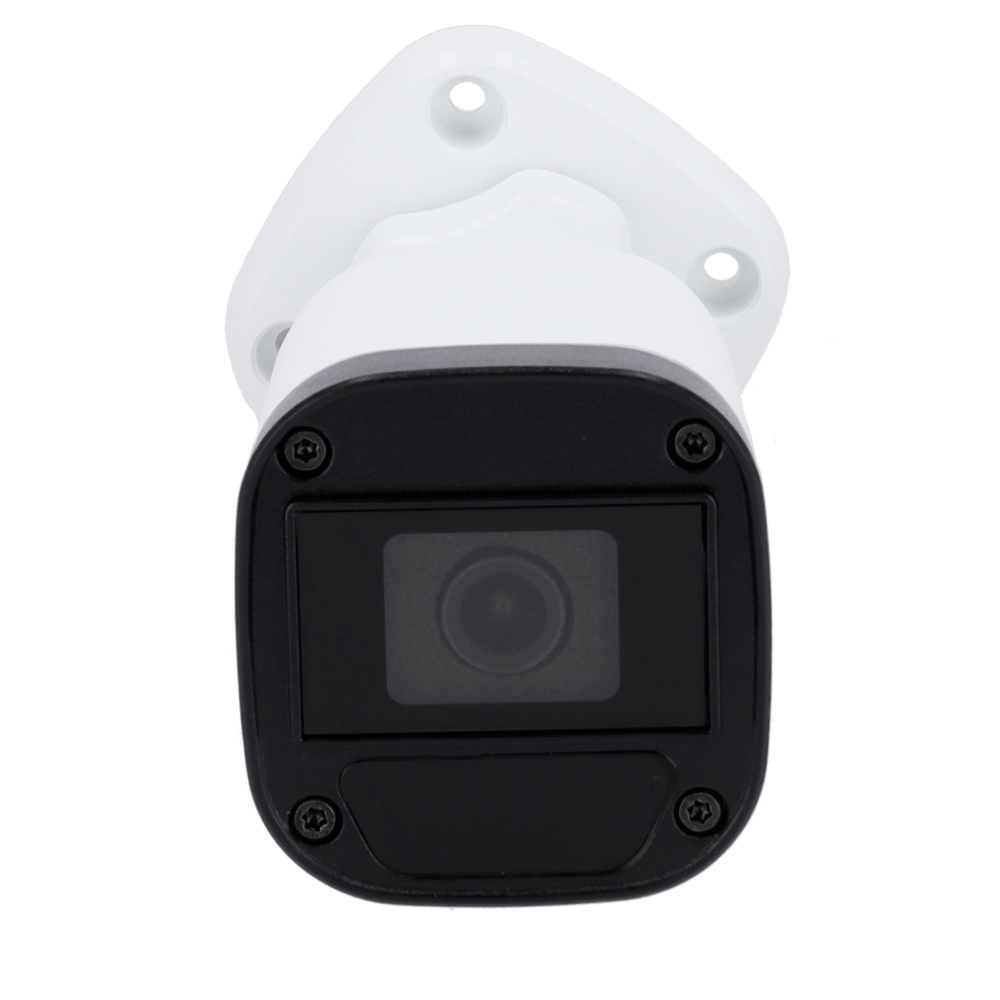

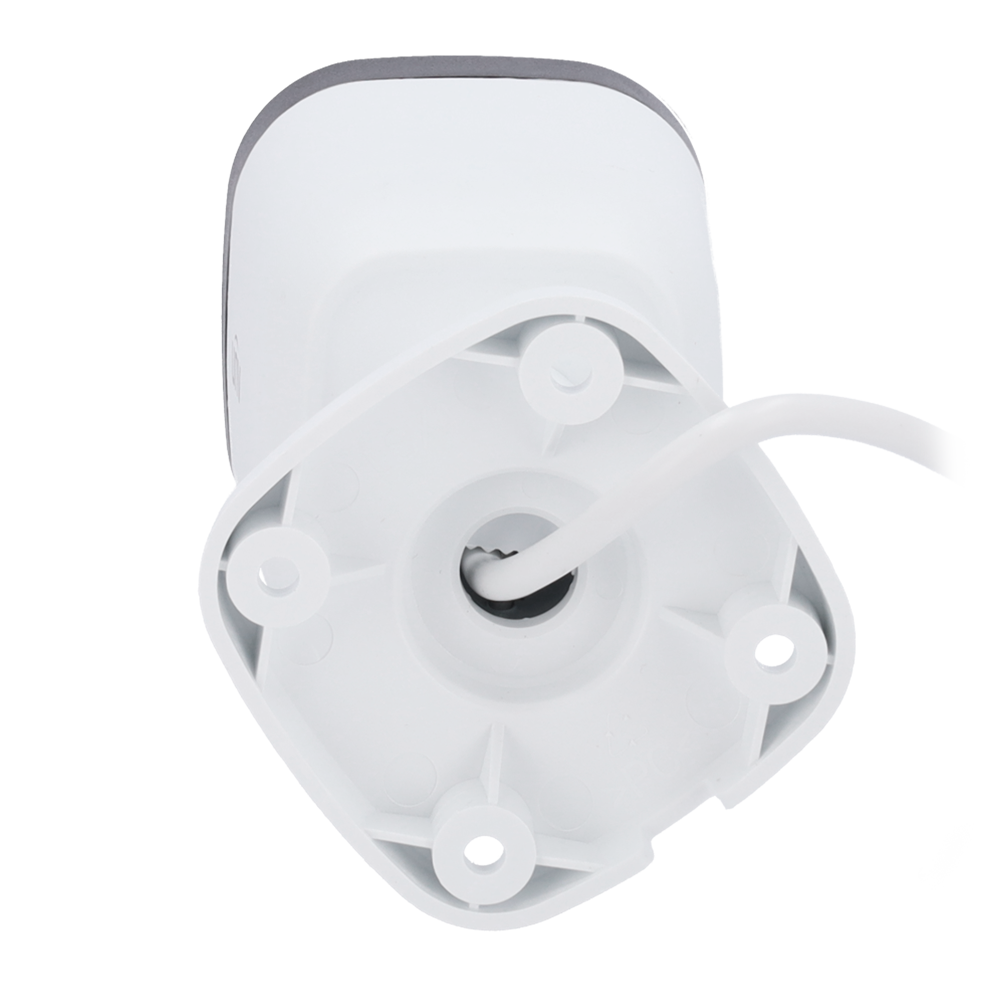

UV-UAC-B112-AF28
- Uniview
- Bullet Camera 4n1 | Dolphin Range
- Resolution 2Mpx
- Lens 2.8 mm | Built-in microphone
- IR LEDs Range 20 m
- Weatherproof IP67
- Uniview
- Analog Bullet Camera
- 4N1 TVI/AHD/CVI/CVBS
- 1/3" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- 2.8 mm Lens
- 0.02 Lux
- IR Range 20 m
- Integrated microphone
- Weatherproof IP67
Specifications
| Range | Uniview |
| Image sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 2Mpx |
| Main Stream rate | 2Mpx (1920x1080) |
| Extra Stream rate | 720p (1280x720) |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | 90.5° (H), 49.6° (V), 109.5° (D) |
| Minimum illumination | 0.02 Lux (F2.0, AGC ON) 0 Lux, IR ON |
| Infrared range | 20 m |
| Audio | Built-in microphone (Audio via coaxial cable in HDTVI) |
| Image improvements | BLC, HLC, DWDR, 2D-DNR |
| Day / Night | Mechanical ICR filter |
| Invert image (Flip) | Supports horizontal rotation of 180° and vertical rotation of 180° |

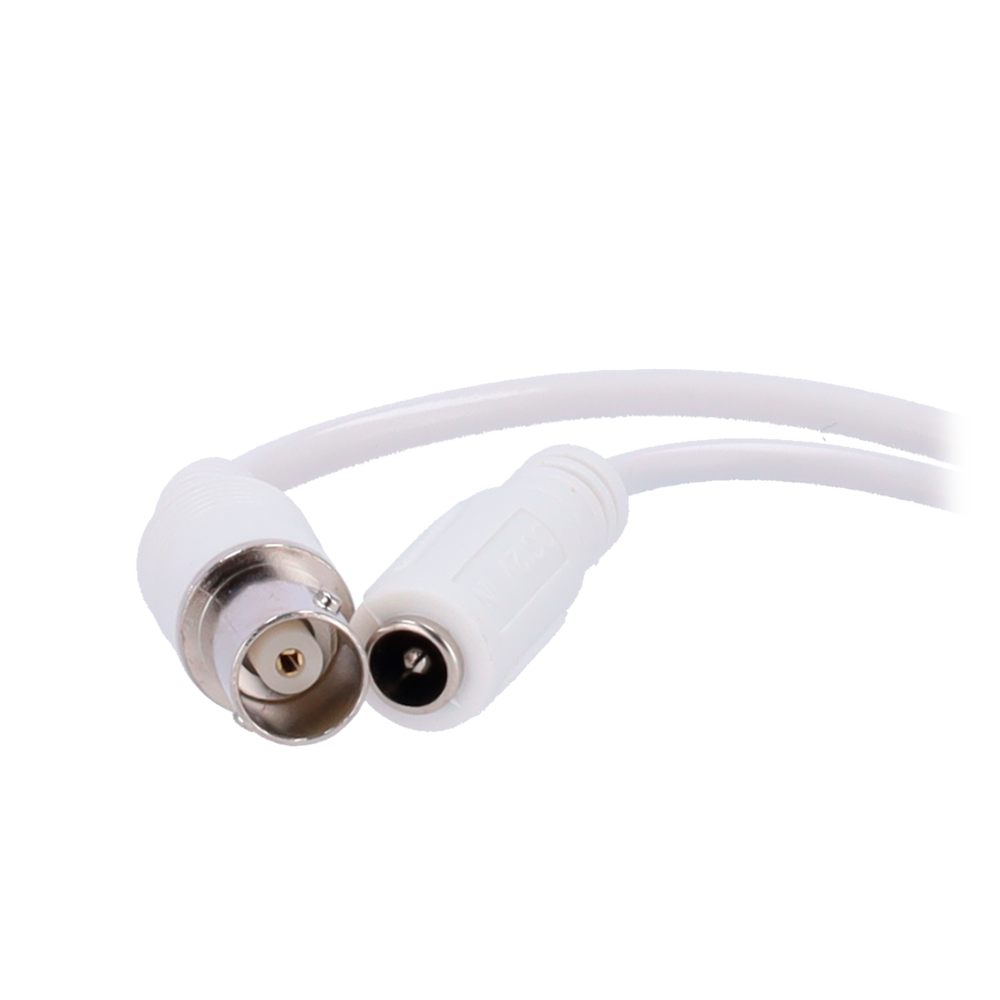

| Video output | BNC, supports TVI, AHD, CVI and CVBS |
| Power | DC 12V / 2.88W |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 143 (D) x 63 (H) x 65 (W) mm |
| Weight | 135 g |
In the box
- UNIVIEW Analog Camera
- Installation material
- User instructions
