UV-TIC2A32SA-F3-4F4AC-I1
Ga direct naar de productinformatie
UV-TIC2A32SA-F3-4F4AC-I1

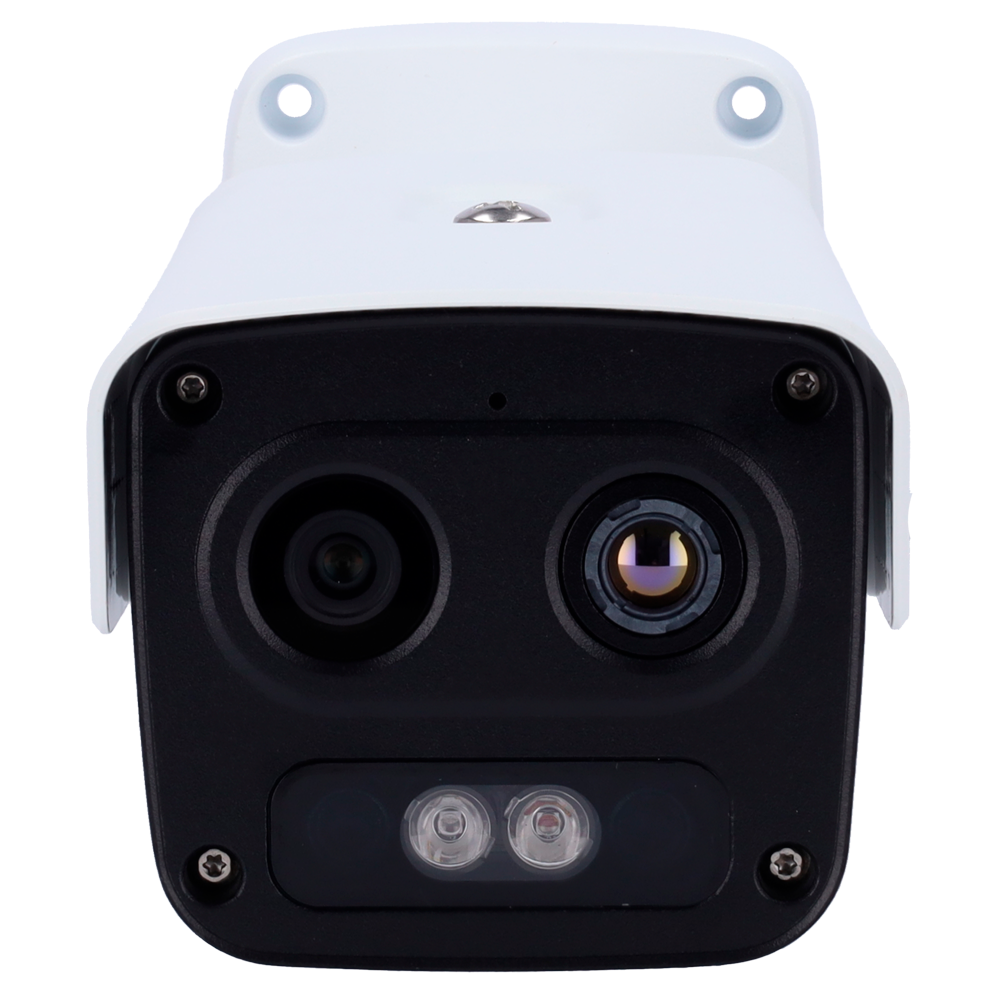

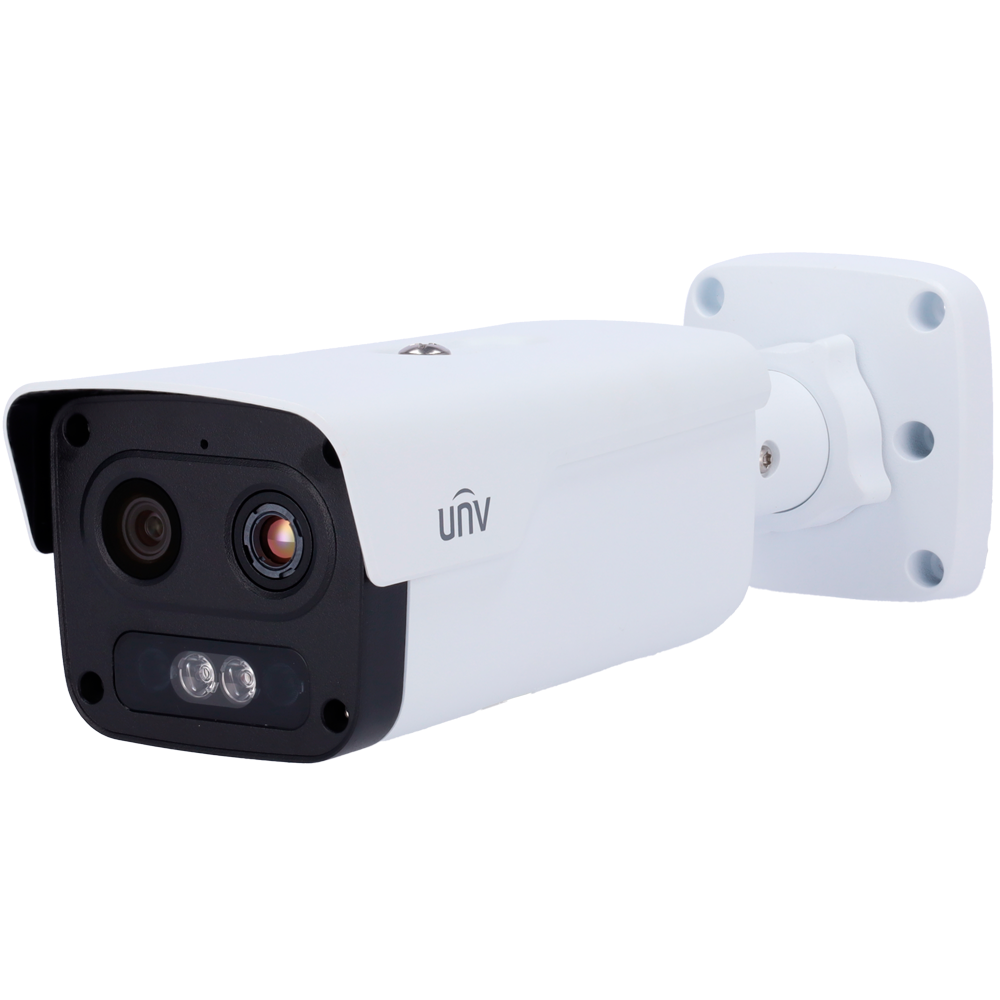

- Uniview Dual IP Thermal Camera
- Thermal: 256x192 | Lens 3.2 mm
- Optic: 4 MP | Lens 4 mm
- Microphone , Loudspeaker , Alarms
- SIP | Fire Det | Smoke Det | PoE
- Measuring range temp -20 to 150ºC / ± 8ºC
- Thermal Bullet Dual IP Camera
- Thermal sensor 256x192
- Lens 3.2 mm (thermal)
- Temperature measurement range -20º C~150º C (±8ºC)
- Thermal sensitivity < 55mK
- Optical sensor 1/2.8” Progressive CMOS
- 4 Megapixel (2688x1520)
- Lens 4 mm (optical)
- Colour 0.003 Lux / B&W 0.002 Lux
- WDR
- IR Range 40 m
- Ultra265/H.265/H.264/MJPEG
- Intelligent SIP functions

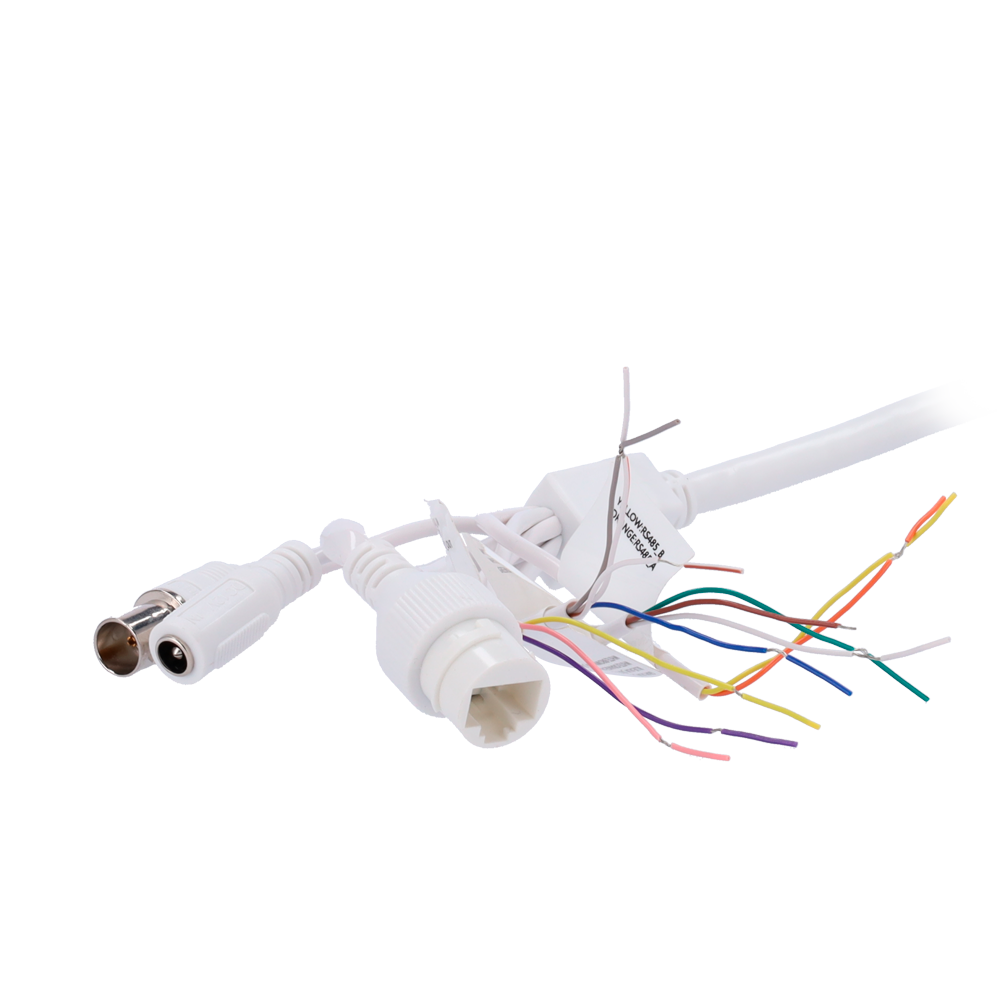

- RJ-45 10/100 BaseT
- PoE IEEE802.3af
- Audio
- Alarms
- Preventive fire detection and alarm
- Corridor mode

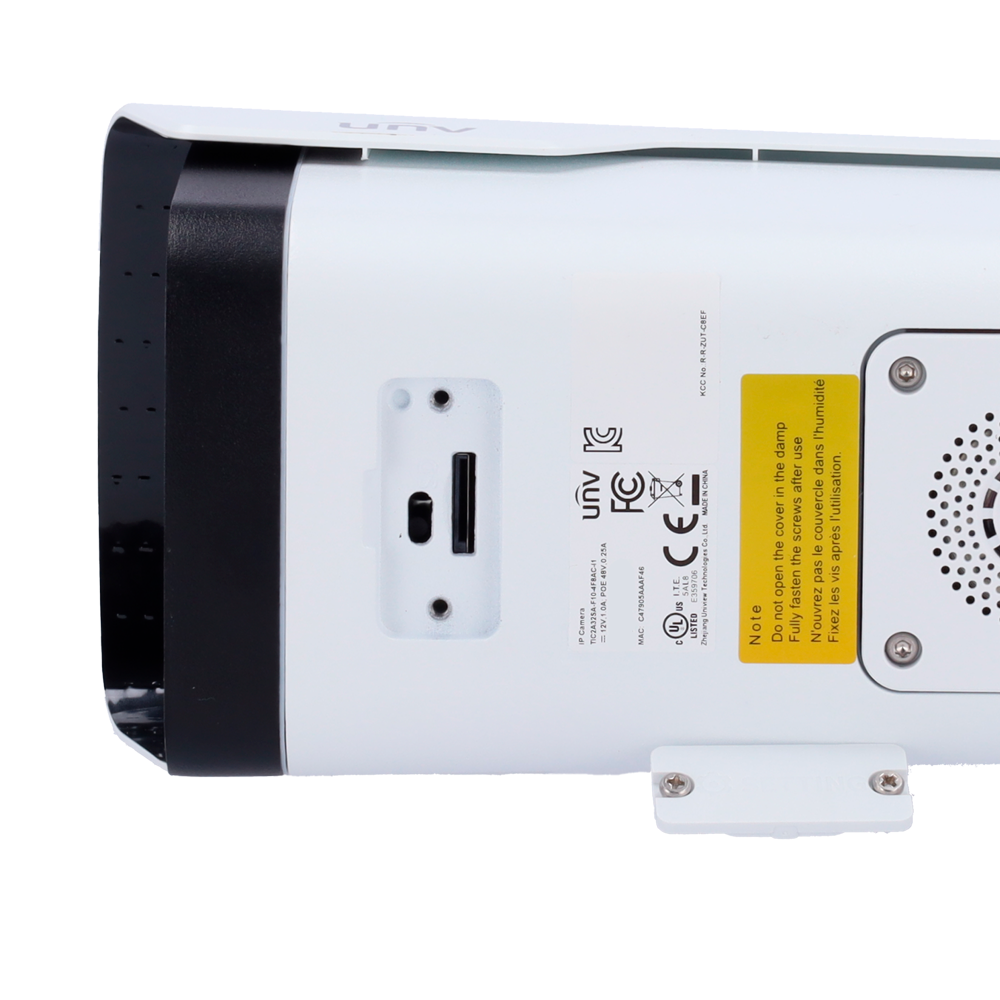

- SD card recording
- WEB Interface, Smartphone & NVR
- ONVIF Compatible
- Waterproof IP67, Over voltage protection 6KV
Specifications
| Brand | Uniview |
| Thermal sensor | 256x192 Vanadium Oxide |
| Optical sensor | 1/2.8” Progressive Scan CMOS 4 Megapixel |
| Main Stream rate | Thermal 960P(1280*960)@30fps Optical 4MP(2688*1520)@30fps |
| Compression | Ultra265 / H.265 / H.264 / MJPEG |
| Lens | Optic : 4 mm Thermal: 3.2 mm |
| FOV | Optic Horizontal: 72.9º Vertical: 44.4º Diagonal: 89.8º Thermal Horizontal: 58º Vertical: 42.5º Diagonal: 72º |
| Range performance | Detect: 90 m Observe: 36 m Recognize: 18 m Identify: 9 m |
| Fire Detection | Supports detection of fire points in the environment and up to 10 fire points can be detected |
| Smoking detection | Detects smokers in the area and links alarms |
| SIP | Detection of motor vehicles, pedestrians, line crossing, intruder detection, area entry and area exit |
| Viewing angle | 57°×42° (Term) / 84° × 43.1° (Opt) |
| Thermal sensitivity | ≤55mk @f/1.0 @25°C |
| Thermal measurement range | -20 ~150 º C / ± 8 º C |
| Spectral range | 12μm |
| Audio In/Out | 1 Input / 1 Output Integrated microphone Integrated speaker |
| Alarm In/Out | 2 Inputs / 2 Outputs |
| Internal memory | Micro SD card up to 512 GB |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF |
| Power | 12VDC, max.12W; PoE IEEE802.3af, |
| Temp. operation | -40º C ~ +70º C |
| Dimensions | 269.1(Fo) x 95.7(An) x 83(Al) mm |
| Weight | 0.95 Kg |
In the box
- Uniview IP thermal camera
- Installation material
- User instructions

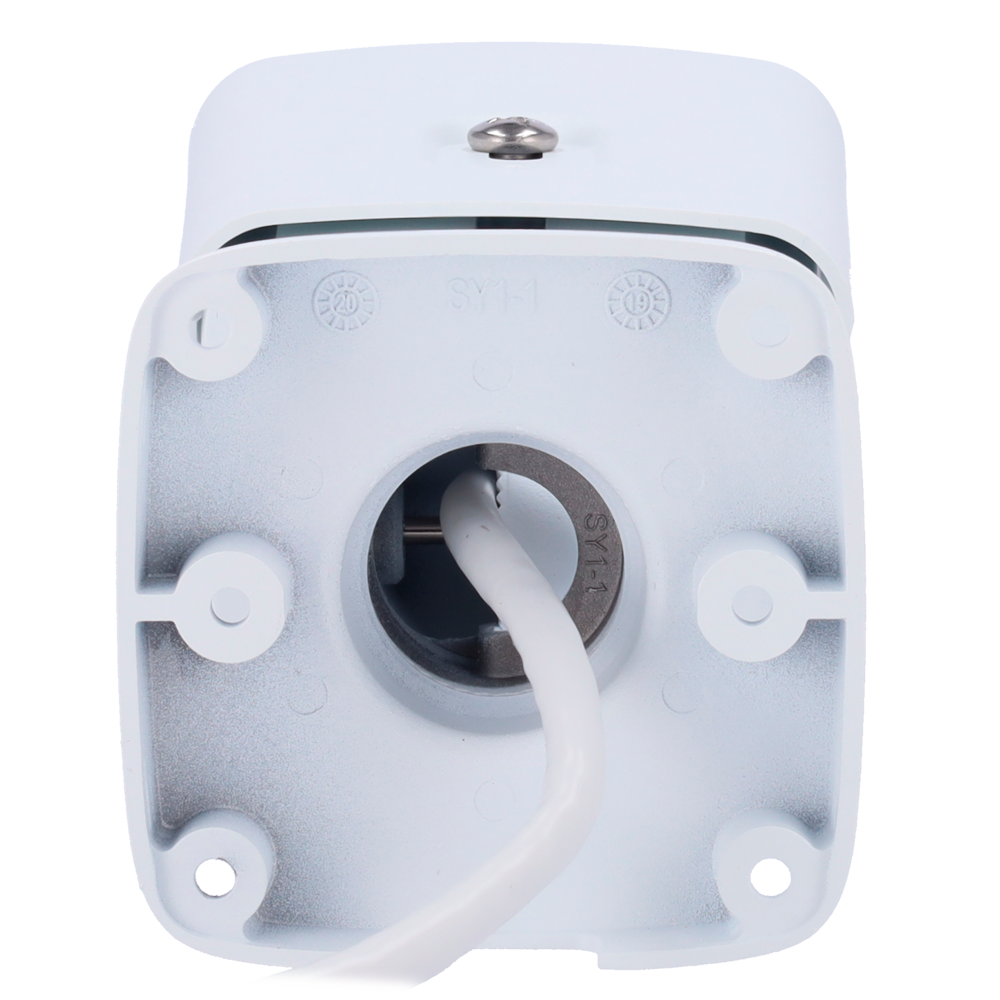

- Junction box included
