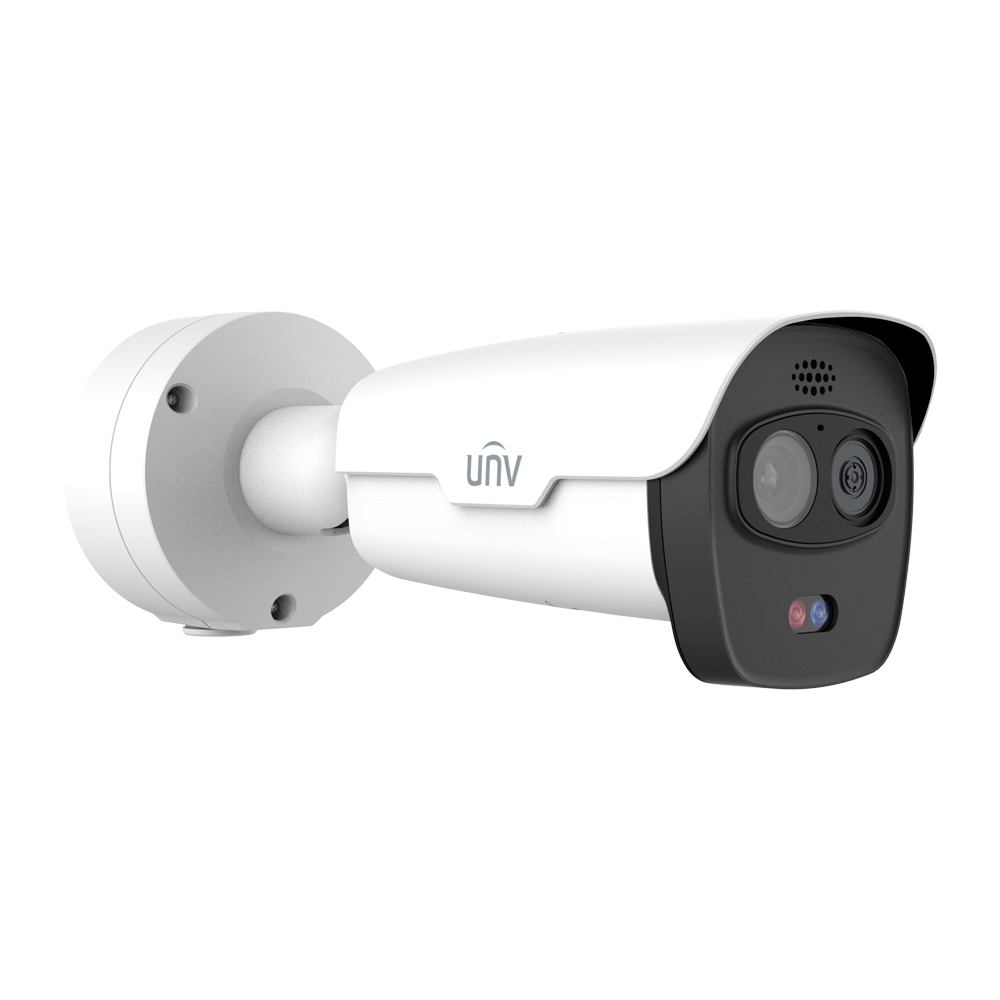

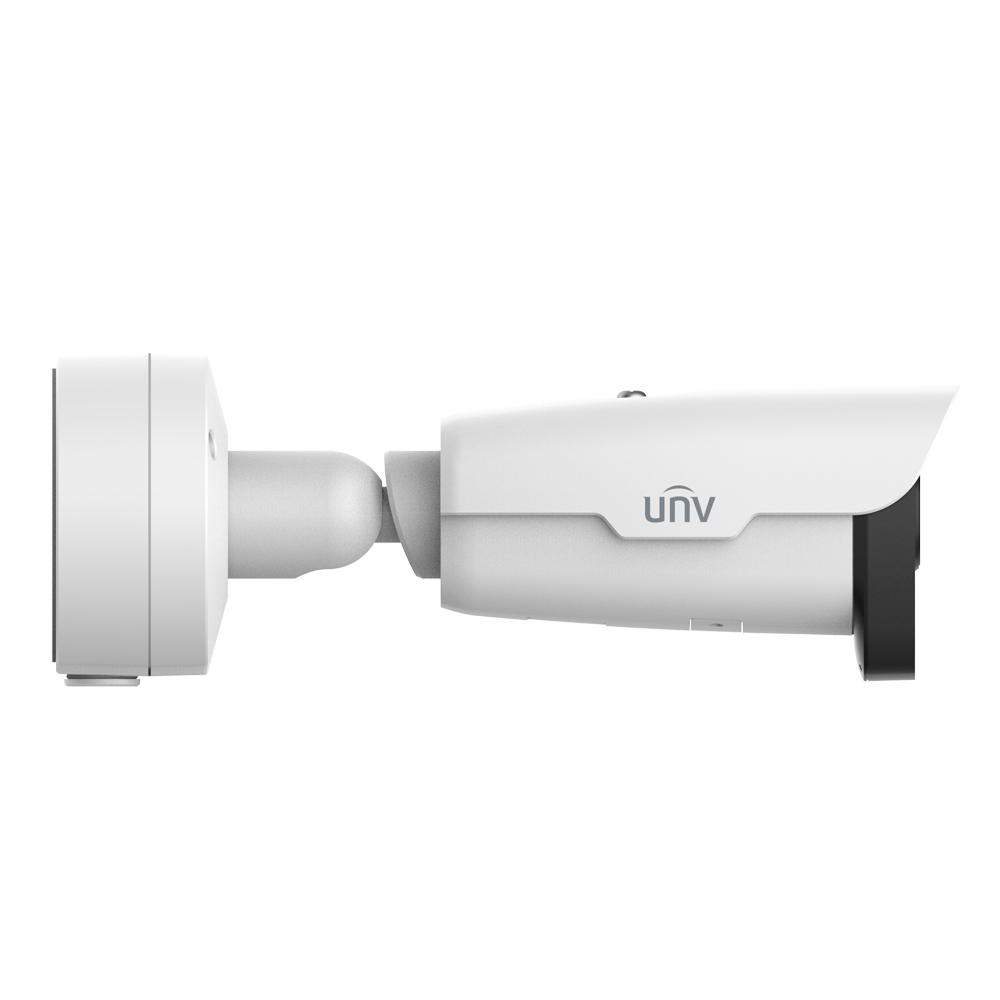

UV-TIC2621SR-F3-4F4AC-VD
Ga direct naar de productinformatie
UV-TIC2621SR-F3-4F4AC-VD
- Uniview Dual IP Thermal Camera
- Thermal: 256x192 | Lens 3.2mm
- Lens: 4 MP| Lens 4mm
- Microphone , Loudspeaker , Alarms
- SIP | Fire Det | Smoke Det | PoE
- Temperature measurement range -20~150ºC / ± 8ºC
Bullet type dual IP thermal camera with 4 MP and 4 mm optical lens; 256x192 and 3.2 mm thermal lens. Ideal for installation in perimeter protection, since it has SIP to detect intrusions at long distances with the thermal lens and then be able to have a recognition with the optical lens.
- Thermal Bullet Dual IP Camera
- Thermal sensor 256x192
- Lens 3.2 mm (thermal)
- Temperature measurement range -20º C~150º C (±8ºC)
- Thermal sensitivity < 55mK
- Optical sensor 1/8” Progressive CMOS
- 4 Megapixel (2688x1520)
- Lens 4 mm (optical)
- Colour 0.001 Lux / B&W 0.005 Lux
- WDR
- IR Range 50m
- Ultra265/H.265/H.264/MJPEG
- Intelligent SIP functions
- RJ-45 10/100 BaseT
- PoE IEEE802.3af
- Audio
- Alarms
- Preventive fire detection and alarm
- SD card recording
- WEB Interface, Smartphone & NVR
- ONVIF Compatible
- Weatherproof IP67
Specifications
| Brand | Uniview |
| Thermal sensor | 256x192 Vanadium Oxide |
| Optical sensor | 1/8” Progressive Scan CMOS 4 Megapixel |
| Main Stream rate | Thermal 1280 × 720 (1-30FPS) Optical 2688 x 1520 (1-30FPS) |
| Compression | Ultra265 / H.265 / H.264 / MJPEG |
| Lens | Thermal: 3.2 mm Optic: 4 mm |
| FOV - Thermal | Horizontal: 57º Vertical: 42º |
| FOV - Optic | Horizontal: 89.9º Vertical: 49.1º |
| DRI - Thermal | Detect: 126 m Identify: 32 m Identify: 21 m |
| Range performance - Optic | Detect: 62.1 m See: 24.8 m Identify: 12.4 m Identify: 6.2 m |
| Fire Detection | Supports detection of fire points in the environment and up to 10 fire points can be detected |
| Smoking detection | Detects smokers in the area and links alarms |
| SIP | Detection of motor vehicles, pedestrians, line crossing, intruder detection, area entry and area exit |
| Viewing angle | 57°×42° (Term) / 84° × 43.1° (Opt) |
| Thermal sensitivity | ≤55mk @f/1.0 @25°C |
| Thermal measurement range | -20 ~150 º C / ± 8 º C |
| Spectral range | 12μm |
| Audio In/Out | 1/ 1 |
| Alarm In/Out | 2/2 Relay |
| Internal memory | Micro SD card up to 256GB |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF |
| Power | 12VDC, max.12W; PoE IEEE802.3af, |
| Temp. operation | -40º C ~ +70º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 354 mm (Fo) x 104 (An) x 116 (Al) mm |
| Weight | 1,85 Kg |
In the box
- Uniview IP thermal camera
- Installation material
- User instructions
- Junction box included
