UV-STARTERKIT-01
Ga direct naar de productinformatie

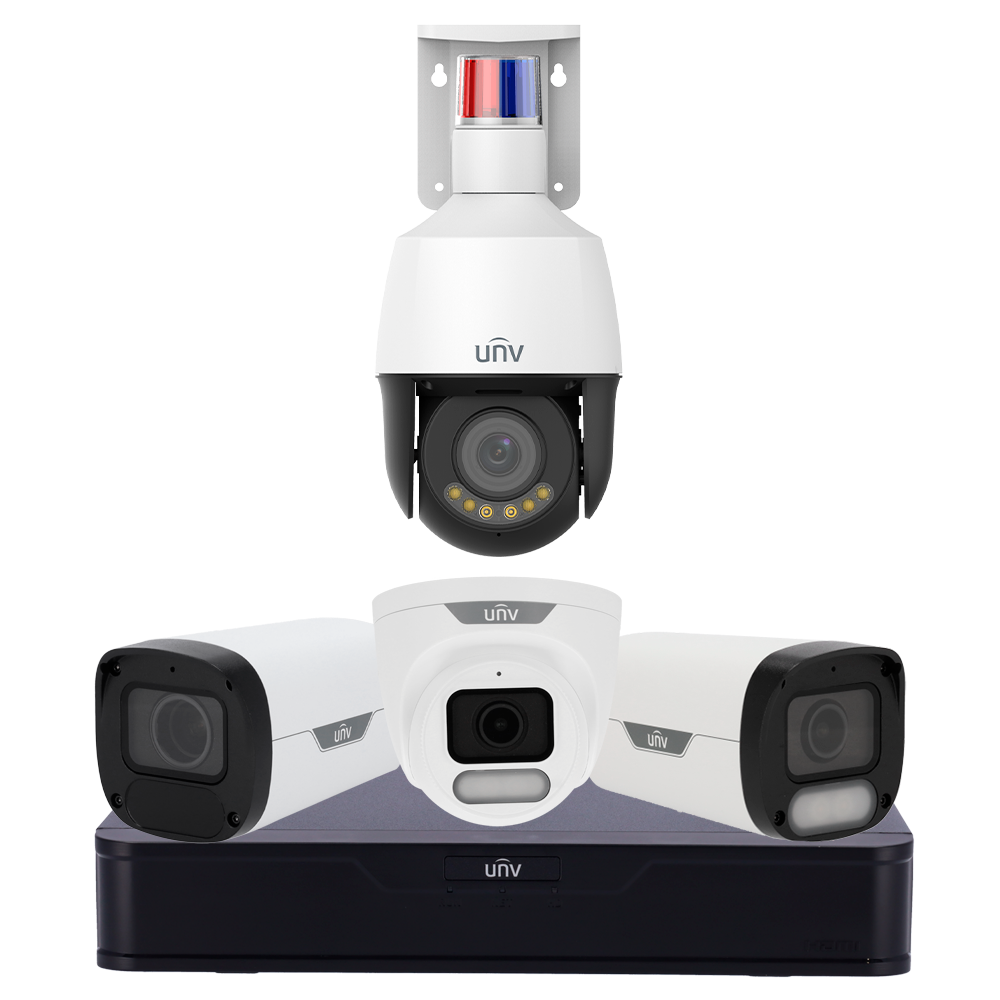

UV-STARTERKIT-01
- Uniview Video Surveillance Kit
- NVR 8CH PoE | AcuSearch | SIP | UMD
- Bullet 4 MP Wise-ISP | SIP Lite | 2.8 mm
- Turret4 MP Wise-ISP | SIP Lite | 2.8 mm
- Bullet 4 MP | Varifocal lens 2.8~12 mm
- PTZ 4MP 5x Wise-ISP Triguard | 2.7~13.5 mm
UNIVIEW branded starter kit. It consists of a 8-channel NVR, 8 PoE ports, features AcuSearch and AcuTack for faster searching and efectiva(UV-NVR301-08B-P8-IQ). The kit features Wise-ISP technology cameras, which allow color images to be displayed in the dark, Tri-Guard, a technology that combines SIP with ColorHunter and active deterrence to generate alerts when intruders are detected.
- Includes UV-NVR301-08B-P8-IQ, UV-IPC2314LE-ADF28KM-WP, UV-IPC3624LE-ADF28K-WP, UV-IPC2324LB-ADZK-H, UV-IPC6314LWH-AX5C-VG2
- 8 Channels | 8 PoE ports.
- 1 HDD | 6 TB.
- Resolution 4 MP.
- SIP | UMD
- Acusearch/AcuTrack
- Wise-ISP.
- Tri-Guard.
Specifications
NVR |
|

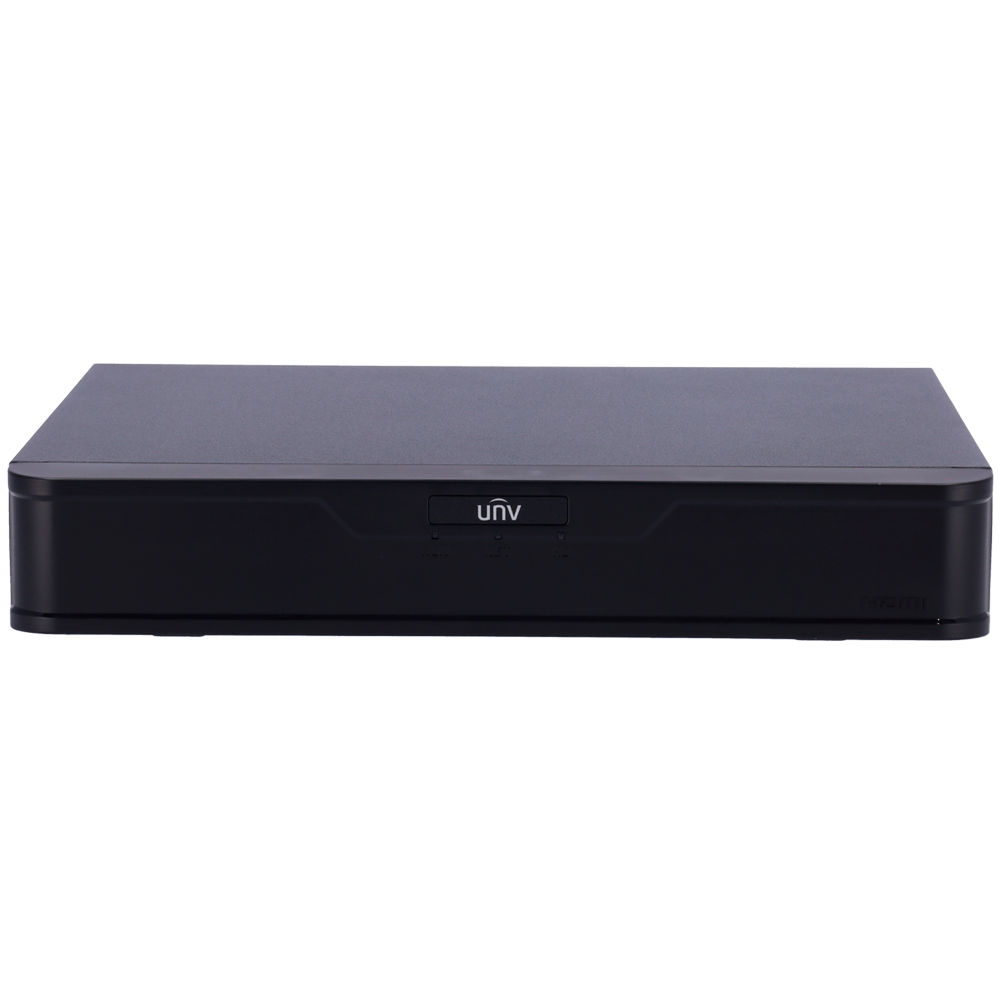

| Model | UV-NVR301-08B-P8-IQ |
| Video inputs | 8 CH | 8 CH PoE |
| Bandwidth | 80 Mbps |
| Video outputs | 1 HDMI 4K, 1 Simultaneous output VGA |
| Audio | 1 Output 3.5 mm |
| Video/audio compression format | Ultra 265, H.265, H.264 |
| Display resolution | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| Maximum recording resolution | 12 MP |
| Coding | 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 1080P@30 x [%VAR%] |
| Recording method | Manual, programmed, motion detection |
| Internal memory | 1 SATA HDD 3.5" of up to 6 TB (not included) |
| Communication | 2 x USB (Mouse and backup) / RJ45 (Ethernet) / RS485 |
| Power | DC 52 V / 1.8 A, ≤ 12W (without HDD) |
| Dimensions and weight | 260 (W) × 222 (D) × 47 (H) mm /2.7 Kg|| |
IP cameras | |

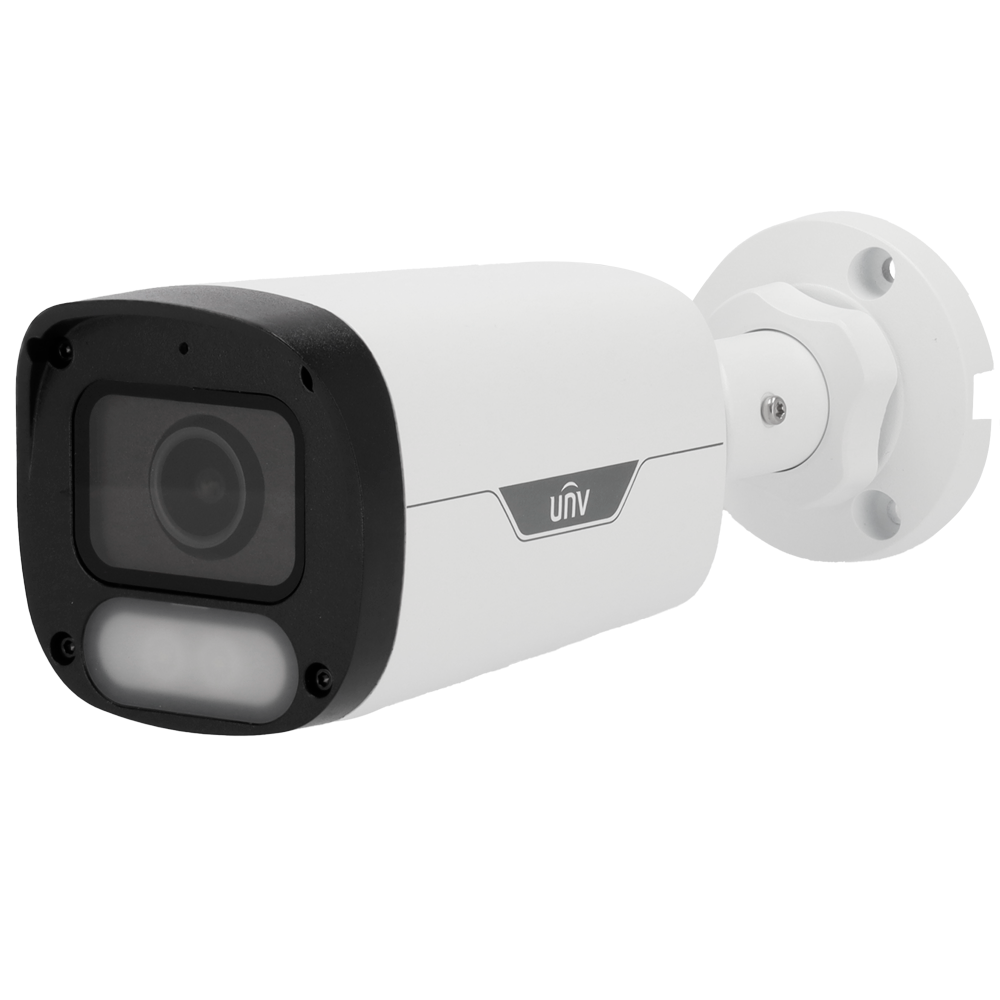

| Model | UV-IPC2314LE-ADF28KM-WP |
| Image sensor | 1/1.8” 4 Megapixel Progressive Scan CMOS |
| Resolution | 4 MP (2688x1520) |
| Transfer Rate | 4MP (2688*1520)@25fps; 4MP (2560*1440)@25fps; 3MP (2304*1296)@30fps; 1080P (1920*1080)@30fps; 720P (1280*720)@30fps; |
| Type | Bullet |
| Lens | 2.8 mm (H: 110.4º, V: 60.5º, D: 115.2º) |
| Minimum illumination | Color Hunter with WISE-ISP technology, which allows displaying a full color image 24/7 with full nitidez||0.0003Lux (F1.0 AGC ON) |
| Scope of illumination | 30 m |
| Video analytics | SIP Lite. Smart Intrusion Prevention. Allows the creation of intrusion and perimeter rules with alarm activation only when a human or vehicle is detected. UMD. Ultra Motion Detection. Advanced motion detection, only activates when human and/or vehicle is detected. Filters out false alarms from natural movements such as leaves or pets. |
| Audio | Built-in microphone |
| Protection | Suitable for exterior IP67 |
| Power | DC 12 V / 9 W, PoE IEEE802.3af|| |
| Dimensions / Weight | 73 (W) × 73 (H) x 206 (D) mm||480 g |

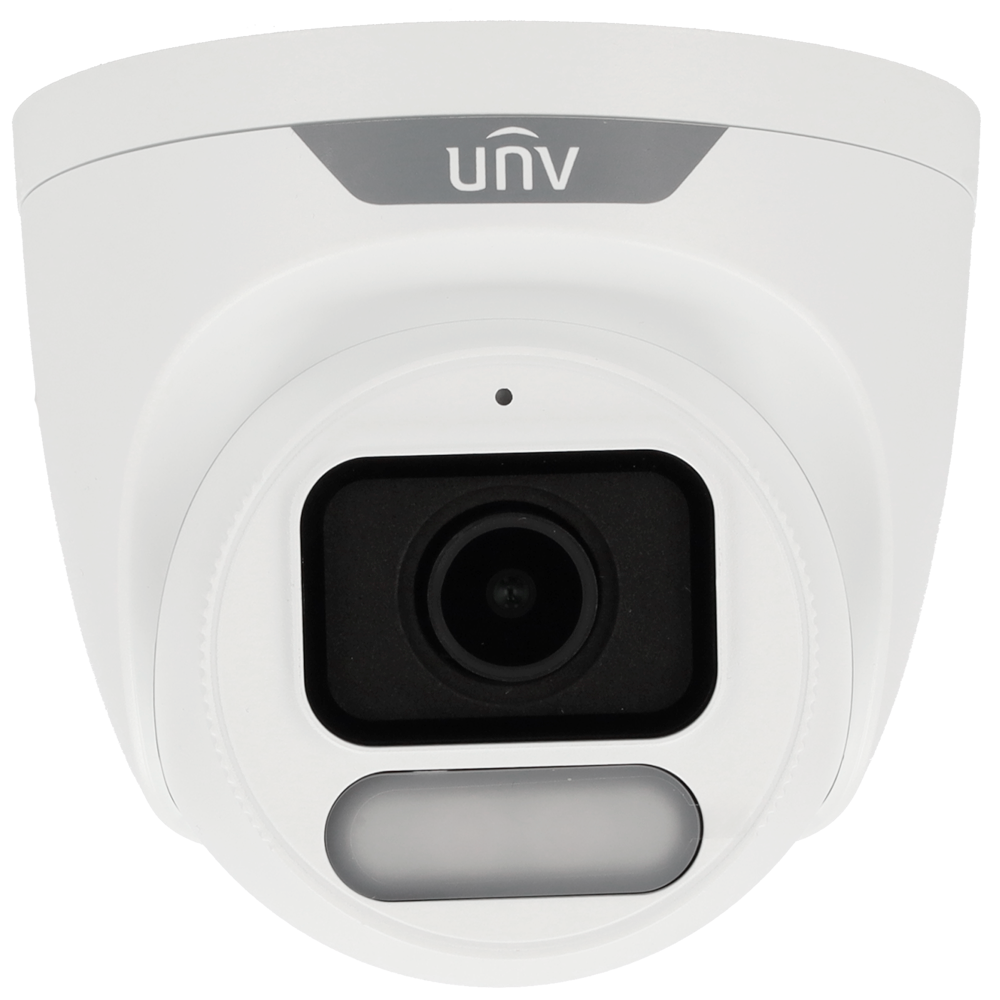

| Model | UV-IPC3624LE-ADF28K-WP |
| Image sensor | 1/1.8” Progressive Scan CMOS |
| Resolution | 4 Megapixel (2688x1520) |
| Transfer Rate | 4MP (2688*1520)@25fps; 4MP (2560*1440)@25fps; 3MP (2304*1296)@30fps; 1080P (1920*1080)@30fps; 720P (1280*720)@30fps; |
| Type | Turret |
| Lens | 2.8 mm (H: 110.4º, V: 60.5º, D: 115.2º) |
| Minimum illumination | Color Hunter with WISE-ISP technology, which allows to display a full color image 24/7 with total clarity 0.0003Lux (F1.0 AGC ON) |
| Video analytics | SIP Lite. Smart Intrusion Prevention. Allows the creation of intrusion and perimeter rules with alarm activation only when a human or vehicle is detected. UMD. Ultra Motion Detection. Advanced motion detection, only activates when human and/or vehicle is detected. Filters out false alarms from natural movements such as leaves or pets. |
| Audio | Built-in microphone | G.711 |
| Protection | Weatherproof IP67 |
| Power | DC 12V / 2.6W PoE IEEE802.3af |
| Dimensions / Weight | 118 (Φ) × 106 (Al) mm |

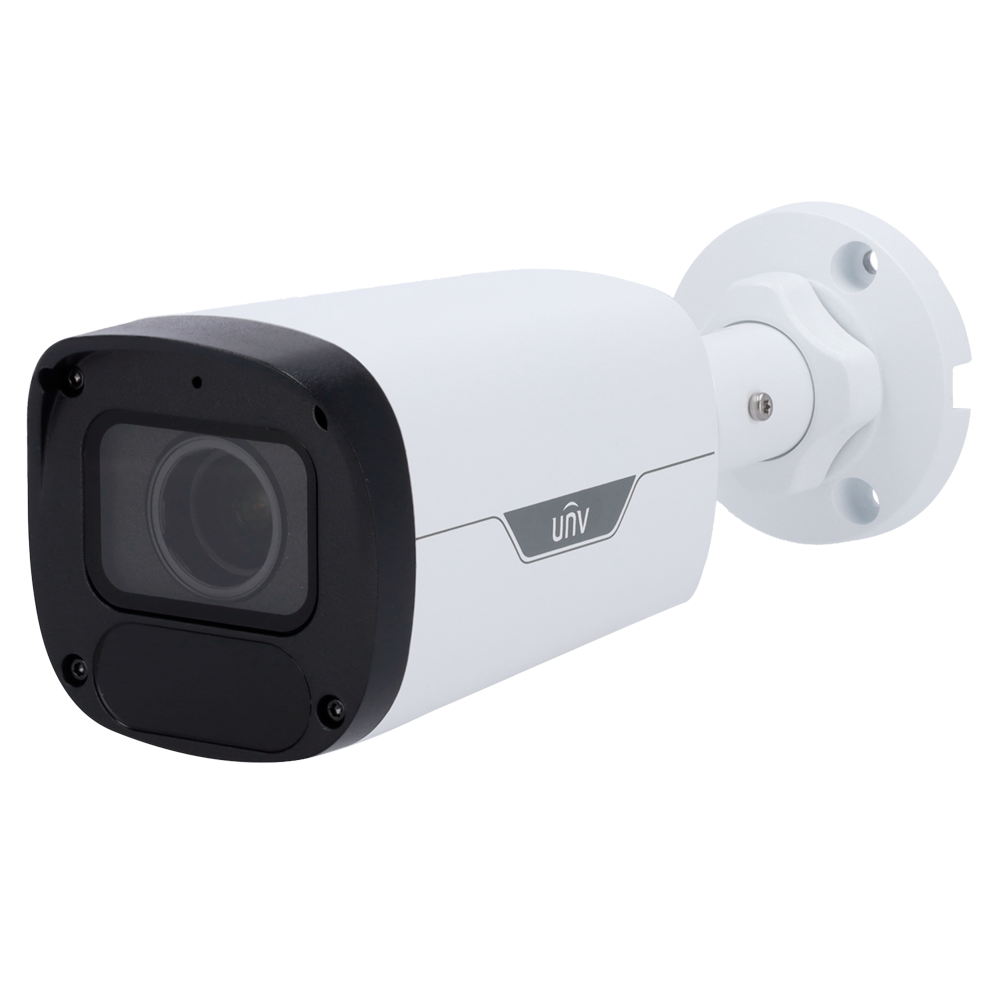

| Model | UV-IPC2324LB-ADZK-H |
| Image sensor | 1/3" Progressive Scan CMOS |
| Resolution | 4 Megapixel (2688x1520) |
| Transfer Rate | 25 fps (2688 x 1520, 2560 x 1440, 2304 x 1296) 30 fps (1920 x 1080) |
| Type | Bullet |
| Lens | Motorized 2.8 - 12 mm |
| Minimum illumination | 0.003 Lux (Colour) |
| Video analytics | SIP Lite. Smart Intrusion Prevention. Allows the creation of intrusion and perimeter rules with alarm activation only when a human or vehicle is detected. UMD. Ultra Motion Detection. Advanced motion detection, only activates when human and/or vehicle is detected. Filters out false alarms from natural movements such as leaves or pets. |
| Audio | Integrated microphone |
| Protection | Weatherproof IP67 |
| Power | DC 12V / 9.6W PoE IEEE802.3af |
| Dimensions / Weight | 206 mm (W) x 73 (D) x 73 (H) mm |

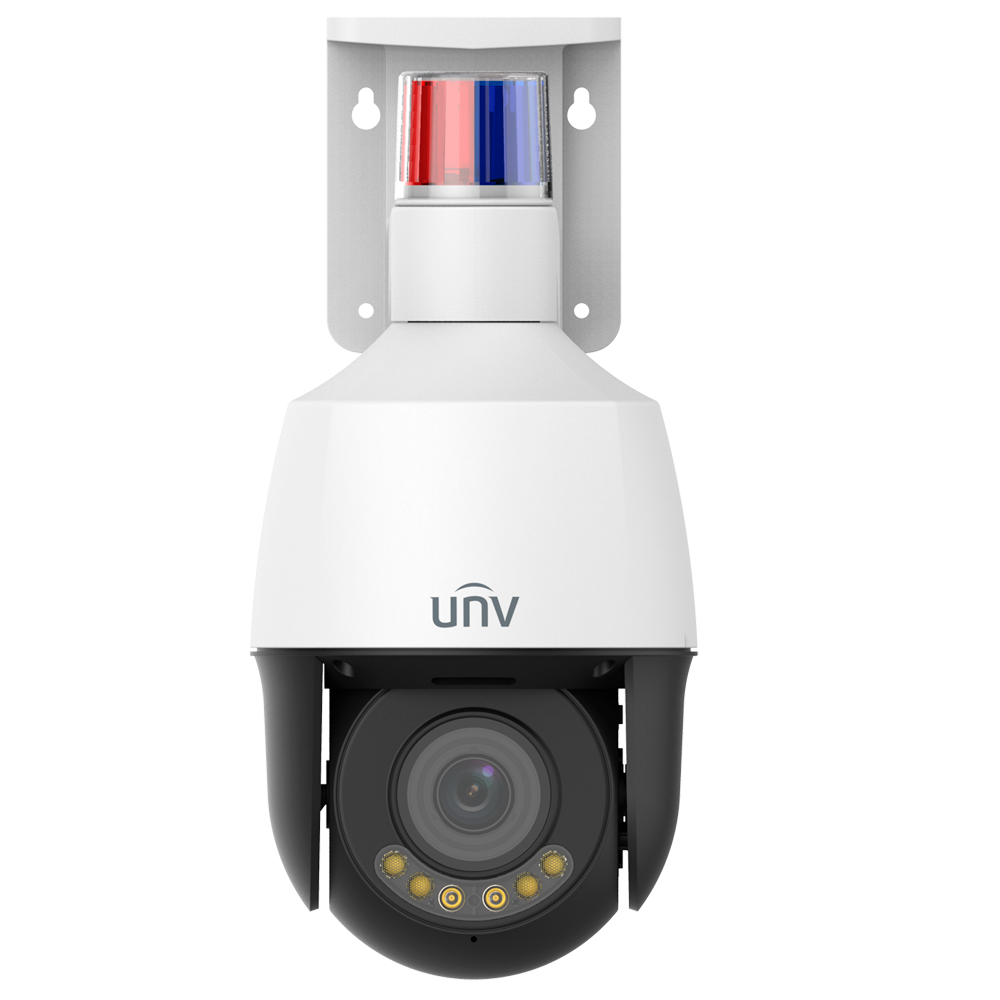

| Model | UV-IPC6314LWH-AX5C-VG2 |
| Image sensor | 1/1.8" Progressive Scan CMOS |
| Resolution | 4 Megapixel (2560x1440) |
| Transfer Rate | 4MP(2560x1440)@30fps |
| Type | PTZ |
| Lens | Varifocal 2.7~13.5mm (Optic Zoom 5X) |
| Minimum illumination | 0.0005Lux (F1.2, AGC ON) 0Lux with White light |
| Video analytics | SIP. Smart Intrusion Prevention. Allows the creation of intrusion and perimeter rules with alarm activation only when a human or vehicle is detected. UMD. Ultra Motion Detection. Advanced motion detection, only activates when human and/or vehicle is detected. Filters out false alarms from natural movements such as leaves or pets. |
| Audio | Built-in microphone and speaker 1 Input / 1 Output |
| Protection | Weatherproof IP66 |
| Power | DC 12 V / 25.4W PoE IEEE802.3at |
| Dimensions / Weight | Ø133 x 185 x 285 mm |
In the box
- UV-NVR301-08B-P8-IQ
- UV-IPC2314LE-ADF28KM-WP
- UV-IPC3624LE-ADF28K-WP
- UV-IPC2324LB-ADZK-H
- UV-IPC6314LWH-AX5C-VG2
