UV-PKC2630@Z28-IR-P
Ga direct naar de productinformatie
UV-PKC2630@Z28-IR-P
- LPR Uniview - Pro range
- 3 MP | Motorized lens 2.8~12 mm | microSD
- IR 50 m | Sensor 1/2.8" - (F1.6)
- LPR up to 80 km/h
- PoE+ | Audio | IP67 | IK10
- Alarms | WDR

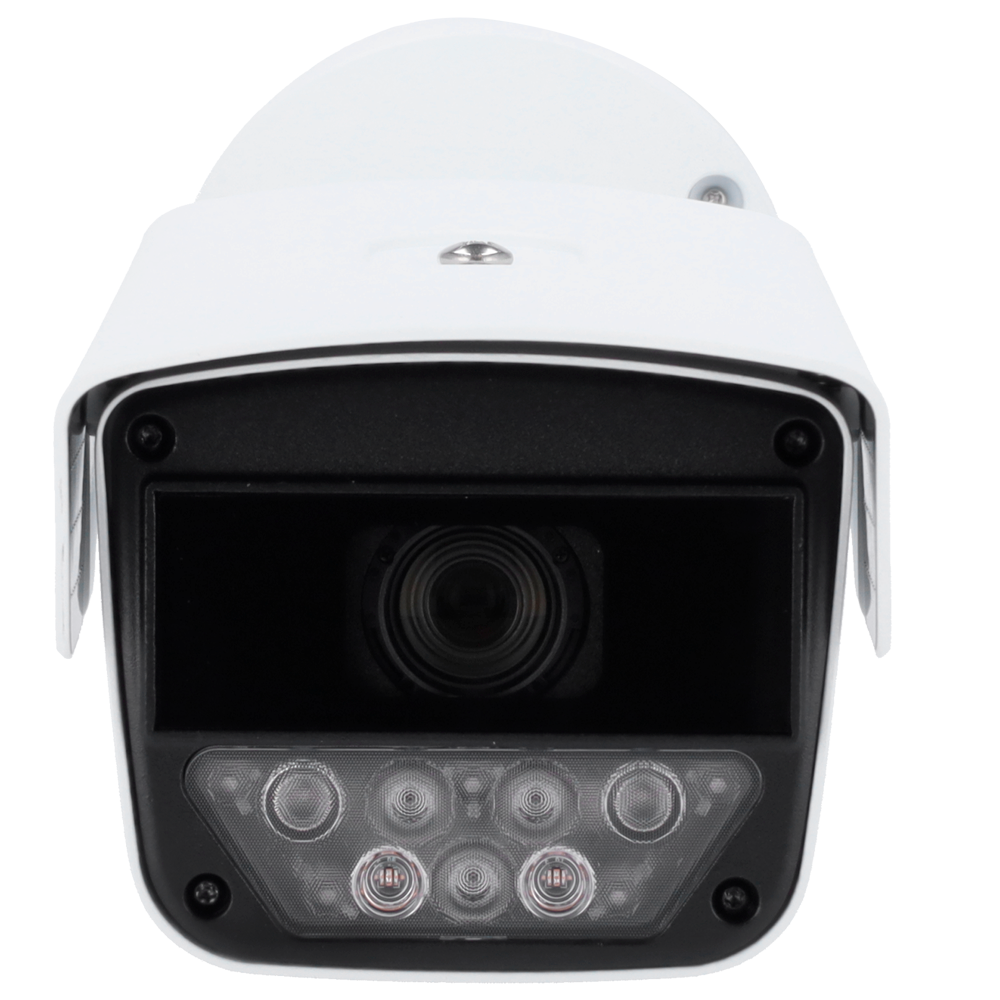

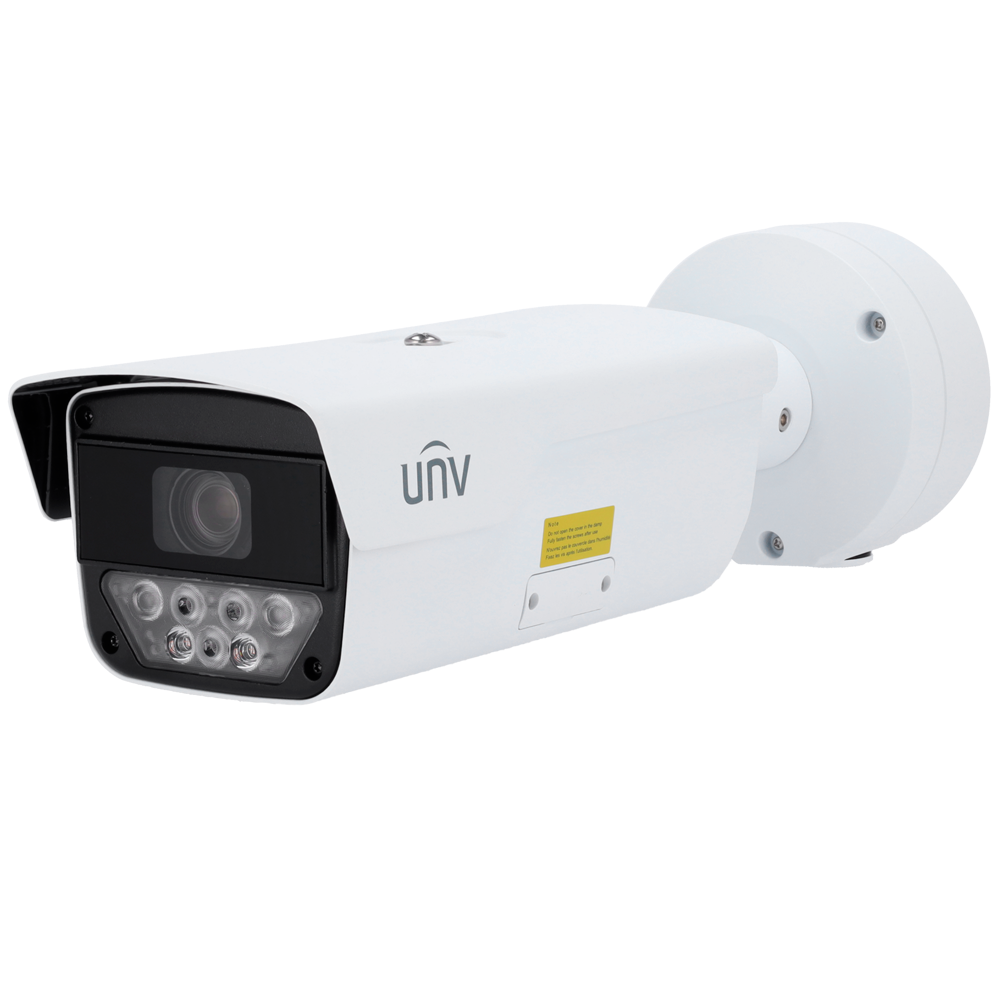

3MP LPR IP Bullet Camera with 2.8~12 mm varifocal lens, 50 m IR range and 1/2.8" CMOS sensor. This camera is ideal for installation at vehicle entrances and exits, allowing direct connection to the barrier and control of the opening by means of license plate recognition. The camera allows the creation of whitelists and blacklists to allow or deny access.
- IP Bullet Camera - Pro Range
- 3 MP (2304x1296)
- Sensor 1/2.8" CMOS
- Motorized varifocal lens 2.8~12 mm Autofocus
- Minimum illumination 0.005 Lux | 0 lux with IR
- IR range of 50 m
- ANPR License plate recognition up to 30 km/h for entrances and exits; up to 80 km/h on regular roads
- WDR 120 dB
- Audio 1 Input / 1 Output
- Alarms 2 Inputs / 1 Outputs
- PoE+
- Slot for MicroSD card up to 256 GB
- IP67
- IK10
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Pro |
| Image sensor | 1/2.8” Progressive Scan CMOS |
| Maximum resolution | 3 Megapixel (2304x1296) |
| Main Stream rate | 3Mpx, 1080P, 720P, D1 |
| Second Stream Rate | 720P,D1,2CIF,CIF |
| Third Stream Rate | D1, 2CIF, CIF |
| Compression | H.265/H.264 |
| Lens | 2.8~12mm lens |
| Minimum illumination | 0.001 Lux (Colour) |
| IR range | 50 m |
| Image improvements | WDR 120 dB, BLC, HLC, AGC, ROI |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 128 GB |
| Alarms | 2 input / 1 relay |
| Audio | 1 input / 1 output |
| Functions | License plate reading. Speed measurement on conventional roads < 80 km/h and < 30 km/h at entrances and exits. Barrier opening |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | AC12V±25%/ 20W |
| Temp. operation | -40º C ~ 60º C |
| Degree of protection | Weatherproof IP67, Anti-vandal IK10 |
| Dimensions | 406 x 126 x 130 mm |
| Weight | 2.1 kg |
| POE | 802.3at, class 4 |
In the box
- Uniview IP Camera
- Installation material
- User instructions
