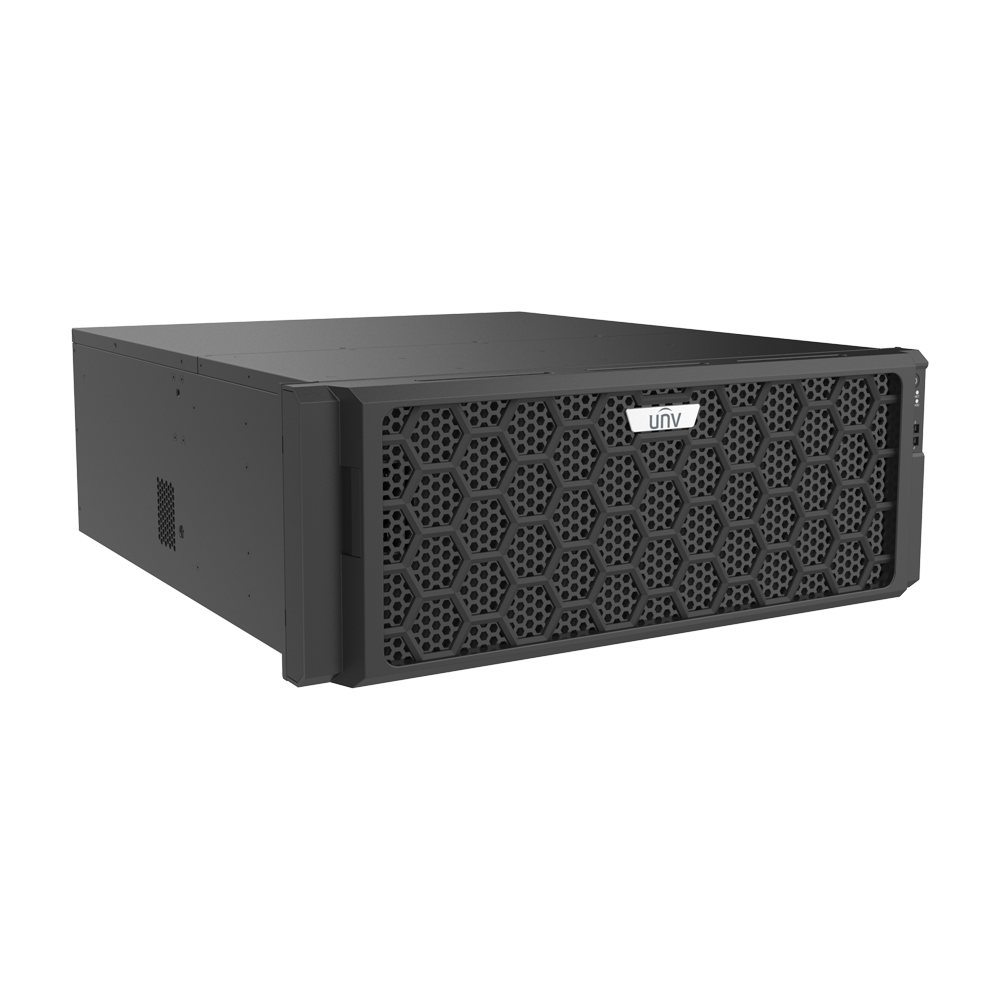

UV-NVR524-256E-IM
- NVR Recorder Pro Range 8K for IP cameras
- 256 CH | 32 Mpx | 2 decoder cards
- AI: SIP, counting, facial, audio
- 24 HDD to 16 T | RAID 0, 1, 5, 6, 10, 50, 60
- Bandwidth 640 Mbps
The NVR524‑256E‑IM is a professional recorder capable of handling up to 256 IP channels, making it ideal for large-scale projects. It offers independent HDMI outputs with resolutions up to 8K,, support for Ultra265/H.265/H.264, and recording up to 32 MP. It features RAID 0/1/5/6/10/50/60, support, hot-swap capability, advanced analytics (SIP, UMD, facial recognition, people counting), and a bandwidth of 768 Mbps for stable performance in demanding environments
- Uniview
- NVR for IP cameras
- Pro range
- 256 CH
- 768 Mbps bandwidth supported
- Maximum resolution 32 Megapixel
- Intelligent functions
- Alarms
- Audio
- Output 2 x HDMI 8K and 2 x VGA (independent)
- Space for 24 HDD up to 24 TB
- RAID function
- RS232, RS485, 4 x USB3.0
- 2 x RJ45
- Output 12 V
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Pro |
| Inputs for IP cameras | LAN port up to 256 channels |
| IP compatible cameras | UNIVIEW, ONVIF |
| Video outputs | HDMI1 8K, HDMI2 4K, VGA1/VGA2 1080P HDMI1/VGA1 independent of HDMI2/VGA2 |
| Video compression format | Ultra265 / H.265 / H.264 |
| Resolution | HDMI1: 8K (7680x4320)@30Hz, 4K (3840x2160)@60Hz, 1920x1080@60Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz HDMI2: 4K 3840x2160)@60Hz, 1920x1080@60Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz VGA1 / VGA2: 1920x1080@60Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz |
| Total bandwidth | 768 Mbps downstream / 768 Mbps upstream |
| Main Stream recording | 32MP / 16MP / 12MP / 8MP / 6MP / 5MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Bidirectional audio | 1 input / 1 BNC output |
| Alarms | 16 Inputs / 10 Outputs |
| Recording method | Manual, programmed, motion detection |
| VCA detection by IPC | SIP (intrusion detection, cross line detection, zone entry, zone exit) Ultra Motion Detection (UMD) Temperature detection (fire detection, smoke detection, temperature measurement, smoke detection and fire detection) People counting (people flow counting, crowd density control) Facial detection, video metadata, traffic control |
| VCA Search | Motor vehicle search, non-motor vehicle search, people search, general search, people count report, heat map, etc |
| Intelligence through IPC | All channels (up to 64 in total) Face detection, vehicle detection, temperature detection, SIP, UMD, video metadata, traffic monitoring |
| Internal memory | 24 SATA HDD 3.5" up to 24 TB (not included) | |
| Storage technology | RAID function 0/1/5/6/10/50/60 Hot Spare function N+1 |
| Hot Swap Hot swap | Support |
| Communication | 2 x USB 2.0 / 2 x USB 3.0 / 2 x RJ45 (Ethernet) / 1 x RS232 / 1 x RS485 |
| Remote access | Web browser, CMS software (EZStation), smartphone (UniEase / UniTools Pro) |
| Power | AC 220V | DC output 12V 50W |
| Dimensions | 175 (H) x 495 (D) x 484.6 (W) mm / ≤8 Kg (Rack 4U) |
| Weight | 10.8 Kg (Rack 4U)) |
In the box
- Uniview NVR
- Mouse
- Power supply cable
