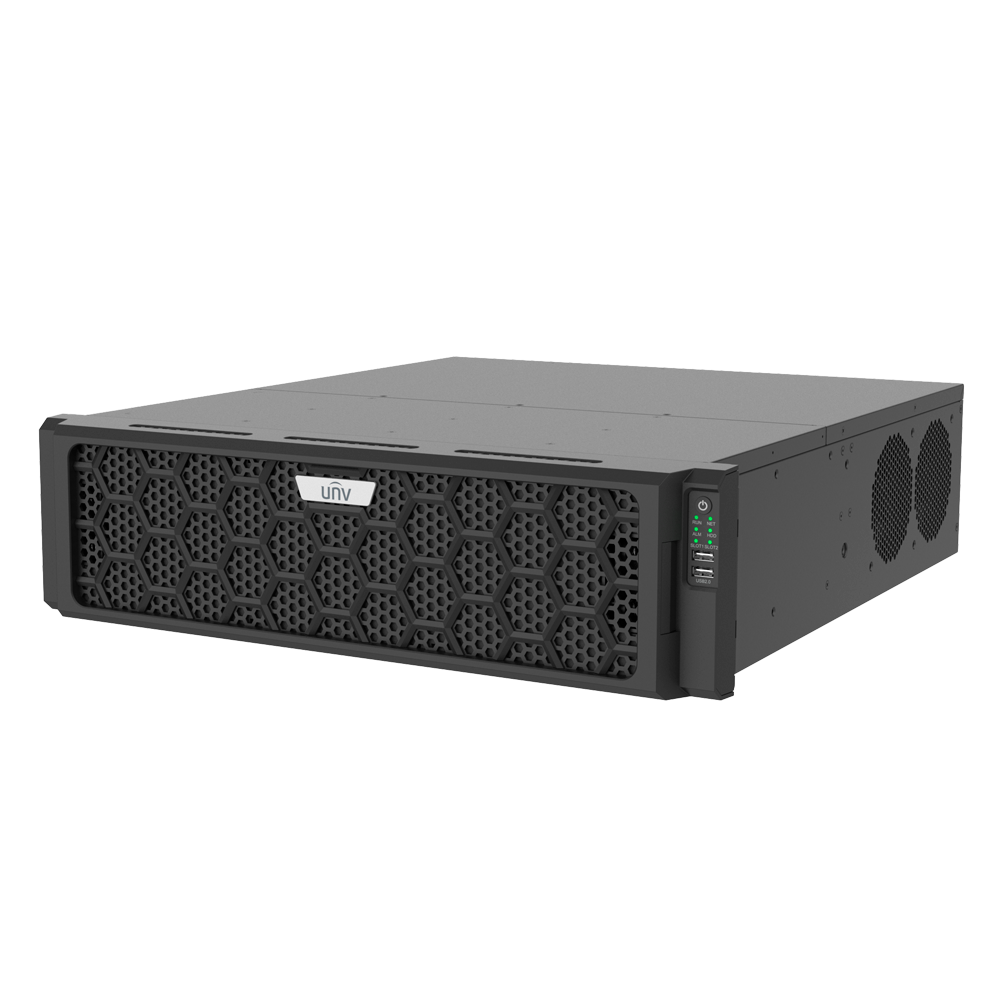

UV-NVR516-64E-R
Ga direct naar de productinformatie
UV-NVR516-64E-R
- Pro Range NVR Recorder 8K for IP cameras
- 64CH video | 32 Mpx | 2 decoder cards
- AI: SIP, counting, facial, autotracking, audio
- 16 HDD to 16 T | RAID 0, 1, 5, 6, 10, 50, 60
- Bandwidth 640 Mbps
- Uniview
- NVR for IP cameras
- Pro range
- 128 CH
- 512 Mbps bandwidth supported
- Maximum resolution 12 Megapixel
- Compression Ultra265/H.265/H.264
- Intelligent functions
- Alarms
- Audio
- Output 2 x HDMI 4K and VGA
- Supports 2 decoder cards
- Space for 16 HDD
- Up to 48 HDD using 2 miniSAS ports
- RAID function 0/1/5/6/10/50/60
- Output DC 12 V
- Redundant power supply (optional)
- Mouse
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Pro |
| Inputs for IP cameras | LAN port up to 64 channels |
| IP compatible cameras | UNIVIEW, ONVIF |
| Video outputs | HDMI1 8K, HDMI2 4K, VGA1/VGA2 1080P |
| Video compression format | Ultra265 / H.265 / H.264 |
| Display resolution | HDMI1: 8K(7680x4320)@60Hz, 4K(3840x2160)@30Hz, 1920x1080@60Hz, 1920x1080@50Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz HDMI2: 4K(3840x2160)@30Hz, 1920x1080@60Hz, 1920x1080@50Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz VGA1 / VGA2: 1920x1080@60Hz, 1920x1080@50Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz |
| Total bandwidth | 640 Mbps downstream / 640 Mbps upstream |
| Main Stream recording | 32MP / 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Bidirectional audio | 1 input / 1 BNC output |
| Alarms | 16 inputs / 10 relay |
| Recording method | Manual, programmed, motion detection |
| Smart Intrusion Prevention | Available at 32 channels |
| Intelligent functions | Face Detection, Vehicle Detection SIP (Intrusion Detection, Cross Line Detection, Enter Zone, Exit Zone), Ultra Motion Detection (UMD) Temperature Detection (Fire Detection, Smoker and Smoke Detection, Temperature Measurement) People Counting (People flow counting, Crowd density control) Video metadata, Traffic monitoring |
| Internal memory | 16 3.5" SATA HDD 16 up to 1 TB (not included) | [%VAR%] x eSATA |
| RAID | 0, 1, 5, 6, 10, 50, 60 |
| Storage technology | RAID function 0/1/5/6/10/50/60 and Hot Spare function N+1 |
| Communication | 2 x USB 2.0 / 2 x USB 3.0 / 2 x RJ45 (Ethernet) / 1 x RS232 / 1 x RS485 |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (UNV-LINK / UNV-LINK PRO) |
| Power | AC 100 ~ 240V (Optional redundant power supply) | DC output 12V 50W |
| Dimensions / Weight | 131 (H) x 533 (D) x 446 (W) mm / ≤6.5 Kg (Rack 3U) |
In the box
- Uniview NVR
- Mouse
- Power supply cable
