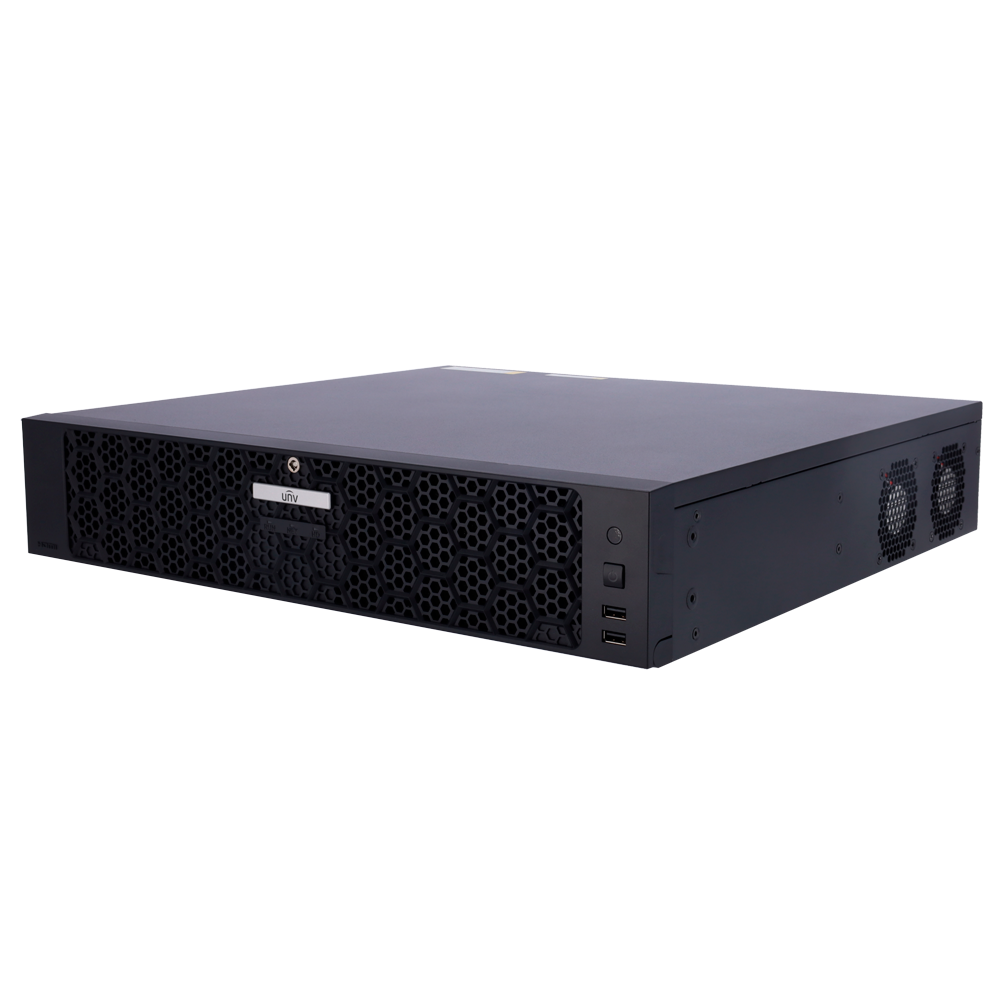

UV-NVR508-64E-IQ
Ga direct naar de productinformatie
UV-NVR508-64E-IQ
- NVR for IP cameras
- Prime range
- 64 CH video / Ultra Compression H.265
- Maximum resolution 32Mpx / Bandwidth 384Mbps
- Acusearch and SmartSearch +
- Supports 8 hard disks / RAID 0, 1, 5, 6, 10
- Uniview
- NVR for IP cameras
- Prime range
- 64 CH
- 384 Mbps bandwidth supported
- Maximum resolution 32 Megapixel
- 2 x RJ45
- Compression Ultra265/H.265/H.264
- 2 HDMI 4K and VGA output
- Acusearch
- Smart Search+
- SIP and UMD per camera on all channels
- SIP over NVR on 8 channels and UMD on 16 channels
- Space for 8 HDD
- Supports RAID 0, 1, 5, 6, 10
- WEB, CMS, Smartphone and NVR interface
- ONVIF and RTSP support
Specifications
| Brand | Uniview |
| Range | Prime |
| Inputs for IP cameras | LAN port up to 64 channels |
| IP compatible cameras | UNIVIEW, ONVIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Video outputs | 2 HDMI 4K, 2 VGA |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Network interface | 2 RJ-45 10M / 100M / 1000M |
| Decoding Capability | Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30 Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 32 x 720P@30 |
| Display resolution | HDMI:4K(3840x2160)/60Hz, 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA:1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Total bandwidth | Smart Off：384Mbps input / 384 Mbps output Smart On：200Mbps / 200 Mbps output |
| Main Stream recording | 32Mpx / 16Mpx / 12Mpx / 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p / D1 / 2CIF / CIF |
| VCA detection by camera | Face detection, Vehicle detection, SIP (Intrusion detection, Cross-line detection, Enter zone, Exit zone), Ultra Motion Detection (UMD), Temperature detection (Fire detection, Smoke detection, Temperature measurement, Smoke and fire detection), People counting (People flow counting, Crowd density control), Video metadata, Traffic monitoring |
| VCA search | Motor vehicle search, Non-motor vehicle search, People search, General search, People counting report, Heat map |
| Intelligent Functions by NVR | SIP over NVR 8 channels UMD per NVR 16 channels |
| Facial recognition | Up to 1CH 128 lists of face images up to 40.000 images in total |
| Vehicle Image Library | Up to 5 lists of vehicle images, with up to 25.000 images in total |
| Acusearch | Advanced search for specific targets. Allows you to select a target on the live image and search through recordings of the same target. |
| Smart Search+ | Artificial intelligence-based VCA rule search on recordings |
| Intelligent functions per camera | 64 channels |
| Alarms | 16 Inputs / 10 Outputs |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB / HDD USB memory |
| Internal memory | 8 SATA HDD 3.5" of up to 16 TB (not included) RAID 0, 1, 5, 6, 10 |
| Communication | 2 x USB 2.0 / 2 x RJ45 (Ethernet) |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | 100~240V AC / 20W |
| Dimensions / Weight | 442mm × 432mm × 86mm / 5.5 Kg |
In the box
- Uniview NVR
- Mouse
- Power supply cable
