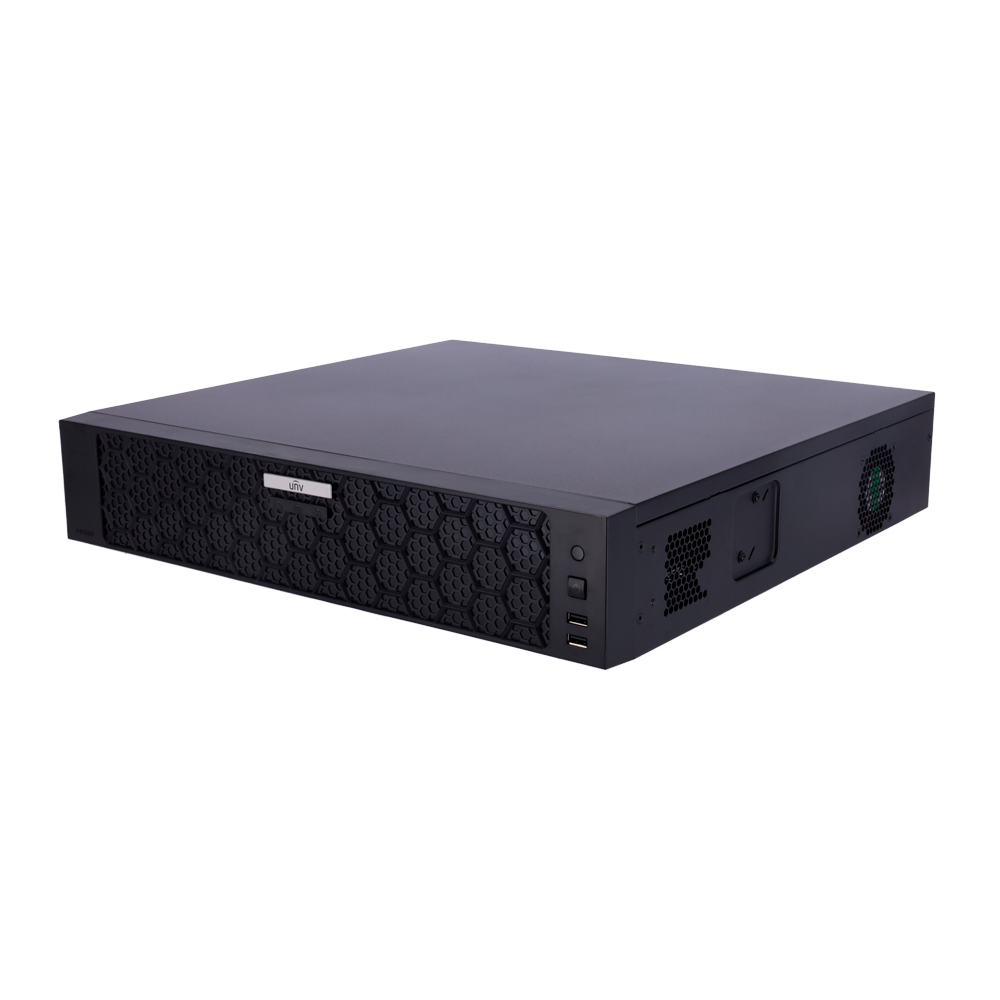

UV-NVR508-64B
Ga direct naar de productinformatie
UV-NVR508-64B
- NVR for IP cameras
- Prime range
- 64 CH video / Ultra Compression H.265
- Maximum resolution 16Mpx
- Bandwidth 320 Mbps
- Space for 8 hard disks
- Uniview
- NVR for IP cameras
- Prime range
- 64 CH
- 320 Mbps bandwidth supported
- Maximum resolution 16 Megapixel
- 2 x RJ45
- Compression Ultra265/H.265/H.264
- VGA and HDMI 4K output
- Mouse
- Space for 8 HDD
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| IP compatible cameras | UNIVIEW, ONVIF |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Network interface | 2 RJ-45 10M / 100M / 1000M |
| Total bandwidth | 320 Mbps downstream / 160 Mbps upstream |
| Main Stream recording | 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Display resolution | HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 |
| Capacity | Ultra 265/H.265: 2x16MP@30, 2x12MP@30, 4x4K@30, 6x5MP@30, 8x4MP@30, 10x3MP@30, 16x1080P@30, 32x960P@25, 36x720P@30, 64xD1 H.264: 2x16MP(4800x2688)@30, 2x12MP@30, 2x4K@30, 4x5MP@30, 6x4MP@30, 8x3MP@30, 14x1080P@30, 28x960P@25, 30x720P@30, 64xD1 |
| Smart features by camera | 8 channels |
| VCA detection by camera | Intrusion detection, Cross line detection, Entry area, Exit area, Blur detection, Scene change detection, Object left behind, Object removed, Auto tracking, UMD (Ultra Motion Detection) |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB / HDD USB memory |
| Bidirectional audio | 1 input / 1 RCA output |
| Alarms | 16 Inputs / 4 Outputs |
| Internal memory | 8 SATA HDD 3.5" of up to 8 TB (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 (Ethernet) |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | 100~240V AC / 32W |
| Dimensions / Weight | 442mm × 426mm × 89mm / 4 Kg |
In the box
- Uniview NVR
- Mouse
- Power supply cable
