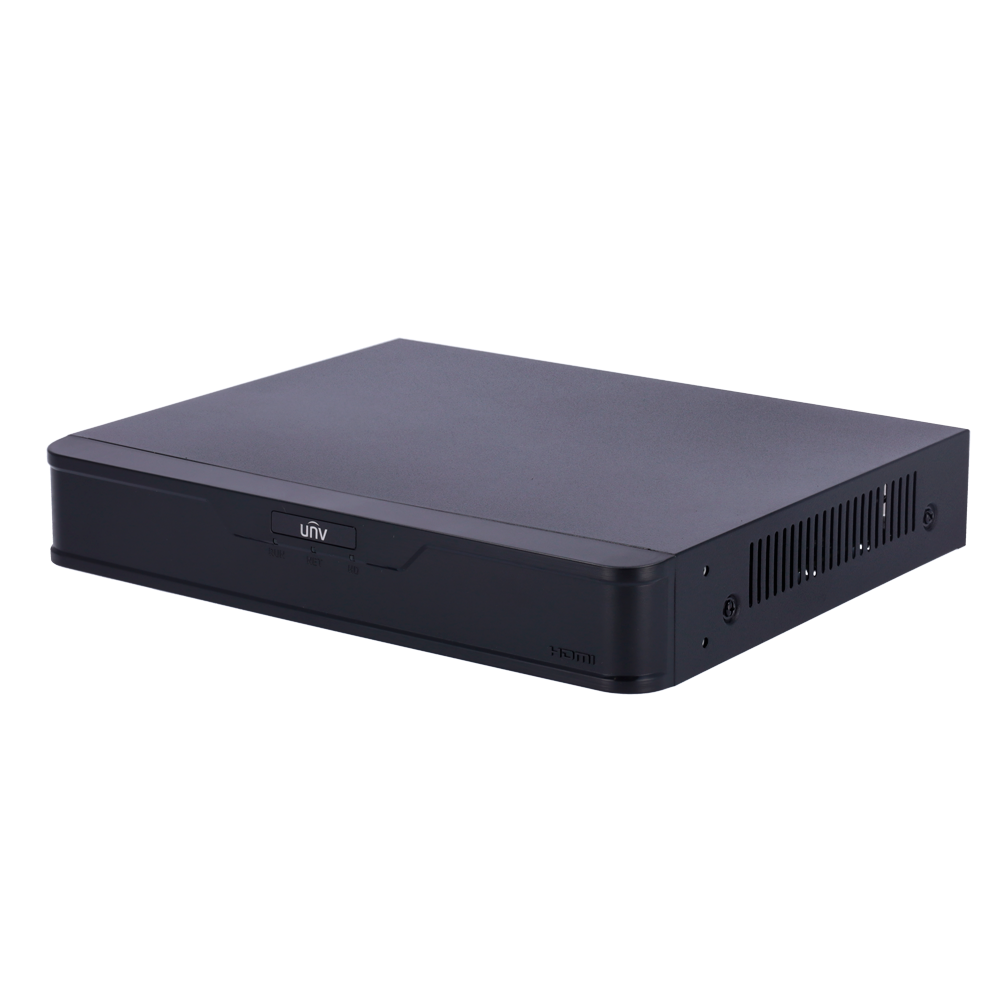

UV-NVR501-08B-P8
Ga direct naar de productinformatie
UV-NVR501-08B-P8
- NVR for IP cameras
- Prime range
- 8 CH video / Ultra Compression H.265
- 8 PoE Channels
- Maximum resolution 8Mpx
- Bandwidth 80 Mbps
- Supports 1 hard disk
- Uniview
- NVR for IP cameras
- Prime range
- 8 CH
- 80 Mbps bandwidth supported
- Maximum resolution 8 Megapixel
- UMD
- People count
- SIP (Smart Intrusion Prevention)
- Facial Detection
- POS
- Compression Ultra265/H.265/H.264
- VGA and HDMI 4K output
- Mouse
- Space for 1 HDD
- 8 PoE ports IEEE802.3af/at
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Inputs for IP cameras | LAN port up to 8 channels |
| Power over Ethernet | 8 port PoE Switch IEEE802.3af/at (max. 75 W) | Up to 250m in extended PoE mode |
| IP compatible cameras | UNIVIEW, ONVIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Display resolution | 3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768 |
| Total bandwidth | 80 Mbps downstream / 64 Mbps upstream |
| Functions | UMD, Person Counting, SIP (Smart Intrusion Prevention), Facial Detection, POS |
| Main Stream recording | 8Mpx / 6Mpx 5Mpx 4Mpx / 3Mpx / 1080p 720p / D12CIF / CIF |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB / HDD USB memory |
| Internal memory | 1 SATA HDD 3.5" of up to 8 TB (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 (Ethernet) |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | DC 52V / 1.8 A |
| Dimensions / Weight | 260mm × 222mm × 47mm / 0.98 Kg |
In the box
- Uniview NVR
- Mouse
- Power supply cable
