UV-NVR301-16B-LP8-IQ
UV-NVR301-16B-LP8-IQ
- Uniview NVR Easy Range
- 4 CH video | 12MP | 80 Mbps
- Face detection | Vehicle detection
- SIP | UMD | AcuSearch
- People counting and traffic monitoring
- Supports 1 hard disk up to 10 TB
AcuSearch
With Uniview's AcuSearch technology, finding the event or incident you need has never been easier. Thanks to its powerful intelligent search engine, AcuSearch enables fast and accurate searches within large volumes of recordings, identifying specific objects, people or events in minutes. Using advanced AI algorithms, this tool optimizes the investigation process, saving valuable time and improving operational efficiency. Ideal for forensic investigations, security screening centers or any environment where speed and accuracy are essential.
Smart Intrusion Prevention (SIP)
With Uniview's SIP technology, stop threats before they happen thanks to its advanced intrusion prevention system. SIP combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions. Perfect for protecting perimeters, residential areas or critical facilities, ensuring intelligent and efficient security.
Ultra Motion Detection (UMD)
Uniview's UMD technology takes motion detection to the next level, accurately identifying the fastest or subtlest movements. Thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or movement difficult to capture by other technologies. Perfect for applications such as surveillance of high traffic areas or protection of critical sites where every second counts.
- Uniview
- NVR for IP cameras
- Easy range
- 16CH
- 8CH PoE
- Supported bandwidth 80Mbps
- Maximum resolution 12 MP
- Compression Ultra265/H.265/H.264
- Smart Features
- Facial Detection
- Vehicle detection
- People count
- Traffic monitoring
- AcuSearch
- SIP (Smart Intrusion Prevention) up to 2 CH- UMD up to 4 CH
- Outputs 4K HDMI & VGA
- Mouse
- Space for 1HDD up to 10TB
- WEB, CMS, Smartphone and NVR interface
- ONVIF and RTSP support
Specifications
| Brand | Uniview |
| Range | Easy |
| Inputs for IP cameras | 16 channels |
| Power over Ethernet | PoE Switch 8 IEEE CH 802.3at,IEEE 802.3af [%VAR%] [%VAR%]. Maximum 30 W in a single channel. Maximum 75 W in total. |
| IP compatible cameras | UNIVIEW, ONVIF (S Profile, G Profile, T Profile), RTSP |
| Bidirectional audio | 1 input / 1 RCA output |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Display resolution | HDMI: 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth | 80 Mbps |
| Main Stream recording | 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ VAT |
| Corridor Mode | 3/4/5/7/9/10/12/16 |
| Decoding capacity | Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 |
| Recording method | Manual, programmed, motion detection |
| Intelligent functions per IP camera | SIP (Smart Intrusion Prevention): Detection of human/vehicle and two-wheeled vehicles on Line Crossing, Area Intrusion, Area Entry and Area Exit. UMD (Ultra Motion Detection): Advanced motion detection based on human and vehicle classification. People count: People capacity and people counting within an area |
| Intelligent functions for the NVR | SIP: Up to 2CH UMD: Up to 4CH |
| VCA Search | Vehicle search, non-motorized vehicles, people counting reports, heat mapping, etc |
| General alarms | Blur detection, scene change, abandoned object, removed object, autotracking, motion detection, tampering, video loss, alarm or audio input |
| AcuSearch | Advanced search for specific targets, selecting the desired one on the live image itself. |
| ANR function | Yes |
| Internal memory | 1 HDD SATA of up to 10 TB (not included) |

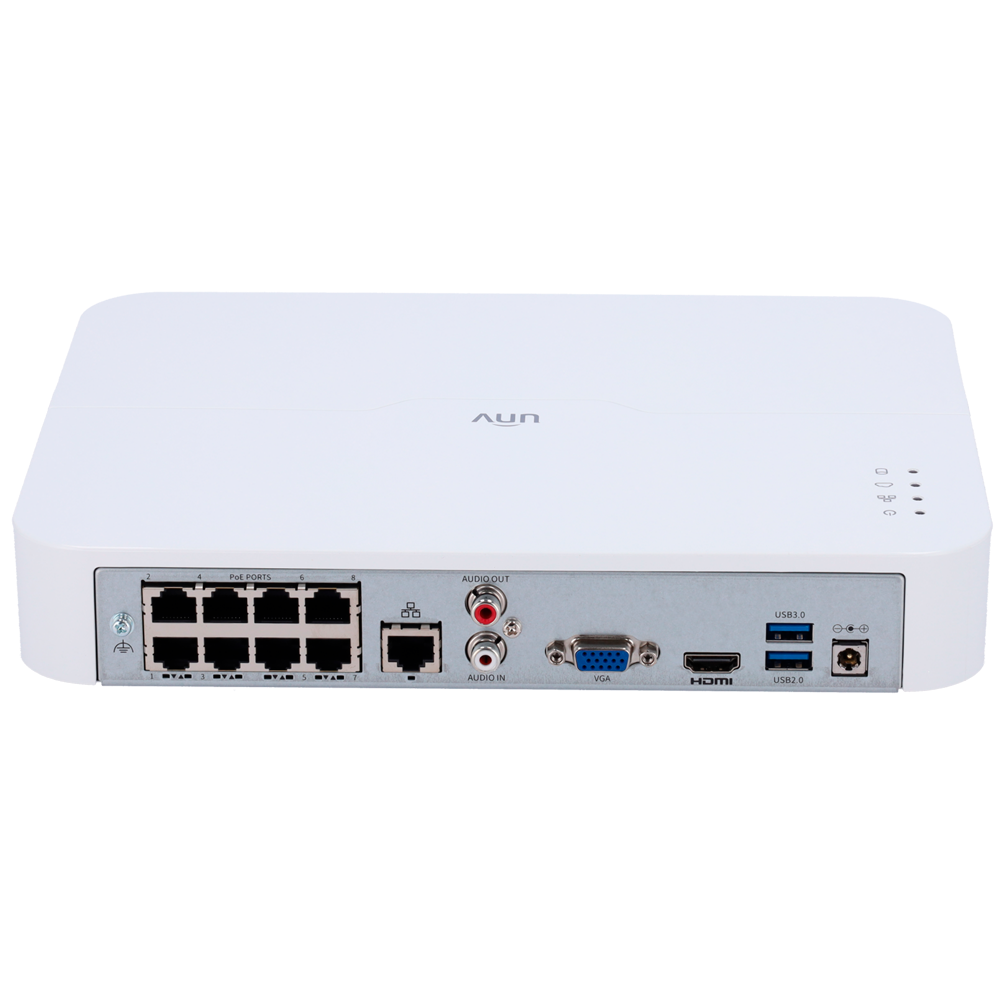

| Communication | Rear panel: 1 x USB 3.0 / 1 x USB 2.0 / 1 x RJ45 10/100M (Ethernet) |
| Power | DC 52 V / 1.8 A, ≤ 12W (without HDD) |
| Operating temperature | -10 °C ~ +55 °C, Humidity ≤ 90% RH (non-condensing) |
| Dimensions / Weight | [%RAR%] (W) × [%RAR%] (D) × [%RAR%] (H) mm [%RAR%] Kg |
In the box
- Uniview NVR
- Mouse
- Power supply cable
