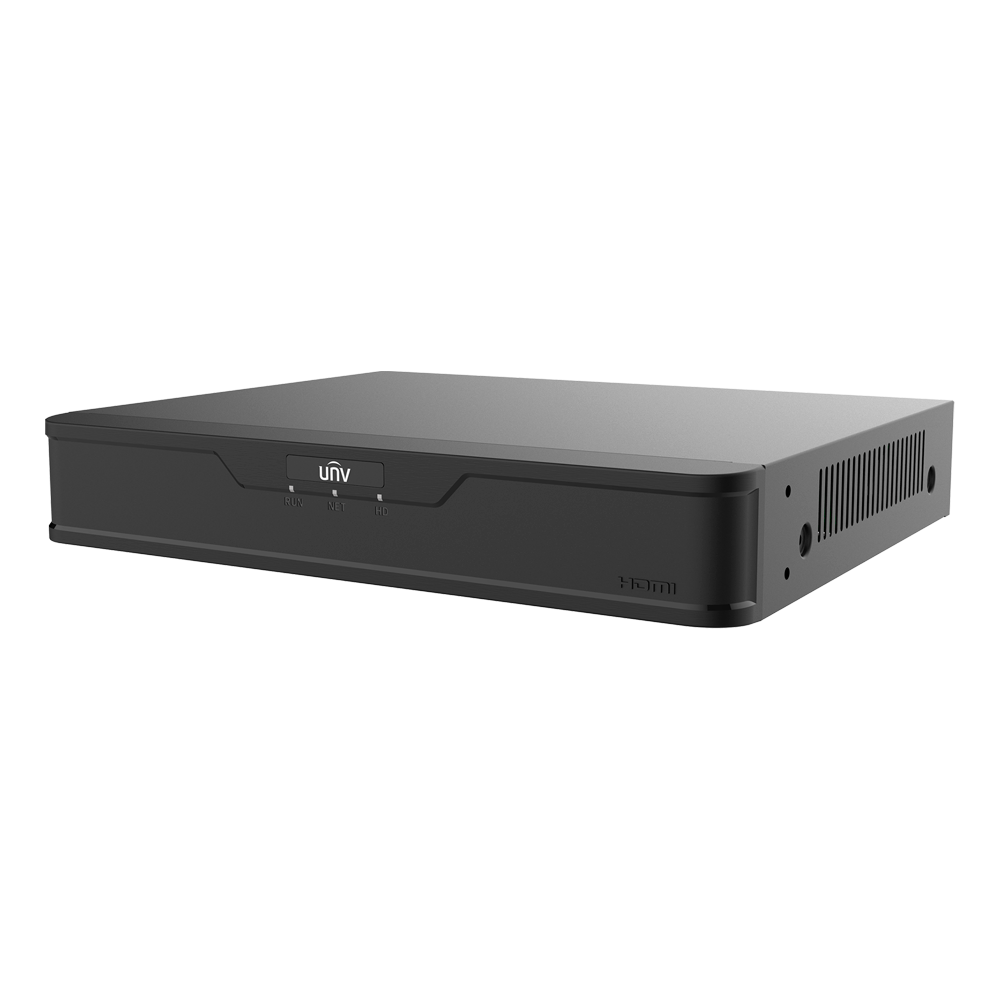

UV-NVR301-08E-IQ
Ga direct naar de productinformatie
UV-NVR301-08E-IQ
- Uniview NVR Easy Range
- 8 CH video | 12MP | 80 Mbps
- Face detection | Vehicle detection
- SeekFree | SIP | UMD | AcuSearch | AcuSearch
- People counting and traffic monitoring
- Alarms | HDD 24TB | Audio
Easy series Uniview NVR that allows AcuSearch on all channels and SeekFree on up to 4 channels with Uniview cameras. This allows for faster searches using natural language by keyboard.
- NVR for IP cameras
- Easy range
- 8 CH
- Supported bandwidth 80Mbps
- Maximum resolution 12 MP
- SeekFree: Performs quick searches using natural language from the keyboard. Supported up to 4 CH with UNV cameras
- Compression Ultra265/H.265/H.264
- Smart Features
- Facial Detection
- Vehicle detection
- People count
- Traffic monitoring
- AcuSearch
- SIP (Smart Intrusion Prevention) up to 2 CH
- UMD (Ultra Motion Detection) up to 4 CH
- Outputs 4K HDMI & VGA
- Mouse
- Space for 1HDD up to 24TB
- WEB, CMS, Smartphone and NVR interface
- ONVIF and RTSP support
Specifications
| Brand | Uniview |
| Range | Easy |
| Inputs for IP cameras | 8 channels |
| IP compatible cameras | UNIVIEW, ONVIF (S Profile, G Profile, T Profile), RTSP |
| Bidirectional audio | 1 input / 1 RCA output |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Display resolution | HDMI: 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth | 80 Mbps |
| Main Stream recording | 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ VAT |
| Corridor Mode | 3/4/5/7/9/10 |
| Decoding capacity | Smart Off：1 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 |
| Recording method | Manual, programmed, motion detection |
| Intelligent functions per IP camera | SIP (Smart Intrusion Prevention): Detection of human/vehicle and two-wheeled vehicles on Line Crossing, Area Intrusion, Area Entry and Area Exit. UMD (Ultra Motion Detection): Advanced motion detection based on human and vehicle classification. People count: People capacity and people counting within an area |
| Intelligent functions for the NVR | SIP: Up to 2CH UMD: Up to 4CH |
| VCA Search | Vehicle search, non-motorized vehicles, people counting reports, heat mapping, etc |
| General alarms | Blur detection, scene change, abandoned object, removed object, autotracking, motion detection, tampering, video loss, alarm or audio input |
| SeekFree | Support Quickly search with natural language. |
| AcuSearch | Advanced search for specific targets, selecting the desired one on the live image itself. |
| ANR function | Yes |
| Internal memory | 1 HDD SATA of up to 24 TB (not included) |
| Communication | Rear panel: 2 x USB 2.0 / 1 x RJ45 10/100M (Ethernet) |
| Alarms | 4 In / 1 Out |
| Power | DC 12 V/ 2 A, ≤ 15 W (without HDD) |
| Operating temperature | -10 °C ~ +55 °C, Humidity ≤ 90% RH (non-condensing) |
| Dimensions / Weight | 260 (W) × 215 (D) × 46.6 (H) mm / 980 g |
In the box
- Uniview NVR
- Mouse
- Power supply cable
