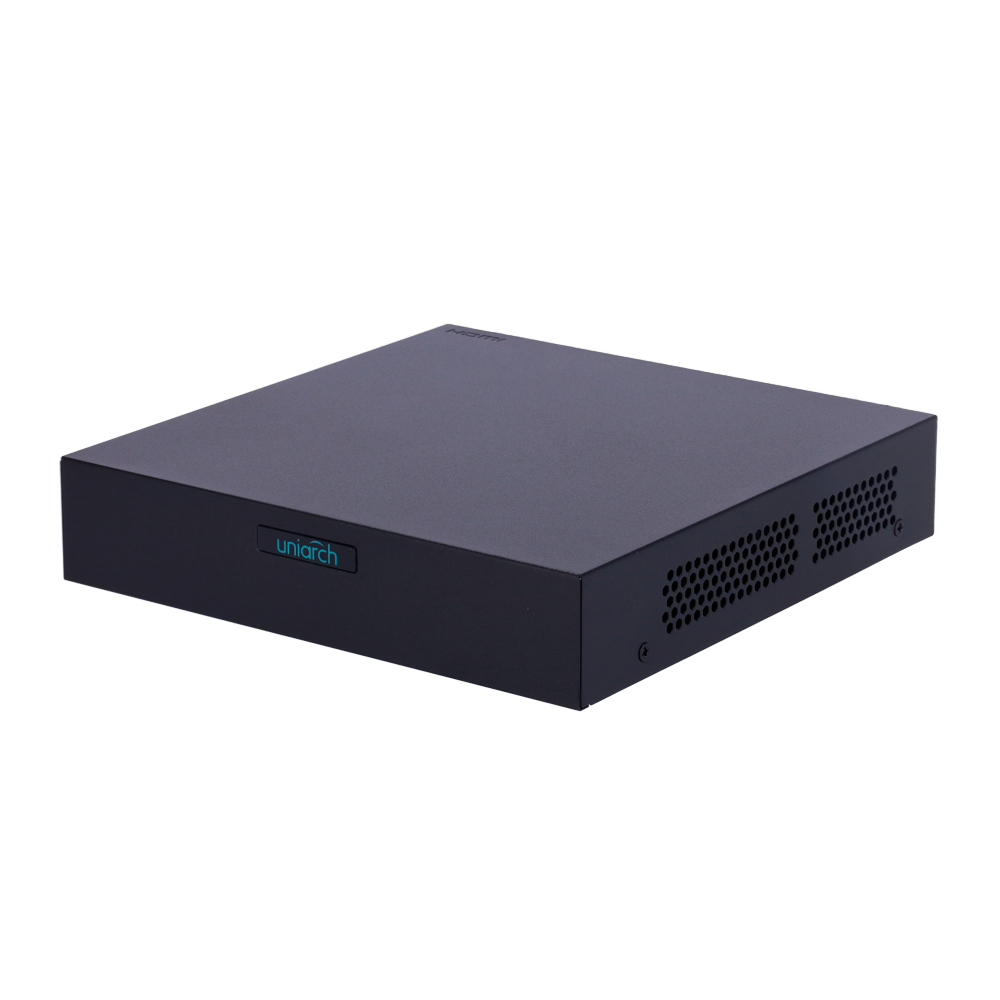

UV-NVR-116S3
UV-NVR-116S3
- NVR Uniarch 16 CH
- 16 CH video
- Bandwidth 64Mbps
- SIP | UMD | VCA Search
- Maximum resolution 6 MP
- Supports 1 hard disk up to 6 TB
Smart Intrusion Prevention (SIP)
With Uniview's SIP technology, stop threats before they happen thanks to its advanced intrusion prevention system. SIP combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions. Perfect for protecting perimeters, residential areas or critical facilities, ensuring intelligent and efficient security.
Ultra Motion Detection (UMD)
Uniview's UMD technology takes motion detection to the next level, accurately identifying the fastest or subtlest movements. Thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or movement difficult to capture by other technologies. Perfect for applications such as surveillance of high traffic areas or protection of critical sites where every second counts.
- Uniarch
- NVR for IP cameras
- 16 CH
- 64 Mbps bandwidth supported
- Maximum resolution 6 MP
- SIP
- UMD
- Compression Ultra265/H.265/H.264
- Audio output
- Full HD HDMI and VGA Output
- 2 x USB 2.0
- Mouse
- Space for 1 HDD up to 6 TB
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniarch |
| Inputs for IP cameras | 16 CH |
| IP compatible cameras | UNIVIEW, ONVIF |
| Main Stream recording | 6Mpx / 5Mpx 4Mpx 3Mpx / 1080p / 960p 720p / D12CIF / CIF |
| Decoding | 2x6MP@30, 4x5MP@25, 4x4MP@25, 4x3MP@25, 6x1080P@30, 8x720P@30, 16xD1 |
| Bidirectional audio | 1 RCA output |

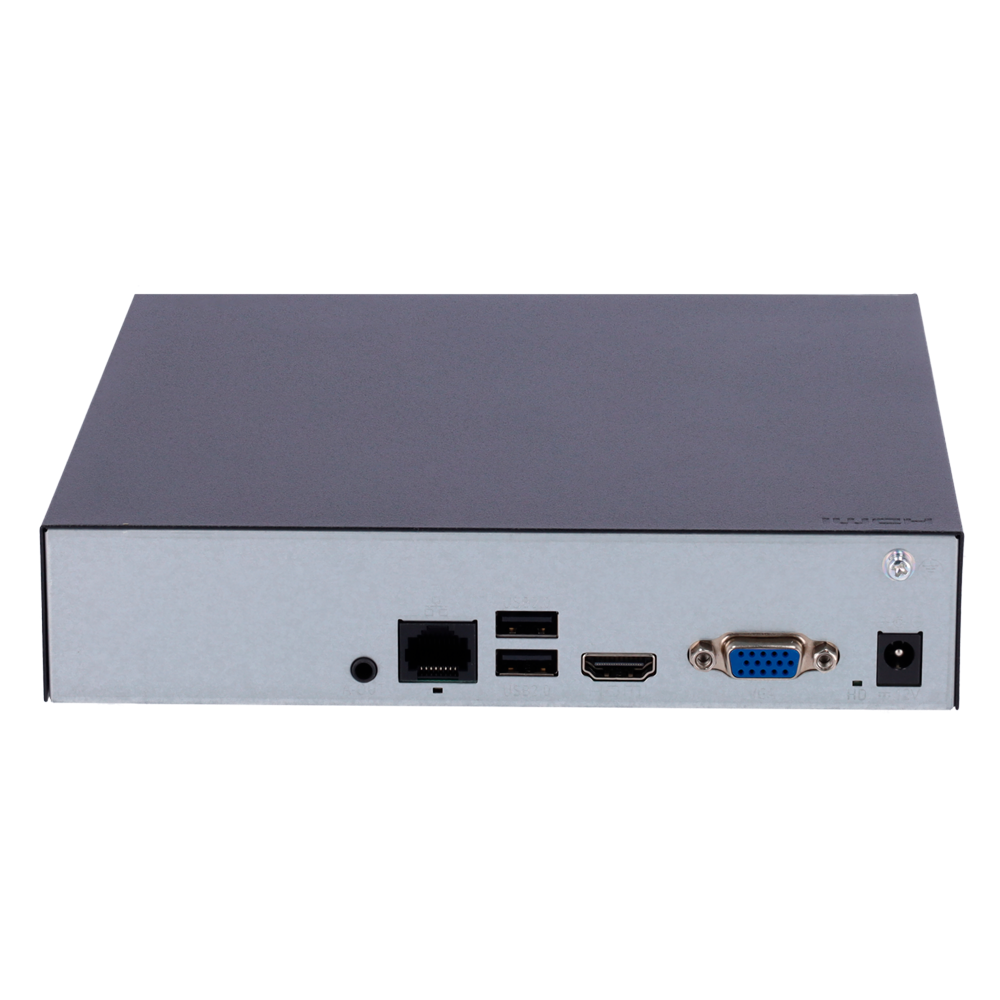

| Video outputs | 1 HDMI Full HD, 1 VGA |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Display resolution | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Total bandwidth | 64 Mbps downstream / 48 Mbps upstream |
| General functions | Motion detection, human body detection, video loss, alarm input * To receive alarm input events, a camera with alarm inputs is required |
| Intelligent functions from the camera | Area intrusion, line crossing, area entrance, area exit. * You need an IP camera with these functions to be able to make configurations and searches from the recorder |
| SIP (Smart Intrusion Prevention) from the camera | Supported in 4CH. Alarm reception only, no alarm image reception) * IP camera with SIP function required |
| External Backup | USB / HDD USB memory |
| Internal memory | 1 SATA HDD 3.5" of up to 6 TB (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 (Ethernet) |
| Remote access | Web browser, Smartphone App & PC Software |
| Power | DC 12 V, <7W (No hard disk) |
| Operating temperature | -10ºC ~ +55ºC |
| Dimensions / Weight | 42(Al) x 190 (An) x 195(Fo) mm / 1 Kg |
In the box
- Uniarch NVR Recorder
- Mouse
- Power supply cable
