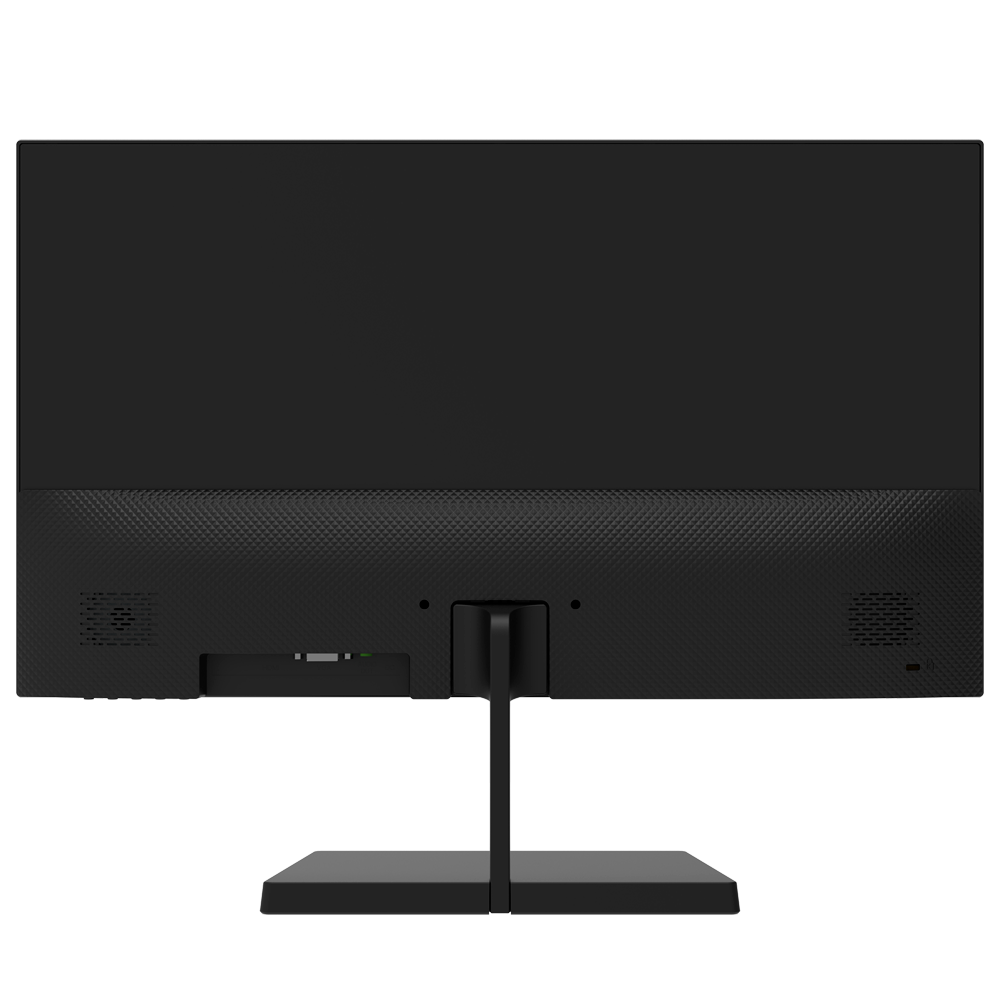

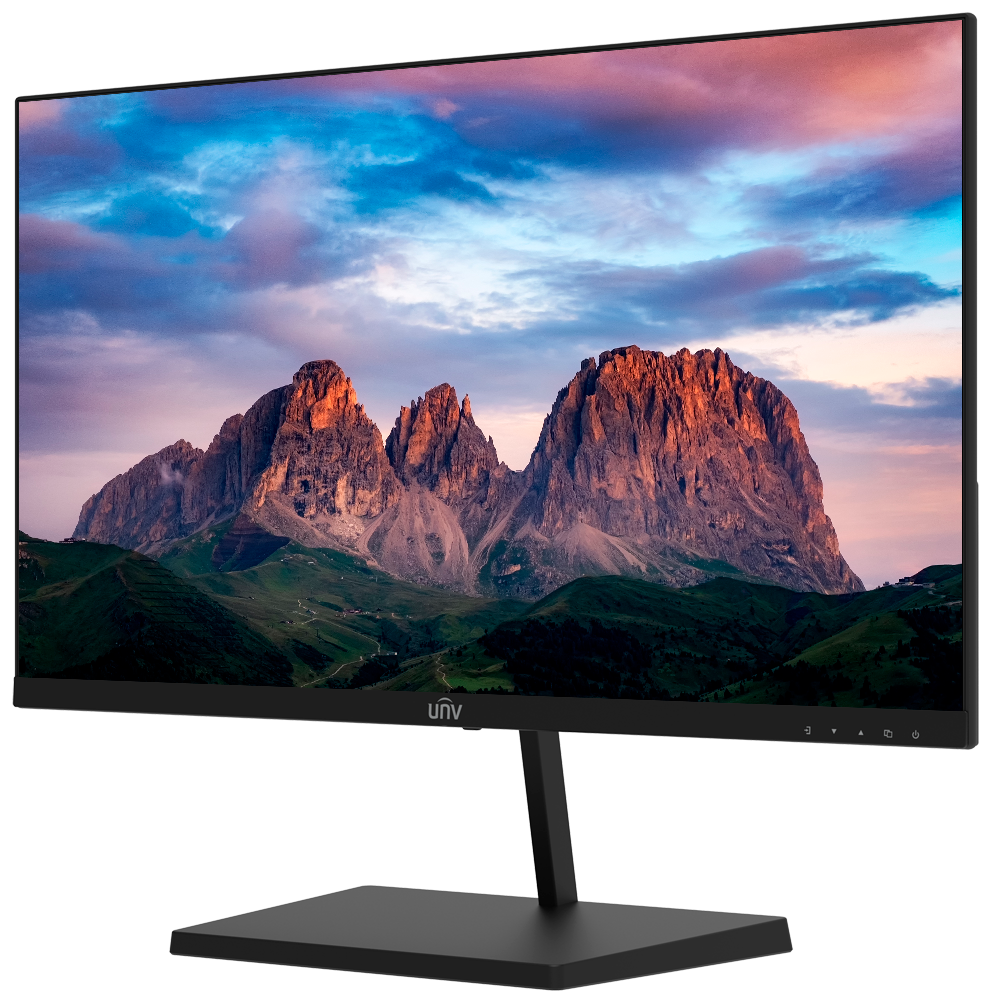

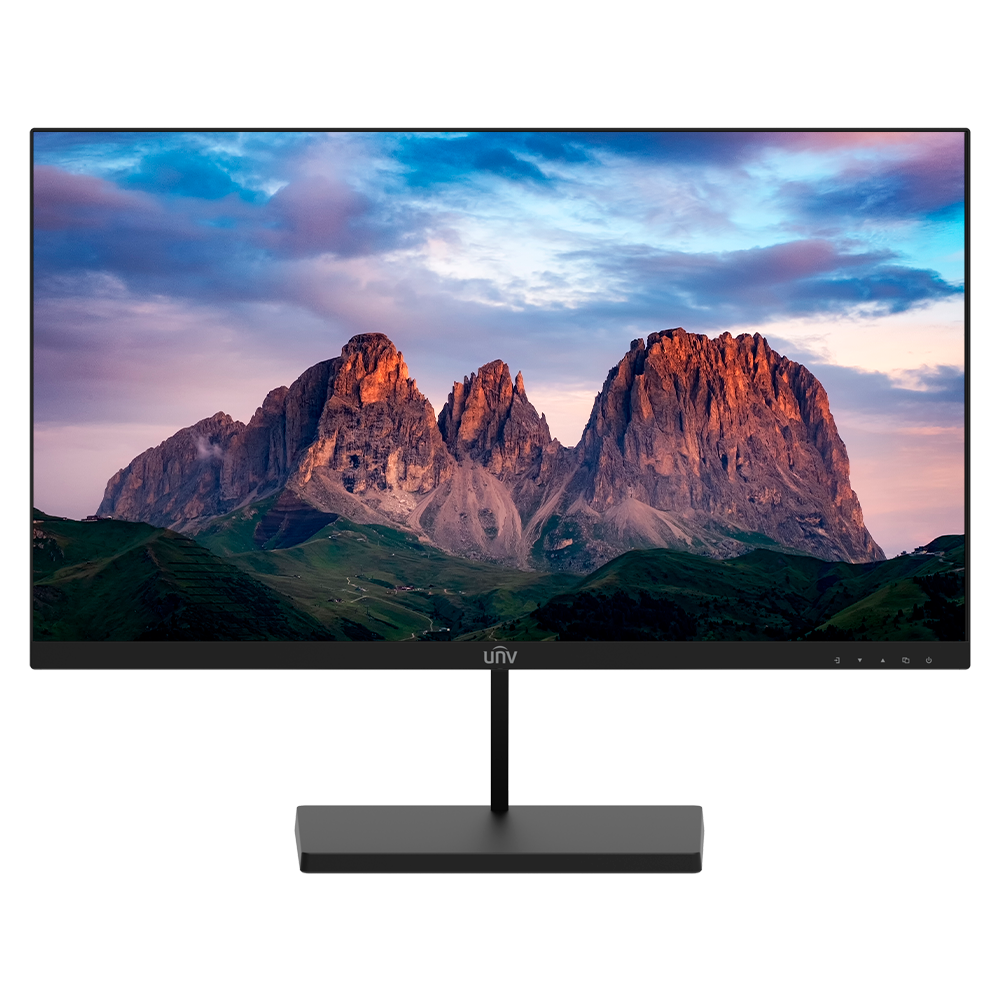

UV-MW-LC22-P
UV-MW-LC22-P
- Monitor 22"
- FHD resolution
- Refreshment 60 / 75 Hz
- Contrast 3000:1
- Response time 20 ms
CCTV monitors, unlike conventional monitors, are optimized for continuous operation over long periods of time, providing clear and detailed video playback. They usually have video inputs compatible with security systems, such as HDMI, VGA or BNC, and in some cases include technologies that improve visibility in low light conditions or black and white images for better detail detection.
They are used in a wide variety of environments, such as commercial buildings, banks, airports, traffic control centers and homes, allowing real-time monitoring of images captured by security cameras. They are also essential in recording systems, as they facilitate the review of images stored in DVRs (Digital Video Recorders) or NVRs (Network Video Recorders).
- Monitor 22"
- FHD resolution
- Refreshment 60 / 75 Hz
- Contrast 3000:1
- Response time 20 ms
Specifications
| Brand | UNIVIEW |
| Size | 21,45" |
| Panel type | VA |
| Resolution | 1920x1080 |
| Refresh rate | 60 / 75 Hz |
| Aspect ratio | 16:9 |
| Brightness | 250 cd/m2 |
| Contrast | 3000:1 |
| Response time | 20 ms |
| Viewing angle (horizontal / vertical) | 178º / 178º |
| Colour depth | 8 bit (16,7 M) |
| Inputs | HDMI x1 VGA x1 |
| VESA | Non VESA standard Pattern 75×75 mm with 2 upper fixing points |
| Energy consumption | 18 W |
| Power | DC 12 V / 2 A |
| Dimensions | 492,7 (W) x 284 (H) x 41,2 (D) mm (with pedestal) |
| Weight | 2,8 Kg |
In the box
- Monitor
- Power adapter
- HDMI cable
- Floor stand
- User instructions
