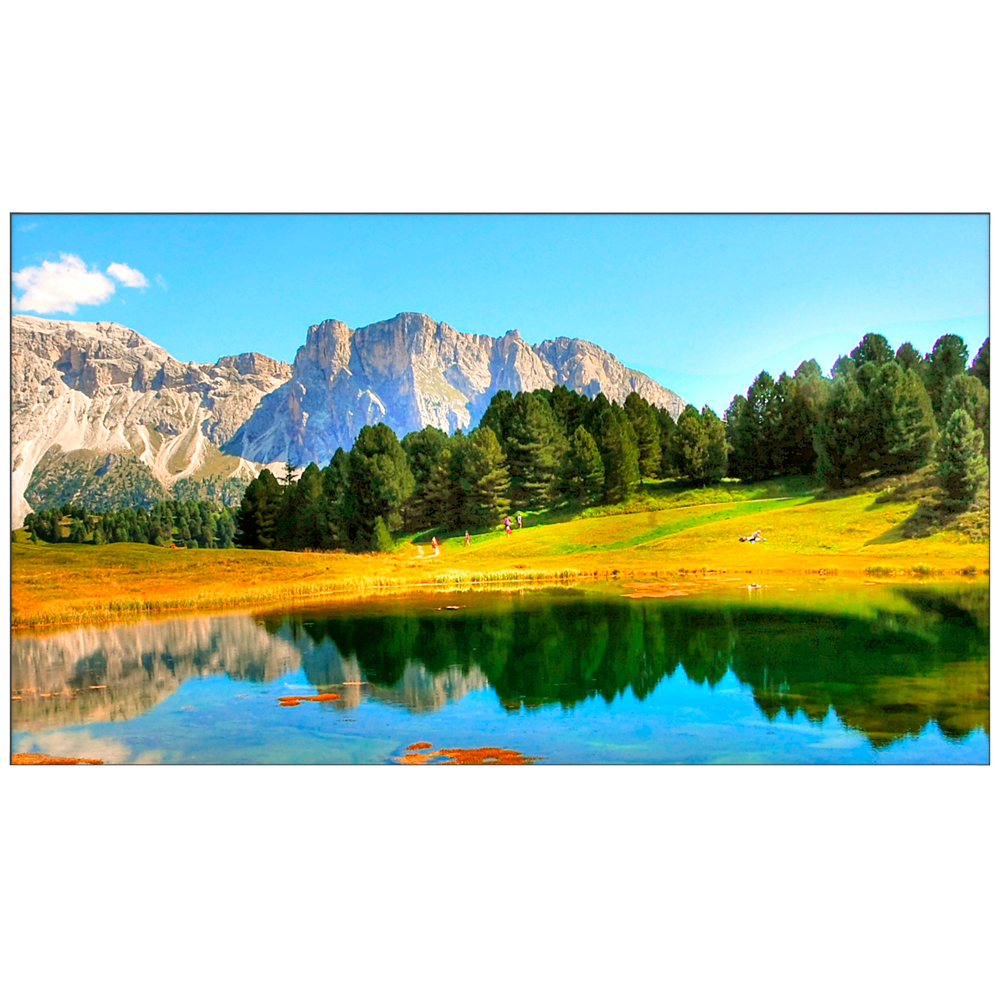

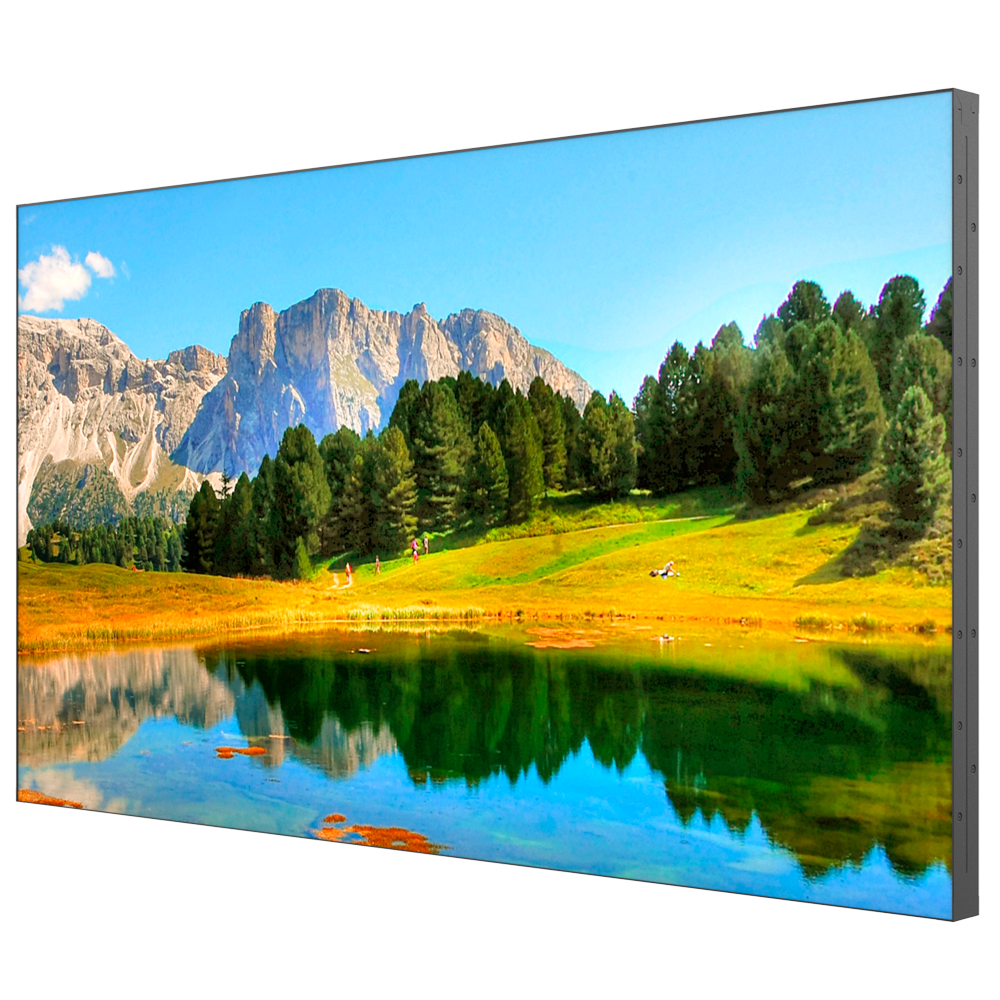

UV-MW-A46-B1-E
- Monitor videowall 46"
- FHD resolution
- Brightness 450 nits
- Frame 3,5 mm (A-A)
- 24/7
- Horizontal orientation
Videowall monitors are electronic screens that, when combined, form a single screen of greater size and resolution, allowing the display of one source of content in full screen or several individually. They are mainly used in spaces where large-scale information display is required, such as control centers, conference rooms, airports, train stations, live events, etc.
They are ideal for applications that demand high visibility and flexibility in the presentation of data, graphics or videos, since they can be configured in different sizes and resolutions according to the needs of the environment.
- Monitor videowall 46"
- FHD resolution
- Brightness 450 nits
- Frame 3,5 mm (A-A)
- Horizontal orientation
- 24/7
Specifications
| Brand | UNIVIEW |
| Size | 46" |
| Resolution | 1920x1080 |
| Refresh rate | 60 Hz |
| Panel type | ADS |
| Mark | 3,5 mm (A-A: total frame when installing two monitors together) Superior: 2,3 mm Left: 2,3 mm Inferior: 1,2 mm Law: 1,2 mm |
| Brightness | 450 nits |
| Contrast | 1200:1 |
| Anti-reflective (haze) | 25% |
| Response time | 8 ms |
| Viewing angle (horizontal / vertical) | 178º / 178º |
| Colour depth | 8 bit (16,7 M) |
| Color range | 72% NTSC |
| Functioning | 24/7 |

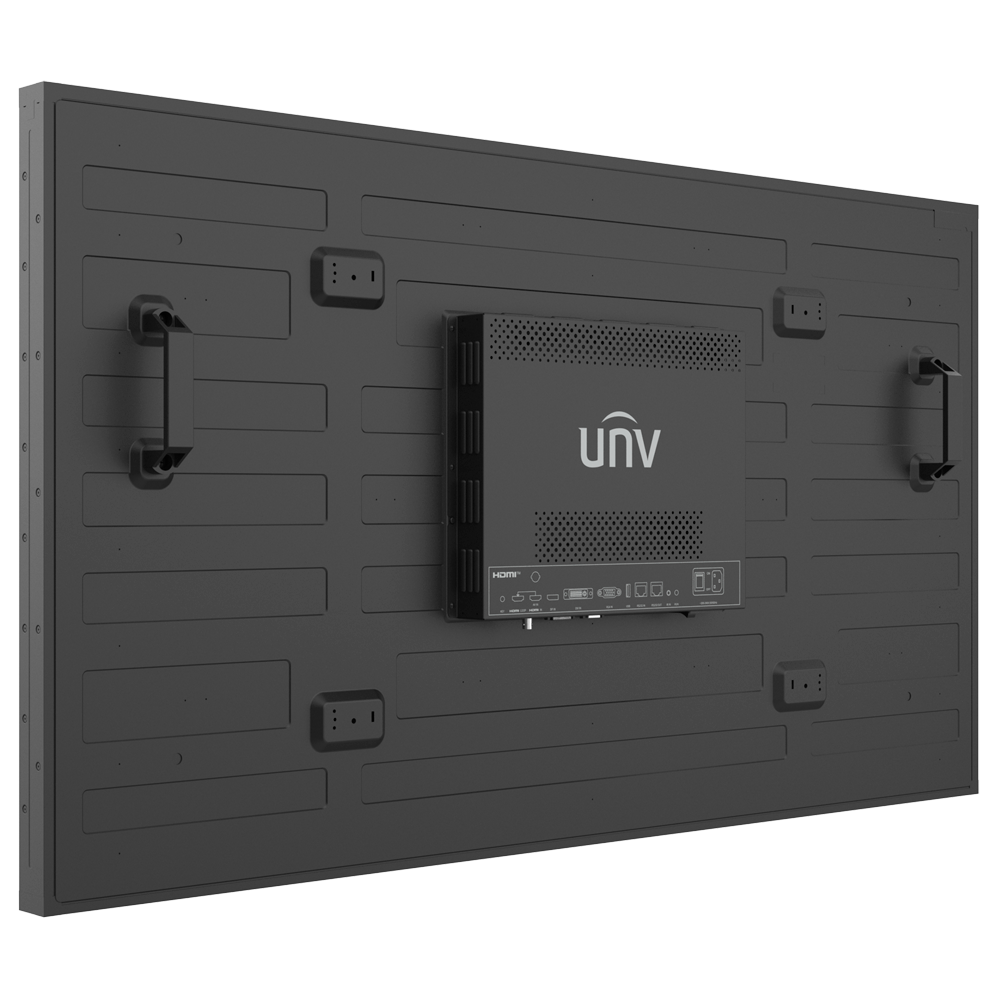

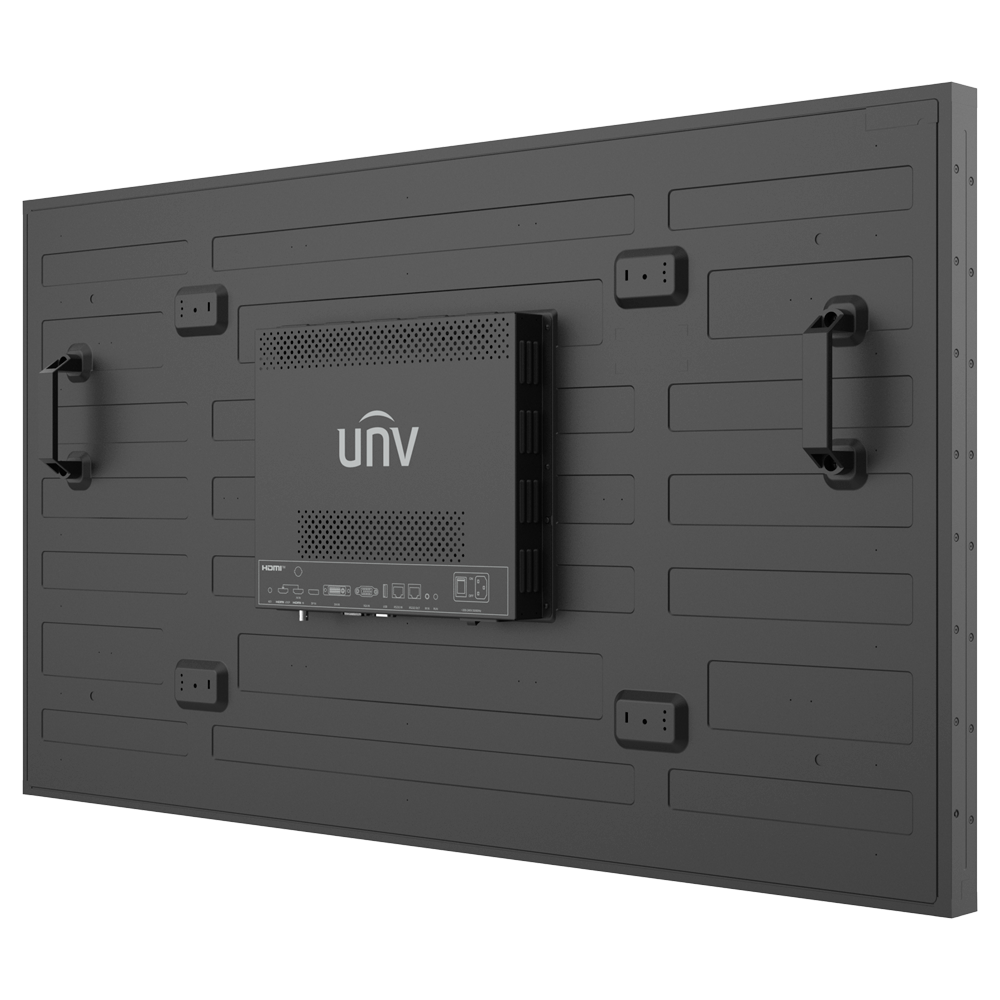

| Inputs | HDMI x1 DVI x1 VGA x1 CVBS x1 DisplayPort x1 USB 2.0 x1 RS232 x1 IR x1 |
| Outputs | HDMI x1 RS232 x1 |
| Daisy chain | Yes, via HDMI Up to a maximum of 9 monitors (total) |
| Video wall configuration | Using the remote control and the monitor's video wall settings |
| Orientation | Horizontal |
| Dimensions | 1.022,18 (W) x 576,77 (H) x 89,88 (D) mm |

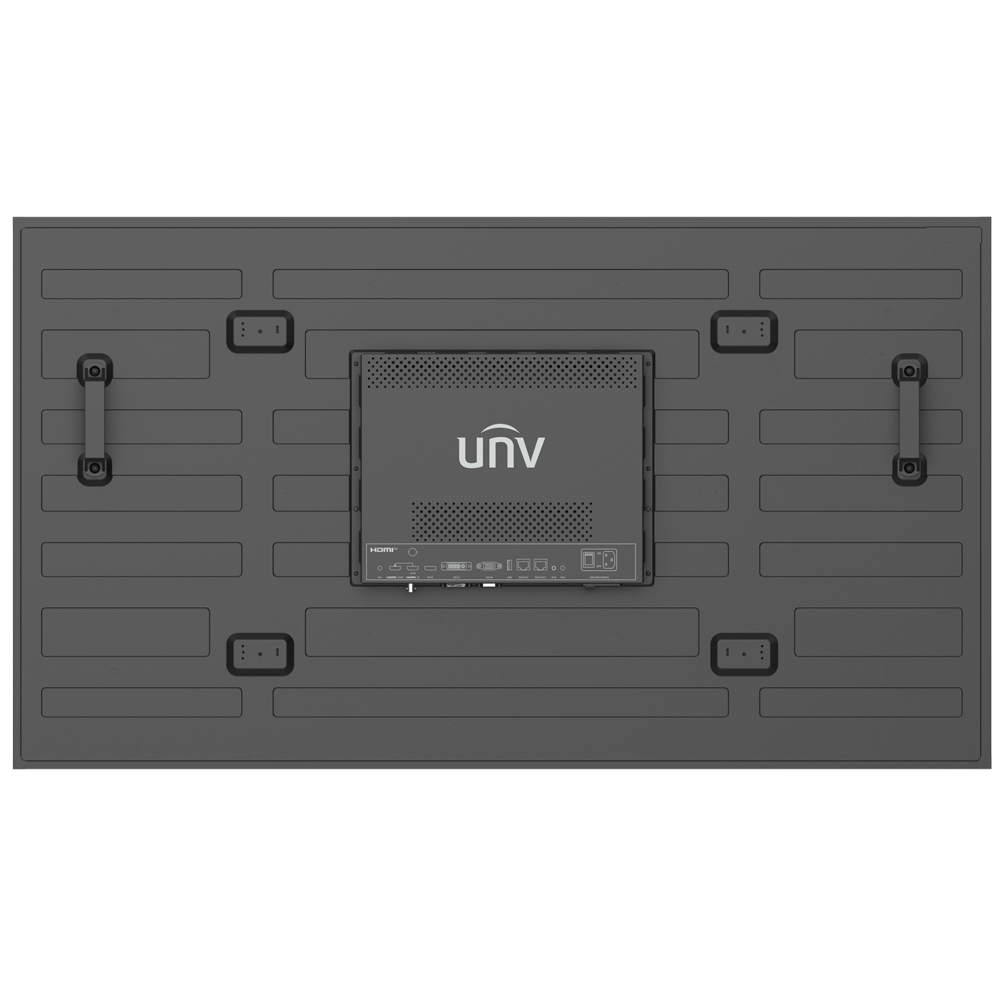

| VESA | 600x400 mm |
| Weight | 11,4 Kg |
| Power | AC 100 ~ 240 V 50/60 Hz |
| Energy consumption | 130 W (max.) |
| Operating conditions | Temperature: 0 ~ 40 ºC Humidity: 20 ~ 90 % (No condensation) |
| Storage conditions | Temperature: -20 ~ 60 ºC Humidity: 10 ~ 90 % (No condensation) |
In the box
- Monitor
- Power supply cable
- Network cable
- Grounding cable
- Remote control
- Infrared receiver
- Quick start guide
