UV-LINK-BOX
Ga direct naar de productinformatie
UV-LINK-BOX
- Uniview
- Ideal for configuring IP cameras
- 4 inputs RJ45 10M/100M Base-TX Ethernet
- WiFi 2.4G (IEEE802.11b/g/n).
- 1x PoE port and 12V output DC
- Lithium battery 7500mAh
The Uniview Link Box is an innovative device designed to facilitate the installation and configuration of Uniview video surveillance equipment. It is compact, portable and especially useful for professional installers, as it allows cameras to be connected and configured directly from a cell phone or tablet, without the need for additional hardware.
- Uniview IP camera configurator device
- Compatible with Uniview cameras for initial configuration

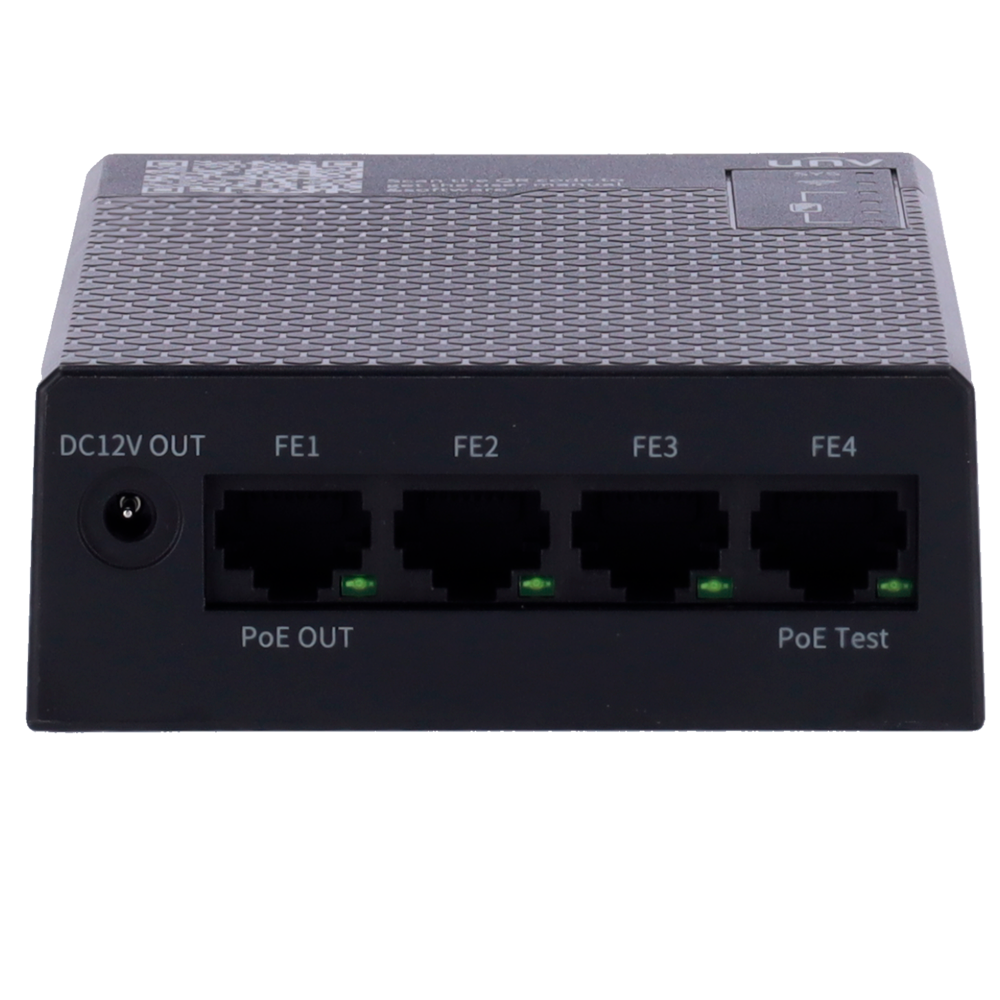

- 4 RJ45 (10M/100M Base-TX Ethernet inputs)
- Port 1 supports POE output (IEEE 802.3af))
- Port 4 supports PSE voltage detection (1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt) [%VAR%]
- WiFi 2.4G (IEEE802.11b/g/n)
- Lithium battery 7500mAh

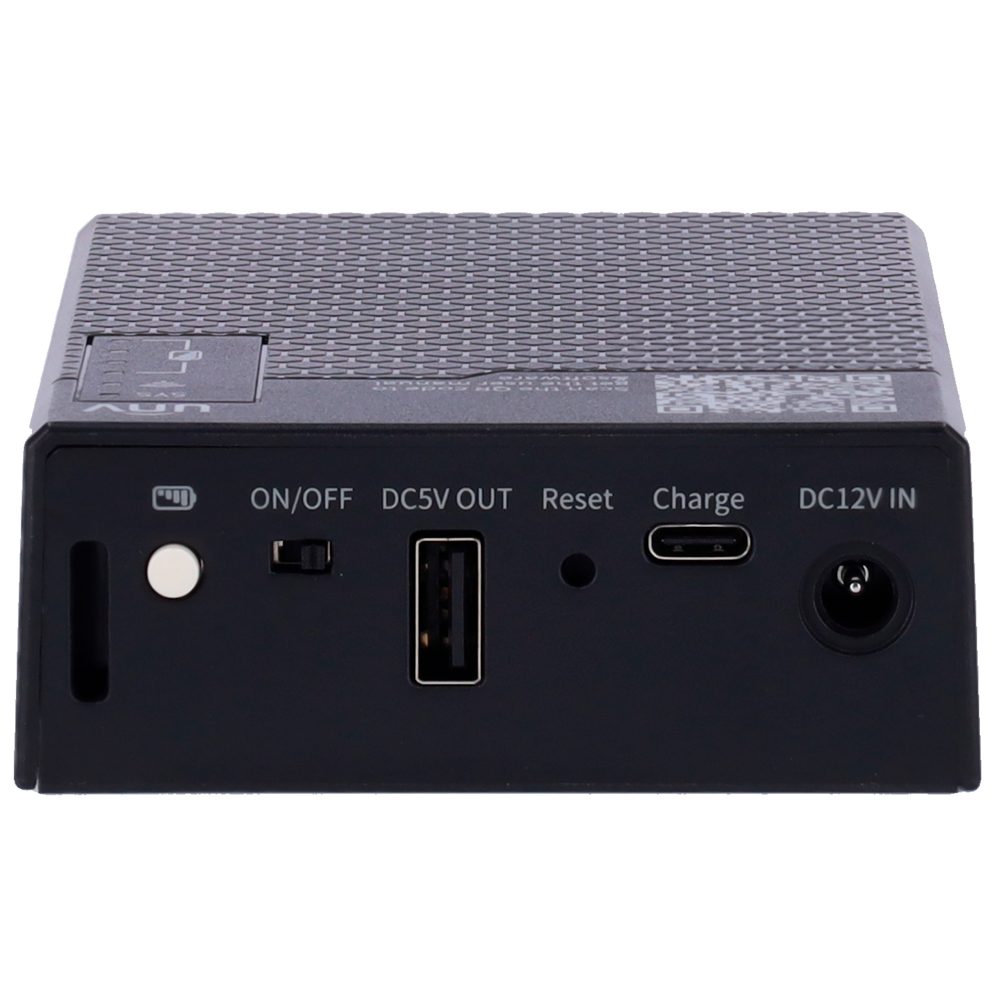

- DC power outputs 12V,1A/ 5V ,1A and USB-A
- With reset button
Specifications
| Brand | Uniview |
| Battery Capacity | 7500mAH (Lithium Battery 18650) (Lithium Battery [%VAR%]) |
| Communication | WiFi, RJ45 10/100/1000M 4 X RJ45 10M/100M Base-TX Ethernet Port 1 supports POE (IEEE802.3af) Output Port 4 supports PSE Voltage Test |
| WiFi | 2.4G Wi-Fi (IEEE802.11b/g/n) |
| Test Voltage | 1 x PSE test Voltage (PSE voltage sensing range: 1V~56 V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt) 1 x DC test voltage (DC voltage detection range): 1V~56 V) |
| Input | 1 x DC 5V/2A max, Type C |
| Output | 1 x PoE Port (Powers a camera with the device's own battery) 1 x DC 12V/1A 1 x USB 5V/1A, TypeA |
| LED status indicator | System, WIFI and Battery |
| Temp. operation | -20℃~60℃, Humidity: ≤95% RH |
| Dimensions / Weight | 130 (Al)× 85 (W)× 33 (D) mm |
In the box
- Uniview CCTV Tester
- User instructions
