UV-IPC94144SFW-X25-F40C
Ga direct naar de productinformatie
UV-IPC94144SFW-X25-F40C

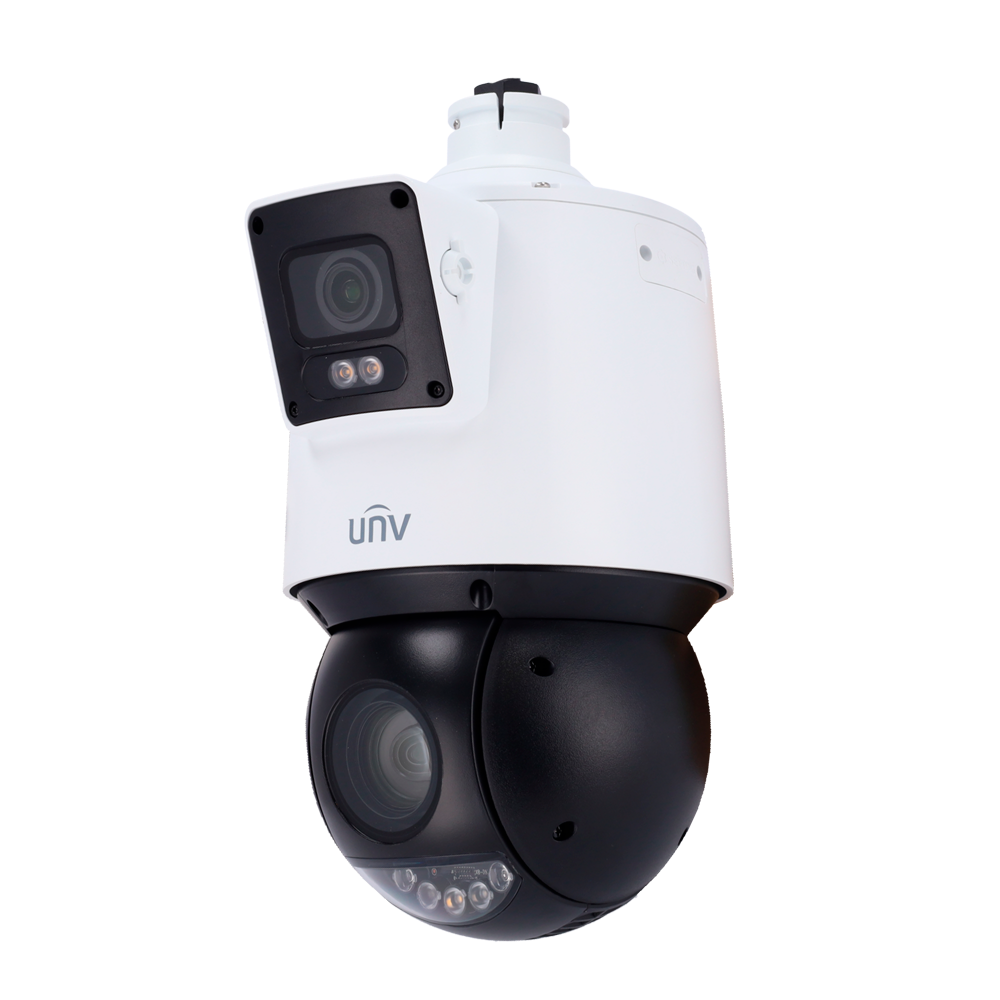

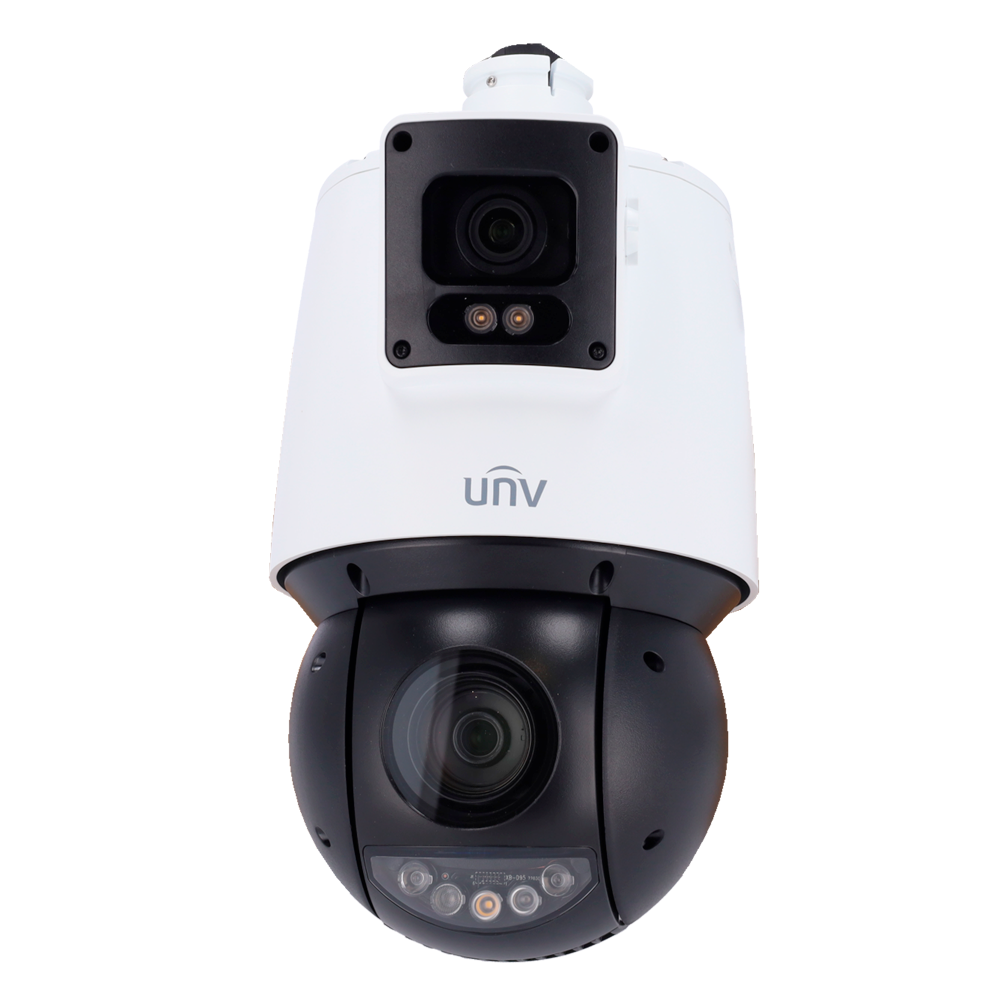

- Dual-lens IP camera 4 Megapixel
- Prime range
- 1/2.7" - 1/1.8" CMOS
- PTZ Lens 4.8~120mm (25X) | Fixed Lens 4mm
- Audio, PoE+, Micro SD.
- WEB, CMS Software, Smartphone and NVR
- UNIVIEW
- Dual-Lens IP Camera
- Prime range
- PTZ 1/2.7"CMOS
- 4 Megapixel (2688x1520)
- Varifocal PTZ lens 4.8~120mm
- IR PTZ range 100 m
- 1/1.8"CMOS fixed lens
- 4 Megapixel (2688x1520)
- 4mm fixed lens
- White light range 30 m (full-color)
- Smart Features
- Ultra compression 265/H.265/H.264
- RJ-45 10/100 BaseT
- PoE+ IEEE802.3at
- Weatherproof IP66
- WDR 120dB
- Audio
- SD card recording
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | UNIVIEW |
| Image sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 4 Megapixel (2688x1520) |
| Minimum illumination | Colour:0.0005 lux (F1.0, AGC ON) L. Fixed Colour:0.003 lux (F1.5, AGC ON) PTZ |
| Infrared lighting | IR PTZ (100m) |
| Lighting White Light | L. (30m) mm fixed |
| Compression | Ultra265/H.265/H.264/MJPEG |
| Lens | PTZ - 4.8~120mm (Optical zoom 25X) L. Fixed - 4mm |
| Range performance | 4 mm | 4.8 ~ 120 mm D: 90 m | 123.8m ~ 2475.0m O: 36 m | 49.5m ~ 990.0m R: 18 m | 24.8m ~ 495.0m I: 9 m | 12.4m ~ 247.5m |
| Image improvements | BLC, HLC, WDR, 2D/3D DNR, Smart IR, Privacy Masking, ROI |
| Intelligent functions | Supports false alarm filtering, line crossing, intrusion detection, entrance area detection, exit area detection, people counting, and crowd density monitoring. |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: -15°~90° |
| Manual speed | Horizontal: 0.1° ~ 80°/sec, Vertical: 0.1° ~ 80°/sec |
| Speed between Presets | Horizontal: 80° /s, Vertical: 80° /s |
| Preset positions | 1024 preset |

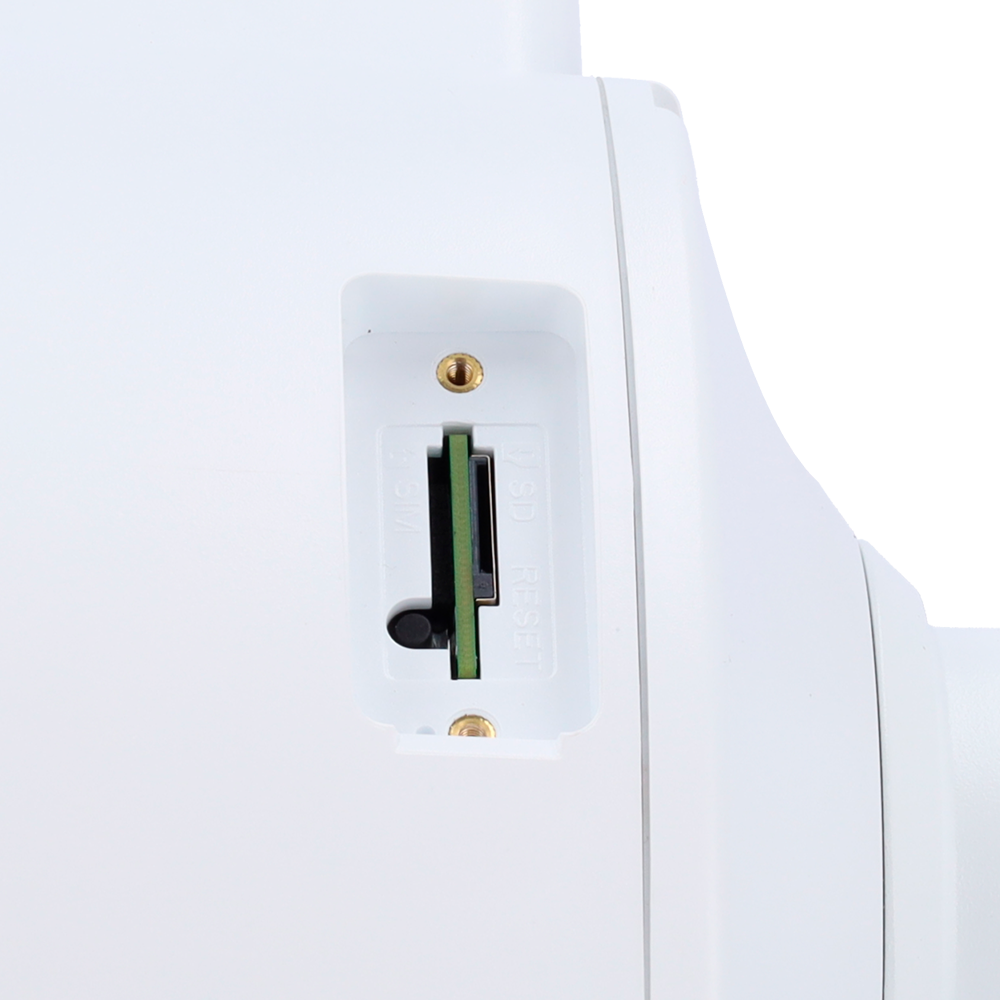

| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Alarms | 2 inputs / 1 relay |
| Audio | 1 input / 1 output |
| Audio Compression | Compression G.711U,G.711A |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | EZStation Web Browser, Smartphone App and PC Software |
| Power | DC 12 V / 24W / PoE+ (IEEE 802.3at) |
| Temp. operation | -40º C ~ +70º C |
| Degree of protection | Waterproof IP66 / Surge protection |
| Dimensions (without bracket) | Φ163 x 304mm |
| Weight (without bracket) | 2.27 Kg |
In the box
- Uniview Motorized IP Dome Camera
- Installation material
- CD with software and instructions
